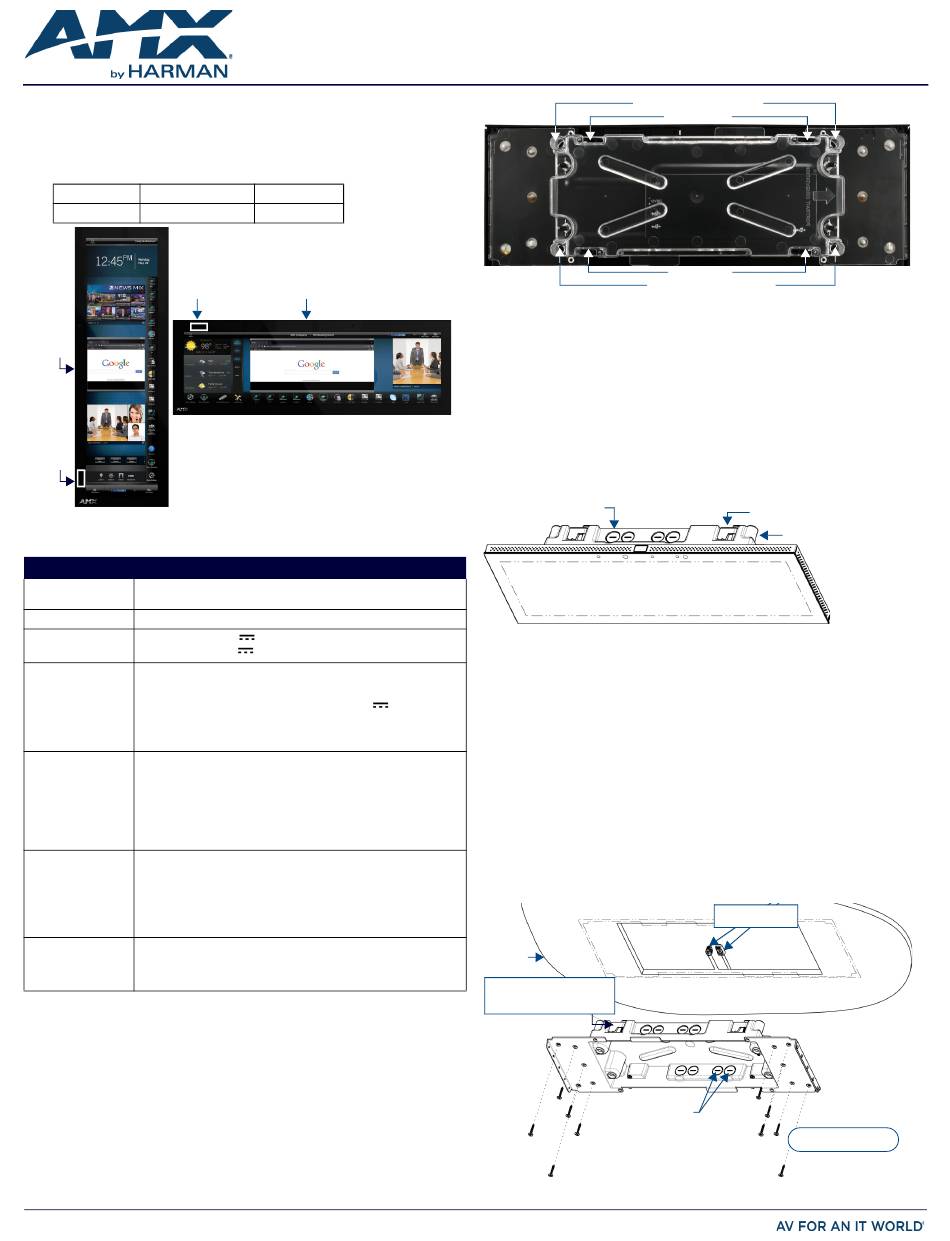

Harman AMX MXD-1901-PAN Quick Start Manual

Overview

MXD-1901-PAN 19.4" Modero X Series
G5 Graphic Engine to provide fast and smooth animations and transitions, as well as the Quad
Core Processor. These panels feature a panoramic capacitive multi-touch screen, and are
hardware-ready for support of Near Field Communication™ (NFC) Technology.
The MXD-1901-PAN is available in Portrait and Landscape layouts:
Portrait MXD-1901-PAN-P
Landscape MXD-1901-PAN-L
NFC Sensor
Sleep
Button
NFC
Sensor
MXD-1901-PAN-P
FIG. 1 MXD-1901-PAN-P/L (PORTRAIT AND LANDSCAPE)
Product Specif ications
MXD-1901-PAN SPECIF ICATIONS
Dimensions (HWD) • Landscape: 6 7/8" x 20 3/8" x 11/16" (175mm x 519mm x 19mm)
• Portrait: 20 3/8" x 6 7/8" x 11/16" (519mm x 175mm x 19mm)
Weight 6.9 lbs (3.13 Kg)
Power Consumption
• Full-On: 35 W (13.5V
• Standby: 7 W (13.5V
External Power Requires one of these AMX power sources (not included):
Supply Required • PSR4.4 Power Supply, 4.5A, 3.5mm Phoenix with Retention Screws
(FG423-46)
• PSN4.4 Power Supply, 4.5A, 3.5mm Phoenix, 13.5V
(FG423-45)
• MXA-MPL Modero X Series Multi Preview Live (FG5968-10)
• MXA-MP Modero X Series Multi Preview (FG5968-20)
Certifications • FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• UL 60950-1
• RoHS/WEEE compliant
Environmental • Temperature (Operating): 32° F to 104° F (0°C to 40°C)
• Temperature (Storage): 4° F to 140° F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation:
On: 119.4 BTU/hr
Standby: 23.9 BTU/hr
Included Accessories • Locking 2-pin Phoenix mate (41-0002-SA)
• MXA-USB-C, USB Port Cover Kit (FG5968-18)
• MXA-CLK, Modero X Series Cleaning Kit (FG5968-16)
• Installation Template 19.4" (68-5968-02)

MXD-1901-PAN Installation

• For more detailed installation instructions including important notes on thermal
concerns with Rack and Wall installations, refer to the X-Series-G5 Touch Panels
MXD/T-1901-PAN & MXD/T-2001-PAN Instruction Manual (available to view/download
from www.amx.com).
• Detailed specifications drawings for the MXD-1901-PAN are available to download from
www.amx.com.
The MXD-1901-PAN may be installed directly into a solid surface environment, using either
solid surface screws or the included locking tabs for different mounting options. Once
installed, the MXD-1901-PAN is contained within a clear outer housing known as the Backbox.
The Backbox is removed to install it into a wall, or when using the optional Rough-In Box
accessory(FG039-15).
Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary
method for securing the Backbox to the surface. For thin walls or solid surfaces, use mounting
screws (not included).
MXD-1901-PAN
®
G5 Panoramic Wall Mount Touch Panels feature the
FG5968-42
FG5968-43
Sleep Button
MXD-1901-PAN-L
, 2.6A)
, 0.52A)
19.4" Modero X
FIG. 2 MXD-1901-PAN BACKBOX

Installing the MXD-1901-PAN Into a Wall

The MXD-1901-PAN comes with a clear plastic Backbox (FIG. 2) designed to attach the panel
to most standard wall materials. This Backbox has four locking tabs (2 on top, 2 on bottom) to
help lock the Backbox to the wall. These locking tabs are only extended AFTER the Backbox is
inserted into the wall.
• When installing the Backbox, make sure that the assembly is in the correct position and
in the correct place. Once the locking tabs are extended and locked into place, removing
the Backbox may be difficult without having access to the back of the wall or causing
damage to the wall.
• In order to ensure a stable installation of the MXD-1901-PAN, the thickness of the wall
material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches
(2.22cm). The mounting surface should also be smooth and flat. The Backbox also has
four slots for accepting the temporary mounting posts mounted on the back of the
device.
Backbox knockouts (X8)
MXD-1901-PAN (LANDSCAPE)
FIG. 3

Installing the Backbox

Since the cutout for the Backbox is off-center from the edges of the touch panel, use the
included Installation Template (68-5968-02) to ensure proper placement. The template is
marked on one side with directions for both landscape and portrait installations to ensure that
(discontinued)
the touch panel and Backbox are properly aligned.
WARNING: Using the Installation template to select the f inal placement of the Backbox is highly
recommended. The outside edges of the template are the same dimensions as the touch panel,
which allows you to troubleshoot possible conflicts with wall edges, doors, and other potential
obstacles.
1. Prepare the area by removing any screws or nails from the drywall before beginning the
cutout process.
2. After ensuring proper placement, cut out the mounting surface for the Backbox, using
the (included) Installation Template as a guide.
CAUTION: Making sure that the actual cutout opening is slightly smaller than the provided
dimensions is highly recommended. This provides a margin of error if the opening needs to
be expanded. Too little wall material removed is always better than too much.
3. Thread the incoming cables from their terminal locations through the surface opening
(see FIG. 4 on reverse).
Leave enough slack in the wiring to accommodate any re-positioning of the panel.
Wall
4X Installation Clamp
For Wall Thickness
.37 [12.01] to .98 [25.01]
FIG. 4 MXD-1901-PAN BACKBOX INSTALLATION (LANDSCAPE)
QUICK START GUIDE
®
Series G5 Panoramic Wall/Flush Mount Touch Panel
Temporary Mounting Posts
Locking Tabs
Locking Tabs
Temporary Mounting Posts
Locking tabs (X4)
Cables routed to
wall opening
8X Knock Outs
Remove For Cable
Routing As Needed
Backbox
Mounting screws
placement (optional)
