Summary of Contents for Defy DBO774-Black

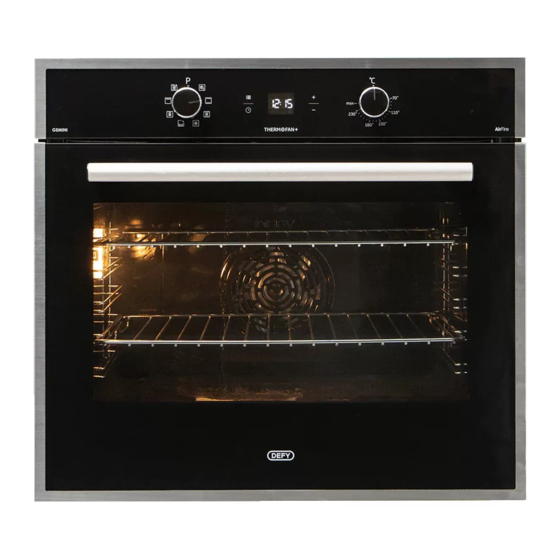

- Page 1 DBO774-Black DBO775-Mirror OVEN GEMINI PETIT CHEF PLUS MULTIFUNCTION Page 1 Cooking Instruction manual Part number: 074226...
- Page 2 Dear Customer, Your new Defy oven was manufactured in a state of the art facility and has passed the strictest quality control procedures. Please read this manual carefully before using your oven for the first time and then store it within easy reach for future reference.
-
Page 3: Table Of Contents
Contents 1. Important Safety Instructions 4. How to use the oven General information about baking, General safety roasting and grilling Electrical safety How to operate the electric oven Appliance safety Safety when working with electricity 6 Operating modes Intended use Using the oven clock Safety for children Activating the keylock... -
Page 4: Important Safety Instructions
1. Important safety instructions Do not operate the appliance if This section contains safety • it is defective or has any visible instructions that will help you damage. avoid risk of injury and damage. Make sure that the appliance All warranties will become void if •... -
Page 5: Appliance Safety
If the supply cord is damaged, it In case of any damage, switch • • must be replaced by the off the appliance and manufacturer, its service agent disconnect it from the mains. To or similarly qualified persons in do this, switch off the circuit order to avoid a hazard. -
Page 6: Safety When Working With Electricity
Keep all ventilation slots clear Ensure the appliance is • • of obstructions. switched off before replacing Do not heat closed tins and the lamp to avoid the possibility • glass jars in the oven. The of an electric shock. pressure that would build-up in Do not carry out any repairs or •... -
Page 7: Intended Use
To prevent a fire hazard Safety for children Ensure the plug fits into the Electrical appliances are • • socket well so as not to cause a dangerous to children. Keep spark. children away from the Do not extend or cut the power appliance when it is operating •... -
Page 8: General Information
Tray Accessories may Handle be purchased from Defy spares. Door Roast pan Wire Shelf Used for pastries, large roasts, juicy dishes, and for Used for roasting and for placing food to be baked, collecting fat while grilling. -
Page 9: Technical Specifications
Placing the wire shelf and tray onto the wire racks properly It is important to place the wire shelf and/or tray onto the rack properly. Slide the wire shelf or tray between the 2 rails and make sure that it is properly fitted before placing any food on it. -
Page 10: Installation
3. Installation The appliance must be installed by a qualified person Do not install the appliance next to in accordance with the regulations in force. refrigerators or freezers. The heat emitted Installation is the buyer’s responsibility. by the appliance will lead to an increased energy consumption of cooling products. -
Page 11: Oven Installation
Oven installation Insert the oven into the cupboard. • Open the door to expose the fixing holes in the side trims. • Secure the oven by 4 countersunk screws (fasteners are not supplied). • APERTURE APERTURE 668 H x 700 W x 580 D APERTURE HEIGHT WIDTH... -
Page 12: Installation And Connection
Purchase a standard plastic/metal saddle type Installation and connection bracket, capable of going around the 20 mm diameter The appliance must be installed in accordance with all sprague and with a hole pitch of 38 mm (Plastic) 45 local gas and electrical regulations. mm (Metal), from your local hardware and 2 off 4.2 mm x 12 mm self tapping screws. -
Page 13: First Cleaning Of The Appliance
Electric oven 1.Take all baking trays and the wire shelves out of the oven. 2.Close the oven door. 3.Select Static position. 4.Select the highest grill power; (See section on how to operate the electric oven). 5.Operate the oven for about 30 minutes. 6.Turn off your oven;... -
Page 14: How To Use The Oven
4. How to use the oven General information on baking, roasting and How to operate the electric oven grilling Select temperature and operating mode DANGER: Be careful when opening the oven door as steam may escape. Exiting steam can scald your hands, face and/or eyes Tips for baking Use non-sticky coated appropriate metal plates or aluminum vessels or heat-resistant silicone moulds. - Page 15 Top and bottom heating (Static) • This is steam assisted cleaning and tough stains will need washing liquid. Oven must be in a cold state when steam clean is performed. Turbo Grill Food is heated simultaneously from the top and bottom.
-
Page 16: Using The Oven Clock
Air Fryer mode cooking guide If no cooking setting is made, time of the day cannot be set. SHELF TIME FOOD ITEM MASS °C (MIN) Remaining time will be displayed if Frozen skinny cooking time is set when the cooking cut potato 800g starts. -
Page 17: Activating The Keylock
If you press any key at the end of the Alarm time will be displayed. If the alarm audio warning, the oven will restart time and cooking time are set operating. Turn the temperature knob concurrently, shortest time will be and function knob to "0"... -
Page 18: Cooking Times Table
Rack positions Baking and roasting 1st rack of the oven is the bottom rack. Note: The higher top heat in the new Gemini Oven will necessitate a lower shelf position than previously used in older Gemini models. Cooking times table The timings in the chart below are meant as a guide. -
Page 19: How To Operate The Grill
Tips for baking cake Foods that are not suitable for grilling If the cake is too dry, increase the temperature by 10° create a fire risk. Only grill food which C and decrease the cooking time. If the cake is wet, is suitable for intensive grilling heat. -
Page 20: Maintenance And Care
5. Maintenance and care General information • To prevent the wire grill and tray inside the oven • Clean the appliance thoroughly after each use, from damaging the oven door, place a strip of making it easier to remove cooking residues and cardboard onto the inside of the oven door that helps prevent these from burning on the next use lines up with the position of the trays. -
Page 21: Replacing The Oven Light Bulb
2. Using a screwdriver remove both screws at the top Oven light of the door profile (one on each side). The oven light is switched on by the multifunction 3. Remove the door profile and carefully take out the selector switch and switches off when the knob glass. -
Page 22: Troubleshooting
• Damage caused by moving the appliance. If you have followed the instructions and still have a problem, contact the nearest Defy Technical Support Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it. -
Page 23: Branches
P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O. -
Page 24: Warranty
8. Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
