OVEN DEFY SLIMLINE 600STE
Record in the space below the listed information for future reference. The rated current is
printed on the serial number label attached to the oven side trim.
SERIAL NUMBER...............................................................................................
DATE OF PURCHASE..........................................................................................
PURCHASED FROM............................................................................................
.........................................................................................................................
Page 1
Users Manual
The manufacturer strives for continuous
improvement. For this reason, the text and
illustrations in this manual are subject to change
without notice.
8100030100
DBO466
(Marketing code)
Part Number: 0000069195
(
SAP Code)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Defy SLIMLINE 600STE
Summary of Contents for Defy SLIMLINE 600STE
- Page 1 8100030100 SAP Code) DBO466 (Marketing code) OVEN DEFY SLIMLINE 600STE Users Manual Record in the space below the listed information for future reference. The rated current is printed on the serial number label attached to the oven side trim. SERIAL NUMBER…………………………………………………………………………………..
-
Page 2: Table Of Contents
Initial heating Dear Customer, Your new Defy oven was manufactured in a state of the art facility and has passed the strictest quality control procedures. Please read this manual carefully before using your oven for the first time and then store it within easy reach for future reference. -
Page 3: Important Safety Instructions
1. Important safety instructions This section contains safety instructions that If the supply cord is damaged, it must be will help you avoid risk of injury and damage. replaced by the manufacturer, its service All warranties will become void if you do not agent or similarly qualified persons in follow these instructions. -
Page 4: Intended Use
Keep ventilation slots clear Intended use obstructions. The appliance must only be used for Do not heat closed tins and glass jars in domestic use and for the purposes for which the oven. The pressure that would build-up it was designed. Commercial use will void in the tin/jar may cause the tin/jar to burst. -
Page 5: General Information
2. General Information Overview Control panel Wire shelf Tray Handle Door Page 5... -
Page 6: Technical Specifications
Technical Specifications Voltage / frequency 220-240V~ 50 Hz Maximum power consumption 2.1 kW Amperage External dimensions (height / width / depth) 605 mm x 595 mm x 565 mm Installation dimensions (height / width / depth) Refer to page 8** Main oven Multifunction oven Energy efficiency class*... -
Page 7: Installation
3. Installation The appliance must be installed by a Do not install the appliance next to qualified person in accordance with the refrigerators or freezers. The heat regulations in force. Installation is the emitted by the appliance will lead to buyer’s responsibility. -
Page 8: Built In Oven Cut Outs
Built in oven cut outs Eye-level oven installation for model 600 STE Insert the oven into the cupboard. Open the door to expose the fixing holes in the side trims. Secure the oven by 4 countersunk screws (fasteners are not supplied). + _ 3 APERTURE + _ 3... -
Page 9: Installation And Connection
DANGER: Risk of electric shock! Installation and connection Before starting any work on the appliance must installed electrical installation, please accordance with all electrical regulations. disconnect the appliance from the mains supply. Electrical installation Connecting the sprague to the oven This appliance must be earthed and the manufacturer and the seller do not accept WARNING! ELECTRICAL... -
Page 10: Tips For Energy Saving
Tips for saving energy The following information will help you to use your appliance in an ecological way, and to save energy: Use dark coloured or enamel coated cookware in the oven since the heat transmission will be better. While cooking your dishes, perform a preheating operation if it is advised in the user manual or cooking instructions. -
Page 11: First Cleaning Of The Appliance
First cleaning of the appliance Surfaces might get damaged by Smoke and smell may emit for some detergents or cleaning a couple of hours during the materials. initial operation. This is quite aggressive detergents, cleaning normal. Ensure that the room is powders/creams or any sharp well ventilated to remove the objects during cleaning. -
Page 12: How To Use The Oven
4. How to use the oven General information on baking, roasting Fish should be placed on the middle or lower and grilling shelf in a heat-resistant plate. Tips for grilling DANGER: When meat, fish and poultry are grilled, they Be careful when opening the oven quickly brown, develop a crust and do not door as steam may escape. -
Page 13: Multifunction Oven
Multifunction oven The Defy multifunction oven features 4 distinct cooking functions. (described below) These functions may be selected by turning the multifunction selector knob until the required function symbol is displayed at the top of the knob bezel. Symbol Function Oven Light: To switch on the light, turn the selector knob until the light icon, depicted on the knob, is at the top. -
Page 14: Multifunction Oven - Operation
The fan plus the grill element are used desired, an additional tray and shelf may This mode is recommended to reduce be purchased from the nearest Defy Parts shrinkage when grilling meat or fish. Centre so that baking may be done on The oven door must remain closed three trays simultaneously. - Page 15 Recommended shelf positions WARNING: Close oven door during turbo grilling. Hot surfaces may cause burns! Baking guide Thermofan baking may be done on one WARNING: Accessible parts or two baking trays depending on volume. become hot when grilling. Large items: One or two cake tins may Always use oven gloves when be placed as shown and as close to the handling food in the oven and...
-
Page 16: Maintenance And Care
5. Maintenance and care General information Do not use steam cleaners for Clean the appliance thoroughly after each cleaning, there is a risk of an use, making it easier to remove cooking electric shock. residues and helps prevent these from burning on the next use of the appliance. -
Page 17: Removing The Oven Door
Removing the oven door Oven light Lift-off oven door The oven light is switched on by the The oven door may be removed to improve multifunction selector switch and switches oven access during cleaning. off when the knob is returned to 0. Replacing the oven light bulb DANGER: Before replacing the oven lamp, ensure that the... -
Page 18: Troubleshooting
If you have followed the instructions and still have a problem, contact the nearest Defy Technical Support Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it. Never attempt to repair a defective appliance yourself. -
Page 19: Service Centres
0082 Nosso Show Room Tel: 012 377 8300 Av: da Industrias, Parcela No.735 * 735A Pretoria.Service@defy.co.za Machava, Maputo OTHER AREAS ARE SERVICED BY OVER 200 AUTHORISED SERVICE AGENTS. PLEASE CONSULT THE NEAREST REGIONAL DEFY SERVICE CENTRE FOR DETAILS. Page 19... -
Page 20: Warranty
8. Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
Need help?
Do you have a question about the SLIMLINE 600STE and is the answer not in the manual?
Questions and answers

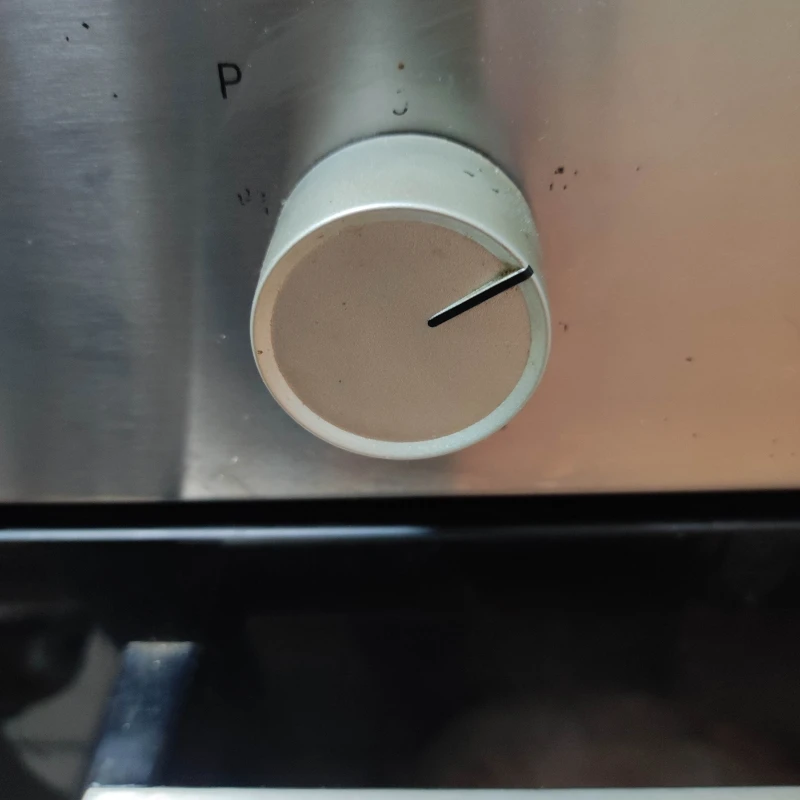

Please can you tell me what the markings should be on the oven knobs ... See pic...
