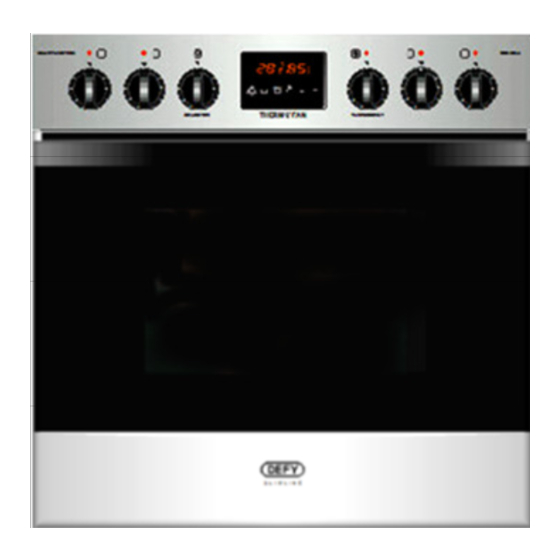

Defy EYE LEVEL 600 MSE Owner's Manual

Slimline multifunction built-in ovens
Hide thumbs
Table of Contents

Advertisement

Quick Links

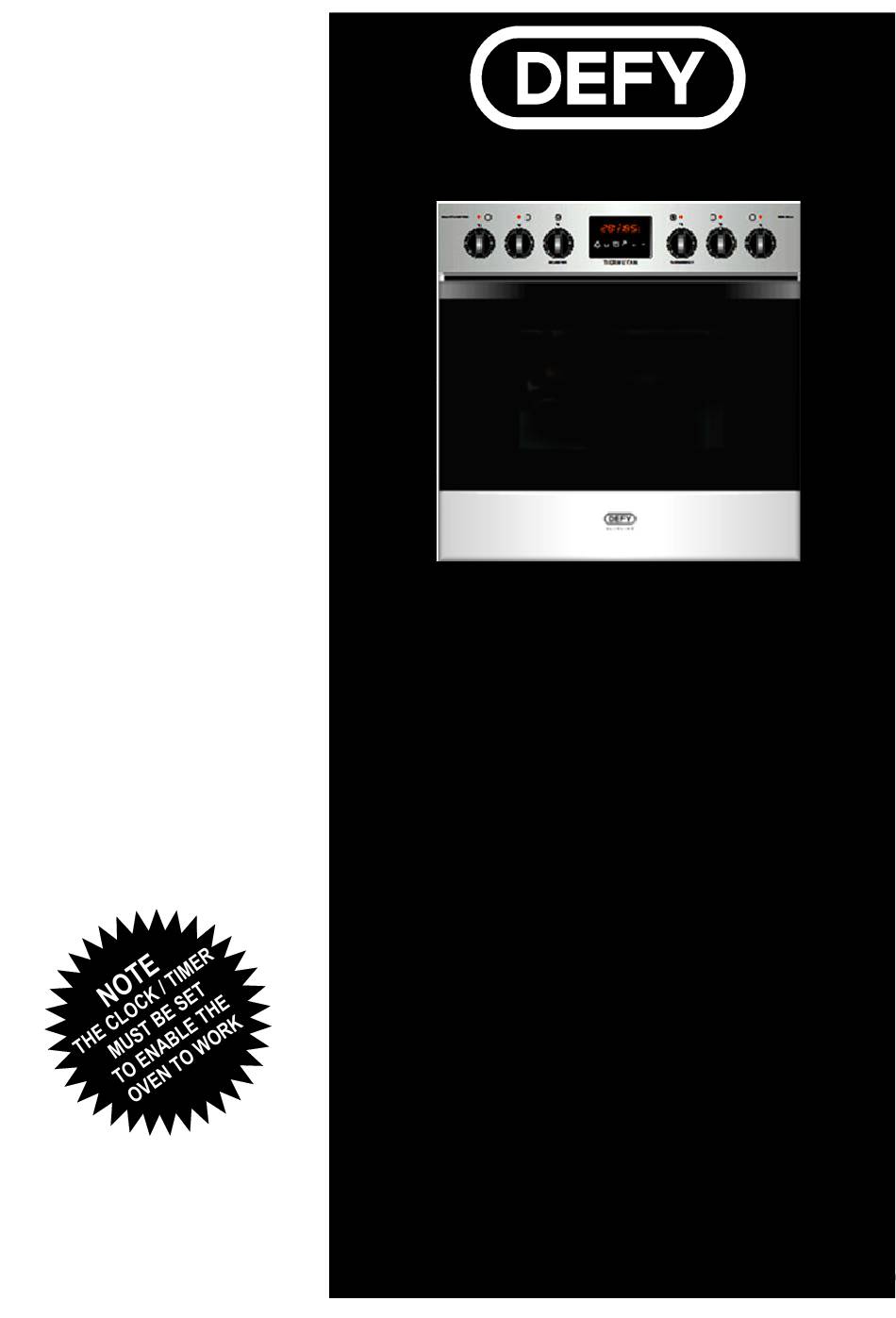

OWNER'S
MANUAL
SLIMLINE
MULTIFUNCTION
BUILT-IN OVENS
EYE LEVEL
600 MSE
DBO 455
UNDER-COUNTER
600 MSU
DBO 456
www.defy.co.za
Part Number 068 519
PAGE 1 OF 24
You can rely on Defy. To simplify
Page 2
Introduction
2
Unpacking
2
Owners responsibility
2
Cupboard design
2
Electrical installation
3
Safety advice
4
Under-counter installation
5
Eye level installation
5
The control panel
6
Automatic oven timer / clock
8
Multifunction oven
9
Multifunction oven - operation
9
Fan only - defrosting
9
Static oven - traditional baking
10
Fan assisted oven
10
Thermofan oven
11
Turbo grilling
12
Conventional grilling
12
Control panel cooling fan
13
Solid plate care guide
14
Solid plates
15
Ceran smooth top
16
Maintenance
17
Cleaning
18
Care guide for Stainless steel
20
Do's and Don'ts
21
Defy Service Centres
22
Warranty
23
Notes
24
Features

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EYE LEVEL 600 MSE and is the answer not in the manual?

Questions and answers

Peter Steytler
February 9, 2025

How do you change the fuse on this stove. Where does it sit.

User image 67a8d5f961f4b
0

Subscribe to Our Youtube Channel

Related Manuals for Defy EYE LEVEL 600 MSE

Summary of Contents for Defy EYE LEVEL 600 MSE

  • Page 1 OWNER’S MANUAL You can rely on Defy. To simplify SLIMLINE MULTIFUNCTION BUILT-IN OVENS EYE LEVEL 600 MSE DBO 455 UNDER-COUNTER 600 MSU DBO 456 Page 2 Introduction Unpacking Owners responsibility Cupboard design Electrical installation Safety advice Under-counter installation Eye level installation...
  • Page 2 3 mm. in both Cupboard design poles. Your Defy oven is designed to give you • A means for disconnection must be years of trouble free service, however it provided in the fixed wiring.
  • Page 3 Safety advice Do not place baking trays, dishes or aluminium • foil directly onto the bottom of the oven. The This section contains safety instructions that will heat accumulation might damage the bottom of help you avoid risk of injury and damage. All the oven.
  • Page 4 Do not discard the hob packaging before first retrieving this manual. • Defy Slimline under-counter ovens may be installed at eye level if so • desired. A wiring extension kit is available from the nearest Defy Service Centre.

  • Page 5: The Control Panel

    Eye-level oven installation. CUPBOARD APERTURE FOR MODEL 600 MSE + _ 3 + _ 3 Aperture 590 H x 565 W x 570 D Aperture Typical section showing + _ 3 ventilation requirements. + _ 3 Aperture Above floor level Floor The Control Panel.

  • Page 6: Automatic Oven Timer / Clock

    Automatic oven timer / clock. 1 = MINUTE MINDER 2 = COOKING PERIOD 3 = STOP TIME 4 = MANUAL CONTROL 5 = SUBTRACT TIME 6 = ADD TIME Setting the time of day When the power is first connected (or after a power failure), the clock display will flash •...
  • Page 7 Autobake (Switching the oven on and off automatically) continued. The automatic control will automatically switch the oven on and the symbol will light up in the clock display. Cooking will commence at the selected temperature and for the selected cooking period. The oven will automatically switch off at the selected stop time and emit an electronic tone for about one minute The volume of tone may be adjusted while it is on, by pressing button 5.
  • Page 8 Multifunction oven The Defy multifunction oven features 6 distinct cooking functions. (described below) These functions may be selected by turning the multifunction selector knob until the required function symbol is displayed at the top of the knob bezel. Element selection...

  • Page 9: Multifunction Oven- Operation

    Multifunction oven– Operation WARNING: Under no circumstances should the bottom bake element be covered with aluminium foil. Nor should a pan or tray be positioned directly above the bake element. Doing so would reflect the heat from the bake element downwards. Heat to the oven would be restricted and overheating of the space below the element would result in damage to the oven enamel.
  • Page 10 Ideally, unused trays and shelves should be left in position to optimise airflow in the oven. If desired, an additional tray and shelf may be purchased from the nearest Defy Parts Centre so that baking may be done on three trays simultaneously.

  • Page 11: Turbo Grilling

    Recommended shelf positions T/F BAKING T/F BAKING T/F ROASTING TURBO & NORMAL GRILLING Baking guide Thermofan baking may be done on one or two baking trays depending on volume. • Large items: One or two cake tins may be placed as shown and as close to the door as •...

  • Page 12: Conventional Grilling

    6 Conventional grilling. The oven door must remain partially open (about 80mm.) when grilling • Use only a wire shelf when grilling as the intense heat could warp the baking tray. • Set the multifunction knob to conventional grill. • Set the oven thermostat to the grill position.
  • Page 13 SHORT PERIOD TO DRY TO INHIBIT CORROSION, PERIODICALLY APPLY TO CONSERVE ENERGYAND AVOID SPILLS SALT-FREE VEGETABLE OIL, WE RECOMMEND SEWING MACHINE OIL OR YOU KEEP A LID ON THE POT. ELECTRICAL HOT-PLATE POLISH, (AVAILABLE FROM DEFY SERVICE CENTRES) PAGE 13 OF 24...
  • Page 14 After cleaning, dry the plates by switching them on for a short while. • To prevent rust, periodically apply some sewing machine oil or electrical hotplate polish • available from Defy Service Centres. Extra attention is required in areas of high humidity or in close proximity to the sea. • Recommendations Use only pots with a solid level base.

  • Page 15: Ceran Smooth Top

    • Clean the hob with a nylon pad and ‘Smooth top cleaner’. A sample tube of cleaner is supplied with the unit and replacements are available from all Defy Service Centres. • If necessary, stubborn spills may be removed using the blade scraper provided.

  • Page 16: Maintenance

    If you have followed the instructions and still have a problem, contact the nearest Defy Technical Support Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it.
  • Page 17 Cleaning. Switch off the electrical power supply before cleaning any part of the oven. General cleaning. Wipe down cabinet, door, control knobs, trims and handles with a hot soapy cloth. • Use only liquid household cleaners and avoid abrasive powders, scouring pads and •...

  • Page 18: Care Guide For Stainless Steel

    Care guide for stainless steel. For models 600MSE and 600 MSU model 600 MSU Stainless steel is not adversely affected by normal household use but because of it’s reputation for durability, it is sometimes assumed to be indestructible, and therefore subjected to misuse or even abuse.
  • Page 19 Buff to shine. Stubborn stains and Use a little Ceran cleaning Repeat several times rather Discolouration. paste. (available from Defy than resorting to a single Service Centres). aggressive cleaning method. Rinse and dry. Grease and fat splatter.
  • Page 20 OVER THE YEARS, DEFY'S SERVICE CENTRES HAVE IDENTIFIED THIS LIST OF DO'S AND DON'TS AS BEING IMPORTANT FOR CUSTOMER SATISFACTION AND SAFETY. PLEASE READ IT AND FAMILIARISE YOURSELF WITH ITS CONTENTS. Don’t Clean your appliance regularly. This Use pots which are smaller than the •...

  • Page 21: Defy Service Centres

    Block A1 Old Mutual Industrial Park. Cnr. D.F.Malan Drive & Moot Str. Hermanstad. 0082. Tel. 012 377 8300 Pretoria.Service@defy.co.za OTHER AREAS ARE SERVICED BY OVER 200 AUTHORISED AGENTS. FOR FURTHER DETAILS PLEASE CONSULT THE NEAREST REGIONAL DEFY TECHNICAL SUPPORT CENTRE PAGE 21 OF 24...

  • Page 22: Warranty

    Warranty This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
  • Page 23 For future reference, record the listed information in the space below. The Serial number may be found on the label attached to the oven side trim. SERIAL No DATE OF PUCHASE PURCHASED FROM DEFY SLIMLINE 600MSU DEFY SLIMLINE 600MSE PAGE 23 OF 24...
  • Page 24 Roast pan and wire rack. Accessories for cooking convenience. You can rely on Defy. To simplify The Manufacturer strives for continuous improvements. For this reason, the text and illustrations in this book are subject to change without notice.
