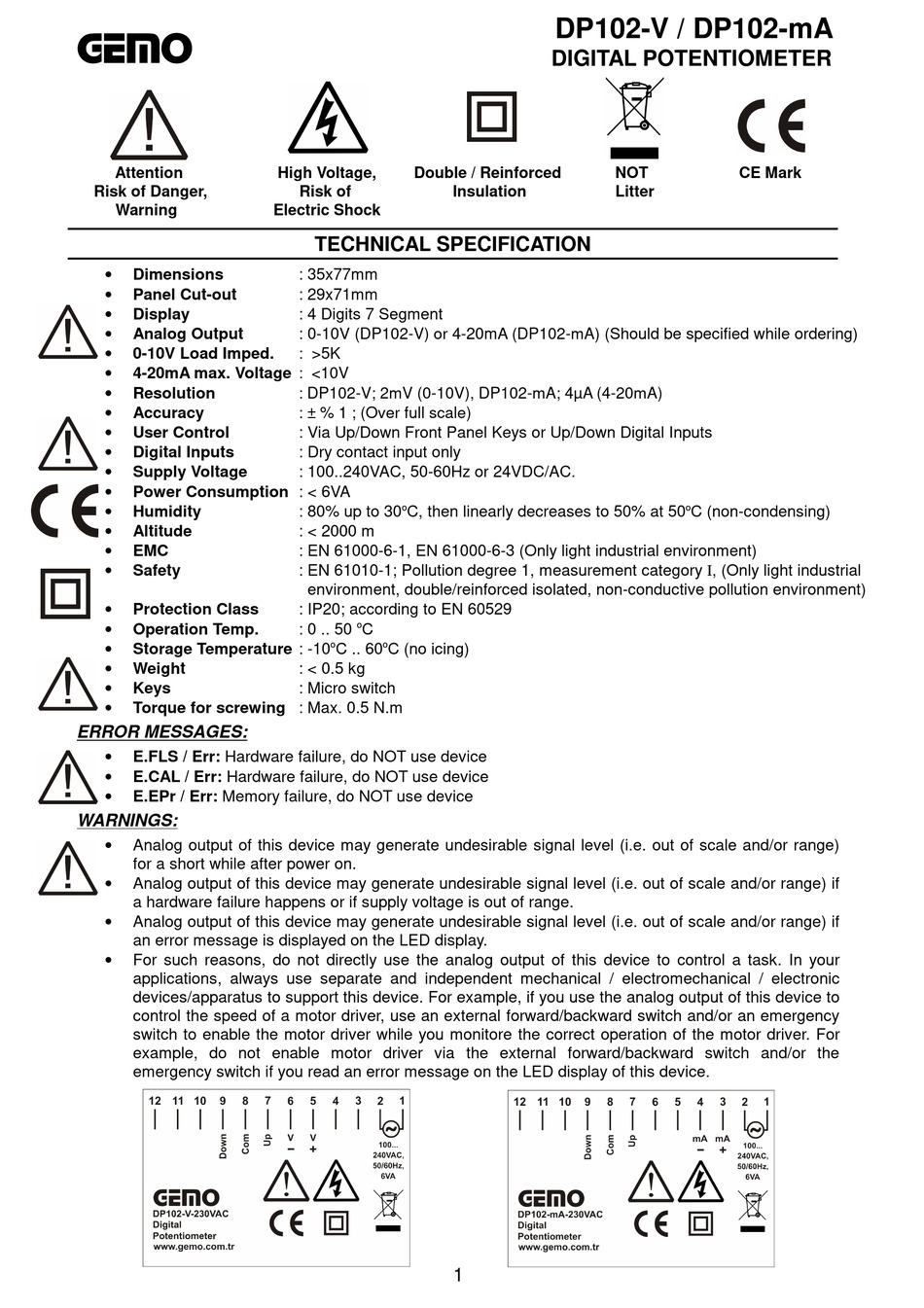

Gemo DP102-V Manual

Gemo DP102-V Manual

Digital potentiometer

Advertisement

Quick Links

GEMO
Attention
Risk of Danger,
Warning
Dimensions
Panel Cut-out
Display
Analog Output
0-10V Load Imped.
4-20mA max. Voltage : <10V
Resolution
Accuracy
User Control
Digital Inputs
Supply Voltage
Power Consumption : < 6VA
Humidity
Altitude
EMC
Safety
Protection Class
Operation Temp.
Storage Temperature : -10
Weight
Keys
Torque for screwing : Max. 0.5 N.m
ERROR MESSAGES:
E.FLS / Err: Hardware failure, do NOT use device
E.CAL / Err: Hardware failure, do NOT use device
E.EPr / Err: Memory failure, do NOT use device
WARNINGS:
Analog output of this device may generate undesirable signal level (i.e. out of scale and/or range)
for a short while after power on.
Analog output of this device may generate undesirable signal level (i.e. out of scale and/or range) if
a hardware failure happens or if supply voltage is out of range.
Analog output of this device may generate undesirable signal level (i.e. out of scale and/or range) if
an error message is displayed on the LED display.
For such reasons, do not directly use the analog output of this device to control a task. In your
applications, always use separate and independent mechanical / electromechanical / electronic
devices/apparatus to support this device. For example, if you use the analog output of this device to
control the speed of a motor driver, use an external forward/backward switch and/or an emergency
switch to enable the motor driver while you monitore the correct operation of the motor driver. For
example, do not enable motor driver via the external forward/backward switch and/or the
emergency switch if you read an error message on the LED display of this device.
High Voltage,
Double / Reinforced
Risk of
Electric Shock
TECHNICAL SPECIFICATION
: 35x77mm
: 29x71mm
: 4 Digits 7 Segment
: 0-10V ( DP102-V) or 4-20mA ( DP102-mA ) (Should be specified while ordering)
: >5K
: DP102-V; 2mV (0-10V), DP102-mA; 4µA (4-20mA)
: ± % 1 ; (Over full scale)
: Via Up/Down Front Panel Keys or Up/Down Digital Inputs
: Dry contact input only
: 100..240VAC, 50-60Hz or 24VDC/AC.
o
: 80% up to 30
C, then linearly decreases to 50% at 50
: < 2000 m
: EN 61000-6-1, EN 61000-6-3 (Only light industrial environment)
: EN 61010-1; Pollution degree 1, measurement category I, (Only light industrial
environment, double/reinforced isolated, non-conductive pollution environment)
: IP20; according to EN 60529
o
: 0 .. 50
C
o
o
C .. 60
C (no icing)
: < 0.5 kg
: Micro switch
DP102-V / DP102-mA
DIGITAL POTENTIOMETER
NOT
Insulation
Litter
1
CE Mark
o
C (non-condensing)

Advertisement

loading

Summary of Contents for Gemo DP102-V

  • Page 1 Panel Cut-out : 29x71mm • Display : 4 Digits 7 Segment • Analog Output : 0-10V ( DP102-V) or 4-20mA ( DP102-mA ) (Should be specified while ordering) • 0-10V Load Imped. : >5K • 4-20mA max. Voltage : <10V •...
  • Page 2 Use insulated cable end-sleeves at the end of cables screwed to the device connector terminals. ● Maximum torque for screwing; 0.5 N.m. ● Please check www.gemo.com.tr for latest device and documentation updates regularly. All updates and all ● information are subject to change without notice. GENERAL SPECIFICATION This device is designed for basic control applications only in industrial environments.
  • Page 3 For; UP.k.F / UP.i.F = o.inc, dn.k.F / dn.i.F = o.dec, End of Prog. adjusted value is saved as new SET value. Gürbüzoğlu Elektronik San. ve Tic. Ltd. Şti. http://www.gemo.com.tr Çamlıtepe Cad. No:297 / 3-4 Siteler, Ankara, Türkiye e-posta: info@gemo.com.tr Tel: +90-312-3503900, Fax: +90-312-3511117...
  • Page 4 Use only a dry and clean non-abrasive cloth. Before cleaning, disconnect the power supply and mains connections. Gürbüzoğlu Elektronik San. ve Tic. Ltd. Şti. http://www.gemo.com.tr Çamlıtepe Cad. No:297 / 3-4 Siteler, Ankara, Türkiye e-posta: info@gemo.com.tr Tel: +90-312-3503900, Fax: +90-312-3511117...
