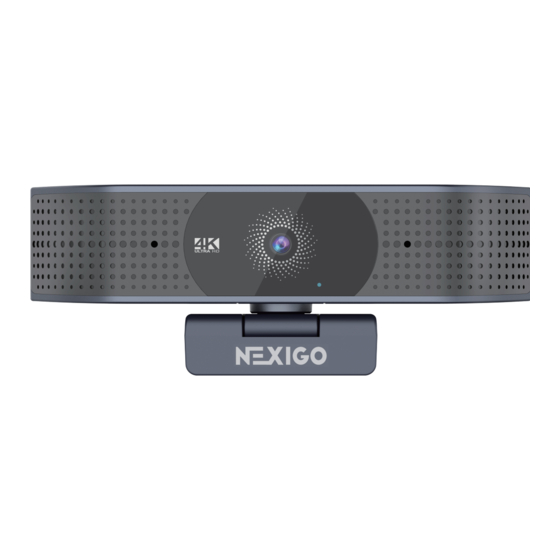

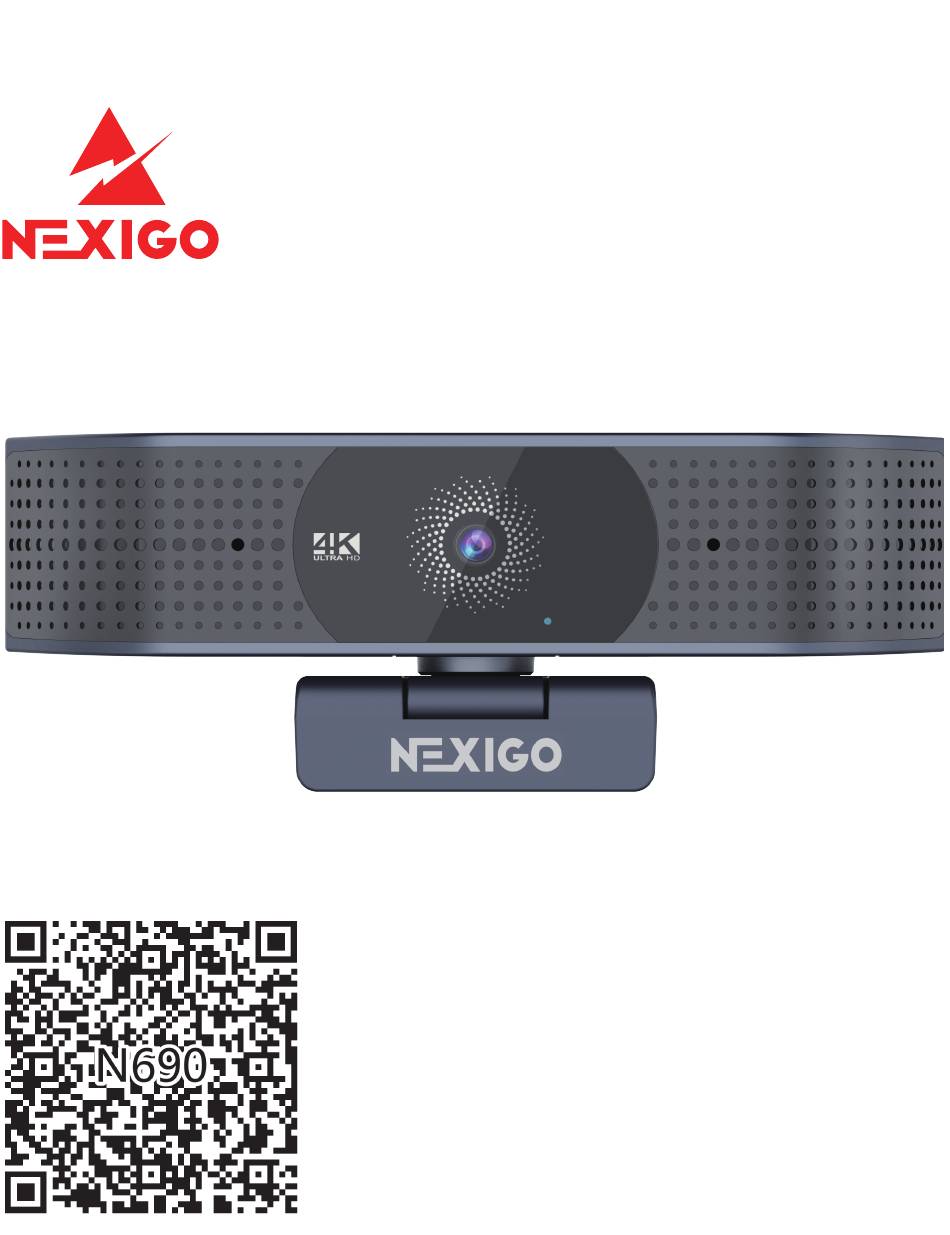

- Page 1 User Manual-N690 4K UHD AutoFocus Webcam Scan the QR code or visit our link to download the lastest manual here: www.nexigo.com...
-
Page 2: Contact Information
FREE additional 1-year warranty! From all of us here at NexiGo, we want to welcome you again to the family. We thank you deeply for your trust and for your business. We know you'll love it here. We look forward to serving you again in the near future. - Page 3 1. UHD Lens 4. Flexible Clip/ Base 2. Noise Reduc�on Microphone 5. 1/4" Tripod Screw Hole 3. Power Indicator 6. Type-C Port 3840X2160@30fps, 1920X1080@30fps, 1280X720@30fps etc. Video resolution Sensor 1/3.0 inch 8MP CMOS Image Sensor YUY2/MJPG Video format Up to 80 degree Field of view Chat so�ware: Skype, FaceTime, Zoom, Yahoo!, Messenger, Hangout Streaming so�ware: Open Broadcaster So�ware and Xsplit...
- Page 4 Setting Up Your Webcam 1. Place/Position your webcam 2. Connect the webcam to your computer using the USB cable Note: Make sure you are connected to your network before starting the setup. Note: If you cannot use the camera within other apps, you will need to enable access. •...
- Page 5 Scroll through the list of programs there until you get to the “C” section, the Camera application will be listed there. To view your webcam video you may need to select the NexiGo camera from the list of other devices. At the top right or left of your screen click the cycle camera icon (the arrow chasing itself, not the gear), and keep switching until you get to the NexiGo webcam.
- Page 6 Q1: How do I know if my camera is being recognized by the system? A: Connect the camera to any USB 2.0 or USB 3.0 port. It will take a few seconds for the camera to be recognized after it is connected to the system. To ensure the camera has installed correctly on a Windows computer;...
- Page 7 This can cause the frame rate to drop to 2160p / 20fps, or possibly even lower. Q3 : Why is my NexiGo webcam unable to record audio? Why do I hear echoing during video calls? A: This could be due to an issue with the selected input audio device. To check this in Windows, go to Control Panel >...
- Page 8 For Windows: Skype: Click Settings, select Audio & Video, then click Webcam settings. You can adjust any image parameter you want according to your needs. AMCap: Click Options, select Video Device, then click Properties.
- Page 9 Q5: How can I use my webcam in chatting software like Skype or FaceTime? A: For FaceTime on Mac: If your Mac has a built-in camera already, open FaceTime, click video on the top left of your screen, and choose your NexiGo webcam from the list of options to use it.
- Page 10 Once you have started Skype, select Preferences from the Skype menu in the top left corner of your screen (like the photo below). In the Audio / Video tab, select your NexiGo webcam from the list of options to use it.
- Page 11 In the Skype main window, click the arrow next to the Options button , and select Tools > Audio Device Settings. Under Audio Device Settings choose your NexiGo Webcam. HD Webcam Click the green arrow next to the Speaker icon to hear a sample tone and drag the slider if you need to adjust the volume.
- Page 12 If you don't hear your audio repeated back to you, use the drop-down menu to select your NexiGo Webcam microphone, or click No to switch microphones until you hear the replay. Click Yes when your microphone is set up.
- Page 13 Q6: Why is my video not in 2160p in my video calling application? A: Check the video output settings in your video capture software, these may be set to a lower capture format. There are various constraints on the system that could impede the ability to attain a 2160p video calling session.
- Page 14 Q9: Why the microphone volume is too low? A: The most likely reasons for this are that the webcam is not connected properly, or is not positioned for best sound quality. To adjust microphone settings in Windows 10: (1) Go to Settings> System> Sound. ) In Input, ensure your microphone is selected under Choose your input device, then select Device Properties.
