- Page 1 INSTRUCTION MANUAL Oil Free Vacuum Pump / Compressor Model No. Tech support Rocker 430...
- Page 2 Important Notice This instrument is designed for laboratory usage only. Please read this manual carefully before installing and operating. The instrument shall not be modified in any way. Any modification will void the warranty and may result in potential hazard. We are not responsible for any injury or damage caused by any non-intended purposes and modifying the instrument without authorization.
- Page 3 14. Please discard packing material according to local related regulations. 15. Operating condition (a) Ambient temperature: 5~ 40°C (b) Relative humidity: 80% RH Max. (c) Power supply: 100-120V~, 50/60Hz or 200-240V~, 50/60Hz (d) Altitude: up to 2000 m (e) Pollution degree: II (f ) Indoor use *Warning: While operating as a compressor, please ensure a 20-min break while every 30-min working period to prevent the instrument shutdown from overheating.

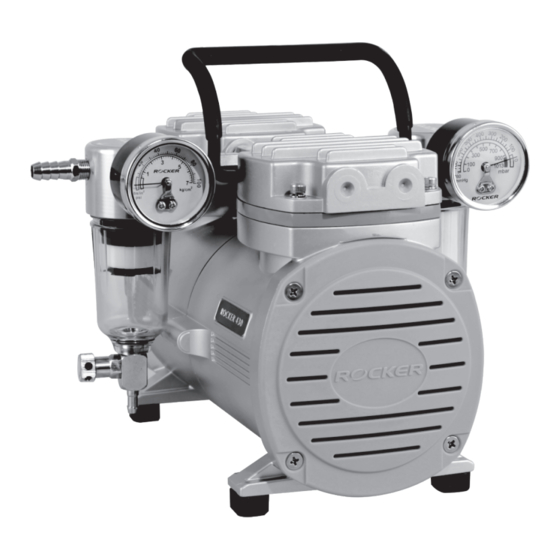

- Page 4 Main Part Diagram Rocker 430 Position Designation Position Designation Power Switch Moisture Trap Handle Vacuum Regulator Air Inlet (Vacuum Side) Pressure Gauge Air Outlet (Pressure Side) Filter Cartridge Vacuum Gauge Moisture Trap Prote Filter Cartridge Pressure Regulator (Drain Valve) * The reference point of both vacuum and pressure gauges is atmospheric pressure.
- Page 5 Operation Operation A. Press power switch (1) to activate the instrument after making sure all tubing are well connected. As a vacuum pump, a cold trap or trap bottle is recommended to connect before air inlet (3) ● while amount of moisture and steam exists. B.
- Page 6 Maintenance 1. Please remove the liquid in the moisture trap after every use and keep pumping the air for at least 2 minutes to withdraw the residual steam. 2. The instrument is not autoclavable. Please clean the surface by pure water or 75% ethanol. 3.
- Page 7 Ordering Information 167430-11(22) Rocker 430 Vacuum Pump / Compressor, AC110V,60Hz (AC 220V,50Hz) 167301-06 Moisture trap / Vacuum regulator (vacuum side) 167301-07 Prote filter cartridge (vacuum side) 167320-06 Moisture trap/ Pressure regulator (pressure side) 167300-07 Filter cartridge (pressure side) 167430-62 Rocker 430 repair kit...
- Page 8 Rocker Scienti c Co., Ltd. Tel: +886-2-26033311 Fax: +886-2-26036622 E-mail:export@rocker.com.tw https://www.rocker.com.tw...
