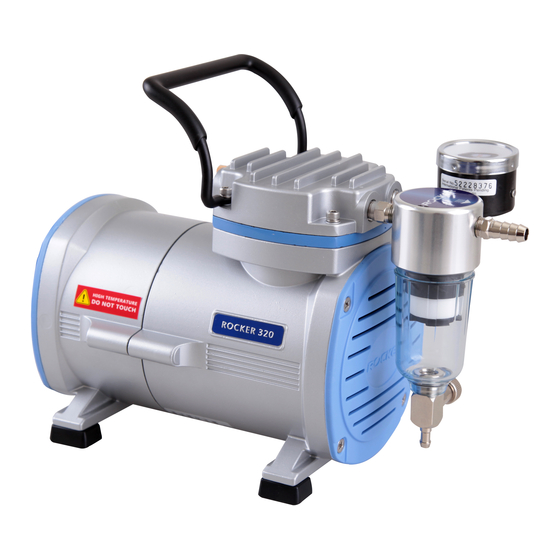

- Page 1 Rocker 320 Oil-Free Compressor...
- Page 3 Important notice This instrument is designed for laboratory usage only. Please read this manual carefully before installing or operating this equipment. The instrument shall not be modified in any way. Any modification will void the warranty and may result in potential hazard. We are not responsible for any injury or damage caused by any non-intended purposes and modifying the instrument without authorization.
- Page 4 Unpacking When unpacking, notice if the Compressor is in good situation. If not, please contact the distributor or contact us by e-mail: export@rocker.com.tw immediately for assistance. Assembly & Disassembly diagram Position Designation On/Off switch Air outlet Filter cartridge Moisture trap...
- Page 5 Please remove the moisture trap by rotating it counterclockwise. Replace the cartridge by the same way. Ordering Information 167320-11 Rocker 320 Compressor, AC110V/60Hz 167320-22 Rocker 320 Compressor, AC220V/50Hz 167320-06 Moisture trap 167300-07 Filter cartridge 167320-62 Repair kit of Rocker 320 EnV2016.07...
