Handheld transmitter
ORIGINAL ASSEMBLY AND
OPERATING INSTRUCTIONS
Original Montageanleitung
Original instructions
Mode d'emploi original
Instrucciones originales
Rojaflex HSR-15
DE
Manuale d'uso originale
EN
Originele gebruiksaanwijzing
FR
Oryginalna instrukcja obsługi
ES
Eredeti összeszerelési útmutató
IT
NL
PL
HUN
HSR-15_V7. 2022-11-07

Advertisement

loading
Need help?

Need help?

Do you have a question about the HSR-15 and is the answer not in the manual?

Questions and answers

Related Manuals for rojaflex HSR-15

Summary of Contents for rojaflex HSR-15

  • Page 1 Handheld transmitter Rojaflex HSR-15 For Rojaflex radio tubular motors and radio receivers ORIGINAL ASSEMBLY AND OPERATING INSTRUCTIONS Eine aktuelle Vollversion der Anleitung finden Sie hier/ Original Montageanleitung Manuale d’uso originale You can find a current full version of the manual here/...

  • Page 2: Table Of Contents

    Herewith declares Schoenberger Germany Enterprises GmbH & Co. KG, Hohenschäftlarn, that the radio system type rojaflex handheld transmitter "HSR-15" complies with the directive 2014/53/ The full text of the EU Declaration of Conformity is available at the following Internet address: www.rojaflex.com/konformitaetserklaerungen.html...

  • Page 3: General Safety Instructions

    Observe the instructions and safety receivers. instructions of the drive/receiver controlled by the radio control as well as the corresponding instructions of the driven roller shutter or sun protection system! www.rojaflex.com...
  • Page 4 Never use defective or damaged at the end of their equipment. useful life and must • Check the motor controlled by the not be disposed of together with normal radio control and the power cable of household waste. the motor for integrity. www.rojaflex.com...
  • Page 5 This applies in particular to information and environment. telecommunications technology devices such as computers and smartphones. In your own interest, please note that each end user is responsible for deleting the data on the old devices to be disposed of! www.rojaflex.com...

  • Page 6: Function Overview

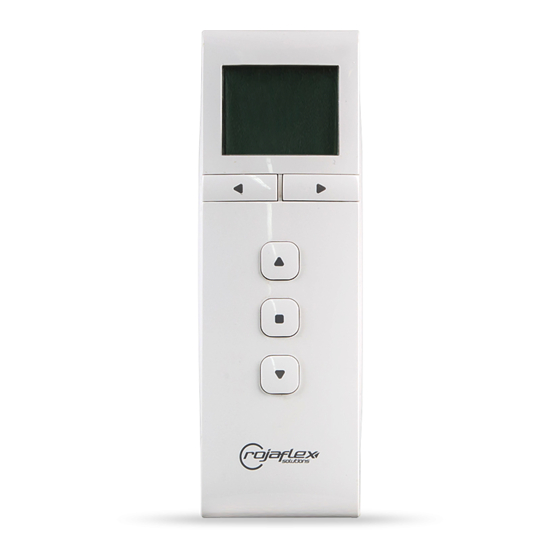

    Programming button 15-channel handheld transmit- Handheld transmitter - back side ter HSR-15 with open cover The K1 and K2 keys can be used to switch between the indi- vidual channels (1-15). *with the „DIP“-switch, depending The channel highlighted in black is active in each case.

  • Page 7: Function Overview Display

    Function overview display LCD - Anzeige The Rojaflex HSR-15 handheld transmitter has a multi-line display. In the upper area, the selected channel (1-15), the roller shutter position display and the up and down commands are displayed. Roller shutter position indicator: 0% = shutter completely open / 100% = shutter completely closed.

  • Page 8: Technical Data / Scope Of Delivery

    Range indoors: approx. 30 m * Channels 15 channels Compatibility Rojaflex radio motors and radio receivers Radio system Rollender Code Dimensions (approx.) (HxBxT) 130 mm × 44 mm × 18 mm * Range data are approximate values and depend on the structural conditions.

  • Page 9: Programming And Settings

    Programming and settings 1. Programming mode - radio receiver or radio motor Set the receiver (external Rojaflex radio receiver or Rojaflex radio motor) on which the handheld transmitter is to be programmed to programming mode (see receiver instructions). Each keystroke must be executed within 4 seconds! Otherwise, the system automatically exits the programming mode.
  • Page 10 This concerns e.g. the MLSF/MLMF - drives and the external receivers REHK-1 and RUE-UP. Please follow the instructions of the respective receiver/motor! For further information, please refer to the instructions of the Rojaflex radio tubular motors or radio receivers. www.rojaflex.com...

  • Page 11: Notes

    Notes www.rojaflex.com...
  • Page 12 Our general terms and conditions apply. Membership number: If you have any questions about this product, please contact us at the following address: rojaflex is eine eingetragene Marke der / is a registered trademark of Schoenberger Germany Enterprises GmbH & Co. KG Zechtraße 1-7 82069 Hohenschäftlarn...
