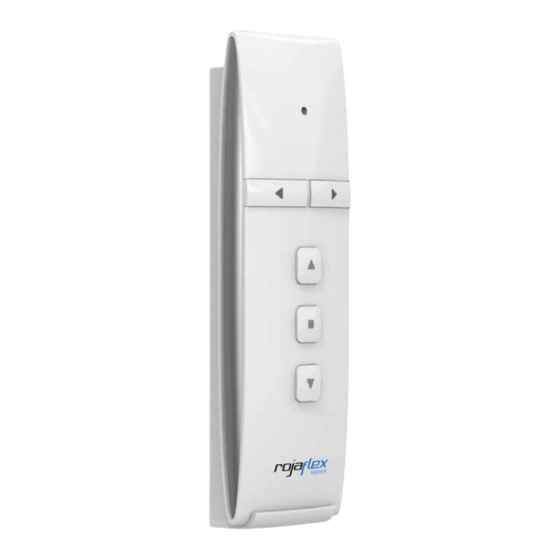

Handheld transmitter
Rojaflex HSR-1 | HSR-5
ORIGINAL ASSEMBLY AND
OPERATING INSTRUCTIONS
Original Montageanleitung
Original instructions
Mode d'emploi original
Instrucciones originales
DE
Manuale d'uso originale
EN
Originele gebruiksaanwijzing
FR
Oryginalna instrukcja obsługi
ES
Eredeti összeszerelési útmutató
HSR-1_HSR-5_V7. 2022-11-07
IT
NL
PL
HUN
Advertisement
Related Manuals for rojaflex HSR-1
Summary of Contents for rojaflex HSR-1
- Page 1 Handheld transmitter Rojaflex HSR-1 | HSR-5 For Rojaflex radio tubular motors and radio receivers ORIGINAL ASSEMBLY AND OPERATING INSTRUCTIONS Eine aktuelle Vollversion der Anleitung finden Sie hier/ Original Montageanleitung Manuale d’uso originale You can find a current full version of the manual here/...
-
Page 2: Table Of Contents
EU Declaration of Conformity according to Article 10(9): Herewith declares Schoenberger Germany Enterprises GmbH & Co. KG, Hohenschäftlarn, that the radio equipment type rojaflex handheld transmitter "HSR-1 | HSR-5" complies with the directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following web address: www.rojaflex.com/konformitaetserklaerungen.html... -
Page 3: General Safety Instructions
Observe the instructions and safety receivers. instructions of the drive/receiver controlled by the radio control as well as the corresponding instructions of the driven roller shutter or sun protection system! www.rojaflex.com... - Page 4 • Check that the motor controlled by the radio control unit and the motor not be disposed of together with normal power cable are intact. household waste. www.rojaflex.com...
- Page 5 This applies in particular to information and environment. telecommunications technology devices such as computers and smartphones. In your own interest, please note that each end user is responsible for deleting the data on the old devices to be disposed of! www.rojaflex.com...
-
Page 6: Function Overview
Programming button 1-channel handheld transmitter 5-channel handheld transmitter Handheld transmitter - back side with open cover HSR-1 HSR-5 The K1 and K2 keys can be *with the „DIP“ switch can, used to switch between depending on the radio the individual channels. -
Page 7: Technical Data / Scope Of Delivery
Range indoors: approx. 30 m * Channels 1-channel | 5-channel Compatibility Rojaflex radio motors and radio receivers Radio system Rollender Code Dimensions (approx.) (HxBxT) 130 mm × 44 mm × 18 mm * Range data are approximate values and depend on the structural conditions. -
Page 8: Programming And Settings
Programming and settings 1. Programming mode - radio receiver or radio motor Set the receiver (external Rojaflex radio receiver or Rojaflex radio motor) on which the handheld transmitter is to be programmed to programming mode (see receiver instructions). Each keystroke must be executed within 4 seconds! Otherwise, the system automatically exits the programming mode. - Page 9 If the direction of rotation of the motor is reversed (roller shutter / motor moves downwards when the UP key is pressed), please start from the beginning and press the DOWN key after the P2 key instead of the UP key! This changes the direction of rotation of the motor. www.rojaflex.com...
- Page 10 This concerns e.g. the MLSF/MLMF - drives and the external receivers REHK-1 and RUE-UP. Please follow the instructions of the respective receiver/motor! For further information, please refer to the instructions of the Rojaflex radio tubular motors or radio receivers. www.rojaflex.com...
-
Page 11: Notes
Notes www.rojaflex.com... - Page 12 Our general terms and conditions apply. Membership number: If you have any questions about this product, please contact us at the following address: rojaflex is a registered trademark of Schoenberger Germany Enterprises GmbH & Co. KG Zechtraße 1-7 82069 Hohenschäftlarn...
