- Page 1 FLEXIBLE SOLUTIONS IN MODERN TECHNOLOGY Remote controller Rojaflex HSR-15 For all Rojaflex drives and radio receivers ORIGINAL OPERATING MANUAL V2.18-07.2020...
- Page 2 EU Declaration of Conformity specified in Article 10.9 Company Schoenberger Germany Enterprises GmbH & Co. KG, Hohenschäftlarn delares hereby that the radio device “remote controller rojaflex HSR-15” conforms to Directive 2014/53/EU. The complete EU Declaration of Conformity is available at: https://www.rojaflex.com/konformitaetserklaerungen.html...
-
Page 3: Safety Guidelines
Observe instructions and safety driven device. guidelines concerning the controlled drive/receiver, as well as relevant instructions for driven sun protection devices! www.rojaflex.com... - Page 4 The use of defective devices may pose a hazard to people and cause damage in property. After unpacking, compare the device • type to relevant information in the nameplate. A device that is incomplete or not conforming to a specification cannot be started. www.rojaflex.com...
-
Page 5: Function Review

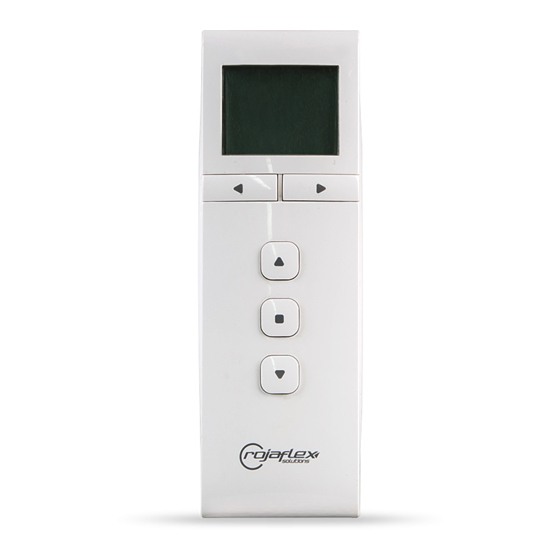

Programming button The remote controller 15 channel remote controller HSR-15 back with a cover open Individual channels (1–15) can be switched with K1 and K2 The “DIP switch” can be used to choose between buttons. “SI” (single-directional communication) and “BI”... - Page 6 Function review LCD display (HSR-15) The remote controller Rojaflex HSR-15 is equipped with a multiline display. The selected channel (1–15) is displayed in its top part, it also displays a roller blind position indicator and indicators of UP or DOWN commands.
-
Page 7: Technical Data/Packaging Contents
Open space: ca. 150 m/closed rooms: ca. 30 m* Number of channels 15 -channel Compatibility Rojaflex radio-controlled drivers and radio receivers Dimensions 130 x 44 x 18 mm (HxWxD) * Data on the range are approximations and depend on actual construction conditions. -
Page 8: Programming And Setup
1. Programming (learning) mode - a radio-controlled drive or an external radio receiver A radio receiver (a radio- controlled drive Rojaflex or an external radio receiver Rojaflex), to which a remote controller (transmitter) has to be assigned should be put into the programming mode as provided for in its programming mode instruction. - Page 9 P2 button of the already programmed remote controller is pressed only twice! This applies to MLSF/MLMMF drives – and external receivers REHK-1 and RUE-UP. An operating manual/drive of a given receiver/driver. Further information is available in relevant operating manuals of Rojaflex drives and radio receivers www.rojaflex.com...
- Page 10 Notes www.rojaflex.com...
- Page 11 Notes www.rojaflex.com...
- Page 12 Should you have any questions about our product, please, contact us by a letter or by e-mail at the following address: rojaflex®™ is a registered trademark of Schoenberger Germany Enterprises Gmbh & Co. KG Zechstraße 1–7 82069 Hohenschäftlarn Germany Phone +49 (0) 8178 / 93 29 93 93 Any reproduction, including of parts of this document, requires the author’s consent.
