- Page 1 OY1110 LoRaWAN® Temperature and humidity sensor Product manual version 1.0 January 24, 2023 support@propeye.se Product manual, version 1.0, January 24, 2023, www.nordicpropeye.com...
-
Page 2: Table Of Contents
OY1110 LoRaWAN® Temperature and humidity sensor Table of contents Disclaimer ........................3 Technical support ....................3 Warnings ........................4 Environmental ....................... 5 Product Description ...................... 6 Installation and activation ..................... 7 LoRaWAN Configuration ..................8 Sensor states and state check ................8 Specification ....................... -
Page 3: Disclaimer
Propeye makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Nordic Propeye reserves all rights to this document and the information contained herein. -
Page 4: Warnings
2 Warnings The following safety precautions must be observed during all phases of the operation, usage, service or repair of this Nordic Propeye product. • Read the product manual. • Do not modify the product. • The product should not be exposed to extreme heat or open flame. -
Page 5: Environmental
OY1110 LoRaWAN® Temperature and humidity sensor 3 Environmental This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste by taking it to a collection point designated for the recycling of electrical and electronic appliances. -
Page 6: Product Description

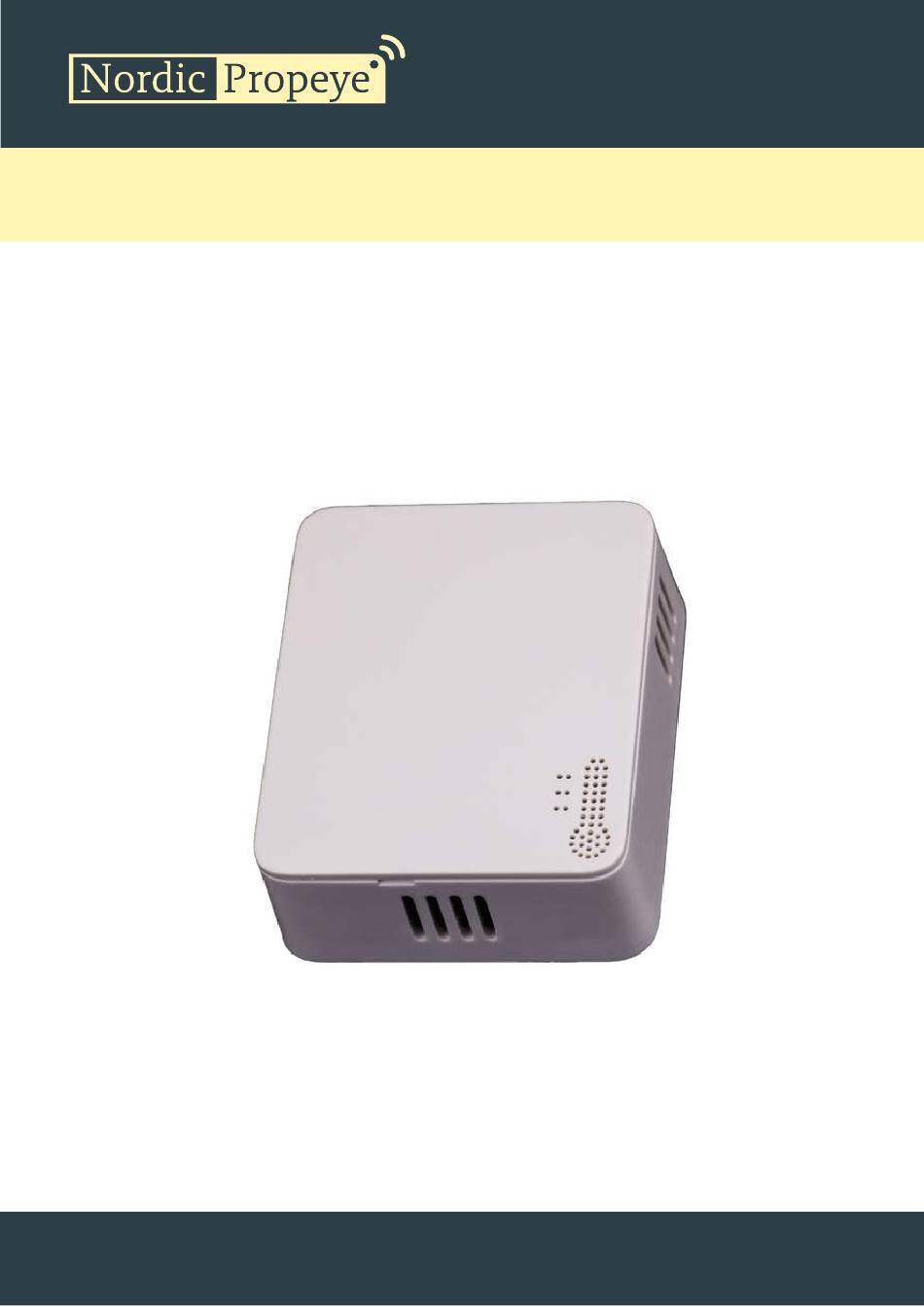

OY1110 LoRaWAN® Temperature and humidity sensor 4 Product Description Figure 1: OY1110 Temperature and humidity sensor The OY1110 LoRaWAN Temperature and humidity sensor is designed to measure temperature and humidity in indoor environments. The sensor is intended for climate control, energy optimization, and damage preventions in attics and basements. It is optimized for reliable and secure measurements with more than 10 years life length. -
Page 7: Installation And Activation
OY1110 LoRaWAN® Temperature and humidity sensor 5 Installation and activation The sensor consists of a bottom piece, to be mounted on the wall, and a top piece with the active parts. Note “UP” Figure 2: Mounting information The bottom piece is mounted on the wall with the “UP” arrow upwards. It can be mounted either with screws or adhesive tape. -
Page 8: Lorawan Configuration
Nordic Propeye OUI range. The device is configured with device unique DevEUI and AppKey The device is default configured for OTA provisioning. Contact the Nordic Propeye team for ABP configuration. The device follows the LoRaWAN standard related Join configuration parameters, such as RX1 and RX2 windows, RX2 downlink frequency etc. - Page 9 OY1110 LoRaWAN® Temperature and humidity sensor Figure 4: Device states To check the device state, press the button and hold it pressed until the red LED starts flashing after 0.5s. State Description LED response Initial Low power state during transport. Radio not active. 1 short flash (0.5 sec) Trying to join a LoRaWAN network.
- Page 10 OY1110 LoRaWAN® Temperature and humidity sensor 5.2.1 Re-join functionality The device supervises its connectivity to the network, by monitoring that periodic downlink messages are received. The device tries to re-join the network if it has not heard anything from the network for 288 uplinks (3 days @ 15-minute message interval).
-
Page 11: Specification
OY1110 LoRaWAN® Temperature and humidity sensor 6 Specification Accuracy and range Temperature accuracy ± 0,2 °C (conditions 0 °C to +50 °C) Temperature range -20 °C to +60 °C Humidity accuracy ± 2% (conditions 10-90% RH) Humidity range 0% to 100% non-condensing Accuracy of ±... -
Page 12: Product Life Length
8 Security The OY1110 is based on the Nordic Propeye LoRaWAN platform, with state-of-art security solution. The device has secure boot, to ensuring the firmware integrity, prevents malware injection and modification. The encrypted firmware prevents from any backwards engineering to engineer attack vectors. -
Page 13: Unsolicited Uplink Status Commands
0x01: Data type 0x20: Status command 0x00: Normal startup The expected behavior is 0x01 20 00. If not contact Nordic Propeye support. 9.3 Periodic measurement reports The sensors transmit periodic unsolicited measurement reports, either from a single measurement or grouping several measurements to one transmission to conserve energy. - Page 14 OY1110 LoRaWAN® Temperature and humidity sensor The latest measurement performed right before the transmission is sent first in the report. To decode the number of measurements in a grouped measurement report the payload length must be used. The time between the measurements (dT) are described in the Grouping header.
-
Page 15: Downlink Commands And Queries
OY1110 LoRaWAN® Temperature and humidity sensor of minutes between two measurements. If bit7 (the most significant bit) is set (=1) the other 7 bits (bit0-bit6) indicates the number of hours between two measurements. 9.3.5 Example: Single measurement report Data with single measurement when TxGroupsSiz = 1 sent on LoRaWAN port 2 3E 44 1d 3E1: 993 =>... - Page 16 OY1110 LoRaWAN® Temperature and humidity sensor Downlink command network => device Field Bytes Value Description Note Type 0x01: Set 0x02: Query 0x03: Action Index Command Index Data As defined for Command Index only applicable for set- commands Product manual, version 1.0, January 24, 2023, www.nordicpropeye.com...
-
Page 17: Commands
Query Temperature from CPU sensor temperature Big endian with 50 °C offset. Approximately 5 °C accuracy. 0x20 Status Uint8 Bitfield Query For Nordic Propeye support Cleared through troubleshooting reset 0x23 Measurement Uint16 Minutes 1-10080 Query Measurement interval in minutes Setting... - Page 18 OY1110 LoRaWAN® Temperature and humidity sensor 9.5.1 Measurement interval The measurements are done periodically. The interval time is controlled by the configuration parameter Measurement Interval. The default setting is 15 minutes. The measurement interval can be set between 1 and 10080 minutes (~1 week). It is also possible to order a batch of OY1110 with a different default setting.
-
Page 19: Uplink Query Response
Example: Port 1: 01 20 00 01: Data type 20: Status command 00: Normal startup For non-zero data, an error has occurred. Provide the error code in contacts with Nordic Propeye support. Product manual, version 1.0, January 24, 2023, www.nordicpropeye.com...
