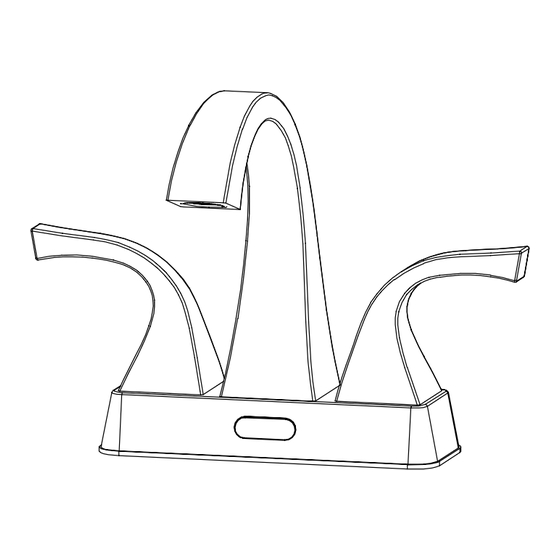

Bathroom faucet with touchless control
Table of Contents

Advertisement

Available languages

Available languages

BATHROOM FAUCET WITH TOUCHLESS
CONTROL
27-B423S-HW - Chrome finish
27-B423S-BN-HW - Brushed nickel finish
PACKAGE AND HARDWARE CONTENTS
PART
DESCRIPTION
A
Faucet body
B
Rubber washer
C
Mounting nut
D
Splice sensor
E
Sensor box
F
Battery pack
G
Drywall anchor
H
I
Battery holder
J
Pop-up drain
K
Drain gasket
L
Drain mounting nut
Due to constant design and quality improvements, the product may look
slightly different from the picture.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble, operate or install the product.
WARNING
• Protect your eyes with safety glasses when cutting or soldering water
supply lines.
PREPARATION
Before beginning assembly of product, make sure all parts are present.
Compare parts with package and hardware contents list. If any part is
missing or damaged, do not attempt to assemble the product. Contact
customer service for replacement parts.
Estimated Assembly Time: 30 minutes
Tools required for assembly (not included): adjustable wrenches, slip joint
pliers, pipe wrench, Phillips screwdriver, and silicone.
Need Help? Please call our toll-free line at (877) 319-3757 (7:30 am to 4:30 pm CST) for additional assistance or service.
Homewerks Worldwide, LLC • Lake Bluff, IL 60044 • Homewerks.com
QUANTITY
Screw
1
2
2
1
1
B
1
1
C
1
1
1
1
1
CAUTION
• If you solder the joints during installation, the seats, cartridges, and
washers must be removed before using a flame or the warranty will
be voided on these parts.
• Cover the sink drain to avoid losing parts.
Installation may vary depending on how the previous faucet was installed.
Supplies necessary for the installation of the faucet are not all included;
however, they are available wherever plumbing supplies are sold.
Prior to beginning installation, turn off the hot and cold water lines, then
turn on the old faucet to release built-up pressure. When installing the
new faucet, hand tighten the connector nuts. DO NOT OVERTIGHTEN.
Connections that are too tight will reduce the integrity of the system.
A
D
F G
H
E
J
I
K
L
