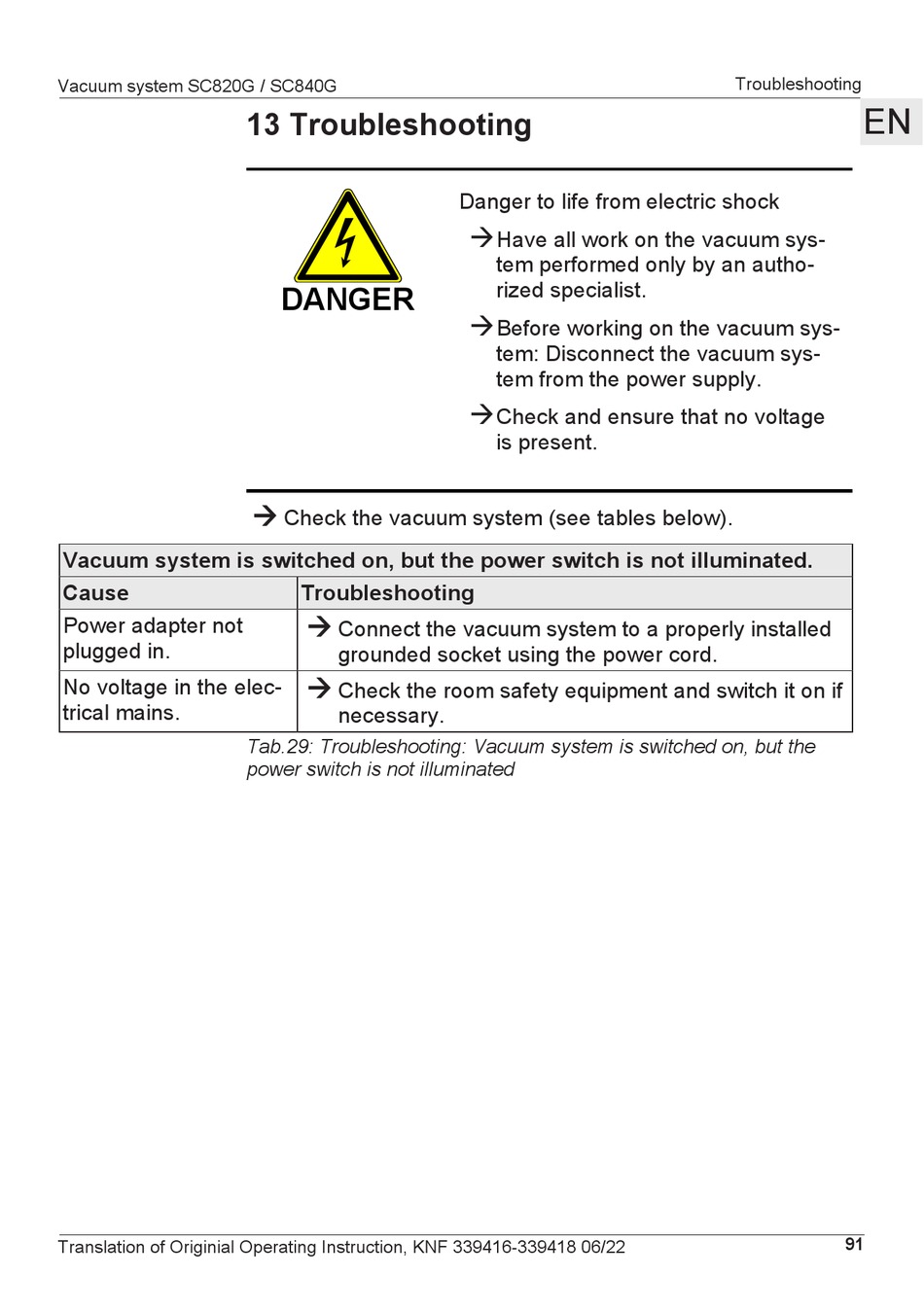

Troubleshooting - KNF LABOPORT SC820G Translation Of Original Operating Instructions

Vacuum system SC820G / SC840G
Vacuum system is switched on, but the power switch is not illuminated.
Cause
Power adapter not
plugged in.
No voltage in the elec-
trical mains.
Translation of Originial Operating Instruction, KNF 339416-339418 06/22

13 Troubleshooting

DANGER
à
Check the vacuum system (see tables below).
Troubleshooting
à
Connect the vacuum system to a properly installed
grounded socket using the power cord.
à
Check the room safety equipment and switch it on if
necessary.
Tab.29: Troubleshooting: Vacuum system is switched on, but the
power switch is not illuminated
Danger to life from electric shock
à
Have all work on the vacuum sys-
tem performed only by an autho-
rized specialist.
à
Before working on the vacuum sys-
tem: Disconnect the vacuum sys-
tem from the power supply.
à
Check and ensure that no voltage
is present.
Troubleshooting
EN
91
