Avio iP-40 User Manual

Intelligent projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

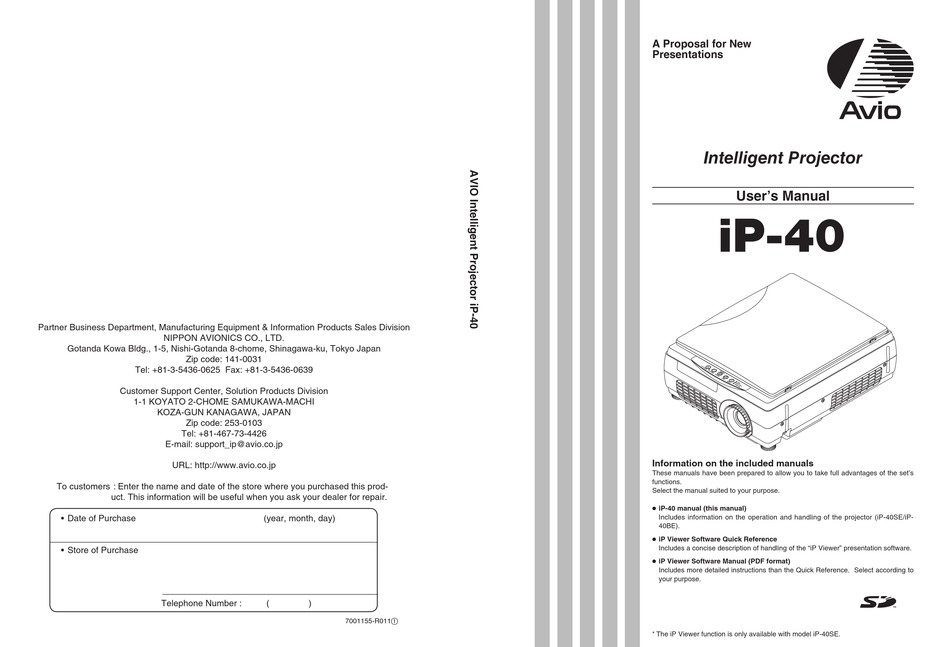

Partner Business Department, Manufacturing Equipment & Information Products Sales Division
NIPPON AVIONICS CO., LTD.
Gotanda Kowa Bldg., 1-5, Nishi-Gotanda 8-chome, Shinagawa-ku, Tokyo Japan
Zip code: 141-0031
Tel: +81-3-5436-0625 Fax: +81-3-5436-0639
Customer Support Center, Solution Products Division
1-1 KOYATO 2-CHOME SAMUKAWA-MACHI
KOZA-GUN KANAGAWA, JAPAN
Zip code: 253-0103
Tel: +81-467-73-4426
E-mail: support_ip@avio.co.jp
URL: http://www.avio.co.jp
To customers : Enter the name and date of the store where you purchased this prod-
uct. This information will be useful when you ask your dealer for repair.
• Date of Purchase
• Store of Purchase
Telephone Number :
(year, month, day)
(
)
7001155-R011①
A Proposal for New
Presentations
Intelligent Projector
User's Manual
iP-40
Information on the included manuals
These manuals have been prepared to allow you to take full advantages of the set's
functions.
Select the manual suited to your purpose.
⦁ iP-40 manual (this manual)
Includes information on the operation and handling of the projector (iP-40SE/iP-
40BE).
⦁ iP Viewer Software Quick Reference
Includes a concise description of handling of the "iP Viewer" presentation software.
⦁ iP Viewer Software Manual (PDF format)
Includes more detailed instructions than the Quick Reference. Select according to
your purpose.
*
The iP Viewer function is only available with model iP-40SE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iP-40 and is the answer not in the manual?

Questions and answers

Related Manuals for Avio iP-40

Summary of Contents for Avio iP-40

  • Page 1 These manuals have been prepared to allow you to take full advantages of the set’s functions. Select the manual suited to your purpose. ⦁ iP-40 manual (this manual) Includes information on the operation and handling of the projector (iP-40SE/iP- 40BE).
  • Page 2 EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projector or electrical accessories, such as remote control or cable.
  • Page 3 A Proposal for New Presentations Intelligent Projector User’s Manual iP-40 English Deutsch Français...

  • Page 4: Warnings And Safety Precautions

    The creation of OHP film is not required. This allows a reduction of wasteful time and costs. • Super-thin, stylish body The iP-40 features a super-thin body for a projector having a built-in OHP function which reflects the advanced technology inherent in the design. Offers an easy fit when in use or when stored.

  • Page 5: Safety Precautions

    • If you detect smoke, or a strange smell or sound, immediately disconnect the power cable. It is dangerous to continue using the projector after a fault occurs. Return the projector to the dealer where it was pur- chased for repair.
  • Page 6 • Have the internal components cleaned by a retailer about once a year. There is a risk of fire or faulty operation if the inside of the projector gets dusty and is not cleaned for a long time. For best results, the projector should be serviced be- fore the wet season brings damp conditions.
  • Page 7 • Lamp implosion • A DC type Super High pressure lamp is used in this projector and it is rare for the lamp to explode during use. The unit is also designed to forcibly turn off the lamp because there is a high possibility that the lamp will break if it is used beyond the lamp usage of 2000 hours (Refer to pages E-43 and E-45).

  • Page 8: Table Of Contents

    Names of the Parts ... E-7 Supplied Parts Check ... E-7 Names and Functions of the Parts (Projector) ... E-8 Names and Functions of the Parts (Input Connectors) ... E-10 Names and Functions of the Parts (Operation Panel) ... E-11 Names and Functions of the Parts (Remote Control) ...

  • Page 9: A Check Of The Supplied Items And The Names Of The Parts

    Projector Lens cap Power cable (3 m) * Power cable for Singapore is different from the above one. (Refer to the page E-55.) iP-40 User’s Manual D terminal/RGB conversion cable (IPC-D/VGA) (Option) Remote control Coin-type lithium battery: CR2025 (Inside the remote control) iP Viewer Software Quick Reference* * Only included with the iP-40SE.

  • Page 10: Names And Functions Of The Parts (Projector

    A Check of the Supplied Items and the Names of the Parts Names and Functions of the Parts (Projector) Document cover The document or printed material to be read is placed under this cover. See Page E-34. Operation panel The buttons used for regular operation are located here.
  • Page 11 Input connector panel The connectors for the person- al computer, video, and other connections are located here. See Page E-10. Remote control IR sensor Power input connector Plug in the power cable here. See Page E-21. Theft prevention lock Please see the Note below. NOTE About the anti-theft lock The anti-theft lock is compatible with Kensington security cable...

  • Page 12: Names And Functions Of The Parts (Input Connectors

    A Check of the Supplied Items and the Names of the Parts Names and Functions of the Parts (Input Connectors) TEST 1. Test (maintenance) connector This special connector is used at the time of maintenance and factory tests. It cannot be used for other connections. 2.

  • Page 13: Names And Functions Of The Parts (Operation Panel

    INPUT ROTATION FREEZE OFF FREEZE TRANSFER 4. ON/STANDBY Button Switches the power of the projector on or off (standby mode). • Only this button is effective when the projection lamp is off. See Page E-21. 5. INPUT Button Press this to switch the input.

  • Page 14: Names And Functions Of The Parts (Remote Control

    A Check of the Supplied Items and the Names of the Parts Names and Functions of the Parts (Remote Control) 1. ON/STANDBY Button Switches the power of the projector on or off (standby mode). • Only this button is effective when the projection lamp is off.

  • Page 15: Operation Of The Remote Control

    Operation of the Remote Control • Please use the remote control within a range of about 7 m from the remote control IR sensor of the projector (located at both the front and rear) and within an angle of 10 degrees to the left and 10 degrees to the right. Note that this distance may be shorter depending on battery consumption.

  • Page 16: Procedure Up To Projection

    Properly adjust the projection image to the screen → See Page E-15 Perform the tilt adjustment of the projector to provide the desired projection height. The tilt adjustment allows the position of the projection image to be raised and lowered. The adjustment angle is from 0 de- grees to 6 degrees.

  • Page 17: Projection Distance And Screen Size

    • During projection, be sure to remove the lens cap. The lens cap may be deformed. • Please do not set the projector on a table or desk mat made of a heat-sensitive material. Table may be discolored or desk mat may be deformed.

  • Page 18: Connections With The Personal Computer

    Connections with the Personal Computer Connection Precautions • To protect this projector and the equipment to be connected, switch off the power of each unit be- fore making connections. • Please read the various equipment instruction manuals for information about the connection of the equipment and the method of use.

  • Page 19: Personal Computer Input Connector

    The pins and their corresponding signal inputs are described below. 15 14 13 12 NOTE: The RGB (15-pin) input connector of the projector is of the analog type. This cannot be connected with a digital output type of personal computer.

  • Page 20: When The Image Of The Personal Computer Screen Is Not Projected

    ● The image is not projected When the external output signal from the personal computer is not input to the iP-40, "No computer signal being input" is dis- played on the display screen of the iP-40. Should this occur, please check the following matters.

  • Page 21: Table Of Supported Input Signals

    Table of Supported Input Signals Signals indicated with a “Yes” are supported. Note that depending on the model of personal computer, please per- form the screen adjustment of the "Image adjustment" → "Sync adjustment" menu if flickering or bleeding appear on the projection screen.

  • Page 22: Connections With Video Equipment

    Connections with Video Equipment The video of a video tape deck or DVD player is projected onto a large screen. iP-40 Projector side connector panel D terminal/ RGB conversion cable (Option: Model name IPC-D/VGA) To the video output connector Video deck * The USB terminal and SD memory card can be used only for iP-40SE.

  • Page 23: Connection Of The Power Cable And On/Off Switching

    CAUTION • Unplug the power plug of the projector from the wall outlet when the projector will not be used for an extended period. • When the reinserting the power plug into the outlet soon after having unplugged it, please allow a fixed time (of about 10 seconds) before doing so.

  • Page 24: Adjustment Of The Projection Image

    • Do not lengthen the tilt foot on only one side which would place the projector on an extreme slant. Doing so could result in the projector slipping or falling over and could cause an accident or breakdown.

  • Page 25: Regular Operation

    Select the Input When the projector’s power is turned on, one of the input selection icons ([OHP, PC or VIDEO] or [OHP, VIDEO (Component) or VIDEO]) is displayed. (When the PC input is set to RGB)

  • Page 26: Enlarging And Reducing The Projection Image

    OHP, 16x (length ratio approx. 4x) when the input is set to PC, or 6.25x (length ratio approx. 2.5x) when the input is set to VIDEO. At SXGA input, the enlarged display is not available. Operation with the Projector Scrolling is not possible from the main unit’s control panel.

  • Page 27: Moving The Screen

    NOTE: • If no operation is performed for several seconds while the brightness adjustment bar is displayed, the brightness adjustment bar turns off. Operation with the Projector Scrolling is not possible from the main unit’s control panel. Operation with the Remote Control Press the SCROLL (▲▼◀▶) buttons.

  • Page 28: Capturing The Projection Image/ Still Image Display

    Effective Only with OHP Input INPUT ROTATION FREEZE OFF FREEZE /CAPTURE ON/STANDBY LAMP/COVER TEMP TRANSFER Memory capacity E- / Still Image Display Operation with the Projector] Press the still FREEZE/CAPTURE button. Operation with the Remote Control Press the still FREEZE/CAPTURE button.
  • Page 29 In the OHP mode, the still picture re- mains. Cancelling the Still Image Display INPUT ON/STANDBY LAMP/COVER TEMP Operation with the Projector ROTATION FREEZE OFF FREEZE /CAPTURE Press the FREEZE OFF button. TRANSFER Operation with the Remote Control Press the FREEZE OFF button.

  • Page 30: Making Presentation Using Incorporated Memory Or Sd Memory Card

    Making presentation using the image in the incorporated memory. When the SD memory card has been inserted in the main memory card, remove it * The SD memory card takes precedence on the projector. Inserting the SD memory card, the image in the incorporated memory is not projected.
  • Page 31 Full-screen projection Press the Remote Control’s SET/POINTER button. The reduced image at the cursor position is projected on the full screen of the projector. NOTE: • The image that was changed over and saved in the vertical direc- tion is projected vertically even when it is displayed laterally in the reduced-size screen.

  • Page 32: Using The Sd Memory Card Image To Make Presentation

    Prepare the material Set the SD memory card in the main unit. See page E-10 • The SD memory card takes precedence in the projector, and when the SD memory card is set, the image of the incorporated image is not projected.
  • Page 33 Projection on the full screen Press the SET/POINTER button of the remote control. The reduced image at the cursor position is projected on the full projection screen of the projector. When feeding a page, choose the menu “Next.” Choosing the other image Press the remote control THUMBNAIL button and return to the file list display.

  • Page 34: Transferring Captured Images

    * This function is only available on the iP-40SE. Adjusting the Volume Volume adjustment bar NOTE: If no operation is performed for several seconds while the volume adjustment bar is displayed, the volume adjustment bar turns off. Operation with the Projector INPUT ROTATION FREEZE OFF FREEZE /CAPTURE...

  • Page 35: Displaying The Pointer

    NOTE: When a fixed period of time elapses (about 30 minutes) with the video/audio muted, a message will be displayed to check whether to shut down the projector. Selection of "Yes" will set the projector to the standby mode, while a selection of "No"...

  • Page 36: Method Of Ohp Operation

    • When shiny paper like magazine covers or black paper is placed on the projector, the internal fluorescent light bulb may be reflected in it, making the edges of the projected document hard to see.

  • Page 37: Menu Configuration

    Menu Configuration The adjustment/setting items and content will differ depending on the input selection and the permitted information will be displayed on the menu for that input mode. Pointer • Screen Pointer • Screen Pointer shape Pointer color OHP input Pointer size Mute mode Storage image quality...

  • Page 38: Menu Operation Method

    Menu Operation Method Names and Functions of the Buttons Used in Menu Operation SET/POINTER Button Used to finalize a setting after making the setting or adjustment. MENU Button Used to display a menu and to close a menu. Names and Functions of the Menu Parts Menu tab Switches to the various menus when selected.

  • Page 39: Method Of Menu Operation

    Method of Menu Operation This section describes the actual operation method. Adjustment of [Keystone (Manual)] using the remote control is provided as an example. Press the MENU button and display the menu Select [Settings] with the SCROLL ◀▶ buttons Each press of the SCROLL ▶ button switches the menu one step in the sequence of [Pointer • Screen] → [Image adjustment] →...
  • Page 40 Menu Operation Method Press the POINTER/SET Button Make the adjustment with the SCROLL ◀▶ buttons while checking the projection im- Press the MENU button and close the menu This completes the [Keystone (Manual)] adjustment. Switches the menu to the sub menu (i.e., the Key- stone adjustment menu).

  • Page 41: Menu Description

    Menu Description Pointer • Screen This selects the shape, color, and size of the pointer.  Pointer shape ...Selects the shape of the pointer from 2 types.  Pointer color ...Selects the color of the pointer from amongst 3 types (i.e., red, white, and blue).

  • Page 42: History Menu

    Menu Description History menu  No. sheets on thumbnail display ...Select the number of thumbnail images to be displayed simultane- ously on one screen. 4 sheets: Four thumbnail images are displayed at once. 16 sheets: 16 thumbnail images are displayed at once. (When dis- playing the SD memory card image, the 16-image display is fixed.) ...

  • Page 43: Image Adjustment

    Image adjustment This performs the settings and adjustments related to the projected image. When OHP input has been selected.  Red (Red color adjustment) ...Adjusts the deepness of the red color in the range of -50 to 50.  Blue (Blue color adjustment) ...Adjusts the deepness of the blue color in the range of -50 to 50.
  • Page 44 Menu Description Sub menu: Sync adjustment  Clock ...Adjusts the horizontal size of the pro- jected image in the range of -50 to  Phase ...Adjusts the noise/flickering of the projected image in the range of -50 to 50.  Horizontal ...Adjusts the horizontal position of the projected image in the range of -50 to 50.

  • Page 45: Settings

    When keystone correction has been applied, the resolution at the screen edges will degrade and small characters and the like will become difficult to see. When you do not wish to have the resolution degradation, set the projector on a level platform and set the numerical value of the Keystone menu to "0"...
  • Page 46 100%. There will be a bright screen.  Auto power off ...When this is set to “ON”, the lamp turns off if the projector is in the “No Sync” mode for 15 minutes when the input is set to PC/component video or VIDEO.

  • Page 47: Maintenance

    Maintenance Fault Protection The projector is equipped with a built-in protection circuit to prevent fire and breakdown due to faults. When the LAMP/COVER LED lights in red  Measures to be taken 1. Disconnect the power plug from the outlet.
  • Page 48 Is the air filter blocked? Breakdown of an internal circuit could be the problem. Please use the projector in an operation ambient tempera- ture of 0°C (32°F) to 35°C (95°F). Rearrange the setup location of the projector and separate the projector from surrounding objects. See "Do Not Block the air vents"...

  • Page 49: Replacement Of The Lamp Unit

    Replacement of the Lamp Unit The projection lamp used on this projector should be replaced after about the number of hours indicated below (or sooner, de- pending on the usage conditions). When the usage time exceeds 2000 hours*, the possibility for explosion increases, so the lamp is forcibly shut off.

  • Page 50: Lamp Unit Replacement Procedure

    Hold the handle of the lamp unit and pull it up and out. Install a new lamp unit ❶ Take the lamp unit and press it into the projector. ❷ Check that the two positioning prongs on the bottom of the lamp unit are securely fit into the two holes.
  • Page 51 When the indication exceeds 2000 CAUTION hours, the projector will be forced to turn off the projection lamp. NOTE: • In the interest of safety, the lamp will not light when the lamp unit cover is off.

  • Page 52: Cleaning The Air Filter

    • When the air filter is damaged, be sure to replace it with a new air filter. Use of the projector with a damaged filter will result in dust entering the inside of the projector and this will cause the image quality to worsen.

  • Page 53: Troubleshooting

    Troubleshooting When you think the projector may be out of order, please first check the following matters before requesting repair. Symptom Power does not come on • Is the power cable connected? Projection lamp does not • Is the lamp burned out? light •...

  • Page 54: Repair Service

    Description of the problem (as many details as possible) Date of purchase Your Name Your Address Telephone number Product name and model No. (written on the label at the bottom of the projector) Notation of the date of production in serial No. ◯ ◯ ◯ ◯ ◯...

  • Page 55: Specifications

    Specifications Model Name Type Size DLP ® chip Number of Pixels Projection Lens Optical Source Image Size Color Reproducibility Brightness Scan Frequency (analog RGB) Maximum Resolution At RGB signal input Scanner OHP (actual object projection unit) Scanning size Signal system Video signal (Analog RGB Input) Sync Signal...

  • Page 56: Viewing The Ip Viewer's Operating Instructions

    USB cable in order to install the USB device driver* on the computer. This is a driver allowing the computer to identify the projector as a large capacity USB removable device. It is installed automatically on the computer when the projector is connected to the computer’s USB port.
  • Page 57 Power cable for Singapore E-...
