Summary of Contents for PS Audio Classic 250
Page 3
For more than a quarter century, PS Audio has contributed PS AUDIO to the field of home entertainment by designing and building components that faithfully reproduce the beauty and fine nuances of music and film. Our passionate approach to product design, dedication to...
Page 4
AC line conditions. Other competing AC conditioners and correction products provide minimal improvements to AV systems. The PS Audio Power Plants represent a landmark in performance benefits unmatched by any other AC power device in the world.
Page 5
AV performance. MultiWave, TubeWave and AutoWave To further improve the performance of the Power Plants, PS Audio has designed unique waveforms that go beyond the performance potential of a basic sine wave.
Page 6
The P300 started the power revolution in the audio video P300 world. It is the classic analog AC power regenerator that provides up to 300 watts of perfect power for connected equipment. Designed primarily as a pure power generator for source equipment such as CD players, preamplifiers and processors, the P300 is even capable of powering small power amplifiers and integrated amplifiers as well.
Page 7
The P500 Power Plant will produce up to 500 watts of P500 pure, balanced power. From its regenerated outputs the P500 can power most small to medium systems in their entirety. With its built in Ultimate Outlet, the P500 will pass through clean protected AC power to any size load.
Page 8
The P1000 is the largest AC regenerator. Capable of P1000 providing 1000 watts of pure, clean balanced power, this amazing product will handle even the most power thirsty systems. Comes complete with a built in Ultimate Outlet for unlimited filtered and protected power. The P1000 is designed for large power amplifiers and entire systems.
Page 9
Based on a unique non-limiting AC technology, the Ultimate Outlet provides both protection and noise reduction in a small package. The PS Audio Power Director Series is based on the Ultimate Outlet design and includes two models: the 3.5 and the 4.7. Both models provide remarkable surge and spike protection, managed power distribution and a lower noise floor.
Page 10
Star Wiring Star wiring is the preferred wiring technique because each piece of powered equipment will not contaminate the neighboring equipment. All PS Audio power management products are star wired to minimize equipment interaction. Unrestricted Power Path Most power products use as little copper as is allowed for safety.
Page 11
Ultimate Outlet The Ultimate Outlet is the ultimate in passive cleaning and protection components. Affordable and portable, the UO can be placed anywhere it’s needed, from the ceiling for a projector, to the floor for a power amplifier. Producing up to 15 amps of clean protected power, the UO sets the standard in performance improvement and delivery of unrestricted AC power.
Page 12
Power Director 3.5 The Power Director 3.5 is the most affordable power management product designed to deliver and protect distributed power to an entire system. Inside are three Ultimate Outlets feeding five separate Power Ports which deliver power to up to 10 components. Each of the three isolated power zones can be always on, switched or delayed.
Page 13
Power Director 4.7 Our finest system wide power management product is the PD 4.7. Controlled by a sophisticated microprocessor, the 4.7 monitors and displays voltage and current at the touch of a button. 14 AC receptacles will provide enough clean and protected power for any size audio or theater system.
Page 14
When an extra AC receptacle is needed, don’t compromise Juice Bar the quality of the AC by using an off-the-shelf outlet extender. A surprising level of degradation occurs with these less than adequate devices. The PS Juice Bar provides 6 additional outlets, each wired in a star configuration reducing the potential for interference from associated equipment.
· 15 coats polished nickel · Classic and Designer models · Hospital grade · 15 or 20 amp ready · Improves images · Lowers noise · Easy to install...
Page 16
The Classic 250 is PS Audio’s statement amplifier. Designed around a no feedback, fully balanced output stage, the Classic 250 is both musical and powerful. The amplifier can be configured in stereo at 250 watts per channel or in mono as 1000 watts per channel.
Page 17
Musical purity All PS Audio amplification products are optimized for musical purity because the sound of live, un-amplified music, is easy for the human ear to detect perfection and realism. Hundreds of hours of listening to music guide our amplification design process from the beginning.
Page 18

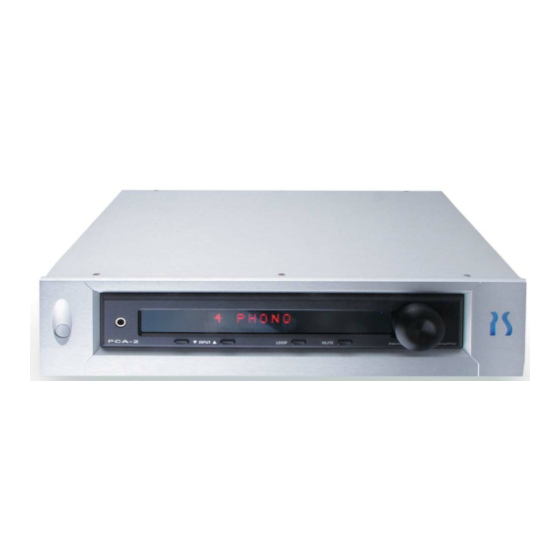

PCA-2 preamplifier The PCA-2 is fully balanced from input to output, uses high bias class A gain stages, and produces some of the best sounding music on the planet. Used as a 2-channel preamplifier or as part of a home theater system with the multichannel option card, the PCA-2 is state of the art.
HCA-2 Power Amplifier The stereo Hybrid Class A power amplifier runs cool and sounds hot! Using exclusive SDAT power output stage coupled with a fully balanced class A input stage, the HCA-2 is becoming one of the most popular power amplifiers in audio history.
Page 20
Classic 250 Power Amplifier The Classic 250 is the definitive statement on the art of analog power amplification. A classic design, the C250 is powerful enough to handle the biggest loads and the most difficult speakers with ease. · 250W stereo 8 Ohms ·...
Page 21
Cable PS Audio provides a full range of signal and power delivery products in our xStream ™ line of cables. Only the finest materials and construction techniques are used in the xStreams. Populating an audio or theater system with these state of the art cables will provide a level of realism never before achieved.
Page 22
Highest Purity Oxygen Free Copper PS Audio xStream cables use only the highest purity Oxygen Free Copper for greatest signal purity. Power cables as well as audio video cables need the cleanest and purest copper for all applications. In some cases, high purity silver plating is added to the OFC when it is appropriate.
Page 23
xStream Audio The xStream Audio cables are truly exceptional. Offered in both balanced and single ended configurations, the xStream audio cables feature outstanding shielding, Oxygen Free Copper (OFC) materials and custom connectors. The xStream’s will compare to any other audio cables in the world.
Page 24
xStream Digital Making the proper digital connection can be more crucial than the analog connections in a system. The xStream Digital series has been designed specifically for the demanding requirements of digital signals and maintains the highest symmetry and bandwidth of the bit stream. ·...
Page 25
xStream Speaker Delivering the power from your equipment’s amplifier to your speakers is a critical task. Anything lost along the way will not make it to your listening position.The xStream speaker cables address this dilemma with near perfect resolution and no loss of information. ·...
Page 26
xStream Power Perhaps nothing in the entire AV chain is more important than the AC power. If this critical element is not properly delivered then every subsequent effort to maximize performance is wasted. Delivering the AC power without restriction or noise is a major challenge, one addressed by the xStream Power Cables better than any other power delivery system in the world.
