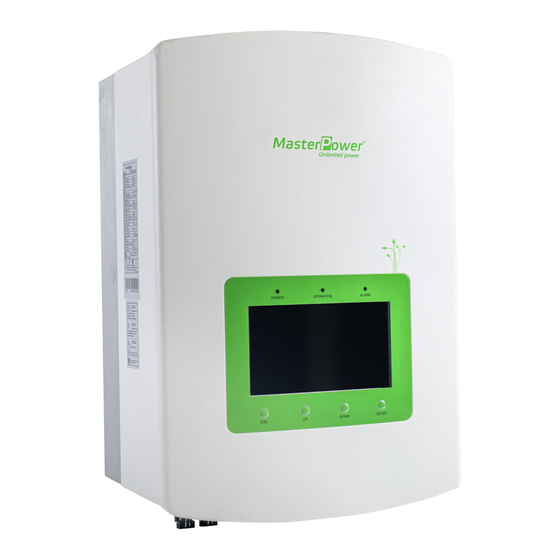

MasterPower BETA RHI 6K-48V 1P Series Commissioning Manual

Commissioning Guide BETA RHI 6K-48V 1P Series

1. First Step: Polarity Check

The polarity of both the PV array and the connected batteries must be verified, as a reverse polarity connection can result in
damage to the installation, equipment and operator.

2. Inverter Activation

This step can follow two paths, depending on whether the equipment has a battery bank or, on the contrary, batteries will be installed
in the future.
If so, first connect the AC current, then close the battery protection fuse to feed the inverter and wait, the inverter will be activated
•
in a matter of several seconds.
Once the equipment has started, switch on the PV array.
If not, first switch on the AC current, then feed the inverter with the PV array.
•
3. Device Configuration
Access the menu by pressing ENTER once.
Once in the MENU, go to ADVANCED SETTINGS and press ENTER.
The equipment will ask for a 4-digit password, which is 0010.

ADVANCED SETTINGS

SELECT STANDARD: select the RD1699 regulation.
•
If the grid is unstable (voltage or frequency surges), select the G99 regulation.

STORAGE ENERGY SET:

•
▪
BATTERY SELECT: indicate the type of battery connected.
For U-POWER batteries, the following possibilities are available:
◦
UE-H Series:
◦
UE-I Series:
◦
48Li100-3U Series:
