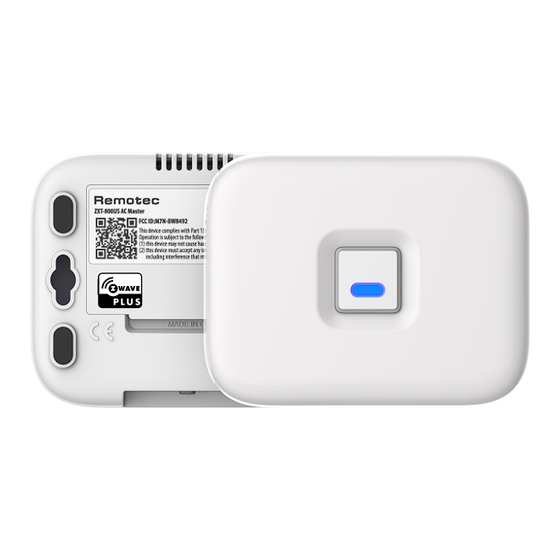

Remotec ZXT-800 User Manual

Ac/av master
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ZXT-800
AC/AV MASTER USER MANUAL
APPs Download: Conexum ZXT-800

Advertisement

Table of Contents
loading

Related Manuals for Remotec ZXT-800

Summary of Contents for Remotec ZXT-800

  • Page 1 ZXT-800 AC/AV MASTER USER MANUAL APPs Download: Conexum ZXT-800...
  • Page 2 ..... . . 3.2 Step-2 Include ZXT-800 to a Z-Wave Gateway ....

  • Page 3: Product Overview

    ZXT-800 is a Z-Wave slave device, it can be up to gateway to setup particular brand with correct IR code. User can setup the IR (AV + AC) code by “Conexum ZXT-800” App through Bluetooth download.
  • Page 4 ZXT-800 AC/AV MASTER USER MANUAL 2.2 Features • Working as a Z-Wave thermostat (AC) and Simple AV device • Supports Classic Inclusion, NWI and SmartStart • Built-in AC IR database for worldwide market, direct use it in gateway • Cloud-base downloadable AC + AV IR library by Smart phone •...

  • Page 5: Z-Wave Glossary

    ZXT-800 AC/AV MASTER USER MANUAL 2.3 Z-Wave Glossary Devices and nodes are all terms to describe an individual Z-Wave device. Device or Node These are all interchangeable when setting up your Z-Wave network. Inclusion Add a Z-Wave device to the network.

  • Page 6: Get Started

    • Use new batteries of the recommended type and size only. • Never mix used and new batteries together. • To avoid chemical leaks, remove batteries from the ZXT-800 if you do not intend to use the device for an extended period of time.
  • Page 7 • It is recommended to perform the Remove (Exclude) procedure before per-forming an Add (Include) procedure. • If the Add (Include) process fails, try to Remove (Exclude) from your primary controller (or reset the ZXT-800 to Factory Default), then repeat the above steps.  Continued on next page CONTENTS...
  • Page 8 UI for the IR code setup, please refer to the gateway UI and ignore the below steps. If your gateway does not have dedicated UI for ZXT-800 IR code setup, but support Z-Wave Configuration Command Class. Please refer to below method-A to setup the IR code using the configuration options in your gateway.
  • Page 9 Function, please continue to try next code until the correct one is selected. • It is not allowed to set up the IR Code when the battery level below 20%. • You can record down your Device Code for future reference after setting up the ZXT-800 correctly.
  • Page 10 User can download “Conexum ZXT-800” App to implement Basic Search for AC and Smart Search for AV then setup the IR code. ZXT-800 supports AC × 1 and AV × 3 devices storage memory. Once your IR code setup completed, user should add ZXT-800 into the Z-Wave network then control it directly.
  • Page 11 ZXT-800 AC/AV MASTER USER MANUAL 3.5 Setup IR Code by ZXT-800 App (AC+AV) 1. Please install “Conexum ZXT-800” App, turn on the “Bluetooth” and “GPS”, “WiFi / 4G” on the Smart phone. The App is available in Google Play & Apple App Store.

  • Page 12: Ir Code Learning

    27 (Set IR code) Parameter value size: 2 bytes Parameter value: 0000 (AC learning location) Then activate or save it in gateway. ZXT-800 will set the code number to “0000” which is AC learning code location.  Continued on next page...
  • Page 13 4. Make sure the power is good on both devices, especially the Original remote. Use Fresh Batteries in both devices recommended. ZXT-800 will not implement the learn- ing process if the battery level below 20%.  Continued on next page...
  • Page 14 ZXT-800 AC/AV MASTER USER MANUAL Parameter-Value Thermostat Command & IR Setting (Storage Location) Storage in Celsius Unit Storage in Fahrenheit Unit ON (RESUME) ON (RESUME) 17 °C Cool 63°F Cool 18 °C Cool 64°F Cool 19 °C Cool 66°F (67°F Cool) 20 °C Cool...
  • Page 15 Parameter value size: 1 byte; Parameter value: 11 (VOL+); Code Learning. Then activate or save it in gateway. Learning location: Aim your original AV remote to ZXT-800 according to Successful: Blue LED above position within 1-3cm. Press flashes TWICE; and hold the “VOL+” button until Unsuccessful: Red blue LED flashes twice.
  • Page 16 ZXT-800 AC/AV MASTER USER MANUAL Simple AV Command & IR Setting Parameter-Value (Storage Location) Function Z-Wave AV key ID Power 0x0027 Input 0x0026 Menu 0x001D Smart 0x0185 Guide 0x001C Back 0x004B 0x001E Down 0x001F 0x0024 Left 0x0020 Right 0x0021 VOL+...
  • Page 17 ZXT-800 AC/AV MASTER USER MANUAL Simple AV Command & IR Setting Parameter-Value (Storage Location) Function Z-Wave AV key ID 0x0006 0x0007 0x0008 0x0009 0x000A 0x000B 0x000C 0x000D 0x000E 0x000F Info 0x0011 Text 0x013F Table 2: AV IR Learning Mapping Table (Parameter number 26) 4.
  • Page 18 ZXT-800 AC/AV MASTER USER MANUAL Parameter Name/ Parameter Parameter Value Size (Byte) Description Number Storage location 0 –32 for AC IR code Learn AC IR code 25 (0x19) learning (refer to AC learning mapping table) Storage location 0 –40 for AV IR code...
  • Page 19 ZXT-800 AC/AV MASTER USER MANUAL Control Air 0(0x00) = Swing OFF conditioner “Swing” 33 (0x21) 1(0x01) = Swing Auto (default) function Set Auto Report Condition by Time Interval Temperature and 0(0x00) = Disable AUTO report Humidity Auto 34 (0x22) (default)

  • Page 20: Reset To Factory Default

    • Device will be excluded from network, All Configuration Parameters will be restored to factory default. All downloaded IR data and learned data will be cleared. • ZXT-800 will send Device Reset Locally Notification to gateway. • ZXT-800 will not implement the Reset to Factory Default when the battery level below 20%. CONTENTS...

  • Page 21: Mounting And Placement

    ZXT-800 AC/AV MASTER USER MANUAL 6. Mounting and Placement • The ZXT-800 should be mounted on an inner wall about 5ft (1.5m) above the floor where it is readily affected by changes of the general room temperature with freely circulating air.

  • Page 22: Technical Specifications

    ZXT-800 AC/AV MASTER USER MANUAL 7. Technical Specifications BW8493US (ZXT-800US) BW8493EU (ZXT-800EU) Model number BW8493AU (ZXT-800AU) BW8493JP (ZXT-800JP) BW8493KR (ZXT-800KR) BW8493IN (ZXT-800IN) BW8493IL (ZXT-800IL) BW8493CN (ZXT-800CN) 908.4MHz (ZXT-800US) 868.4MHz (ZXT-800EU) RF Frequency 921.4MHz (ZXT-800AU) 922-926MHz (ZXT-800JP) 919-923MHz (ZXT-800KR) 865.2MHz (ZXT-800IN) 916.0MHz (ZXT-800IL)

  • Page 23: Warranty

    REMOTEC shall not be liable for: Damages caused by defective devices for indirect, inciden- tal, special, consequential or punitive damages, including, inter alia, loss of profits, savings, data, loss of benefits, claims by third parties and any property damage or personal injuries arising from or related to the use of the device.
  • Page 24 ZXT-800 AC/AV MASTER USER MANUAL able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac- cordance with the instructions, may cause harmful interference to radio communications.
  • Page 25 ZXT-800 AC/AV MASTER USER MANUAL 11. Warnings • Do not modify the unit in any way. • Risk of fire. • Risk of electrical shock. • Risk of burns. • Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
