Wall Formwork

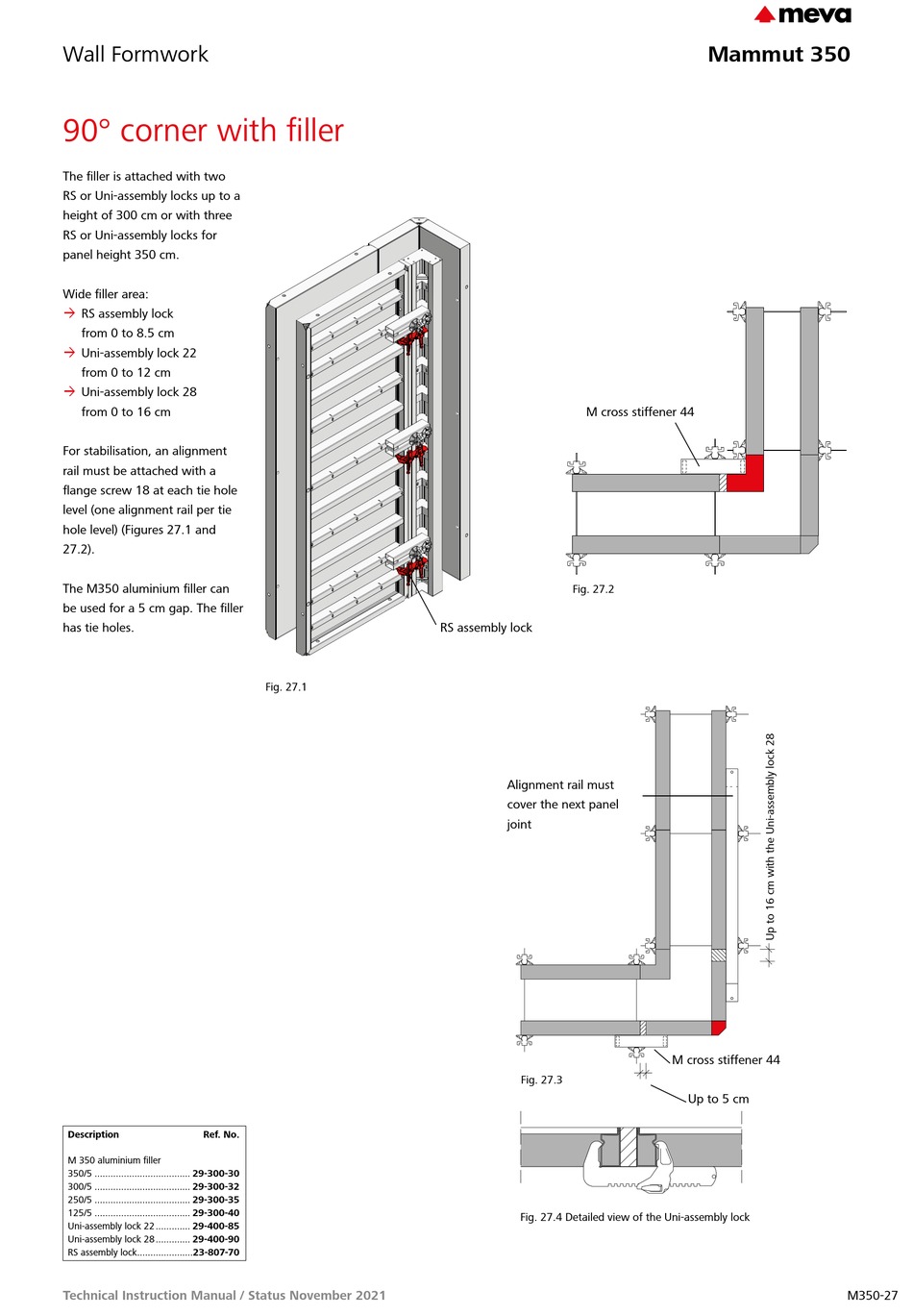

90° corner with filler
The filler is attached with two
RS or Uni-assembly locks up to a
height of 300 cm or with three
RS or Uni-assembly locks for
panel height 350 cm.
Wide filler area:
Æ RS assembly lock
from 0 to 8.5 cm
Æ Uni-assembly lock 22
from 0 to 12 cm
Æ Uni-assembly lock 28
from 0 to 16 cm
For stabilisation, an alignment
rail must be attached with a
flange screw 18 at each tie hole
level (one alignment rail per tie
hole level) (Figures 27.1 and
27.2).
The M350 aluminium filler can
be used for a 5 cm gap. The filler
has tie holes.
Description Ref. No.
M 350 aluminium filler
350/5 .................................... 29-300-30
300/5 .................................... 29-300-32
250/5 .................................... 29-300-35
125/5 .................................... 29-300-40
Uni-assembly lock 22 ............. 29-400-85
Uni-assembly lock 28 ............. 29-400-90
RS assembly lock .....................23-807-70
Technical Instruction Manual / Status November 2021
Fig. 27.1
M cross stiffener 44
Fig. 27.2
RS assembly lock
Alignment rail must
cover the next panel
joint
Fig. 27.3
Fig. 27.4 Detailed view of the Uni-assembly lock
Mammut 350
M cross stiffener 44
Up to 5 cm
M350-27
