Summary of Contents for Output Solutions CI-4080

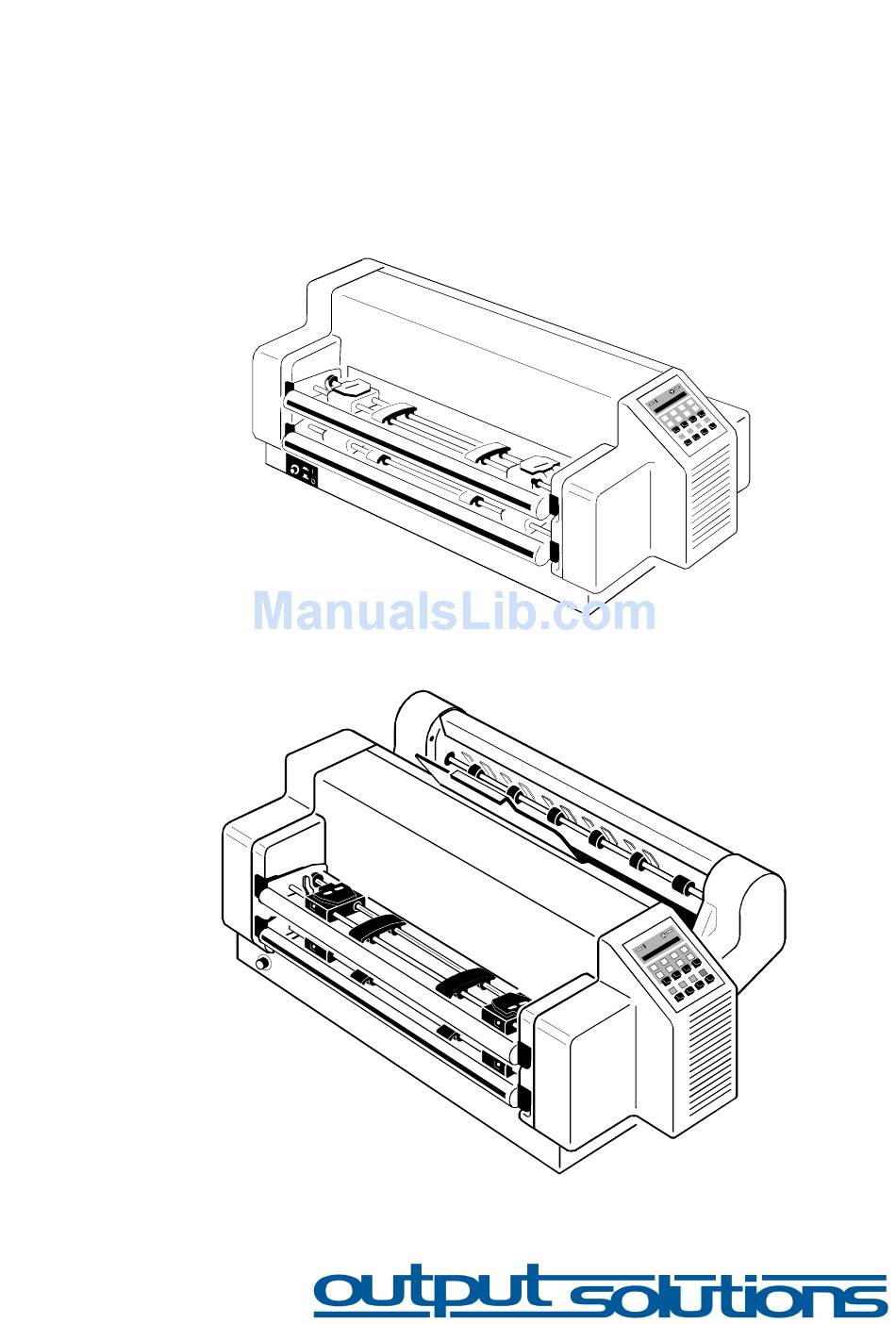

  • Page 1 User's Manual C I - 4 0 7 0 C I - 4 0 8 0...
  • Page 2 The contents of this manual are subject to change without notice. Copyright © by Output Solutions GmbH. All rights strictly reserved. Reproduction or issue to third parties in any form is not permitted without...

  • Page 3: Safety Regulations

    Safety Regulations The printer PP 407 (CI - 4070) and PP 408 (CI - 4080) fulfils the safety regulations according to UL 1950 and VDE (IEC 950) and CNA/CSA 22.2 / No. 950 for computer systems. The mains cable must be connected to a ground protected wall-socket. The selected voltage of the printer needs to agree with the local voltage.
  • Page 4 Electromagnetic Compatibility We certify that the equipment at issue, Type: Printer PP 407 (CI - 4070) and PP 408 (CI - 4080) corresponds to the law regulations ruling electromagnetic compatibility of appliances (89/336/EWG) and, therefore, fulfils the requirements for conformity marking with the CE-sign.
  • Page 5 Slots and openings in the printer's housing are provided for ventilation. Always ensure that these openings are not obstructed. Also ensure that the cables at the rear of the printer do not interfere with the output paper path. When processing fanfold paper always place the printer with its front edge...

  • Page 6: Table Of Contents

    Table of Contents Preface ............X About this Manual .
  • Page 7 2. Printer Operation ........
  • Page 8 3. Configuring the Printer ........
  • Page 9 Table of Contents Main Function INSTALLATION Sub-Function INTERFACE ........3-17 S BUFFER .
  • Page 10 Table of Contents 4. Maintenance ..........4-1 S Preferred Materials .
  • Page 11 System Interface Descriptions ......A-1 Appendix A 1 Serial Interface RS 232 C ........A-2 S Interface Characteristics .

  • Page 12: Preface

    This manual covers the printer in combination with an interface module (Perso- nality Module). The Personality Module (PM) is an integral part of the printer, and the type of PM used determines the functionality of the printer especially regarding the user and system interface.

  • Page 13: Technical Data

    Preface 4. Maintenance shows how to clean the printer and how to replace the platen and the print head. 5. Trouble Shooting and Diagnostics suggests how to identify and correct simple problems. 6. Technical Data All technical details or data about the printer can be found here.

  • Page 14: Conventions Used In This Guide

    CI - 4080 Fanfold printer with cutter The operation of both printers is mostly alike. In most illustrations, the printer with the cutter is used. In case there are differences in the handling you will find the note CI - 4070 or CI - 4080.

  • Page 15: Getting Started

    Unpacking Check each item against the check list detailed below. Contact your delivery agent immediately if any item is missing or damaged. The printer package for the CI - 4070 should contain the following parts: 24-Needle Printer (1) Ribbon cassette (3)
  • Page 16 Getting Started The printer package for the CI - 4080 should contain the following parts: 24-Needle Printer (1) Cutting Device (2) (separate packing - see Packing Note) Ribbon cassette (3) Power cord (4) Two tractor cassettes (5) (already mounted) Top cover (6) (separate packing - see Packing Note)

  • Page 17: S Repacking Information

    1. Push the output stacker into the top cover and remove the power cord. 2. Remove the ribbon cassette. 3. Pack the complete printer in its original packing box and ship it. Pay attention to the 'Packing Note'! Getting Started...
  • Page 18 Note: or components of the PM. Never attempt to install or remove a PM while the printer is switched 1. Remove the PM (16) from its packing material. 2. Insert the Personality Module (16) with the component side upwards until the...

  • Page 19: The Power Supply

    2. If it is necessary to change the voltage, slide the selector button to the required voltage selection. 3. Connect the printer to the mains using the power cord (4). First connect the cable to the power cord socket and then to the mains.

  • Page 20: Power On/Off Switch

    When the internal test has been completed successfully the display shows READY 1 ELQ (or BUSY 1 ELQ in case data has already been transmitted). If an error occurs the display will show an error message and the printer enters the STOP mode (see chapter 5.2 Error Messages).

  • Page 21: Installing The Ribbon Cassette

    Caution: Always press Note: 1. Switch the printer ON at the power switch (10); Power LED (53) is lit. 2. Press 3. Lift the top cover (6) to gain access to the ribbon cassette mounting. The print head (11) will move to the correct position, aligned with the cut-out in the paper guide plate (12) to facilitate the installation of the ribbon cassette.
  • Page 22 At each end of the ribbon cassette there are two pins [1.] and [2.] Note: which keep the cassette in position when mounted. When installed correctly the ribbon cassette IS NOT PARALLEL to the printer's housing. 7. Move the print head (11) back and forth to settle the ribbon in the correct position.
  • Page 23 1.5.1 Replacing the Ribbon Cassette The print head may be very hot immediately after printing! Caution: 1. Lift the top cover (6) to gain access to the ribbon cassette mountings. The print head (11) will move to the correct position, aligned with the cut-out in the paper guide plate (12) to facilitate the installation of the ribbon cassette.

  • Page 24: Inserting Fanfold Paper

    (option). If the printer is used without a stand, align the printer with the front edge of the table. The cables at the back of the printer should be tucked into the cable clips in order not to block the paper path.
  • Page 25 Insert the paper as shown in the illustration; the top edge of the paper must be equal with the top of the tractors or maximum up to two transport holes above the tractors. The left perforation should be aligned with the center mark on the plastic plate.

  • Page 26: Paper Source Selection

    If fanfold paper is already be printed while changing the paper source it will Note: be depending on the printer type offerd for tear off ore moved forward, cut, and moved to the parkposition. In this case are four transport holes above the tractors.

  • Page 27: Test Prints

    (see PGCNT in Chapter 4.1), and gives information on technical releases which are intended for service purposes. The print tests are printed using the parameters set in the menu, e.g. font, pitch etc. Refer to chapter 3 Configuring the printer for details. ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789!§ §ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789! !§ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789...

  • Page 28: Print Test 2

    Getting Started Eilzustellung Norddeutsche Farbwerke KG Herrn Dr. Grauert Große Elbstraße 64 2000 Hamburg 4 Org. III 5/37 17.04.75 Vordruckgestaltung für den allgemeinen Schrift- verkehr, für das Bestell- und Rechnungswesen Sehr geehrter Herr Dr. Grauert, Sie können das Schreiben der Briefe, Bestellungen, Rechnungen usw. sowie das Bearbeiten des Schriftguts rationalisieren, wenn die Vordrucke Ihres Unternehmens den folgenden Normen entsprechen: DIN 676 Geschäftsbrief;...

  • Page 29: Installation

    (93) (94) [\] -- [\] [[] -- [[] Use [\] to select PRINT TEST 2 or 3. (93) The printer starts to print using paper from the defined paper source. Display LOCAL MACRO SELECT INSTALLATION 7 INTERFACE 7 SELF TEST...
  • Page 30 Getting Started To stop the print test: (93) (93) 1-16 7 PRINT TEST 1 7 SELF TEST READY 1 ELQ...

  • Page 31: Connection To A Computer

    S Switch the printer and computer OFF. S Connect the interface cable coming from the computer to the printer's parallel (27) or serial port (28). S The printer is by default set to SHARED interface mode with the following parameters: S 8 Kbyte buffer...

  • Page 32: Emulation Selection

    EPSON LQ in macro 1 to IBM PROPR. in macro 2 Switch the printer ON. The display shows READY 1 ELQ. The information READY emulation of this macro, for example:...

  • Page 33: Printer Operation

    The green Power ON indicator (53) is lit when the printer is supplied with power by setting the power ON/OFF switch to ON. The yellow STOP indicator (52) is lit when the printer is in the STOP mode. The printer enters the STOP mode either when error condition occurs such as NO PAPER, COVER OPEN, etc.

  • Page 34: Function Keys

    Printer Operation Function Keys The function keys of the operator panel are grouped into two rows. The function of a key depends on the printer operation state. Following operation states are possible: READY or BUSY LOCAL 2.2.1 Short Description of Keys...

  • Page 35: S In The Printer Operation State Ready Or Busy

    (right [Y], left [Z], up [[] and down [\]). 2.2.2 Detail Description of Keys S in the printer operation state READY or BUSY S Quick Settings (only active if not locked in the menu function MENU ACCESS with QUICK SET OFF (see Chapter 3)). Printer Operation...

  • Page 36: S Top Row Keys

    BUSY by pressing key actually paper source of the selected macro. With TRACT. L. V or TRACT. U. V the printer asks for the value of the lower or upper tractor. is pressed. From the left to the right macro 1 to macro causes the printer to change in the .
  • Page 37 FANFOLD DIS with the value 0. By pressing (92) a vertical displacement is possible. This parameter influences the line counter of the current print job and Note: cannot be saved. A form feed (FF) sent by the application to the printer cancels all these settings. (91) Display...
  • Page 38 Printer Operation How to Use this Function Preprinted paper (e.g. bill of lading) has to be adjusted exactly. Following errors are possible: S the printed value is too high - the fanfold paper has to be moved a little bit higher.

  • Page 39: Meaning Of The Keys In The Local Mode

    There are two possibilities for the displacement to become active: S If a positive displacement is set before starting the print job the printer will move the paper into the right position first and then start printing. S If the displacement is set during a print job, the printer prints the contents of the print buffer.

  • Page 40: Menu Mode

    MENU mode. 2.3 Menu Mode Instead of having a multitude of dip switches, all operator selectable features are accessable via the control panel and combined in the printer MENU. This feature provides: S easy handling of configuration (interface, etc.)

  • Page 41: To Activate The Menu

    2.3.1 To Activate the Menu: S Press The printer is in the STOP mode, the display shows LOCAL S Press in the top row of the control panel. As soon as the menu mode has been activated, the keys in the top row can only be used as cursor keys to move within the menu tree (up, down, right, and left).

  • Page 42: To Confirm Selection

    All cursor keys have an auto repeat function. Note: The new confirmed settings are only valid until the printer is powered off. To save your settings permanently, see next section. The MENU mode is left either by pressing FUNCTION level and then pressing the [Z] key.

  • Page 43: How To Save Settings

    2.3.3 How to Save Settings The settings selected and confirmed are only active until the printer is switched off. In order to prevent losing your new settings you can save them using the MAIN FUNCTION SAVE. (93) (94) 3. [[] -- [[] 4.

  • Page 44: Quick Settings

    Printer Operation 2.3.4 Quick Settings The keys (94) (to select a pre-configured macro), (95), (96), and (97) are shortcuts in the menu tree. These particular selections can be changed quickly without having to move through the entire menu (see fold out of structure diagram).

  • Page 45: Configuring The Printer

    S text processing. The MENU mode allows you to access the configuration memory. All settings of the printer are stored in this memory and can be printed out on a list. The possible settings are discussed in detail in the following pages.
  • Page 46 1. Switch the printer ON (93) (94) 4. [[] 5. [Y] 6. [Y] (93) After feeding paper from the defined paper source, the printer starts to print. When printing is completed, the following message will be displayed: (93) Display READY 1 ELQ LOCAL...

  • Page 47: Standard Configuration

    TRACTOR LOWER TRACTOR LOWER EPSON LQ IBM PROPR. EPSON EXT. GCT IBM SET 2 3: GERMANY 1: U.S.A. LF=LF, CR=CR LF=LF, CR=CR Configuring the printer 208xxxxx IGNORE FF ALL FUNCTIONS MACRO 3 DATA DATA STANDARD 10 CPI 6 LPI 6 LPI...
  • Page 48 Configuring the printer S for the CI - 4080 PRINT OUT INTERFACE BUFFER 8 KBYTE WORD LENGTH 8 BIT I/F TYPE SHARED BAUD-RATE 9600 BPS PARITY BIT EVEN PROTOCOL CURRENT SETTINGS FONT DATA PRINT QUALITY GRAPHICS QUAL. STANDARD SUB/SUPER FONT...

  • Page 49: Explanation Of The Printout

    MACRO 1 is marked with an asterisk (’) which identifies it as the active macro. If you do not save new settings, they are lost when you turn the printer OFF and If you make modifications via the application in the active macro you will find the new settings under the heading CURRENT SETTINGS.

  • Page 50: Explanation Of Individual Menu Items

    S MACRO SELECT To select one of the four macros which can be used for changing quickly the printer settings for different applications. For example: Application A needs 12" paper and in Application B banking checks are printed. S CHANGE MACRO...

  • Page 51: S Print Out

    S Orator-C S Orator S DATA LARGE see Appendix B for print samples. PRINT TEST 3 lists all available fonts. The firmware of the printer Note: indicates also barcodes. Detail information for printing barcodes are in Appendix F Barcodes Quick Reference.

  • Page 52: S Print Quality

    Configuring the printer S Print Quality Is splitted up into: S Font Quality Three different font quality levels can be selected: S Draft quality (font "Data") S Near letter quality (NLQ displayed with the font name) S Letter quality (LQ displayed with the font name).

  • Page 53: S Paper Length

    11 / 12 (default setting) The tear-off/cut mode and top/bottom margins use the page length setting as a basis. An incorrect page length, therefore, gives an incorrect perforation skip. Appropriate setting in no. of lines Configuring the printer...

  • Page 54: S Vert.pos.adj

    Configuring the printer S Vertical Positioning Adjustment (VERT.POS.ADJ.) This can be set differently for each macro to exactly position the printout in relation to the top edge of the form in use. It is meant to be a corrective parameter to meet variations in paper size and pre-printed material. Using this function, the TOP MARGIN and BOTTOM MARGIN setting are taken into account as well.

  • Page 55: S Right Margin

    The position of the first margin is / " from the top of the paper and indicates the baseline of the letter H in upright "Data" font (see illustration). The top margin can be set to a maximum of / " down on the paper. Configuring the printer 3-11...

  • Page 56: S Bottom Margin

    Margin. If PERF. SKIP is set to NO the printer ignores the top and bottom margin and prints from the very first line to the very last one. That means that on a standard 11"...
  • Page 57 STACKER (at the top) via the point PATH. If BATCH is selected, the paper keeps its continuous form and leaves the printer at the rear. The cutter is not activated by default. If print jobs need to be separated, the cutter must be activated.

  • Page 58: S Emulation

    If LF = LF + CR is selected, the printer performs a carriage return (CR) for every line feed (LF) received via the interface. If CR = LF + CR is selected, the printer performs a line feed (LF) for every carriage return (CR) received via the interface.

  • Page 59: S Tear-Off / Cut

    S CUT 1 S NO FF S CUT MODE ON Disregarding these settings for the CI - 4080, the printer will always cut the paper when a switch from one tractor to the other has been initiated. In this case the CI - 4070 gives the message TEAR OFF Furthermore, all settings can be overruled by software (Command SPSIF, cut mode on).
  • Page 60 If the paper is not torn off and new printing data are received the paper moves back into the printer to allow the following page to be printed.

  • Page 61: Main Function Installation

    S Parallel S Serial S Shared In case the SHARED interface type is selected the printer switches automatically between the parallel and serial interface. The first data received at the port determine which interface port becomes active. The other interface port will be closed so that only one interface is active at a time (for detailed information see Appendix A Interface Description).

  • Page 62: Sub-Function Adjustment

    S AGC Position AGC (Automatic Gap Control) is an integral part of the paper handling capabilities of the printer. It is an automatic adjustment function which ensures an optimal print quality when using paper of various thicknesses. The gap adjustment will automatically take place whenever paper is inserted...

  • Page 63: S Platen Gap

    This is a basic adjustment which is automatically performed at the initial Power On of the printer, and which thereafter only needs to be initiated after having exchanged the print head or the platen. It is essential that the ink ribbon is installed and no paper is in the printer when this procedure is started.

  • Page 64: S Cut. V-Pos Lo. / Cut. V-Pos Up

    Configuring the printer S CUT. V-POS LO. / CUT. V-POS UP. (Vertical Positioning for Cutting Device for the CI - 4080 or for the tear off edge on the CI - 4070) This can be set differently for each paper source (lower and upper tractor) and is meant to be a corrective parameter to meet variations in paper size and pre-printed material.

  • Page 65: S Tractor Form Feed Mode

    S TRACT. FF-MODE (Tractor Form Feed Mode) EXECUTE FF means, every form feed sent to the printer will be executed. If you set IGNORE FF, only a form feed before printable characters will be executed, that means blank pages will be avoided.

  • Page 66: S Menu Access

    Configuring the printer S Menu Access There are four possibilities to define the access to the menu by the user. S ALL FUNCTIONS All functions can be used (default) S QUICK SET. OFF With this function the Quick Settings for Macro...

  • Page 67: S Self Test

    TEST 1. S Hex Dump This function makes it possible that the data received by the printer can be analyzed. Control codes are no longer carried out, instead all data is printed in hexadecimal format and as ASCII characters. Any non-printable characters, such as carriage return are only represented as a single dot (.) in the ASCII...
  • Page 68 [MACRO SELECT [7 MACRO 1 [7 MACRO 2 [7 MACRO 3 [7 MACRO 4 [CHANGE MACRO # [7 FONT (# indicates the actually selected macro, e.g. CHANGE MACRO 1) [7 PRINT QUALITY [7 SUB/SUPER FONT 6] [7 PITCH [7 LINE [7 PAGE LENGTH [7 VERT.POS.ADJ.
  • Page 69 [7 PAPER EXIT (only CI - 4080) [7 EMULATION [7 CHARACTER SET 6] [7 PATH [7 STACK.CAPACITY (Range: -, 20 to 200, step 20) [7 BATCH CAPACITY (Range: -, 20 to 600, step 20) [7 EPSON LQ [7 IBM PROPR. [7 IBM PROPR.
  • Page 70 [7 PAPER-IN ADJ. [7 CUT. V-POS LO. [7 CUT. V-POS UP. [7 UNI DIRECT.CMD [7 TRACT. FF-MOD (only for Printer CI - 4080) (only for Printer CI - 4080) (only for Printer CI - 4080) (only for Printer CI - 4080) ))))
  • Page 71 [SAVE [PRINT OUT [7 LANGUAGE [7 ENGLISH [7 DEUTSCH [7 FRANCAIS [7 RESTORE SET UP 6] [7 NO [7 YES [7 RECALL FACTORY 6] [7 NO [7 YES [7 MENU ACCESS [7 ALL FUNCTIONS [7 QUICK SET OFF [7 MACROS ONLY [7 NO ACCESS [7 SELF TEST [7 PRINT TEST 1...

  • Page 72: Maintenance

    S Vacuum cleaner. 4.1 Cleaning the Platen and Surrounding Areas The user should clean the printer every six months or after 50,000 prints, whichever occurs first. If you experience paper feed problems, or if the print head carriage movement becomes restricted, cleaning should be carried out more often.

  • Page 73: S Print Test 3

    Maintenance CONFIGURATION PM1 208xxxxx SPC 20000000 2100 TNA3 PGCNT 3333 CO61 IBM SET 1 C071 EPSON EXT. GCT C100 CODE PAGE EE C091 BARCODE DATA SAN SERIF COURIER SCRIPT OCR A ORATOR CHARACTER SET AGC TEST AGC TEST PRINTHEAD NEEDLE DATA !"#$%&'()*+,-./01234567890:;<=>?...

  • Page 74: Cleaning Procedure

    4.2 Cleaning Procedure 1. Power the printer ON and remove the top cover. 2. Remove the ribbon cassette. 3. Thoroughly brush and vacuum all accessible areas to remove any paper flock and dust. 4. Clean the platen's surface, the paper pressure rollers and the transport rollers using the platen cleaner.

  • Page 75: User Replaceable Parts

    The print head may be very hot immediately after printing. Caution: 1. Switch the printer ON, lift and remove the top cover. The print head will move to the correct position, aligned with the cut-out in the paper guide plate.

  • Page 76: S Print Head Installation

    S Print Head Installation Ensure that the printer is switched OFF. For print head installation, the carriage should be aligned with the cut-out in the paper guide plate (same position as for removal procedure). 1. Hold the print head (5) in its mounting position and press it against its stop in direction of the platen.

  • Page 77: Replacement Of The Platen

    The platen needs to be replaced after approximately 350,000 pages (see Page Counter (PGCNT) in PRINT TEST 3). To Remove the Platen 1. Switch the printer OFF. 2. Lift and remove the top cover 3. Swing back the cutter housing (only for CI - 4080) 4.

  • Page 78: S To Install The Platen

    To install the Platen Ensure that the printer is switched OFF. 1. Place the platen (60) in the space between print head and metal bar 2. Move the print head from its position at the right into the center 3. Fit the gear wheel at the end of the platen into the right mounting. Be careful not to damage the gear wheel 4.

  • Page 79: Trouble Shooting And Diagnostics

    5. If none of the suggestions enable you to continue printing, or if the fault is not listed, contact your service. Each time the printer is switched ON the display indicates TEST while the internal self-tests are run. If the test is completed successfully READY 1 ELQ will be displayed.

  • Page 80: Trouble Shooting And Diagnostics

    5.1 Power-related Problems S Power indicator does not come On when power is switched On S Check that the power cord and plug are securely fitted to the printer and to an electrical outlet. S Ask for the power connector connections (and fuse, if fitted) to be verified.
  • Page 81 S Character generator P(ROM) on PM damaged or missing S Control Unit defective S Type mismatch of PM and Control Unit S PBC (Printer Base Controller) on Control Unit damaged S SPC (Speed Controller) on Control Unit damaged S Printer ready for operation...
  • Page 82 XON - XOFF protocol S Repeat data transfer S Close cover Displayed when the top cover is open and the printer is in the READY or BUSY mode. S Cutter not connected Cutter without S Connector loose any function...

  • Page 83: Hor. Drive Error

    S Horizontal drive fault S Load paper and press Displayed when the host sends a form feed or print command to an empty tractor cassette. The printer enters the STOP mode. S Press Entered when pressed. The STOP indicator is lit.

  • Page 84: Motor-Fan Error

    S Horizontal drive fault S Load paper and press Displayed when the host sends a form feed or print command to an empty tractor cassette. The printer enters the STOP mode. S Press Entered when pressed. The STOP indicator is lit.

  • Page 85: Parity Error

    PARITY ERROR TEAR OFF PAPER TEMP.SENSOR ERR That means... Cause / Action S Check protocol setting of Protocol error printer and host S Repeat data transfer S Press This message is displayed when fanfold paper to be fed the menu...

  • Page 86: No Printout

    S Make sure that the printer is connected to the host computer. (Refer to section 1.9 Connection to a Computer). Make sure that connectors are properly fixed at both ends.

  • Page 87: Operation-Related Problems

    Ensure that the paper is horizontally aligned on the pins. S Open the printer's top cover. If necessary, loosen the two green screws and remove the paper guide plate to gain access to the paper. S Parking paper and resetting top of form S Tear off the paper at the perforation line.

  • Page 88: Print-Related Problems

    5.5 Print-related Problems S Print faint or of poor quality. S Have you used the correct paper? See section 6 Technical Data which contains a full specification of the paper you can use. Replace the paper if it does not match with the specification. S Make sure that the ribbon is stretched correctly.

  • Page 89: S Paper Source

    S Switch the power OFF and check that the font cartridge has been correctly inserted. S Check that the font cartridge has been selected in the printer Set-up (see Appendix B). If the printout or the character set is not ok, the following procedure can help to clear the situation.

  • Page 90: Paper Jam

    5.6 Paper Jam For the following steps stand in front of the printer, facing the tractor cassettes. S Lift and remove the top cover. S Grasp the cutter housing (only for CI - 4080) on both sides. Press down the green knob on the handles (84) using your thumbs and swing the cutter to the rear.
  • Page 91 S Swing back the ledge to cover the blade (only CI - 4080) Grasp the cutter housing (CI - 4080) left and right with both hands and press it toward the printer so that the handles (84) lock visible and with an audible click. Reapply and close the top cover. Press 5-12 to reactivate the printer.

  • Page 92: Ribbon Or Carriage-Related Problems

    S I/F TEST is used to test the serial interface. It initiates data to be sent from the printer and be returned by means of a closed loop connector plugged into the serial interface connector. The test data used consist of PRINT TEST 1 You will find detailed informations about the print tests in chapter 1.8...

  • Page 93: Technical Data

    6. Technical Data The following technical data refers to the standard Personality Module (PM Ser/Par). Print head technology Serial Impact Dot Matrix (SIDM) technology. Paper path Flat bed technology. Print head 24 needles, needle diameter 0.25 mm (0.01 inch), lifetime approximately 350,000 pages (standard DIN letter) Fonts Data, Roman, San Serif, Courier, Prestige, Script, OCR B, OCR A, Orator-C,...

  • Page 94: Appendix F Barcode Quick Reference

    Technical Data Print Speed (at 10 cpi) Draft Quality 700 cps, Near Letter Quality 350 cps, Letter Quality 175/117 cps . Throughput acc. to ECMA-132 Standard Letter (Dr. Grauert) 1-play fanfold Draft Quality: 750 pages/h Near Letter Quality: 520 pages/h Letter Quality: 320 pages/h Performance depending on the selected font...
  • Page 95 Line Spacing 2, 3, 4, 6, 8, 12 n/360 lpi Platen Gap Control The Automatic Gap Control (AGC) adjusts the distance between print head and platen according to paper thickness and programmable Platen Gap Control (PCC). Ribbon Black fabric ribbon for up to 16 million characters. Copies 1 original + 5 copies (max.
  • Page 96 Technical Data Paper specifications Paper- width height weight S 1-play S sheet in form set S total set total form set thickness S printing area S area of top glued (only paper movement) S cutter (only CI - 4080) Processing sticky labels: S the surface of a label must by absorbent for the liquid of the ribbon S labels must not detach from the fanfold paper S If the edges do not adhere to the paper the label could get stuck under the...
  • Page 97 Diagnostics Selftest, `Hex dump', device status and remote diagnostics via interface. Control Panel 16 character LCD for menu controlled setup, status- and error messages. Dimensions Width Depth (incl. tractor cassette) Height Weight CI - 4070 28.8 kg / 63 lbs CI - 4080 33 kg / 72 lbs Rated Voltage...
  • Page 98 Acc. to VDE (IEC 950 and CSA 22.2/No. 220-M91), UL 478, CSA; listing mark for Canada is C-UL EMI Approvals Acc. to regulation of FTZ/FCC, class B Printer Stand Provides is the optimum work station convenience. width = 630 mm / 25"...

  • Page 99: Appendix A System Interface Descriptions

    System Interface Description Appendix A There are two system interfaces: S one serial interface with RS-232C S one Parallel Centronics interface. The interfaces can be operated in three different modes: S serial interface active S parallel interface active S both interfaces active in shared mode The following chapter gives an overview about interface characteristics, control signals, protocols, and cabling.

  • Page 100: S Interface Characteristics

    S Word length: 7, or 8 bits S Number of stop bits: In receive mode the printer accepts 1, or 2 stop bits. The printer transmits always two bits. Transmission Protocols: S DTR - Ready/Busy (only RS-232C)

  • Page 101: Dtr - Ready/Busy

    The READY / BUSY DTR protocol uses the DATA TERMINAL READY (DTR) line to control the transmission of data from the host to prevent a buffer overflow. Printer DTR may be connected to host DSR + CTS or only to host DSR Note: and a bridge between RTS and CTS.
  • Page 102 Appendix A System Interface Description Printer DTR may be connected to host DSR + CTS or only to host DSR Note: and a bridge between RTS and CTS. Additional Information After Power-ON DTR is activated and the printer is ready to receive data.

  • Page 103: Xon / Xoff

    1.2.2 XON / XOFF This protocol requires all signal lines. S Pin 1 Protective Ground (PG) 2 Transmit Data (TXD) 3 Receive Data (RXD) 4 Request to Send (RTS) 5 Clear to Send (CTS) 6 Data Set Ready (DSR) 7 Signal Ground (SG) 20 Data Terminal Ready (DTR) Standard Connection 25 pin...
  • Page 104 Appendix A System Interface Description Additional Information After Power-ON DTR and RTS are activated and the printer is ready to receive data. XOFF is sent, when the interface buffer has only space left for 256 more charac- ters. XOFF is sent again, at a level of 128 characters buffer space. Further incoming data will be stored until the interface buffer is full.

  • Page 105: Parallel Centronics Interface

    When the interface buffer is full except for the last character, BUSY will not be reset. BUSY will be reset when buffer space is available again for least 512 characters in the interface buffer. While the printer is offline (Stop Mode) BUSY remains active until the printer enters the online state again.

  • Page 106: Transmission Protocol Description

    The BUSY signal is only reset if space is available in the interface buffer for a minimum of 512 characters. While the printer is offline, or a serial interface is active BUSY remains high and no ¯¯¯¯...

  • Page 107: Timing Diagram

    Appendix A System Interface Description 2.3 Timing Diagram DATA 1 - 8 DATA 0.5 Fs )))))))))))) STROBE 0.5 Fs 350 ns max BUSY )))))))) 0.5 Fs ACKN...

  • Page 108: Shared Operation

    Appendix A System Interface Description 3. Shared Operation In shared operation the interface buffer capacity is reduced by 256 bytes. After Power-ON both the serial and the parallel interfaces are available for data transfer. If a byte is first recognized by the serial interface the parallel interface is imme- diately disabled by the BUSY signal.

  • Page 109: Appendix B Print Samples Of Resident Fonts

    Print Samples of Resident Fonts Appendix B The Printer with the Personality Module (PM SER/PAR) provides the following resident fonts:...
  • Page 110 Appendix B Print Samples of Resident Fonts...
  • Page 111 Appendix B Print Samples of Resident Fonts...
  • Page 112 Appendix B Print Samples of Resident Fonts...
  • Page 113 Appendix B Print Samples of Resident Fonts...
  • Page 114 Appendix B Print Samples of Resident Fonts Character Pitches...
  • Page 115 Appendix B Print Samples of Resident Fonts...
  • Page 116 Appendix B Print Samples of Resident Fonts...
  • Page 117 Appendix B Print Samples of Resident Fonts...
  • Page 118 Appendix B Print Samples of Resident Fonts B-10...
  • Page 119 Appendix B Print Samples of Resident Fonts B-11...

  • Page 120: Appendix C Character Set Table

    Character Set Tables Appendix C Code Table IBM All Character Set < " Ì Ë ¶ Ê § Í & " & ´ < > > Applicable for Code Table IBM Set 1 and 2 Ç É á ü æ í...
  • Page 121 Appendix C Character Set Tables Code Table IBM Set 1 National Version = USA " & ´ < > " á " í ± ó ú ñ " Ñ ª µ ÷ º ¿ < ¬ · ½ ¼ ¡ ø...
  • Page 122 2.1 National Version IBM Set 1 23 24 40 5B 5C 5D 5E 60 7B 7C 7D 7E 1: USA 2: FRANCE 3: GERMANY 4: U.K. £ 5: DENMARK 6: SWEDEN 7: ITALY 8: SPAIN 9: JAPAN 10: NORWAY 11: DENMARK 2 12: SPAIN 2 13: LATIN AM.
  • Page 123 Appendix C Character Set Tables Code Table IBM Set 2 " Ì Ë Ê § Í & ´ < > Ç É ü æ é Æ â ô ä ö à ò å û ç ù ê ÿ ë Ö è...
  • Page 124 3.1 National Version IBM Set 2 1: USA 2: FRANCE 3: GERMANY £ 4: U.K. 5: DENMARK ¤ 6: SWEDEN 7: ITALY 8: SPAIN 9: JAPAN 10: NORWAY 11: DEMARK 2 12: SPAIN 2 13: LATIN AM. § 14: TURKEY Character Code (Hex) à...
  • Page 125 Appendix C Character Set Tables Code Table IBM Code Page Code Page Countries 1: Code Page 437 2: Code Page 850 Germany, U.K., Denmark, Sweden, Italy, Spain, Japan, Latin Am., Turkey 3: Code Page 860 Portugal 4: Code Page 863 France 5: Code Page 865 Norway...
  • Page 126 4.1 IBM Code Page 437 < 0 @ P " Ì Ë ¶ Ê § Í & G W g " & ´ < > > Ç É á ü æ í é Æ ó â ô ú ä ö ñ...
  • Page 127 Appendix C Character Set Tables 4.2 IBM Code Page 850 < 0 @ P " Ì Ë ¶ Ê § Í & G W g " & ´ < > > Ç É á " ü æ í é Æ ó â...
  • Page 128 4.3 IBM Code Page 858 < " Ì Ë ¶ Ê § Í & " & ´ < > > Ç É ü æ é Æ â ô ä ö à ò å û ç ù ê ÿ ë Ö è...
  • Page 129 Appendix C Character Set Tables 4.4 IBM Code Page 860 < " Ì Ë ¶ Ê § Í & " & ´ < > > C-10 Ç É á ü À í é È ó â ô ú ã õ ñ...
  • Page 130 4.5 IBM Code Page 863 < " Ì Ë ¶ Ê § Í & " & ´ < > > Ç É ü È é Ê ó â ô ú Â Ë ¨ à Ï ¸ ¶ û ³ ç ù...
  • Page 131 Appendix C Character Set Tables 4.6 IBM Code Page 865 < " Ì Ë ¶ Ê § Í & " & ´ < > > C-12 Ç É á ü æ í é Æ ó â ô ú ä ö ñ...
  • Page 132 EPSON Extended Graphics Character Table " § & ´ < > Ç É á ü æ í é Æ ó â ô ú ä ö ñ à ò Ñ å û ª ç ù º ê ÿ ¿ ë Ö è...
  • Page 133 Appendix C Character Set Tables 5.1 National Version EPSON Extended graphics Character Table 1: USA 2: FRANCE 3: GERMANY 4: U.K. £ 5: DENMARK 6: SWEDEN 7: ITALY 8: SPAIN 9: JAPAN 10: NORWAY 11: DENMARK 2 12: SPAIN 2 13: LATIN AM.
  • Page 134 5.2 EPSON Italic Character Table " & ´ < > This character table is selected by the command ESC t. " & ´ Appendix C Character Set Tables < > C-15...
  • Page 135 Appendix C Character Set Tables 5.3 National Version EPSON Italic Character Table (part 1) 1: USA 2: FRANCE 3: GERMANY 4: U.K. £ 5: DENMARK 6: SWEDEN 7: ITALY 8: SPAIN 9: JAPAN 10: NORWAY 11: DENMARK 2 12: SPAIN 2 13: LATIN AM.
  • Page 136 5.3 National Version EPSON Italic Character Table (part 2) 1: USA 2: FRANCE 3: GERMANY 4: U.K. £ 5: DENMARK 6: SWEDEN 7: ITALY 8: SPAIN 9: JAPAN 10: NORWAY 11: DENMARK 2 12: SPAIN 2 13: LATIN AM. 14: TURKEY 15: LEGAL Character Code (Hex) DB DC DD DE...
  • Page 137 Appendix C Character Set Tables Code Table OCR-A " & ¬ C-18 < > R 0 R...
  • Page 138 7. Code Pages for the Eastern European Countries (EE) 7.1 CODE PAGE 437 Greek " & ´ < > = Space µ < > " Appendix C Character Set Tables • " ± ¦ ² " Æ Ï ÷ Û <...

  • Page 139: Code Page 851 Greek

    Appendix C Character Set Tables 7.2 CODE PAGE 851 Greek " & ´ < > = Space C-20 Ç Ä ü Ï é Û â ô ä ö à Á û ç ù ê ë Ö è Ü • ï ½...

  • Page 140: Code Page 928 Greek

    7.3 CODE PAGE 928 Greek " & ´ < > = Space Ç É < ü æ é Æ ’ â ô £ ä ö à ò å û ç ù § ê ÿ ¨ ë Ö © è Ü ï...
  • Page 141 Appendix C Character Set Tables 7.4 CODE PAGE 855 Cyri " & ´ < > = Space C-22 ‹ " Š • Ž • ” ƒ ‚ — – © ¨ • € – " < > < & Å Ä...
  • Page 142 7.5 CODE PAGE 866 " & ´ < > = Space " & < > Appendix C Character Set Tables " — — ° < & ¤ > C-23...
  • Page 143 Appendix C Character Set Tables 7.6 CODE PAGE 869 " & ´ < > = Space C-24 Ä Ï Û Ÿ © ¬ ² ³ • ½ £ ¦ ² Ê " ± § " µ ˆ < > ° <...
  • Page 144 7.7 CODE PAGE 852 " & ´ < > = Space Ç É á ² ü í ´ é ó â ô ú € ä ö ç ´ • ƒ µ ð Ð ñ ç » Ñ ’ “ ë Ö...
  • Page 145 Appendix C Character Set Tables 7.8 KAMENICKY " & ´ < > = Space C-26 „ É á ñ ü í ð é ó ô ú Á ä ö Š À ó Ø ç æ … Ú ô • ý š...

  • Page 146: Iso Latin

    7.9 ISO LATIN 2 " & ´ < > = Space ° € • º ¤ ´ Ð Ñ § ¨ Š š Ô Õ Ø Ù î ï ð ñ ò ó Appendix C Character Set Tables Ê Ë Ð...
  • Page 147 Appendix C Character Set Tables 7.10 MAZOVIA " & ´ < > = Space C-28 ’ î Ç “ ò ü » é ó â ô Ó ½ ä ö ‚ ¼ à • ï û ó ç ù Ð ê...

  • Page 148: Code Page 437 Hun

    7.11 CODE PAGE 437 HUN " & ´ < > = Space Ç É á ü æ í é Æ ó Å â ú ä ö ñ à ó Ñ á ª å Ä ç Ú ê Ü ¿ ë Ö...
  • Page 149 Appendix C Character Set Tables 7.12 CODE PAGE 852 SEE ð " & Š ´ < Ð ‚ „ > = Space C-30 ñ Ç É á ´ ü í µ é ó â ô ú € ä ö ç ´...
  • Page 150 7.13 CODE PAGE 866 LAT < " Ì Ë ¶ Ê § Í – & • • & < > > = Space < Appendix C Character Set Tables • " Š ‘ " … š & „ ± ° ·...
  • Page 151 Appendix C Character Set Tables 7.14 WIN LAT2 < " Ì Ë ¶ Ê § Í & " & < > > = Space C-32 „ ÿ — ‰ ™ Š š < > Ð Ñ Ø ð ñ î ï...
  • Page 152 8. Code Pages for the Eastern European Countries (EE2) 8.1 CP 771 i < " Ì Ë ¶ Ê § Í – & • • & < > > Appendix C Character Set Tables ’ " “ " Ž & •...
  • Page 153 Appendix C Character Set Tables 8.2 CP 773 i < " Ì Ë ¶ Ê § Í – & • • & < > > C-34 ˆ É ü æ é Æ Ç ä ö • š á ¢ ƒ Ö...
  • Page 154 8.3 CP 774 < " Ì Ë ¶ Ê § Í – & • • & < > > Ç É ü æ é Æ â ô ä ö à ò å û ç ù ê ÿ ë Ö è Ü...
  • Page 155 Appendix C Character Set Tables 8.4 CP 775 < " Ì Ë ¶ Ê § Í – & • • & < > > C-36 ˆ É ü æ é Æ Ç ä ö Ÿ š å ¢ ƒ Ð »...

  • Page 156: Batic Rim

    8.5 BATIC RIM < " Ì Ë ¶ Ê § Í – & • • & < > > „ ” … • † – ‡ — ‰ ™ < > Appendix C Character Set Tables € • Š ¨ ¼...

  • Page 157: Ibm Proprinter Quick Reference

    This appendix contains basic information on the IBM ProPrinter 4207, 4208 XL 24 Emulation commands supported in four Printer types: Some commands or parameters may be different for a specific Printer type. In those cases it will be indicated by the PINTER NAME to which pinter a command or parameter applies.

  • Page 158: Appendix D Ibm Proprinter 4207, 4208 Xl 24 Quick Reference

    Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Characters used in control functions appear in monospaced type. Table 1 explains some of the conventions used. A pair of numbers separated by a slash ( / ) character indicates Column/Row notation. This notation refers to the location of a character in a standard code table, such as ASCII.
  • Page 159 Double Width Printing By Line Condensed Printing (17.1 cpi) Select Printer Select Pica (10 cpi) Buffer Data Flow Control Cancel Double Width Printing By Line Cancel Buffer Initiate Escape Sequence Space Delete Set Printer Off Line Deselect Printer Deselect Printer...
  • Page 160 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 3: Vertical Form Handling Escape Sequence ESC 0 ESC 1 ESC 2 ESC 4 ESC 5 P1 ESC A P1 ESC B ESC B P1 P2 . . . P64 ESC C P1 ESC C ESC N P1...
  • Page 161 Table 3 (Cont.): Vertical Form Handling Escape Sequence ESC ] ESC ] > s Native Command ESC [ > P1 ; P2 ; P3 ; P4 s Native Command ESC [ P1 s Native Command ESC [ ; P2 s Native Command **) only CI - 4040, and CI - 4050 *) only...
  • Page 162 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 3 (Cont.): Vertical Form Handling Escape Sequence ESC [ ; ; P3 s Native Command ESC [ ; ; ; P4 s Native Command (cutting edge is approximate 4 mm above the base of the actual line) ***) only CI - 4050 and CI - 4080 **) only CI - 4040, and CI - 4050 ****) only CI - 4080...
  • Page 163 Table 4: Horizontal Form Handling and Printing Modes Escape Sequence ESC : ESC - P1 ESC _ P1 ESC [ @ EOT NUL NUL NUL Coding to select "double line space", "double character height", Example: and "double character width" in Hex: 1B 5B 40 04 00 00 00 22 02 ESC D ESC D P1 P2 ...
  • Page 164 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 4 (Cont.): Horizontal Form Handling and Printing Modes Escape Sequence ESC E ESC F ESC G ESC H ESC I P1 ESC P P1 ESC R ESC S P1 ESC T ESC U P1 Function...
  • Page 165 Table 4 (Cont.): Horizontal Form Handling and Printing Modes Escape Sequence ESC W P1 ESC X P1 P2 ESC d P1 P2 ESC < ESC ; ESC [ P1 SP r Native Command Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Mnemonic Function Cancel / Select Double Width P1 = 0/0 or 0 : cancel Double Width...
  • Page 166 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 4 (Cont.): Horizontal Form Handling and Printing Modes Escape Sequence ESC [ P1 ; P2 x Native Command ESC [ P1 x possible format of Native Command CPL ESC [ ; P2 x possible format of Native Command CPL D-10...
  • Page 167 Table 5: Character Set Selection Escape Sequence ESC 6 ESC 7 ESC \ P1 P2 ESC ^ P1 ESC [ T n1 n2 NUL NUL P1 P2 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Mnemonic Function Select Character Set 2 Select Character Set 1 Print from All Character Set Number of codes = (P1 + P2 * 256)
  • Page 168 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 6: Graphics Modes Escape Sequence ESC 3 P1 ESC J P1 ESC K P1 P2 v1 . . . vn ESC L P1 P2 v1 . . . vn ESC Y P1 P2 v1 .
  • Page 169 Table 6 (Cont.): Graphics Modes Escape Sequence ESC [ g P1 P2 P3 v1 . . . vn Parameter Table Graphic Density: Graphic type Standard Density (K) Double Density (L) 2xDensity / 2xSpeed (Y) Quadruple Density (Z) Standard Density Double Density Triple Density Hex Density *) consecutive horizontal dots cannot be printed.
  • Page 170 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 7: Further Control Sequences, supported by IBM Emulation Mode (Native Commands) Escape Sequence ESC [ ESC * P1 P2 P3 v1 . . . vn Parameter Table Graphic Density: Graphic type Standard Density (K) Double Density (L)
  • Page 171 Table 7 (Cont.): Further Control Sequences, supported by Escape Sequence ESC [ P1 ; P2 w P1 for IBM CODE PAGE: P1 = 1 : CP 437 P1 = 2 : CP 850 P1 = 3 : CP 860 P1 = 4 : CP 863 P1 = 5 : CP 865 P1 = 6 : CP 858 P1 for CODE PAGE EE2:...
  • Page 172 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 7 (Cont.): Further Control Sequences, supported by Escape Sequence ESC [ P1 ; P2 SP r ESC M ESC [ < s ESC [ P1 ; P2 SP B ESC [ P1 ` D-16 IBM Emulation Mode (Native Commands)
  • Page 173 Table 7 (Cont.): Further Control Sequences, supported by Escape Sequence ESC [ P1 a ESC [ P1 b ESC [ P1 d ESC [ P1 e ESC [ P1 g ESC [ P1 w ESC [ P1 { Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference IBM Emulation Mode (Native Commands) Mnemonic Function Set Horizontal Position Relative...
  • Page 174 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 7 (Cont.): Further Control Sequences, supported by Escape Sequence ESC [ P1 m *) only CI - 4050 D-18 IBM Emulation Mode (Native Commands) Mnemonic Function Set Graphic Rendition P1 = 0: P1 = 1: P1 = 3:...
  • Page 175 Table 7 (Cont.): Further Control Sequences, supported by Escape Sequence ESC [ ; P2 ; P3 ; P4 ; P5 ; P6 ; P7 SP z BARCODE Programming ESC [ ? 0 h ESC [ ? 0 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference IBM Emulation Mode (Native Commands) Mnemonic Function Barcode Header...
  • Page 176 Backspace Horizontal Tab Line Feed Vertical Tab Form Feed Carriage Return Select Double Width (one line) Select Condensed Mode (17,1 cpi) Select Printer Select Pica (10 cpi) Buffer Data Flow Control Cancel Double Width Cancel Buffer Escape Space Delete Set Line Space to / "...
  • Page 177 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Format Cancel Superscript/Subscript Reverse Line Feed Set Printer Off Line Control String Introducer for ESC [ Control String Introducer for ESC Cancel / Select / Underline Set Line Space to / " ( / ") Carriage Return Function Set Line Space to / "...
  • Page 178 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Hex Code 1B 59 P P data 1B 5A P P data 1B 5B 3B P 73 1B 5B 3B P 77 1B 5B 3B P 3B P 3B P 3B P 3B P 3B P 20 7A 1B 5B 3C 73 1B 5B 3E 73...

  • Page 179: Hex - Decimal Conversion Table

    Hex - Decimal Conversion Table Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference 112 128 144 160 176 192 208 224 240 113 129 145 161 177 193 209 225 241 114 130 146 162 178 194 210 226 242 115 131 147 163 179 195 211 227 243 100 116 132 148 164 180 196 212 228 244 101 117 133 149 165 181 197 213 229 245...

  • Page 180: Epson Lq 2550 And Esc/P2 Quick Reference

    This appendix contains basic information on the EPSON LQ 2550 Printer Emulation commands supported in four Printer types: Some commands or parameters may be different for a specific Printer type. In those cases it will be indicated by the PINTER NAME to which pinter a command or parameter applies.
  • Page 181 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Characters used in control functions appear in monospaced type. Table 1 explains some of the conventions used. A pair of numbers separated by a slash ( / ) character indicates Column/Row notation. This notation refers to the location of a character in a standard code table, such as ASCII.
  • Page 182 Backspace Horizontal Tab Line Feed Vertical Tab Form Feed Carriage Return Double Width Printing By Line Condensed Printing Select Printer Select Pica (10 cpi) Deselct Printer Cancel Double Width Printing By Line Cancel Buffer Initiate Escape Sequence Space Delete Mnemonic Function...
  • Page 183 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table B-4: Vertical Form Handling Escape Sequence ESC 0 ESC 2 ESC 3 P1 ESC + P1 ESC A P1 ESC B NUL ESC B P1 P2 . . . P16 NUL ESC C P1 ESC C NUL P1 ESC J P1...
  • Page 184 Table B-4: (Cont.) Vertical Form Handling Escape Sequence ESC EM P1 ESC [ > P1 ; P2 ; P3 ; P4 s Native Command ESC [ P1 s Native Command ESC [ ; P2 s Native Command, *) only CI - 4050 **) only CI - 4040, anf CI - 4050 ***) only CI - 4070 and CI - 4080 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference...
  • Page 185 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table B-4: (Cont.) Vertical Form Handling Escape Sequence ESC [ ; ; P3 s Native Command ESC [ ; ; ; P4 s Native Command (cutting edge is approximate 4 mm above the base of the actual line) ***) only CI - 4050 and CI - 4080 *) only CI - 4040 and CI - 4050 ****) only CI - 4080...
  • Page 186 Table B-5: Horizontal Form Handling and Printing Modes Escape Sequence ESC SO ESC SI ESC SP P1 ESC ! P1 ESC $ P1 P2 ESC \ P1 P2 ESC % P1 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Function Select Double Width for One Line Select Condensed...
  • Page 187 Notes: table. - All User Defined Characters are erased when the printer is switched off. - Set the Interface Buffer to 1k or 8K (max 50 defined char in LQ, 128 in draft), or use a RAM card for up to 128 User Defined Characters in LQ.
  • Page 188 Table B-5: (Cont.) Horizontal Form Handling and Printing Modes Escape Sequence ESC ( - P1 P2 P3 P4 P5 ESC 4 ESC 5 ESC < ESC : NUL P1 NUL ESC - P1 ESC D NUL Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Function Select Line Marking P1 = 0/3...
  • Page 189 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table B-5: (Cont.) Horizontal Form Handling and Printing Modes Escape Sequence ESC D P1 P2 . . . P32 NUL ESC E ESC F ESC G ESC H ESC M ESC P ESC Q P1 ESC S P1 ESC T...
  • Page 190 Table B-5: (Cont.) Horizontal Form Handling and Printing Modes Escape Sequence ESC g ESC k P1 ESC p P1 ESC q P1 ESC r P1 *) only CI - 4050 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Function Select Pitch 15 cpi Select Font P1 = 0/0 : ROMAN...
  • Page 191 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table B-5: (Cont.) Horizontal Form Handling and Printing Modes Escape Sequence ESC w P1 ESC x P1 ESC [ P1 ; P2 SP B Native Command, E-12 Mnemonic Function Cancel/Select Double Height P1 = 0/0 or 3/0 : cancel P1 = 0/1 or 3/1 : select Select Character Quality...
  • Page 192 Table B-5: (Cont.) Horizontal Form Handling and Printing Modes Escape Sequence ESC [ P1 ; P2 x Native Command, ESC [ P1 x possible format of Native Command CPL ESC [ ; P2 x possible format of Native Command CPL Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Mnemonic Function Select Font and Character Pitch (any...
  • Page 193 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table B-6: Graphics Modes Escape Sequence ESC ? K P1 ESC ? L P1 ESC ? Y P1 ESC ? Z P1 ESC K P2 P3 v1 . . . vn ESC L P2 P3 v1 .
  • Page 194 Table B-6: Graphics Modes Escape Sequence ESC * P1 P2 P3 v1 . . . vn Parameter Table Graphic Density: Graphic type Standard Density (K) Double Density (L) 2xDensity / 2xSpeed (Y) Quadruple Density (Z) CRT I CRT II Standard Density Double Density CRT III Triple Density...
  • Page 195 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table B-7: Character Set Selection Escape Sequence ESC 6 ESC 7 ESC R P1 ESC t P1 E-16 Function Enlarge Print Code Area (128-159 dec.) Enable Upper Control Code (128-159 dec.) Select National Version P1 = 0/0 : U.S.A.
  • Page 196 Table B-8: Further - Control Sequences, supported by EPSON LQ Emulation Mode (Native Commands) Escape Sequence ESC [ ESC [ < s ESC [ > s ESC [ P1 SP X ESC [ P1 ; P2 SP r Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Mnemonic Function Control String Introducer (CSI) for ESC [ control String Introducer for ESC...
  • Page 197 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table B-8 (Cont.): Further - Control Sequences, supported by Escape Sequence ESC [ P1 ; P2 w P1 for IBM CODE PAGE: P1 = 1 : CP 437 P1 = 2 : CP 850 P1 = 3 : CP 860 P1 = 4 : CP 863 P1 = 5 : CP 865...
  • Page 198 Table B-8 (Cont.): Further - Control Sequences, supported by Escape Sequence ESC [ ; P2 ; P3 ; P4 ; P5 ; P6 ; P7 SP z BARCODE Programming ESC [ ? 0 h ESC [ ? 0 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference EPSON LQ Emulation Mode (Native Commands) Mnemonic Function Barcode Header...
  • Page 199 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table 9: ESC / P2 Commands Escape Sequence ESC ( c P1 P2 P3 P4 P5 ESC ( C P1 P2 P3 ESC ( V P1 P2 P3 ESC ( v P1 P2 P3 E-20 Function Set page format...
  • Page 200 Table 9: (Cont.) ESC / P2 Commands Escape Sequence ESC X P1 P2 P3 ESC ( U P1 P2 ESC c P1 P2 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Function Select font by pitch and point P1 = 0 : No change in pitch P1 = 1 : Selects proportional spacing...
  • Page 201 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table 9: (Cont.) ESC / P2 Commands Escape Sequence ESC ( t n1 n2 Pn P1 P2 ESC t Pn E-22 Function Assign character table n1 = 3, n2 = 0 Pn = Parameter of ESC t : "0", "1", "2"...
  • Page 202 Table 9: (Cont.) ESC / P2 Commands Escape Sequence ESC ( ^ P1 P2 ESC ( G P1 P2 ESC . P1 P2 P 3 P4 P5 P6 Print raster graphics Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Function Print data as characters Prints n data bytes as characters, not...
  • Page 203 1B 46 E-24 Format Null Backspace Horizontal Tab Line Feed Vertical Tab Form Feed Cariage Return Select Printer Cancel Condensed Mode Deselect Printer Cancel Double Width Cancel Buffer Escape Space Delete Select Double Width for One Line Select Condensed Mode Cancel Most Significant Bit Control Set Line Space to / "...
  • Page 204 Hex Code 1B 47 1B 48 1B 4D 1B 4F 1B 50 1B 54 1B 67 24 24 24 24 2F 1B 19 P 1B 20 P 1B 21 P 1B 25 00 1B 25 01 1B 2B P 1B 2F P 1B 2D 01 1B 2D 00 1B 33 P...
  • Page 205 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Hex Code 1B 6A P 1B 6B P 1B 6C P 1B 70 00 1B 70 01 1B 71 P 1B 72 P 1B 74 P 1B 77 00 1B 77 01 1B 78 P 1B 24 P P 1B 26 00 P P P P P data...
  • Page 206 Hex Code 1B 44 P P ...P 00 1B 4B P P data 1B 4C P P data 1B 58 P P 1B 59 P P data 1B 5A P P data 1B 5B 3B P 73 1B 5B 3B P 77 1B 5B 3B P 3B P 3B P 3B P 3B P 3B P 20 7A 1B 5B 3C 73...
  • Page 207 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Hex - Decimal Conversion Table E-28 112 128 144 160 176 192 208 224 240 113 129 145 161 177 193 209 225 241 114 130 146 162 178 194 210 226 242 115 131 147 163 179 195 211 227 243 100 116 132 148 164 180 196 212 228 244 101 117 133 149 165 181 197 213 229 245...
  • Page 208 The header does not affect any parameters outside the barcode application and remains valid until another header is transmitted or the printer is turned off. This can be done at any time but before barcode printing.
  • Page 209 Appendix F Barcode Quick Reference Barcode Header Parameters Barcode type - default = 101 (Code 39 horizontal) Type horizontal Code 39 2 of 5 industrial 2 or 5 interleaved Codabar (Monarch) EAN 8 EAN 13 Code 93 MSI Mod 10/10 UPC-E UPC-A Code 128 (EAN 128)
  • Page 210 Width of the thin bars (default: / " = 0.35 mm) The width of bars and gaps should be equal. For this, the parameters P Note: and P should not deviate more than one step. for horizontal Barcode for vertical Barcode Width of the thin gaps (default: / "...
  • Page 211 Appendix F Barcode Quick Reference P Ratio Width to Thin (default: 0 (2 to 1)) Code 39 2 of 5 industrial 2 of 5 interleaved value Codabar Code 93 MSI mod 10/10 Code 128 Code 93, MSI 10/10, Code 128 are fixed 2.0 to 1 Note: Best results for Code 39, 2 of 5 industrial, 2 of 5 interleaved, and Codabar with 2.5 to 1...
  • Page 212 2.2 Barcode Programming Examples All examples are coded in standard uni-directional printing - that means the Note: parameter "P " is not used. In the following examples, 8 stands for "Space". The small square actual print position. Between Start Barcode and Stop Barcode are only printable characters tolerated (no CR or LF).
  • Page 213 Appendix F Barcode Quick Reference Barcode Example for 2 of 5 Interleaved ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 203 ; 8 ; 1 ; 1 ; 1 ; 8 z Start Barcode: ESC [ ? 0 h Data:...
  • Page 214 Barcode Example for EAN 8 ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 205 ; 8 ; Start Barcode: ESC [ ? 0 h Data: 4 0 1 2 3 4 5 5 ESC [ ? 0 l Stop Barcode: Barcode Example for EAN 8 ADD-2...
  • Page 215 Appendix F Barcode Quick Reference Barcode Example for EAN 8 ADD-5 ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 205 ; 8 ; Start Barcode: ESC [ ? 0 h Data: 4 0 1 2 3 4 5 5 8 6 1 0 4 ESC [ ? 0 l...
  • Page 216 Barcode Example for EAN 13 ADD-2 ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 206 ; 8 ; Start Barcode: ESC [ ? 0 h Data: 4 1 2 3 4 5 6 7 8 9 0 1 8 1 2 ESC [ ? 0 l Stop Barcode: Barcode Example for EAN 13 ADD-5...
  • Page 217 Appendix F Barcode Quick Reference Barcode Example for Code 93 ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 207 ; 8 ; 1 ; 1 ; Start Barcode: ESC [ ? 0 h a C + O + D + E 8 9 3 W I e Data:...
  • Page 218 Barcode Example for UPC-E Barcode Header: Start Barcode: Data: Stop Barcode: 1 2 3 4 5 6 Barcode Example for UPC-E ADD-2 Barcode Header: Start Barcode: Data: Stop Barcode: ESC [ ; P ; P ; P ; P ; P ; P 8 z ESC [ ;...
  • Page 219 Appendix F Barcode Quick Reference Barcode Example for UPC-E ADD-5 ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 209 ; 8 ; Start Barcode: ESC [ ? 0 h Data: 0 1 2 3 4 5 6 5 8 6 1 0 4 ESC [ ? 0 l...
  • Page 220 Barcode Example for UPC-A ADD-2 ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 210 ; 8 ; Start Barcode: ESC [ ? 0 h Data: 0 1 2 3 4 5 6 7 8 9 0 5 1 2 ESC [ ? 0 l Stop Barcode: Barcode Example for UPC-A ADD-5...
  • Page 221 Appendix F Barcode Quick Reference Barcode Example for Code 128 ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 211 ; 8 ; 1 ; 1 ; Start Barcode: ESC [ ? 0 h C o d e 8 1 2 8 Data:...
  • Page 222 Barcode Example for POSTNET ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 112 ; Start Barcode: ESC [ ? 0 h Data: 1 2 3 4 5 6 7 8 9 0 1 ESC [ ? 0 l Stop Barcode: Data:...
  • Page 223 Appendix F Barcode Quick Reference Programming two Barcodes symbols on the same line ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 201 ; 7 ; 0 ; 0 ; 1 ; 8 z Start Barcode: ESC [ ? 0 h * C 8 O 8 D 8 E 8 8 8 3 9 *...
  • Page 224 Programming two Barcodes symbols separated by CR and LF ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 201 ; 7 ; 0 ; 0 ; 1 ; 8 z Start Barcode: ESC [ ? 0 h * C 8 O 8 D 8 E 8 8 8 3 9 *...
  • Page 225 Appendix F Barcode Quick Reference Programming two Barcodes symbols in landscape on the same line ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 401 ; 7 ; 0 ; 0 ; 1 ; 8 z Start Barcode: ESC [ ? 0 h * C 8 O 8 D 8 E 8 8 8 3 9 *...
  • Page 226 Programming two Barcodes symbols in landscape separated by CR / LF ESC [ ; P ; P ; P ; P ; P ; P 8 z Barcode Header: ESC [ ; 401 ; 7 ; 0 ; 0 ; 1 ; 8 z Start Barcode: ESC [ ? 0 h * C 8 O 8 D 8 E 8 8 8 3 9 *...

  • Page 227: Information For The System Manager

    To reactivate the menu access function, perform the following steps: S Switch off the printer. Press the MENU and START/STOP keys simultane- ously. While holding down the two keys, switch on the printer. When the message MENU ACCESS is displayed, release the keys. Now you are able to change the menu access function.

This manual is also suitable for:

Ci-4070

Table of Contents
