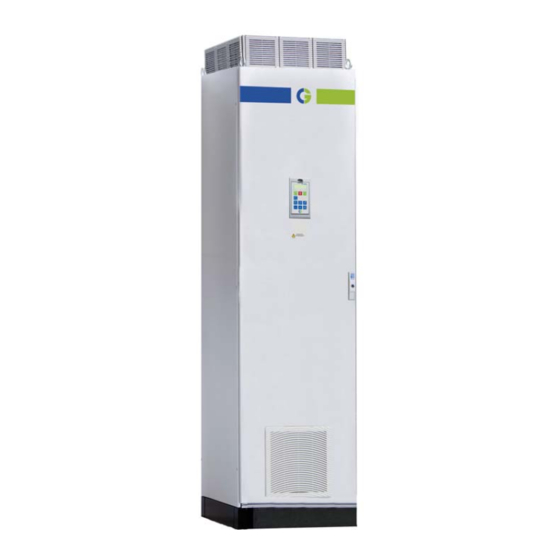

Emotron FDU 2.0
AC drive
Instruction manual
English
Software version 4.3X

Advertisement

loading
Need help?

Need help?

Do you have a question about the FDU 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Emotron FDU 2.0

  • Page 1 Emotron FDU 2.0 AC drive Instruction manual English Software version 4.3X...
  • Page 3 Emotron FDU 2.0 INSTRUCTION MANUAL - ENGLISH Software version 4.3X Document number: 01-5325-01 Edition: r1 Date of release: 02-07-2012 © Copyright CG Drives & Automation Sweden AB 2005 - 2012 CG Drives & Automation Sweden AB retains the right to change specifications and illustrations in the text, without prior notification.
  • Page 5 Safety Instructions Earthing Congratulations for choosing a product from CG Drives & Automation! The AC drive must always be earthed via the mains safety Before you begin with installation, commissioning or earth connection. powering up the unit for the first time it is very important that you carefully study this Instruction manual.
  • Page 6 Condensation If the AC drive is moved from a cold (storage) room to a room where it will be installed, condensation can occur. This can result in sensitive components becoming damp. Do not connect the mains voltage until all visible dampness has evaporated.
  • Page 7 Contents Connecting options ..........32 Getting Started..........33 Connect the mains and motor cables ....33 Safety Instructions 5.1.1 Mains cables ............33 5.1.2 Motor cables............33 Contents ............5 Using the function keys .......... 33 Introduction............. 7 Remote control............34 5.3.1 Connect control cables ...........
  • Page 8 9.2.2 Indications on the display........58 11.6.3 Logic Output Z [630]..........164 9.2.3 LED indicators ............58 11.6.4 Timer1 [640] ............165 9.2.4 Control keys ............. 58 11.6.5 Timer2 [650] ............167 9.2.5 The Toggle and Loc/Rem Key ........ 59 11.6.6 Counters [660] ............
  • Page 9 The Quick Setup Card can be put in a cabinet door, so that it is always easy to access in case of an emergency. Warranty Emotron FDUis used most commonly to control and protect pump and fan applications that put high demands The warranty applies when the equipment is installed, on flow control, process uptime and low maintenance costs.
  • Page 10 The AC drives described in this instruction manual comply with the standards listed in Table 1. For the declarations of conformity and manufacturer’s certificate, contact your Painted AC drive A=Standard paint supplier for more information or visit www.emotron.com/ Coated boards, - =Standard boards www.cgglobal.com. option...
  • Page 11 Table 1 Standards Market Standard Description EMC Directive 2004/108/EC European Low Voltage Directive 2006/95/EC WEEE Directive 2002/96/EC Safety of machinery - Electrical equipment of machines EN 60204-1 Part 1: General requirements. Adjustable speed electrical power drive systems Part 3: EMC requirements and specific test methods. EN(IEC)61800-3:2004 EMC Directive: Declaration of Conformity and...
  • Page 12 Glossary 1.7.1 Abbreviations and symbols In this manual the following abbreviations are used: Table 2 Abbreviations Abbreviation/ Description symbol Digital signals processor AC drive Frequency converter PEBB Power Electronic Building Block IGBT Insulated Gate Bipolar Transistor Control panel, the programming and presentation unit on the AC drive Handheld control panel (option) EInt...
  • Page 13 Mounting Recommended for AC drive models This chapter describes how to mount the AC drive. -300 to - 3K0 Before mounting it is recommended that the installation is planned out first. • Be sure that the AC drive suits the mounting location. •...
  • Page 14 Stand-alone units 2.2.2 Mounting schemes The AC drive must be mounted in a vertical position against a flat surface. Use the template (in the File archive on our 128.5 homepage) to mark out the position of the fixing holes. Ø 13 (2x) Ø...
  • Page 15 128,5 24,8 Ø 13 (2x) Ø 7 (4x) Fig. 10 FDU48/52: Model 061 to 074 (D) Fig. 8 FDU48/52: Model 026 to 046 (C) Glands Glands Gland Glands Glands M25 (026-031) M32 (037-046) Glands Glands M32 (026-031) M40 (037-046) Fig. 11 Cable interface for mains, motor and communication, FDU48/52: Model 061 to 074 (D).
  • Page 16 Cable glands M20 Cable glands M20 Cable flexible leadthrough Cable flexible leadthrough Ø23-55 /M63 Ø17-42 /M50 Cable flexible leadthrough Cable flexible leadthrough Ø17-42 /M50 Ø11-32 /M40 22.5 284.5 344.5 22.5 Fig. 13 FDU48: Model 210 to 250 (F) Fig. 12 FDU48: Model 090 to 175 (E) including cable inter- FDU69: Model 90 to 200 (F69) including cable face for mains, motor and communication interface for mains, motor and communication...
  • Page 17 Cabinet mounting 2.3.2 Recommended free space in front of cabinet 2.3.1 Cooling All cabinet mounted AC drives are designed in modules, so called PEBBs. These PEBBs can be folded out to be If the variable speed drive is installed in a cabinet, the rate of replaced.
  • Page 18 2.3.3 Mounting schemes R ITTAL R ITTAL R ITTAL R ITTA L R ITTA L R ITTA L R ITTA L R ITTA L FDU48: Model 300 to 500 (G and H) FDU48: Model 600 to 750 (I) FDU69: Model 250 to 400 (H69) FDU69: Model 430 to 595 (I69) R ITTAL R ITTAL...
  • Page 19 R ITTA L R ITTA L R ITTA L R ITTA L R ITTA L R ITTA L R ITTA L R ITTA L R ITTA L R ITTA L 2100 1800 FDU48: Model 1K35 to 1K5 (K) FDU48: Model 1K75 (L) FDU69: Model 1K2 (K69) FDU69: Model 1K4 (L69) 2400...
  • Page 20 Mounting CG Drives & Automation, 01-5325-01r1...
