Summary of Contents for Nuu Garden AF125C

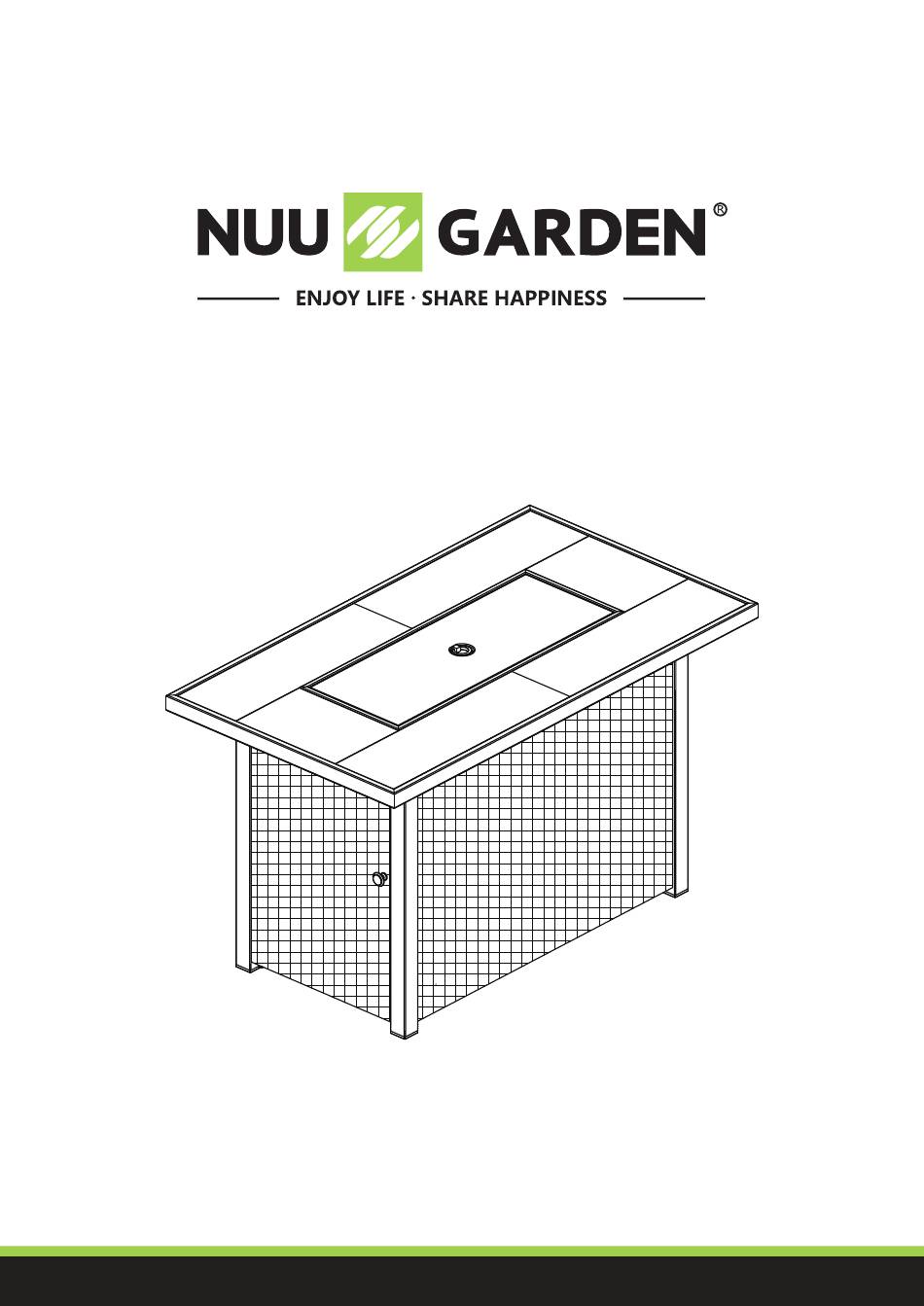

- Page 1 INSTRUCTION MANUAL Outdoor Fire Pit Table AF125C...
- Page 2 INTRODUCTION Thanks for purchasing and trusting NUUGARDEN with your home decorating plans. This product is a furniture designed and made by NUUGARDEN Corp. We are committed to R&D innovation and creating the most refined, diverse choice of outdoor collection. After unpacking and before every use, check whether the item shows any damages.
- Page 3 WARNING DANGER FIRE OR EXPLOSION HAZARD If you smell gas: • Shut off gas supply to the fire table. • Extinguish any open flame. • Do not try lighting any appliance. • Do not touch any electrical switch; do not use any phone in your building.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. - Page 5 IMPORTANT SAFETY INFORMATION · n i l q i l a i l · Do not store any combustible materials in the base enclosure. · may impair an individual’s ability to properly assemble or safely operate this outdoor fire table. ble area a clear and free from combustible materials, gasoline and other flammable vapors and liquids.
-
Page 6: Propane (Lp) Dangers And Warnings
PROPANE (LP) DANGERS AND WARNINGS LP GAS LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product. Propane Characteristics: tles in pools in low areas. n odorant has been added. mproperly. - Page 7 CAUTION CAUTION: After lighting - using a fireplace tool and heat-resistant gloves, carefully move fire glasses back to their proper position, being careful to avoid the flame. CAUTION: If ignition does not occur in 5 seconds, turn control knob to “ OFF”, wait 5 minutes, fan with a newspaper or magazine and repeat lighting procedure.
-
Page 8: Hose & Regulator Assembly And Replacement
HOSE & REGULATOR ASSEMBLY AND REPLACEMENT fi a i l No 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fire table must be used. Only a hose and regulator specified by manufacturer can be used for replacement. c i t fl... - Page 9 CONTENTS HARDWARE Part Number Images Sizes Qty. Item Description Table Top Side Panel Side Panel Side Panel Side Panel Tank Base Table Lid Fire Glass Cover Hex Screw Driver Bolt (M6*18) Bolt (M6*30) Bolt (M6*35) Washer (M6*20) Washer (M6*16)
- Page 10 ASSEMBLY INSTRUCTIONS Note: Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
- Page 11 ASSEMBLY INSTRUCTIONS Note: Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
- Page 12 OPERATING INSTRUCTIONS Installing LP Gas Tank Operating Instructions LP Gas Figure 1 To operate, you will need one precision-filled Connection Checking for Leaks standard grill LP gas tank with external valve threads. WARNING: Before using this outdoor CAUTION: LP gas tank must be 20 lb fireplace, make sure you have read, properly disconnected and removed...
-
Page 13: Cleaning And Care
OPERATING INSTRUCTIONS (CONTINUED) 12. If igniter does not light burner: a. Wearing heat-resistant gloves, position a long lit match or long lit butane lighter near the pilot housing. b. Push and turn control knob to “ON ” C. Remove match/lighter once burner is lit. 13. -
Page 14: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Igniter pin and burner are wet Dry off with a soft cloth Igniter battery is incorrectly inserted Check which direction the battery is inserted Contact us. for a replacement part Igniter pin is broken Heating unit won’t light Electrode wire is loose or disconnected Reconnect wire to the igniter box located inside the fire pit behind the igniter box... -
Page 15: Care And Maintenance
CARE AND MAINTENANCE Follow the instruction for the material of your special product to make sure that it stays in the best shape for as long as possible. The information below is only intended as a general guideline. For more information, please contact •... -
Page 16: Customer Service
CUSTOMER SERVICE Thanks for purchasing this NUUGARDEN furniture. We are here to help you maximize your enjoyment and appreciation of it. Please do not hesitate to contact our customer service when you have any questions regarding assembly or accessories. Add: 6366 Corley Road, Norcross, GA 30071. Tel: (800) 257-7108 Web: http://www.nuugarden.com E-mail: service@nuugarden.com... - Page 17 NUUGARDEN USA Nuu Garden Corp. Add: 6366 Corley Road, Norcross GA 30071. Tel: (800) 257-7108 Web: http://www.nuugarden.com E-mail: service@nuugarden.com...
