Matrix 908 Field Computer

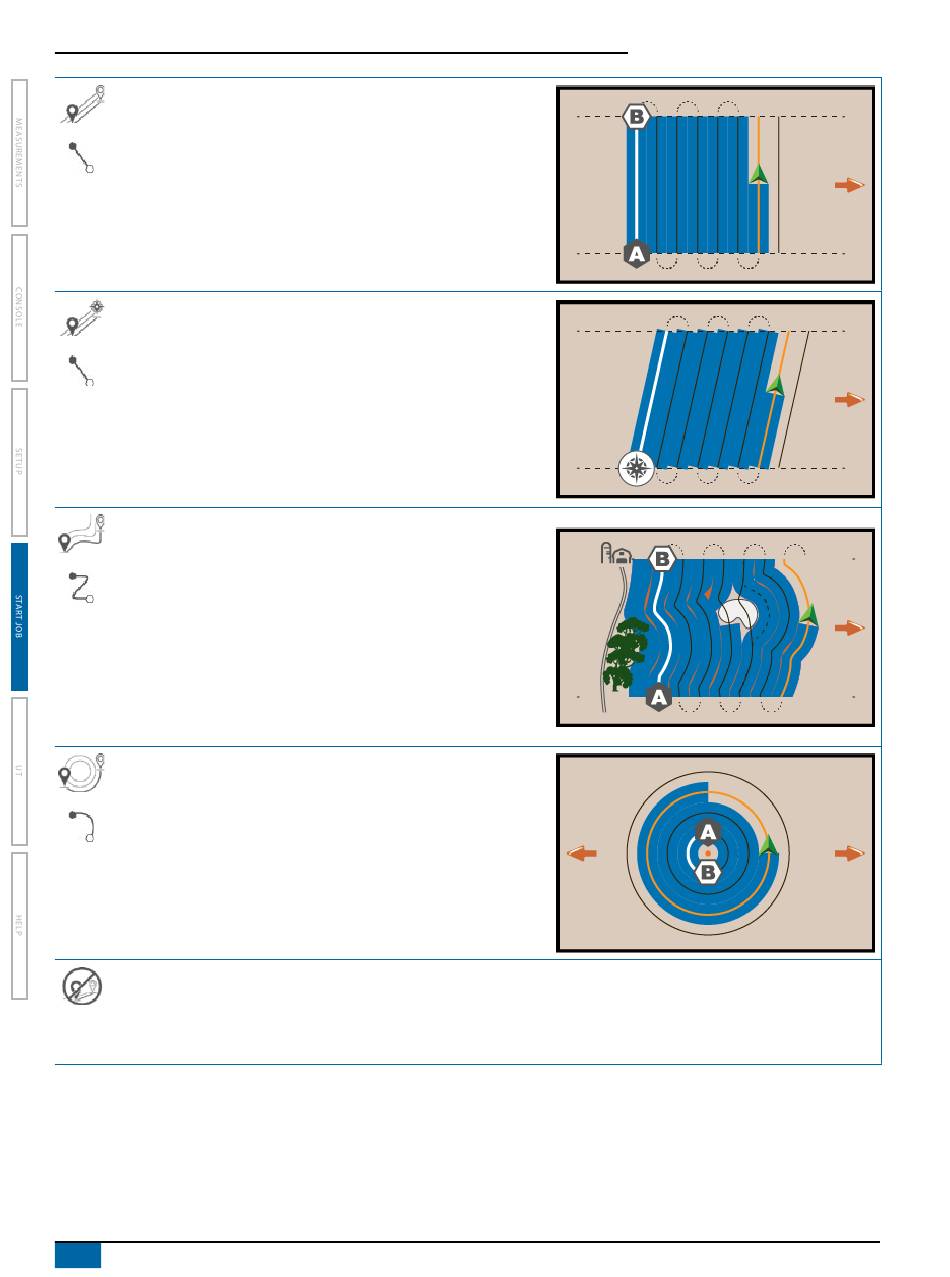

Straight AB Guidance
Straight AB guidance provides straight-line guidance based on A and
B reference points. The original A and B points are used to calculate
all other parallel guidelines.
Azimuth Guidance
Azimuth guidance provides straight-line guidance based on a
horizontal angle measured clockwise from a true north baseline.
When using an azimuth, the point from which the azimuth originates
is the center of an imaginary circle. North = 0°, East = 90°,
South = 180°, West = 270°.
Azimuth Degree guidance projects a guideline between the current
vehicle position (the A point) and a B point set 300 feet / 100 meters
away along the entered azimuth heading.
Dynamic Adaptive AB Guidance
Dynamic Adaptive AB guidance provides guidance along a curved
line based on an initial AB reference line where each adjacent
guideline is drawn from the projected guidance width and heading.
Dynamic Adaptive AB Guidance includes a detour option which
allows a variation of the guideline to be created then either connected
back to the original guideline or finished, creating a new B point of
the original guideline. A minimum distance of 6.5 feet / 2 meters must
be traveled before a detour can be started. A minimum of 165 feet /
50 meters must be traveled before a detour can be finished.
Circle Pivot Guidance
Circle Pivot guidance provides guidance around a central location
that radiates inward or outward based on an initial AB reference line.
This initial baseline is used to calculate all other guidelines.
It is used for product application in a center pivot field while being
guided along a circular guideline that matches a center pivot irrigation
system radius.
No Guidance
No guidance* turns off guidance.
NOTE: No guidance mode does not delete established guide lines or points from the console. To delete established/saved
data from the console, see "Data management" in the System setup chapter.
NOTE: Offset to adjacent guidelines will be calculated using the guidance width, see "Settings-> Guidance and Mapping" for established
distance.
