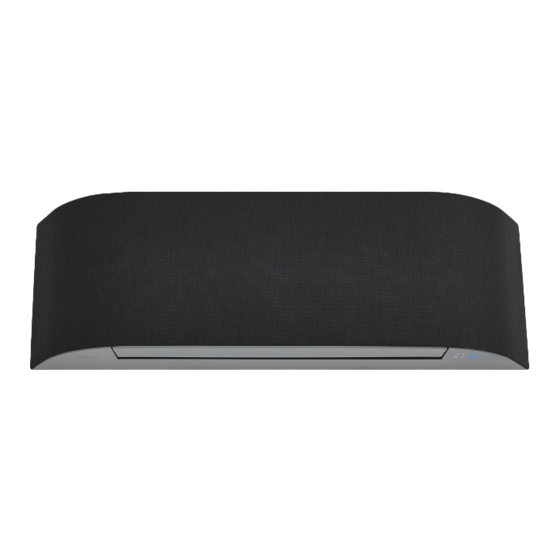

AIR CONDITIONER (MULTI TYPE)
Installation Manual
Indoor Unit
Model name:
High-Wall Type
MMK-UP0051DHPL-E
MMK-UP0071DHPL-E
MMK-UP0091DHPL-E
MMK-UP0121DHPL-E
MMK-UP0151DHPL-E
MMK-UP0181DHPL-E
When the DHPL model (MMK-UP*DHPL-E) is installed,
PMV kit is necessary
R32 or R410A
For commercial use
Installation Manual
English
1
1133850101
Advertisement
Table of Contents
Related Manuals for Toshiba MMK-UP0051DHPL-E
Summary of Contents for Toshiba MMK-UP0051DHPL-E
- Page 1 AIR CONDITIONER (MULTI TYPE) Installation Manual R32 or R410A Indoor Unit Model name: For commercial use High-Wall Type MMK-UP0051DHPL-E MMK-UP0071DHPL-E MMK-UP0091DHPL-E MMK-UP0121DHPL-E MMK-UP0151DHPL-E MMK-UP0181DHPL-E When the DHPL model (MMK-UP*DHPL-E) is installed, PMV kit is necessary English Installation Manual 1133850101...
-
Page 2: Table Of Contents
“Electrical connection” in this Manual. Product information of ecodesign requirements. (Regulation (EU) 2016/2281) http://ecodesign.toshiba-airconditioning.eu/en Contents PRECAUTIONS FOR SAFETY ..........5 ACCESSORY PARTS . - Page 3 Toshiba Carrier Corporation or, alternatively, he or she has been instructed in such matters by an individual or individuals who have been trained and is thus Qualified...
- Page 4 Installation Manual Definition of Protective Gear When the air conditioner is to be transported, installed, maintained, repaired or removed, wear protective gloves and ‘Safety’ work clothing. In addition to such normal protective gear, wear the protective gear described below when undertaking the special work detailed in the table below.
- Page 5 Installation Manual Warning indications on the air conditioner unit Warning indication Description WARNING WARNING ELECTRICAL SHOCK HAZARD ELECTRICAL SHOCK HAZARD Disconnect all remote electric power supplies Disconnect all remote electric power supplies before servicing. before servicing. WARNING WARNING Moving parts. Moving parts.
-
Page 6: Precautions For Safety
Installation Manual PRECAUTIONS FOR SAFETY • Ensure that all Local, National and International regulations are satisfied. • Read this “PRECAUTIONS FOR SAFETY” carefully before Installation. • The precautions described below include the important items regarding safety. Observe them without fail. •... - Page 7 Installation Manual • Only a qualified installer(*1) or qualified service person(*1) is allowed to undertake work at heights using a stand of 50 cm or more or to remove the front panel of the indoor unit to undertake work. • Wear protective gloves and safety work clothing during installation, servicing and removal.
- Page 8 Installation Manual • To transport the air conditioner, do not take hold of the bands around the packing carton. You may injure yourself if the bands should break. • Do not place any combustion appliance in a place where it is directly exposed to the wind of air conditioner, otherwise it may cause imperfect combustion.
- Page 9 Installation Manual • When the air conditioner has been installed or relocated, follow the instructions in the Installation Manual and purge the air completely so that no gases other than the refrigerant will be mixed in the refrigerating cycle. Failure to purge the air completely may cause the air conditioner to malfunction.
- Page 10 Installation Manual Test run • Before operating the air conditioner after having completed the work, check that the electrical control box cover of the indoor unit and service panel of the outdoor unit are closed, and set the circuit breaker to the ON position. You may receive an electric shock if the power is turned on without first conducting these checks.
- Page 11 Installation Manual Relocation • Only a qualified installer(*1) or qualified service person(*1) is allowed to relocate the air conditioner. It is dangerous for the air conditioner to be relocated by an unqualified individual since a fire, electric shocks, injury, water leakage, noise and/or vibration may result. •...
-
Page 12: Accessory Parts
Q’ty Shape Usage Installation plate Wireless remote controller Battery Remote controller holder Toshiba Ultra pure filter Mounting screw Flat head wood screw Screw (Hand over to customers) (For other languages that do not appear in Owner’s Manual this Owner’s Manual, please refer to the enclosed CD-R.) - Page 13 Installation Manual Decorative Fabric Installation 5. Reassembly the air inlet grille by reverse process of 1. The decorative fabric for cover on the air inlet grille of indoor unit was put in the accessories. User can NOTE use it as required. •...
-
Page 14: Selection Of Installation Place
Installation Manual SELECTION OF INSTALLATION PLACE WARNING • Install the air conditioner at enough strong place to withstand the weight of the unit. If the strength is not enough, the unit may fall down resulting in injury. CAUTION • Do not install in a location where flammable gas may leaks are possible. If the gas leak and accumulate around the unit, it may ignite and cause a fire. - Page 15 Installation Manual Installation diagram of Indoor unit For the rear left and bottom left piping Wall Hook Mounting screw Hook Installation Cut out a piece of SPACER from plate indoor unit packaging box, roll it and insert between the indoor unit and wall to tilt the indoor unit for better operation.
- Page 16 Installation Manual Installation space The indoor unit shall be installed at least 2.5 m height. Also it must be avoided to put anything on top of the indoor unit. *1 Reserve space required to install the indoor unit and for service work. Keep 73 mm or more for clearance between top plate of the indoor unit and the ceiling surface.
-
Page 17: Installation Of Indoor Unit
Installation Manual INSTALLATION OF INDOOR UNIT WARNING Install the air conditioner certainly to sufficiently withstand the weight. If the strength is insufficient, the unit may fall down resulting in human injury. Perform a specified installation work to guard against strong wind or earthquake. An incomplete installation can cause accidents by the units falling and dropping. -
Page 18: Cutting A Hole And Mounting Installation Plate
Installation Manual CUTTING A HOLE AND MOUNTING INSTALLATION PLATE Cutting a hole Space allows under the indoor unit In case of installing the refrigerant pipes from the rear: • Space allows for moving range of the air inlet grille and horizontal louver in operation above curtain rails, window cornice or other objects. - Page 19 Installation Manual When the installation plate is directly mounted on the wall 1. Securely fit the installation plate onto the wall by screwing it in the upper and lower parts to hook up the indoor unit. 2. To mount the installation plate on a concrete wall with anchor bolts, utilize the anchor bolt holes as illustrated in the above figure.
-
Page 20: Piping And Drain Hose Installation
Installation Manual PIPING AND DRAIN HOSE INSTALLATION Piping and drain hose forming • Since dewing results in a machine trouble, make sure to insulate both connecting pipes. (Use polyethylene foam as insulating material.) • The connection of pipes can be installed in the following directions. Rear right Rear left Bottom left... - Page 21 Installation Manual How to cutting the Front panel • To connect piping to the bottom side, the Front panel must be cut off. • The front panel can be removed by removing 2 screws securing then secure remove the front panel from the main body.
- Page 22 Installation Manual How to fix the drain hose Drain pan • To install the drain hose, insert the drain hose firmly until the connection part contacts with heat insulator, secure push steel plate of drain hose to predetermined position of Drain pan then fix it by original screw. Drain hose Heat insulator (foam) CAUTION...
- Page 23 Installation Manual Left-hand connection with piping • Bend the connecting pipe so that it is laid within 43 mm above the wall surface. If the connecting pipe is laid exceeding 43 mm above the wall surface, the indoor unit may unstably be set on the wall. When bending the connecting pipe, make sure to use a spring bender so as not to crush the pipe.
-
Page 24: Indoor Unit Fixing
Installation Manual INDOOR UNIT FIXING 1. Pass the pipe through the hole in the wall, CAUTION and hook the indoor unit on the installation plate at the upper hooks. MOUNTING INDOOR UNIT TO THE INSTALLATION PLATE 2. Swing the indoor unit to right and left to •... -
Page 25: Drainage
Installation Manual DRAINAGE 1. Run the drain hose sloped downwards. NOTE • Hole should be made at a slight downward slant on the outdoor side. 2. Put water in the drain pan and make sure that the water is drained out of doors. 3. -
Page 26: Refrigerant Piping
Installation Manual REFRIGERANT PIPING Permissible Piping Length and CAUTION Height Difference Use flare nuts that are included with the unit. They vary according to the outdoor unit. Using different flare nuts may cause refrigerant For details, refer to the Installation Manual gas leakage. - Page 27 Installation Manual * In case of flaring for R32 or R410A Heat insulation with the conventional flare tool, Heat insulation for the pipes should be done pull it out approx. 0.5 mm more separately for the liquid side and gas side. than that for R22 to adjust to the Because both of the liquid and gas side pipes specified flare size.
-
Page 28: Electrical Connection
Installation Manual ELECTRICAL CONNECTION REQUIREMENT WARNING • For power supply wiring, strictly conform to 1. Using the specified wires, ensure to the Local Regulation in each country. connect the wires, and fix wires securely • For wiring of power supply of the outdoor so that the external tension to the wires units, follow the Installation Manual of each do not affect the connecting part of the... - Page 29 Installation Manual Power supply wire and communication wires specifications Power supply wire and communication wires are procured locally. For the power supply specifications, follow the table below. Power supply wiring and communication wiring are to be procured locally. For specifications of the power capacity of the outdoor unit and the power supply wires, refer to the Installation Manual supplied with the outdoor unit.
- Page 30 Installation Manual <In the case of combining with outdoor units of Super Modular Multi System u series (SMMS-u)> Uv line and Uc line (L2, L3, L4) 0.5 mm² (Up to 500 m) Wire size : (2-core shield wire, non-polarity) 0.75 to 1.25 mm² (Up to 1000 m) Uh line (L1) 0.75 to 1.25 mm²...
- Page 31 Installation Manual <In the case of combining with outdoor units other than Super Modular Multi System u series (SMMS-u)> Control wiring between indoor units, and outdoor unit (L2, L3) (2-core shield wire, non-polarity) 1.25 mm² (Up to 1000 m) Wire size : 2.0 mm²...
- Page 32 Installation Manual Wired remote controller wiring This wiring is not required when using the supplied wireless remote controller. • For wiring remote controllers a 2 core non polarity wire must be used. Wired remote controller wiring, remote controller inter-unit wiring Wire size: 0.5 mm²...
- Page 33 Installation Manual Control wiring between indoor and outdoor units NOTE • A wiring diagram below is an example for connection to SMMS-u series. For connecting to other outdoor unit series, refer to the Installation Manual attached to the outdoor unit to be connected. ▼...
- Page 34 Installation Manual Wired remote controller wiring • As the wired remote controller wire has non-polarity, there is no problem if connections to indoor unit terminal blocks A and B are reversed. ▼ Wiring diagram Terminal block for remote controller Terminal block wiring of indoor unit Wired remote controller unit...
- Page 35 Installation Manual Wiring Connection Power supply terminal block Terminal block for How to connect the power supply wiring communication/remote and control wiring controller wiring Screw The power supply wire and the control wire can be Terminal cover connected without removing the front panel. REQUIREMENT Earth screw Cord holder...
- Page 36 Installation Manual Wiring connection for flow selector unit How to connect the wiring of flow selector unit Connect the power supply wire and the communication wire supplied with the flow selector unit to the indoor unit. 1. Remove the air inlet grille. Open the air inlet grille upward and pull it toward you.
-
Page 37: Applicable Controls
Installation Manual APPLICABLE CONTROLS REQUIREMENT When the air conditioner is used for the first time, it will take some moments after the power has been turned on before the remote controller becomes available for operations: This is normal and is not indicative of trouble. •... - Page 38 Installation Manual Change of lighting time of filter Push the menu button to make Set data ] flash. Change Set data [ sign with [ ] setting button. According to the installation condition, the lighting Push OFF timer button. time of the filter sign (Notification of filter cleaning) By doing so, the setup is completed.
- Page 39 Installation Manual Adjustment of air direction 1. Using the remote controller switch, change the up/down air direction by moving the horizontal louver. 2. Adjust the right/left air direction by bending the vertical grille inside of the air outlet port with hands. REQUIREMENT Do not touch the horizontal louver directly with hands;...
-
Page 40: Test Run
Installation Manual TEST RUN Before test run Execute a test run • Before turning on the power supply, carry out • When a fan operation is to be performed for an the following procedure. individual indoor unit, turn off the power, short circuit CN72 on the circuit board, and then turn 1) By using insulation tester (500VMΩ), check the power back on. - Page 41 Installation Manual Wired remote controller In case of wireless remote controller (Forced test operation is performed in a Be sure to stop the air conditioner before different way.) making settings. (Change the setup while the air conditioner is not working.) REQUIREMENT •...
-
Page 42: Troubleshooting
Installation Manual TROUBLESHOOTING A wired remote controller is necessary for this function. This function cannot be operate with a wireless remote controller. Confirmation and check If a problem occurs with the air conditioner, the OFF timer indicator alternately shows the check code and the indoor Unit No. in which the problem occurred. - Page 43 Installation Manual Check method On the remote controller (Wired remote controller, Central control remote controller) and the interface P.C. Board of the outdoor unit (I/F), a check display LCD (Remote controller) or 7-segment display (on the outdoor interface P.C. Board) to display the operation is provided. Therefore the operation status can be known.
- Page 44 Installation Manual Check code Wireless remote controller Wired Sensor block display of receiving Judging Outdoor unit 7-segment display Check code name remote unit device controller Auxiliary code Operation Timer Ready Flash display 01: Outdoor unit of other line connected Other line connected during automatic 02: Indoor unit of other line address connected...
- Page 45 Installation Manual Check code Wireless remote controller Wired Sensor block display of receiving Judging Outdoor unit 7-segment display Check code name remote unit device controller Auxiliary code Operation Timer Ready Flash display – Comp. 2 case thermostat operation – TD2 sensor miswiring 01: TK1 oil circuit system trouble 02: TK2 oil circuit system trouble 03: TK3 oil circuit system trouble...
- Page 46 Installation Manual Check code Wireless remote controller Wired Sensor block display of receiving Judging Outdoor unit 7-segment display Check code name remote unit device controller Auxiliary code Operation Timer Ready Flash display – – Indoor fan motor trouble Indoor unit –...
- Page 47 Installation Manual *1 Inverter quantity information (Super Modular Multi System e and u series (SMMS-e, SMMS-u, SHRM-A)) Comp. Inverter Fan Inverter Trouble Comp. 1 Comp. 2 Comp. 1 + Comp. 2 Fan 1 Comp. 1 + Fan 1 Comp. 2 + Fan 1 Comp.
-
Page 48: Specifications
Installation Manual SPECIFICATIONS Sound pressure level (dBA) Model Weight (kg) Cooling Heating MMK-UP0051DHPL-E MMK-UP0071DHPL-E MMK-UP0091DHPL-E MMK-UP0121DHPL-E MMK-UP0151DHPL-E MMK-UP0181DHPL-E * Under 70 dBA NOTICE CODE • Notice code is a function only in TC2U-Link communication. • When the outdoor or indoor unit detects its conditions requiring caution or maintenance, this function notices you to check your units with the spanner mark (Notice code mark) on the wired remote controller or central controller display. - Page 49 Installation Manual Declaration of Conformity Manufacturer: Toshiba Carrier (Thailand) Co., Ltd. 144 / 9 Moo 5, Bangkadi Industrial Park, Tivanon road, Tambol Bangkadi, Amphur Muang, Pathumthani 12000, Thailand TCF holder: TOSHIBA CARRIER EUROPE S.A.S Route de Thil 01120 Montluel FRANCE...
- Page 50 Installation Manual Declaration of Conformity Manufacturer: Toshiba Carrier (Thailand) Co., Ltd. 144 / 9 Moo 5, Bangkadi Industrial Park, Tivanon road, Tambol Bangkadi, Amphur Muang, Pathumthani 12000, Thailand TCF holder: TOSHIBA CARRIER UK LTD. Porsham Close Belliver Industrial Estate Roborough Plymouth Devon...
-
Page 51: Appendix
Installation Manual APPENDIX Work instructions 5. When a commercially available dryer is attached to the existing pipes. The existing R22 and R410A piping can be reused • There is the possibility that copper green rust for inverter R32 product installations. has been generated. - Page 52 Installation Manual Existing pipes: Cannot be used. Are there scratches or dents on the existing pipes? • Use new pipes. Is it possible to operate the existing air conditioner? • After the existing air conditioner is operated in cooling mode for approx. 30 minutes or longer,* recover the refrigerant.
- Page 53 Installation Manual WARNINGS ON REFRIGERANT LEAKAGE Check of Concentration Limit ▼ NOTE 2 The room in which the air conditioner is to be The standards for minimum room volume are as follows. installed requires a design that in the event of (1) No partition (shaded portion) refrigerant gas leaking out, its concentration will not exceed a set limit.
- Page 54 Installation Manual CONFIRMATION OF INDOOR UNIT SETUP Prior to delivery to the customer, check the address and setup of the indoor unit, which has been installed in this time and fill the check sheet (Table below). Data of four units can be entered in this check sheet. Copy this sheet according to the No.
- Page 55 144 / 9 Moo 5, Bangkadi Industrial Park, Tivanon Road, Tambol Bangkadi, Amphur Muang, Pathumthani 12000, Thailand 1133850101...
