Summary of Contents for Eureka Forbes Aquaguard Blaze

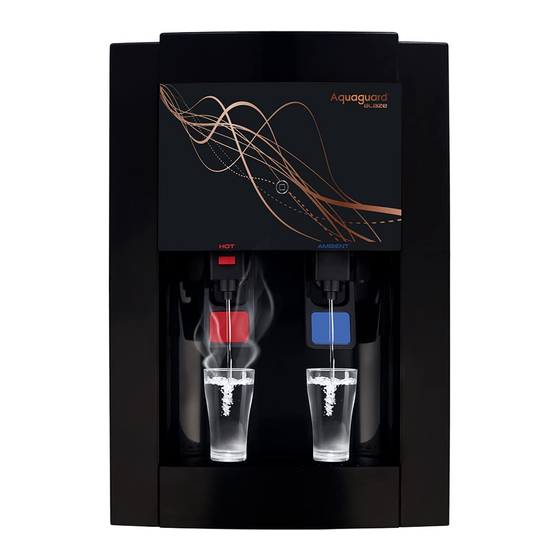

- Page 1 BLAZE UV+HOT...
-
Page 2: Prerequisites For Installation
PREREQUISITES FOR INSTALLATION Product installation should be done only by a trained Eureka Forbes Service Technician only. Input water must be tested for Total Dissolved Solids (TDS) and Total Hardness - Install the product in a dry ventilated place. Keep it away from direct sunlight, heating devices or areas below 10 - The purifier should be placed in area which is free of ants/insects/other pests. - Page 3 Please note that the TDS blending, and its adjustment is dependent upon the level of TDS of input water and on the TDS reduction capacity of the RO membrane. TDS adjustment should be done by the authorized Eureka Forbes technician only.
-
Page 4: Safety Features
PRECAUTIONS • Hot water may cause burn, due to scalding, if touched with bare hand. • Do not over flow the glass/container with hot water. • Do not allow children to operate the hot water dispensing. • Keep the heater switched OFF when hot water is not utilised. If the heater switch is kept ON continuously, the ambient water temperature might increase slightly. - Page 5 THE PROCESS OF PURIFICATION (For UV+UF Variant) Stage Treatment Materials Benefits Multi-layered Polypropylene i-Filter™ Removes fine suspended particles such as dust, dirt mud and sand from water. Roving Wound Cartridge Dust-free Bacteriostatic Activated Chemi-Block™ Reduces excess chlorine and organic impurities. Also adsorbs bad taste and odour from the water. Carbon Block Micro Controller-based Electronic Prevents the deposition of dissolved minerals like Ca and Mg on the Quartz Tube of UV chamber,...
-
Page 6: Technical Specifications
ELECTRICAL SPECIFICATIONS purification process and water dispensing. Power Rating 570 Watts (Heater - 550 Watts) Performance data sheets are available with Eureka Forbes Technical Documentation Power Supply Input - 230V AC, 50 Hz. Centre. Operating Voltage Range 150 VAC to 280 VAC, 50 Hz Warranty void if the product is not installed as per recommendations. - Page 7 THE PROCESS OF PURIFICATION (For RO+UV+MTDS Variant) Stage Treatment Materials Benefits Removes fine suspended particles such as dust, dirt mud and sand from water. Multi-layered Polypropylene i-Filter™ Roving Wound Cartridge Reduces excess chlorine and organic impurities. Also adsorbs bad taste and odour from the water. Dust-free Bacteriostatic Activated Chemi-Block™...
- Page 8 ELECTRICAL SPECIFICATIONS process and water dispensing. Power Rating 595 Watts (Heater - 550 Watts) Performance data sheets are available with Eureka Forbes Technical Documentation Power Supply Input - 230V AC, 50 Hz. Centre. Operating Voltage Range 150 VAC to 280 VAC, 50 Hz Warranty void if the product is not installed as per recommendations.
- Page 9 FUNCTION OF INDICATORS – LED DISPLAY PARAMETERS LED INDICATION (1RGB) Remarks Red, Blue and Green blinks one after other for 1 sec, Green solid ON for 5 Power ON Applicable for RO+UV, RO, UV models Tank icon blinks for 6 seconds in RO+UV. and RO Green Solid ON Purification process models.Blinks for 30 seconds in case of UV models...
- Page 10 ® HOW TO DISPENSE WATER FROM AQUAGUARD To Dispense Ambient Water: • Press the ambient tap towards the product and the purified water at ambient temperature will flow through the tap. Release the tap, the water flow will stop. • To get the ambient water continuously, lift up the tap lever and water will start flowing continuously as long as the lever is lifted and water is available in the purified water tank.
- Page 11 Flushed out water from a RO system is an unavoidable technology limitation. It maintains the performance of the purification process and the service life of the membrane also. Eureka Forbes has taken utmost care to minimize the water wastage in our RO system without compromising on the performance of the product.
- Page 12 2. Have you kept the purified water in 2. Dispose of water and clean the tank. the tank for too long? 3. Call an authorised Eureka Forbes Service 3. Is it time to change the filter? Technician. Less water has been purified 1.
- Page 13 IMPORTANT NOTE ON ZERO PRESSURE PUMP (ZPP) Your Aquaguard ® is equipped with a unique pump having both suction and boosting capabilities and comes with specially designed sensing system. Now, this enables your Aquaguard ® to work in the following operating conditions:- Normal Input Water Pressure –...
-
Page 14: Warranty Terms And Conditions
WARRANTY TERMS & CONDITIONS 1. The Products are warranted against manufacturing defects for a period of twelve (12) months from the date of original purchase. 2. The Customer will notify the Company in writing promptly of any defects noticed and give the Company or its authorized agent adequate opportunity to inspect test and remedy them for which the Customer will deposit the goods at its own expense, if so, required by the Company with the Company's Office/Service Centre along with the original invoice in the city where they are sold. - Page 15 3. If during such servicing it is necessary for the company to replace or repair defective components or parts, the customer shall be required to pay for the same as per the company's prevailing price list. 4. Eureka Forbes limited reserves the right to offer annual maintenance contract/ensure availability of spares only up to 7 years from the date of invoice. *Conditions apply.
- Page 16 WARRANTY TERMS & CONDITIONS Lifetime warranty on Stainless Steel Tank: Terms & Conditions for Life time Stainless Steel tank warranty: a) Usage under recommended input water condition with regular maintenance by EFL authorized Service Centre. This warranty covers Stainless Steel Tank only. Lifetime refers to the 'life of the water purifier' (life of the water purifier is 7 years from the date of invoice, please refer to Point 4 under “Post warranty”.) b) Lifetime warranty of Stainless-Steel tank is only applicable if the tank is used as a part of product assembly for storing purified water.
-
Page 17: Environment Protection
Should you have any queries, the nearest authorized service center of Eureka Forbes will be able to guide you.
