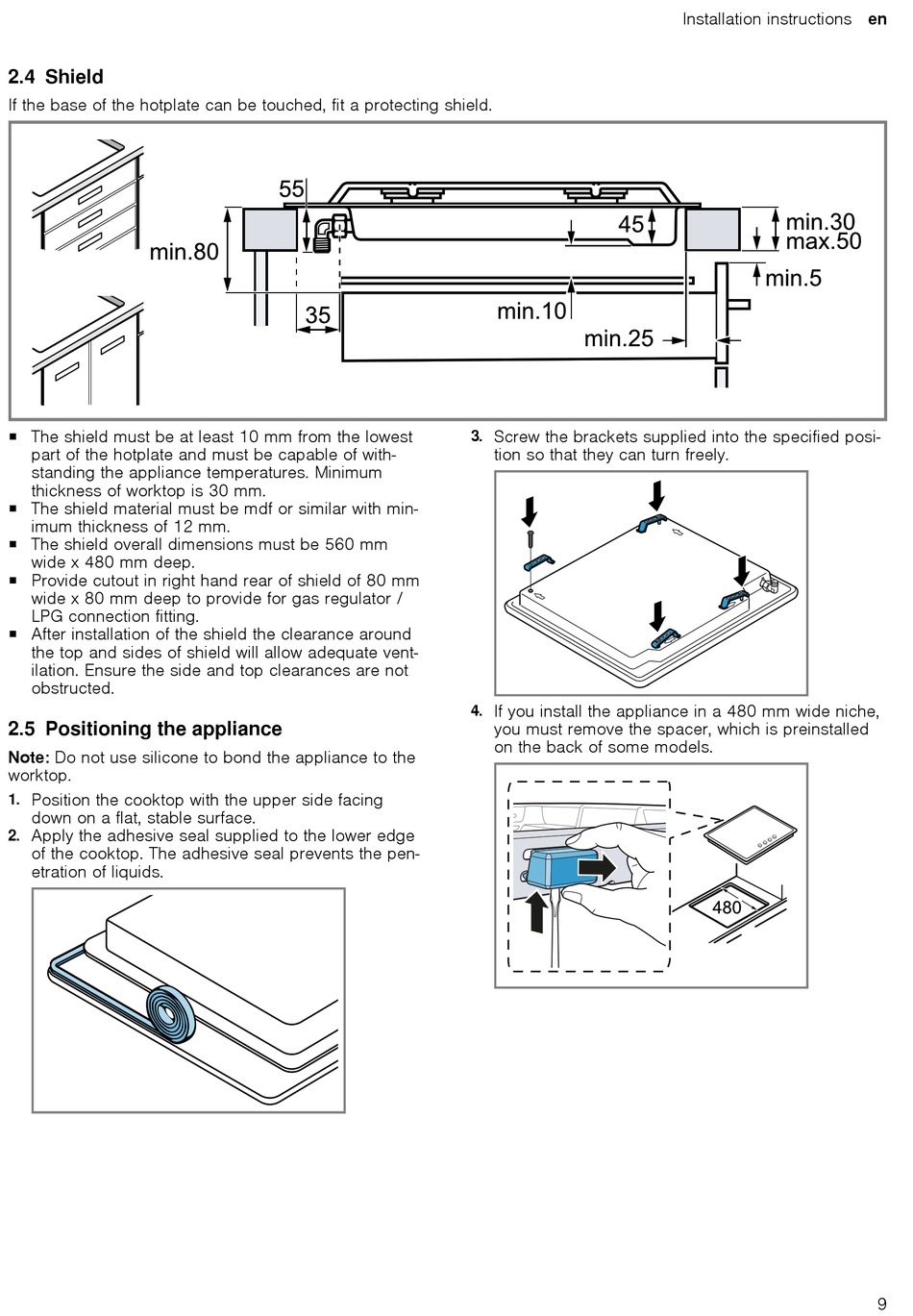

2.4 Shield
If the base of the hotplate can be touched, fit a protecting shield.
¡ The shield must be at least 10 mm from the lowest
part of the hotplate and must be capable of with-
standing the appliance temperatures. Minimum
thickness of worktop is 30 mm.
¡ The shield material must be mdf or similar with min-
imum thickness of 12 mm.
¡ The shield overall dimensions must be 560 mm
wide x 480 mm deep.
¡ Provide cutout in right hand rear of shield of 80 mm
wide x 80 mm deep to provide for gas regulator /
LPG connection fitting.
¡ After installation of the shield the clearance around
the top and sides of shield will allow adequate vent-
ilation. Ensure the side and top clearances are not
obstructed.
2.5 Positioning the appliance
Note: Do not use silicone to bond the appliance to the
worktop.
Position the cooktop with the upper side facing
1.
down on a flat, stable surface.
Apply the adhesive seal supplied to the lower edge
2.
of the cooktop. The adhesive seal prevents the pen-
etration of liquids.
Screw the brackets supplied into the specified posi-
3.
tion so that they can turn freely.
If you install the appliance in a 480 mm wide niche,
4.
you must remove the spacer, which is preinstalled
on the back of some models.
Installation instructions en
9
