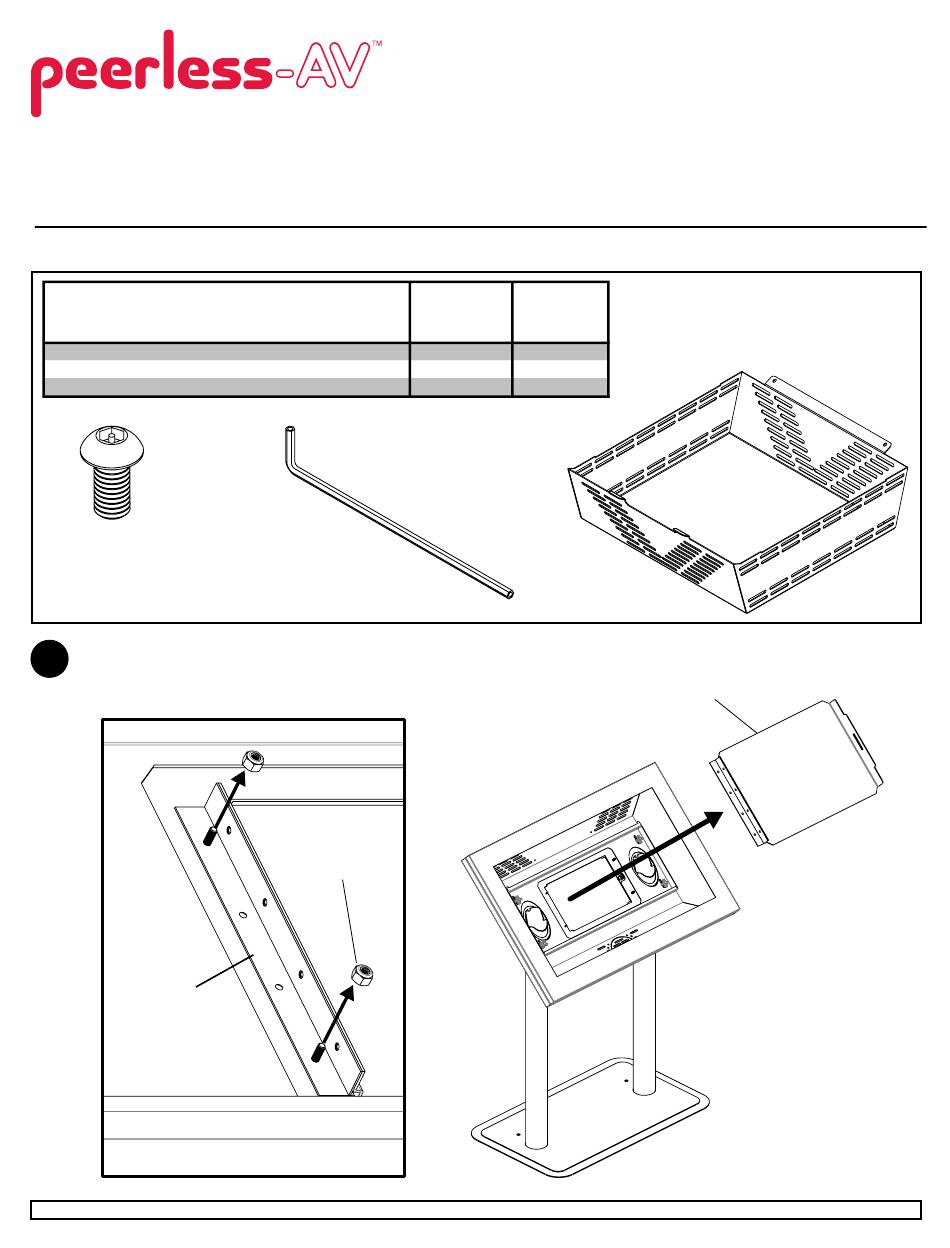

Installation and Assembly:
CPU Kit for Landscape Kiosk
Model: ACC-MS46
Parts List
Description
A
pc accessory box
B
M5 x 10 mm socket pin screw
C
4 mm allen wrench
B
Remove nut that secure kiosk door to kiosk frame as shown in detail 1.
1
Remove kiosk door and hinge
KIOSK HINGE
DETAIL 1
Visit the Peerless Web Site at www.peerless-av.com
ACC-MS46-S
Qty.
Part #
1
145-F4581
2
520-2031
1
560-9646
C
NUT
ACC-MS46-AB
ACC-MS46-AW
Part #
Part #
145-S1581
145-S2581
520-1164
520-2031
560-9646
560-9646
KIOSK DOOR
1 of 2
For customer care call 1-800-865-2112 or 708-865-8870.
ISSUED: 05-22-12 SHEET #:125-9316-2 06-18-12
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for peerless-AV ACC-MS46
Summary of Contents for peerless-AV ACC-MS46
- Page 1 Remove nut that secure kiosk door to kiosk frame as shown in detail 1. Remove kiosk door and hinge KIOSK DOOR KIOSK HINGE DETAIL 1 1 of 2 ISSUED: 05-22-12 SHEET #:125-9316-2 06-18-12 Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112 or 708-865-8870.
- Page 2 Secure pc accessory box (A) to back of kiosk with two M5 x 10 mm socket pin screws (B) using 4 mm allen wrench (C) as shown below. 2 of 2 ISSUED: 05-22-12 SHEET #:125-9316-2 06-18-12 Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112 or 708-865-8870.
