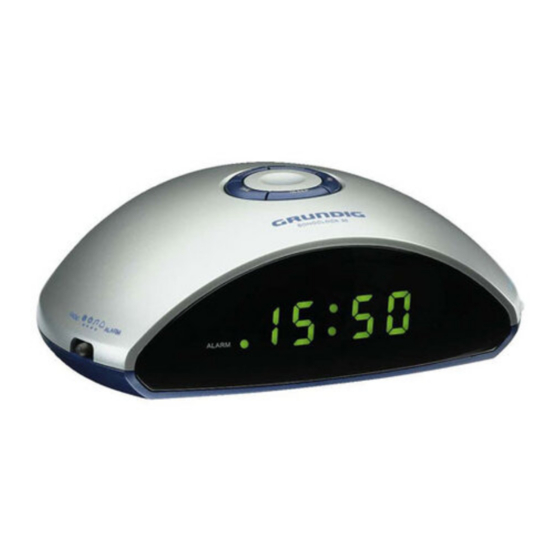

Grundig Sonoclock 30 Portable Radio Manual

SAFETY, INFORMATION

Safety

This device is designed for the playback of audio signals. Any other use is expressly prohibited.

Protect the device from moisture (water drops or splashes). Do not place any vessels such as vases on the device. These may be knocked over and spill fluid on the electrical components, thus presenting a safety risk.

When deciding where to place the device, please note that furniture surfaces are covered by various types of varnish and plastic, most of which contain chemical additives. These additives can corrode the device supports, leaving residues on the furniture surfaces which can be difficult or impossible to remove.

Do not use any cleaning agent, as this may damage the casing. Clean the device with a clean, moist leather cloth. Never open the device casing. The manufacturer will not accept any liability for damage resulting from improper handling.

The type plate is located on the bottom of the device.

Information

This device is noise-suppressed according to the applicable EU directives. This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC.
This device conforms to the safety regulation VDE 0860 and therefore the international safety regulation IEC 65.

Technical data

Environmental note

As little material as possible was used in the packaging of your device.
It consists of two separate materials: cardboard (box) and polyethylene (bag). Please observe the local regulations for disposing of the packing material.

Technical and design modifications reserved.

OVERVIEW

Controls on the top

• SNOOZE Interrupts the alarm function. Stops the sleep timer.
• TIME Press and hold down to activate the time setting.
• ALARM Press and hold down to activate the alarm setting. Press briefly to cancel the alarm standby. Displays the alarm time (in standby mode).
• HOUR For setting the hours. Press briefly to change the hour step-by-step. Hold down to change the hour continuously.
• MIN For setting the minutes. Press briefly to change the minutes step-by-step. Hold down to change the minutes continuously.
• SLEEP Activates the sleep timer.

Controls on the sides

RADIO ALARM: The slide switch on the left side of the device switches the radio on or to standby.
In alarm mode, it switches between the signal tone and the radio station.

VOLUME Adjusts the volume (on right side of device).

Control dial: For tuning to radio stations (on right side of device).

MW FM: FM and MW frequency band switch (for SC 3300), on right side of device.

LW FM: FM and LW frequency band switch (for SC 3340 LW), on right side of device.

Controls on the back

Mains cable

Wire antenna for FM reception. The device has a built-in antenna for MW reception (SC 3300) or LW reception (SC 3340 LW). Turn the device around to direct the antenna.

Controls on the bottom

Battery compartment for back-up battery.

The display

ALARM LED.Indicates that the alarm setting is activated.

10:00 Displays the time, the alarm time and the sleep timer time.

POWER SUPPLY

Mains operation

Note:
Check that the mains voltage on the type plate (on the bottom of the device) corresponds to your local mains supply. If this is not the case, contact your specialist dealer.

1. Plug the mains cable into the socket (230V~, 50 Hz).


Note:
The only way to disconnect the device from the mains supply is to pull out the plug.

Inserting the back-up battery

During mains operation, the back-up battery ensures that stored settings are not lost in the case of a power failure or when the device is briefly disconnected from the mains.

1. Open the battery compartment by pressing the area market with arrows on the drawing and pushing down the cover.


2. When inserting the battery (9 V, 6LF 22), observe the polarity marked on the base of the battery compartment.

Note:
Remove the back-up battery when it is flat or when you know that the device will not be used for a long period of time.

Additional information for units sold in the UK.

Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply.
The range of multi-system receivers is built to work in most European countries. However, the mains plug and socket system for the UK differs from many European countries.
This appliance has been supplied with a fitted, non-removable, approved converter plug for use in the UK. This converter plug is fitted with a 5A rated fuse.

In case this appliance is supplied with a moulded 2-pin Euro plug only, which is unsuitable for UK operation, this must be cut off and immediately disposed of. An approved 13A, 3-pin UK plug should then be fitted by a qualified electrician.

Note:
The severed Euro plug must be destroyed to avoid a possible shock hazard should it be inserted into a socket elsewhere.

If a non-rewireable 3-pin plug or a rewireable 13A (BS1363) 3-pin plug is used, it must be fitted with a 5A ASTA or BSI approved BS1362 fuse. If any other type of plug is used it must be protected by a 5A fuse either in the plug, or at the distribution board. If this type of plug becomes defective, ensure that the fuse is removed before disposal, to eliminate potential shock hazard.

If it is necessary to change the fuse in the non-rewireable plug, the correct type and rating (5A ASTA or BSI approved BS1362) must be used and the fuse cover must be refitted. If the fuse cover is lost or damaged, the lead and plug must not be used until a replacement is obtained. Replacement fuse covers should be obtained from your dealer.

The wires in the mains lead are colour coded in accordance with the following code:
BLUE – NEUTRAL
BROWN – LIVE
As the colours of the wires in the mains lead of your appliance may not correspond with the coloured marking identifying terminals in your plug, proceed as follows:

Connect the BLUE coloured wire to plug terminal marked with the letter "N" or coloured black.
Connect the BROWN coloured wire to the plug terminal marked with the letter "L" or coloured red.
In no circumstance must any of the wires be connected to the terminal marked with the letter "E", earth symbol "", coloured green, or green & yellow.

Replacement mains lead sets can be obtained from your local dealer, or by contacting Grundig Consumer Relations (01788 570088) Moulded 3-pin lead set, suitable for UK use:
Ref: Leadset UK: 8290-991-224
Moulded 2-pin Euro lead set, not suitable for UK use:
Ref: Leadset Euro: 8290-991-316

SETTINGS

Setting the clock

When you switch on the device for the first time, the time flashes in the display to indicate that you must set the clock. The same thing applies after a power failure, or if the device has been plugged out and no back-up battery is inserted.

1. Press and hold down »TIME«.
2. Press »HOUR« briefly to set the hours step-by-step or hold it down to run through the hours quickly.
3. Press »MIN« briefly to set the minutes step-by-step or hold it down to run through the minutes quickly.
   Note:
   When the minute display changes from »59« to »00«, this does not affect the hour display.
4. Release »TIME« to conclude the setting.
   • Display: the current time.

Setting the alarm time

1. Press and hold down »ALARM«.
   • Display: the last alarm time set.
2. Press »HOUR« briefly to set the hours step-by-step or hold it down to run through the hours quickly.
3. Press »MIN« briefly to set the hours step-by-step or hold it down to run through the minutes quickly.
4. Release »ALARM« to conclude the setting.
5. Use the »RADIO ALARM« slide switch (left side of device) to set the alarm signal you require (»« = radio station, »« = signal tone).
   • Display: the »ALARM « LED lights up, i.e. the alarm setting is activated.
   • The device switches on at the set alarm time with the selected alarm signal.

OPERATION

Switching on and off

1 Use »RADIO ALARM« to switch the device on and off.

Radio operation

For the best FM (VHF) reception, it is sufficient to direct the wire antenna accordingly.

Tuning radio stations

1. Set the frequency band with »MW FM« (SC 3300) or »LW FM« (SC 3340 LW) on the right side of the device.
2. Find and tune the station using the control dial (right side of device).

Adjusting the volume

1. Adjust the volume using » VOLUME« (right side of device).

Alarm mode

Displaying the alarm time

1. Press and hold down »ALARM«.
   • Display: the last alarm time set.
2. Release »ALARM«.
   • Display: the current time.

Alarm with radio station

1. Use »RADIO ALARM« to switch on the device.
2. Find and tune the station using the control dial (right side of device).
3. Set the alarm volume using » VOLUME«.
4. Select the radio alarm (»«) with »RADIO ALARM« (left side of device).
   • The radio switches on at the set alarm time (alarm duration 1 hour 59 minutes).

Alarm with signal tone

1. Select the signal tone alarm (»«) with »RADIO ALARM« (left side of device).
   • The signal tone switches on at the set alarm time (alarm duration 1 hour 59 minutes).

Interrupting the alarm

1. Press »SNOOZE« while the alarm is sounding.
   • The alarm (signal tone or radio) stops.
   • The alarm goes on again at 9-minute intervals (the total alarm time is1 hour and 59 minutes).

Cancelling the alarm for the day

1. Press »ALARM« while the alarm is sounding.
   • The alarm (signal tone or radio) stops, but the alarm function remains activated for the next day at the set time.

Cancelling/activating alarm stand-by

1. Switch »RADIO ALARM« (left side of device) to »« (standby) to cancel the alarm function.
   • Display: The »ALARM « LED goes out.
   • The set alarm time is saved.
2. 2 Switch »RADIO ALARM« (left side of device) from »« (standby) to »« or »« to activate the alarm function.
3. – Display: The »ALARM « LED lights up.

Timer mode

The device possesses a sleep timer, which it switches off in radio mode at a preset time. It is possible to set the switch-off time for between 1 minute and 1 hour 59 minutes.

Switching on the sleep timer

1. Press »SLEEP« to switch on the device.
   • Display: The switch-off time » 0: 59 « (59 minutes). – You will hear the selected radio station.
2. To set the switch-off time, press and hold down »SLEEP«.
3. Press »HOUR« briefly to extend the switch-off time to 1 hour 59 minutes (» 1:59 «).
4. Press »MIN« step-by-step or hold it down to set the minutes (between » 59 « and » 00 «).
5. Release »SLEEP« to conclude the setting.
   • After the selected switch-off time has elapsed, the device switches offautomatically.

Switching off the sleep timer

1. To switch off the sleep timer before the set time, press »SNOOZE«.
   • The device switches off.
