TP-Link TL-SF1005LP Installation Manual

Installation Guide
5-Port 10/100Mbps Desktop PoE/PoE+ Switch
Switch Explanation
Note: The numbers in brackets indicate the ports where the feature takes effect. For example, when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.
Extend
Off: Port 1–4 run at 10/100 Mbps and support PoE power
supply up to 100 m away.
On: Port 1–4 run at 10 Mbps and support PoE power supply
up to 250 m away.
Note: For simplicity, we will take TL-SF1005P for example throughout the Guide.

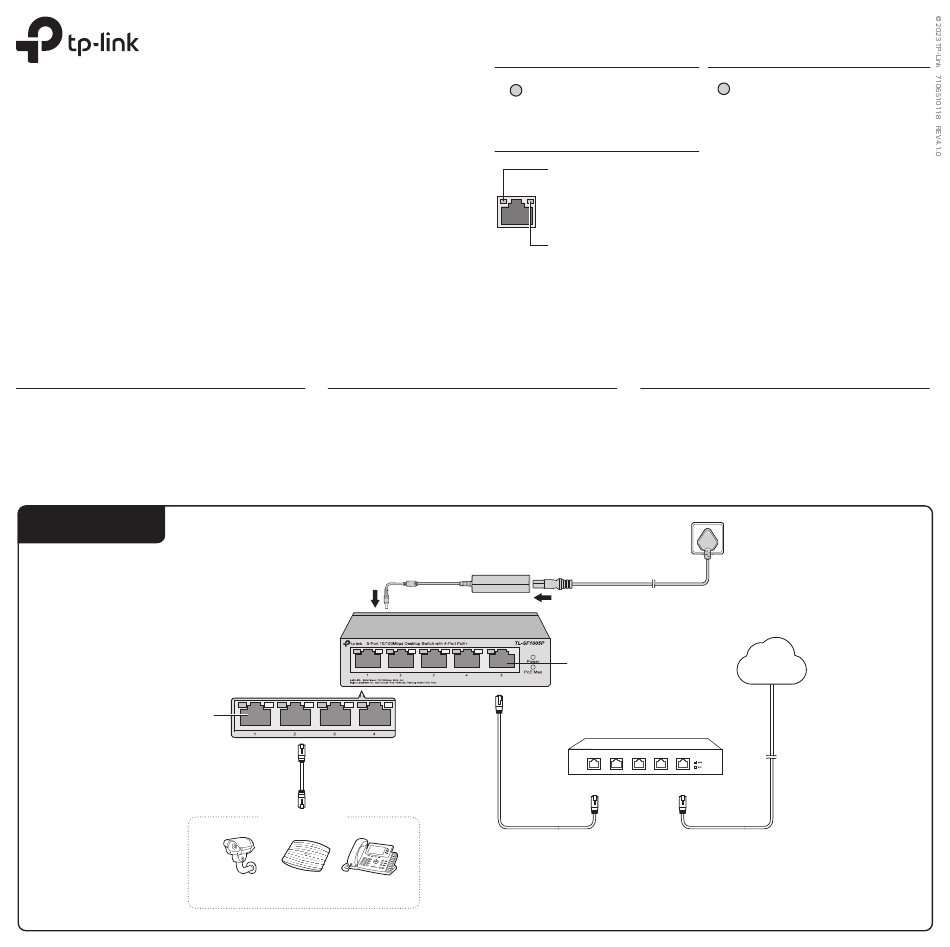

Connection
PoE Ports (1-4)
Priority
Off: All the ports transmit data in the same priority.
On: Port 1 and 2 transmit data in a higher priority than other
ports. When congestion occurs, packets which are transmit-
ted by the ports with higher priority occupy the whole
bandwidth.
PoE Devices
IP Camera AP IP Phone
LED Explanation
Power
On: Power on
Off: Power off
Power
Link/Act and PoE Status
On: Link present but no
activity
Flashing: Transmitting/
receiving data
Off: No link
On: Providing PoE power
Flashing: Current-overload/
Short-circuit
Off: Not providing PoE power
DC Power Adapter
Ethernet Ports (1-5)
LAN Port
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. TL-SF1005LP can supply up to 15.4 W for each PoE port and 41 W for all PoE ports.
3. TL-SF1005P can supply up to 30 W for each PoE port and 67 W for all PoE ports.
PoE MAX
TL-SF1005LP
On: 34 W≤Total power supply < 41 W
PoE Max
Flashing: Total power supply ≥ 41 W
Off: Total power supply < 34 W
TL-SF1005P
On: 60 W≤Total power supply < 67 W
Flashing: Total power supply ≥ 67 W
Off: Total power supply < 60 W
Recovery
(for TL-SF1005P)
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a
PoE powered device (PD). When the switch finds that the PD
works abnormally, the switch will reboot it.
AC Power Cord
Internet
Router
WAN Port
