Summary of Contents for Titan TTI855PRW

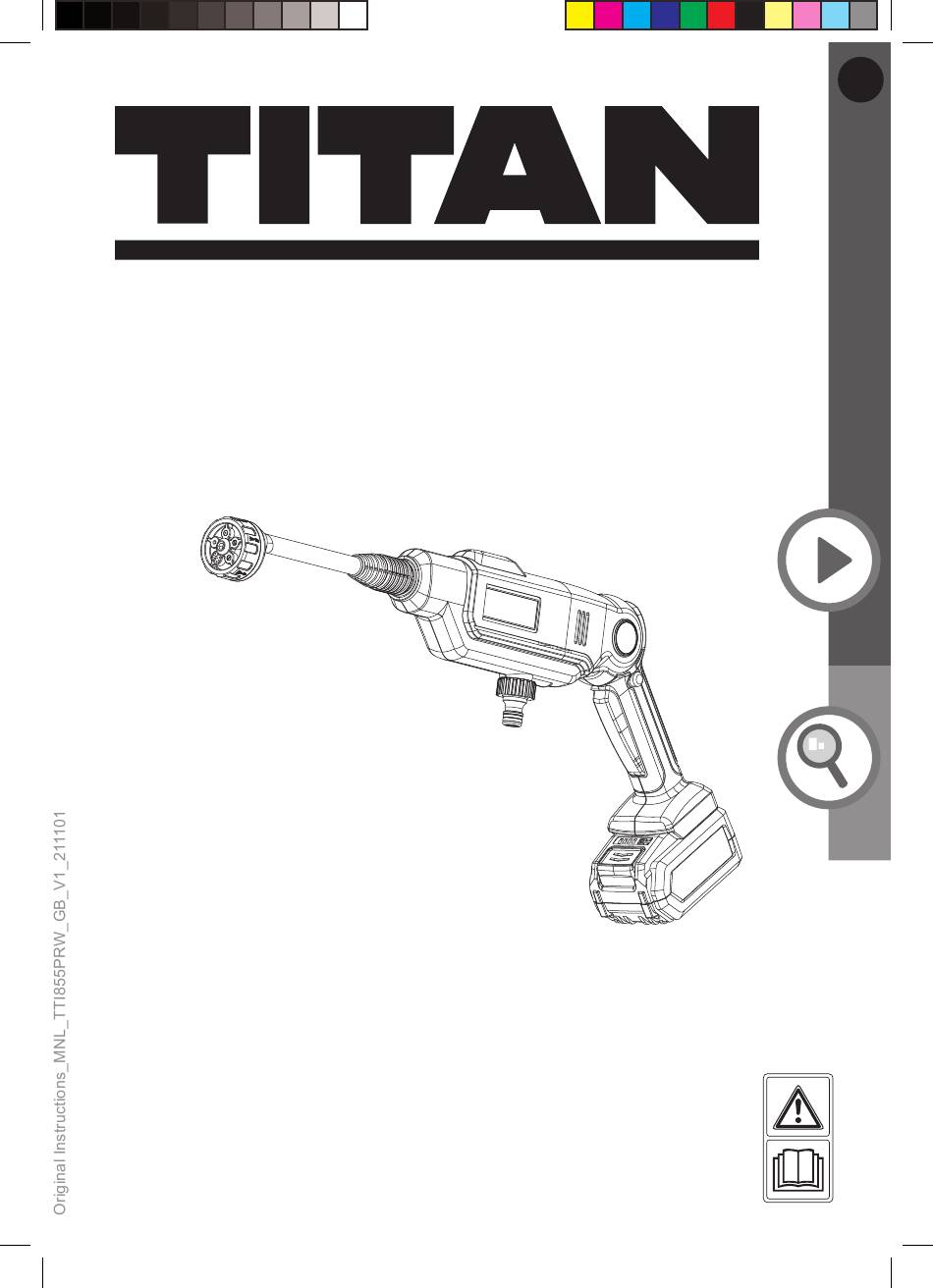

- Page 1 18 V Handheld Pressure Washer TTI855PRW EAN: 5059340239835 CAUTION: Read the instructions before using the machine. BX220IM MNL_TIT_GB_18 V Handheld pressure washer_GB_V1_211101.indd 1 11/1/21 2:51 PM...
- Page 2 Guarantee Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
-
Page 3: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal MNL_TIT_GB_18 V Handheld pressure washer_GB_V1_211101.indd 3 11/1/21 2:51 PM... - Page 4 TTI855PRW by TITAN Safety information Safety warnings 1. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 TTI855PRW by TITAN Safety information 10. WARNING: To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer. preventers is considered to be non-potable. 12. WARNING: Remove the battery from the product during cleaning or maintenance and when replacing parts or converting the machine to another function.
- Page 6 TTI855PRW by TITAN Safety information Safety warnings 24. When directed towards tyres, tyre valves or other pressurised components, the high pressure jet is potentially dangerous. Do not apply a jet stream and always keep the nozzle at a distance of at least 30 cm during cleaning.
-
Page 7: Safety Information
TTI855PRW by TITAN Safety information Safety Warnings for Battery pack and Charger Battery Safety Instructions CAUTION! Use only MacAllister approved injury or damage to the product. Use with MacAllister battery charger. manufacturer. A charger that is suitable for one type in electric shock, overheating or leakage of corrosive battery packs. - Page 8 TTI855PRW by TITAN Safety information Safety warnings or heat. 7. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has been 8. Batteries can explode in the presence of a source of ignition, such as a pilot light.
- Page 9 TTI855PRW by TITAN Safety information 13. Always remove battery pack before storing the device. 14. Keep battery pack dry, clean, and free from oil and grease. 15. Keep the battery pack out of the reach of children. 16. Rechargeable batteries are to be removed from the appliance before being charged.
- Page 10 TTI855PRW by TITAN Safety information Safety warnings 6. Do not attempt to charge battery packs other than those supplied. 7. Before each use, check the charger, cable and plug. Do not use a defective charger and do not disassemble the charger.
- Page 11 TTI855PRW by TITAN Safety information 15. The battery of the appliance is not fully charged at the time of delivery. 16. Do not use a charger that has been dropped or received a sharp blow. 17. The voltage indicated on the charger rating plate must correspond to the voltage of the power source.
- Page 12 TTI855PRW by TITAN Safety information Safety warnings to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome diseases such as carpal tunnel syndrome. To reduce this risk when using the product, always wear protective gloves and keep your hands warm.
- Page 13 TTI855PRW by TITAN Safety information objects. This product produces WARNING! may under some circumstances interfere with the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer Symbols others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property.
- Page 14 TTI855PRW by TITAN Safety information Symbols Wear protective gloves. Wear respiratory protection. Wear protective, slip-resistant footwear. Switch the product off and remove the battery pack before assembly, cleaning, adjustments, maintenance, storage and transportation. Always ensure that other people and pets remain at a safe distance from the product when it is in operation.
- Page 15 TTI855PRW by TITAN Safety information Charger is of protection class II. That means it is equipped with enhanced or double insulation. The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.
-
Page 16: Your Product
TTI855PRW by TITAN Your product Your product 1. 5 in1 lance 6. Battery pack 2. Spray gun 7. Water inlet 3. Release adaptor button 8. Charger 4. Safety lock 9. Water hose with button 5. On/off switch MNL_TIT_GB_18 V Handheld pressure washer_GB_V1_211101.indd 16... - Page 17 TTI855PRW by TITAN General > Rated voltage : 18 V d.c. > Rated pressure : 2.2 MPa > Max. allowable pressure : 2.4 MPa > : 2.0 l/min > : 6.3 l/min > Rated temperature : 40 °C > Max. inlet water pressure : 0.6 MPa...
- Page 18 TTI855PRW by TITAN The sound values have been determined according to noise test code given in EN ISO 3744:1955. measures are necessary. Rating Label Explanation TTI855PRW TT: TITAN I: 18 V 855: Random number generated PRW: Pressure washer Unpacking 2. Remove all packing materials and shipping devices if applicable.
- Page 19 TTI855PRW by TITAN Before you start Assembly WARNING! Do not use a product that is only partly assembled or assembled with Follow the assembly instructions step-by-step and use the pictures Do not insert the battery pack before the power tool is completely NOTE: Take care of small parts that are removed during assembly or when making adjustments.
- Page 20 TTI855PRW by TITAN Before you start Accessories Fig. 2 5-in-1 nozzle The 5-in-1 nozzle is intended for a large choice of applications and cleaning effects. 1. Hold the 5 in 1 lance (1) and turn the nozzle (1b) to adjust to the required setting.
-
Page 21: Before You Start
TTI855PRW by TITAN Before you start Battery indicators Battery capacity Battery is full > 2/3 of capacity > 1/3 of capacity Reserve Fig. 4 Charging Battery pack has been shipped in a low charge condition. Charge it fully before 1. Connect the charger plug to a suitable power supply. - Page 22 TTI855PRW by TITAN Before you start Battery pack and charger NOTE: It is normal for the battery pack and charger to become warm (but not hot) during charging process. 4. When the battery pack is fully charged, disconnect the charger from the power supply.
- Page 23 TTI855PRW by TITAN Before you start NOTE: entering the pump. blocked by debris at the bottom of the water source. Fig. 7 The air in the water hose should be pushed through and replaced with the water drawn in from the water source.
- Page 24 TTI855PRW by TITAN Before you start Water supply 2. Attach the water hose (9) onto the water inlet adaptor (7) (step 3) and then the other end onto the water supply (step 4). 3. Open the water supply. 9c 9d Fig.
-
Page 25: In More Detail
TTI855PRW by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal MNL_TIT_GB_18 V Handheld pressure washer_GB_V1_211101.indd 25 11/1/21 2:52 PM... - Page 26 TTI855PRW by TITAN Product functions Intended use Intended use The product is designated with a rated voltage of 18 V The product is designated with a rated voltage of 18 V The machine is intended for domestic use to clean vehicles, tools, bicycles, The machine is intended for domestic use to clean vehicles, tools, bicycle outdoor toys, greenhouses, garden furniture, etc.
-
Page 27: Operation
TTI855PRW by TITAN Product functions / Operation Adjusting handle position 1. Press the release button (3) and hold it in position (Fig. 10, step 1). 2. Adjust the handle to required positon (step 2) and then release the button (3). - Page 28 TTI855PRW by TITAN Operation Operation 1. Prepare the water supply as described and attach the battery pack. 2. Set the 5-in-1 nozzle (1b) to the required spray pattern. 3. Set the handle to the required positon. 4. Hold the spray gun (2) with both hands.
- Page 29 TTI855PRW by TITAN Operation 4. Effective washing depends on both the pressure and volume of the water used, to the same degree. 5. Begin by spraying in a testing area free and clear of people and objects. Wood and vinyl decks 1.
-
Page 30: Care And Maintenance
TTI855PRW by TITAN Care and maintenance The golden rules for care WARNING! Always switch the product off, remove the battery pack from the product and let the product cool down before performing 1. Keep the product clean. Remove debris from it after each use and before storage. - Page 31 TTI855PRW by TITAN Care and maintenance Spare parts/Replacement parts The following parts of this product may be replaced by the consumer. Spare parts are available at an authorized dealer or through our customer service. Description 5 in 1 lance 0260325000...
- Page 32 TTI855PRW by TITAN Care and maintenance adaptor (step 2). Fig. 15 form in the product and accessories. The strength of the deposits (and thus the hardness of the water in your area. NOTE: in a suitable container, e. g. in a bowl.
-
Page 33: Troubleshooting
TTI855PRW by TITAN Care and maintenance / Troubleshooting Storage 1. Switch the product off and disassemble the battery pack from the product. 2. Disconnect the product from the water supply. Empty the water in water hose if necessary. 3. Clean the product as described above. - Page 34 TTI855PRW by TITAN Troubleshooting Troubleshooting Problem Possible cause Solution 1. Product does not 1.1. Battery discharged 1.1. Recharge battery start 1.2. Battery too hot/cold 1.2. Allow to cool/warm 1.3. Other electrical defect 1.3. Contact your nearest to the product authorised service centre 2.
-
Page 35: Recycling And Disposal
TTI855PRW by TITAN Recycling and disposal Recycling and disposal Waste electrical products should not be disposed of with household Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. The product comes in a package that protects it against damage during shipping. - Page 36 UK manufacturer: 3 Sheldon Square London W2 6PX United Kingdom EU manufacturer: Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands To view instruction manuals online, MNL_TIT_GB_18 V Handheld pressure washer_GB_V1_211101.indd 36 11/1/21 2:52 PM...
