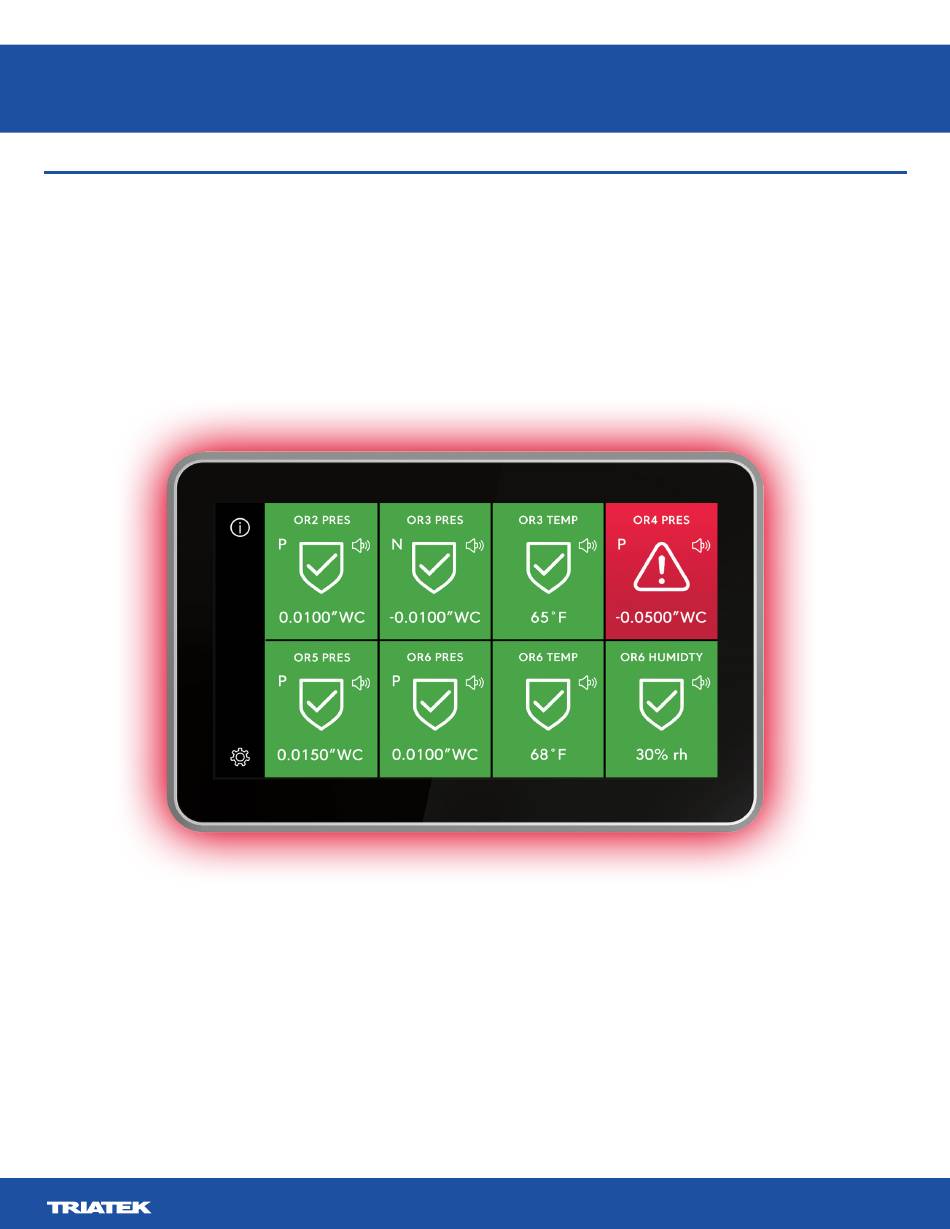

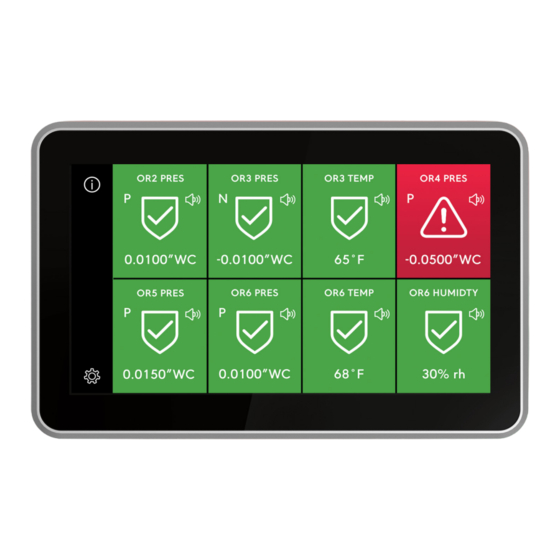

- Page 1 CMS-2000 Central Monitoring Station LIT-12013738 User Guide February 2023...
- Page 2 IMPORTANT: Do not install or use this CMS-2000 Central Monitoring Station in or near environments where corrosive substances or vapors could be present. Exposure of the CMS-2000 monitor to corrosive environments may damage the device’s internal components and will void the warranty.
- Page 3 IMPORTANT : Seul le personnel qualifié peut installer et entretenir les produits Johnson Controls. Ces instructions constituent un guide pour ce type de personnel. Suivez attentivement toutes les instructions de ce document et toutes les instructions du CMS-2000 Central Monitoring Station.
-
Page 4: Table Of Contents
Viewing Room Details ................................. 13 Changing the parameter displayed on the home screen...................... 13 Changing the alarm mode ..............................14 Silencing the alarm ................................14 Repair information ..................................15 North American Emissions Compliance ..........................15 LIT-12013738 CMS-2000 Central Monitoring Station User Guide... -
Page 5: Introduction
The CMS-2000 Central Monitoring Station provides instant status verification for up to eight rooms, eight fume hoods, or a combination of rooms and hoods. You can use the CMS-2000 as a nurse station annunciator, or to monitor multiple spaces in large laboratories. - Page 6 Parameter status icon Warning status icon Alarm status icon Standby Note: If you are monitoring an FMS controller, this icon displays as Neutral. Settings menu Figure 3: CMS-2000 home screen monitoring one controller LIT-12013738 CMS-2000 Central Monitoring Station User Guide...
-
Page 7: Initial Setup
1 2 3 4 1 2 3 4 Note: Demo mode is a test display for demonstration purposes. You do not need to connect the CMS-2000 to the FMS-2000C or the HMS-1655 to use demo mode. Table 2: Monitor DIP switch configurations for the operating mode... -
Page 8: Turning On And Adjusting The Brightness Of The 360˚ Safety Halo
To adjust the brightness, move the slider to increase or decrease the brightness. To confirm the new settings, tap the Checkmark icon. Figure 4: Normal mode Figure 5: Alarm mode Figure 6: Warning mode Figure 7: Neutral isolation mode LIT-12013738 CMS-2000 Central Monitoring Station User Guide... -
Page 9: Adjusting The Screen Brightness
When you set up users and passwords, you restrict the use of the CMS-2000 Central Monitoring Station to specific groups of people. This is not mandatory, but if you do not create users and passwords, anyone can access all functions of the CMS-2000. There are two access levels: •... -
Page 10: Creating The Admin User Account And Password
To change the access level of a restricted user, tap Edit. On the Edit User screen, tap Restricted User and select Administrator. Tap Create Password and enter a new password twice. To confirm the change, tap the Checkmark icon. LIT-12013738 CMS-2000 Central Monitoring Station User Guide... -
Page 11: Changing The Access Level Of An Admin User To A Restricted User
Monitor setup The CMS-2000 can simultaneously display up to 8 parameters on the home screen. Only the parameters shown on the home screen alarm when out of range. The range is set by the monitored controller. For more information about accessing real time readings of the parameters not on the home screen, see Navigating the home screen. -
Page 12: Edit The Address Of A Monitored Device
Parameters not on the home screen do not alarm when out of range. For the real time readings for other parameters, see Viewing Room Details. You can choose to enable the alarm status for each parameter monitored on the CMS-2000. Parameters that are enabled show the status icon, trigger the Safety Halo and audible alarm. -
Page 13: Rebooting The Monitor
If the CMS-2000 has passwords set up, navigation and changes to the CMS require a PIN. For a quick demonstration of the CMS-2000, tap the Information icon in the upper left corner of the home screen and scan the QR code with your smart phone. -
Page 14: Changing The Alarm Mode
When a monitored parameter is out of range, the audible alarm sounds and the Safety Halo flashes red. To temporarily silence the 360˚ audible alarm, tap the Alarm icon. The alarm temporarily mutes until the issue resolves and then the alarm mode returns to audible alarm. LIT-12013738 CMS-2000 Central Monitoring Station User Guide... -
Page 15: Repair Information
Cet appareil numérique de la Classe (A) respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Repair information If you purchased a service agreement, contact your Triatek® representative for a replacement unit. If you do not have a service agreement, contact Service@triatek.com.
