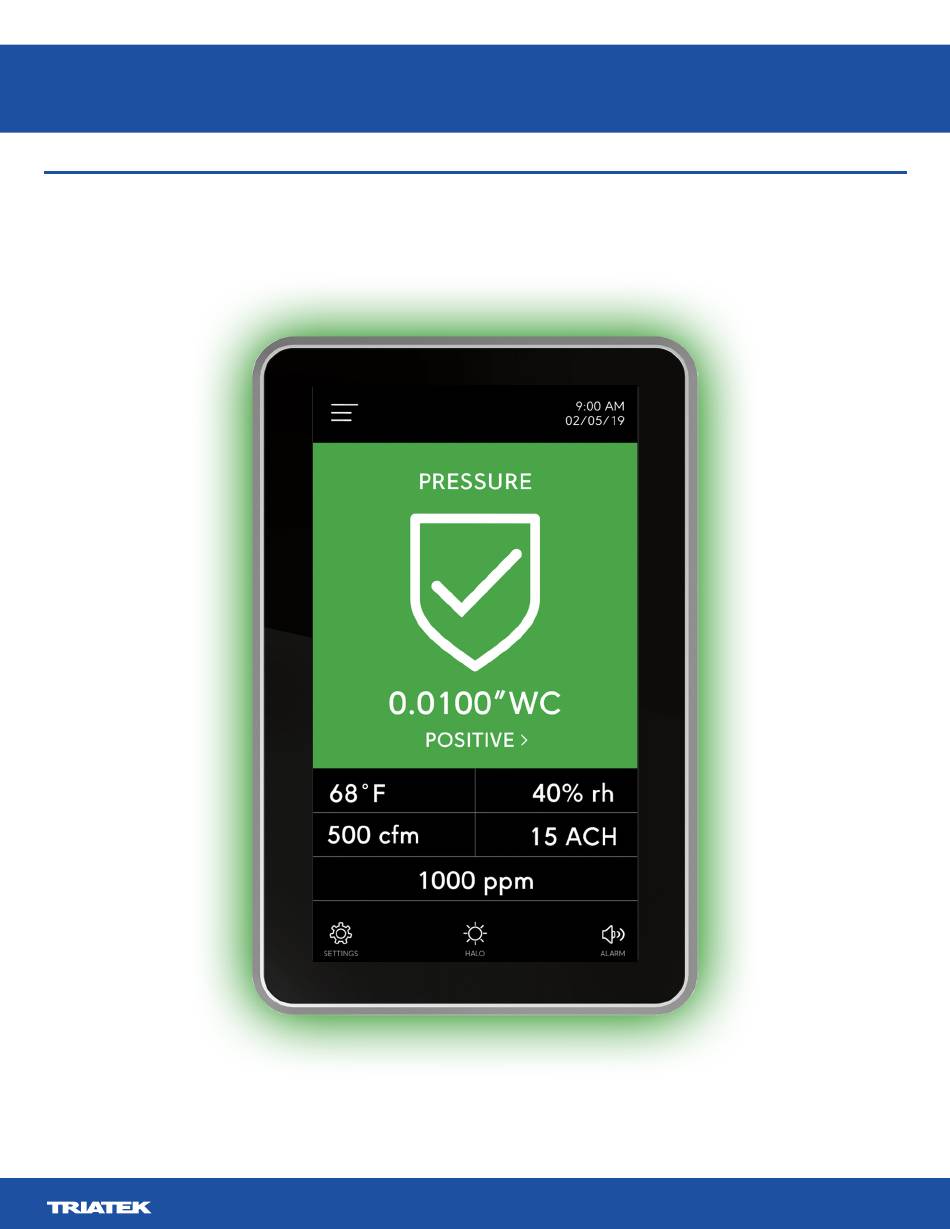

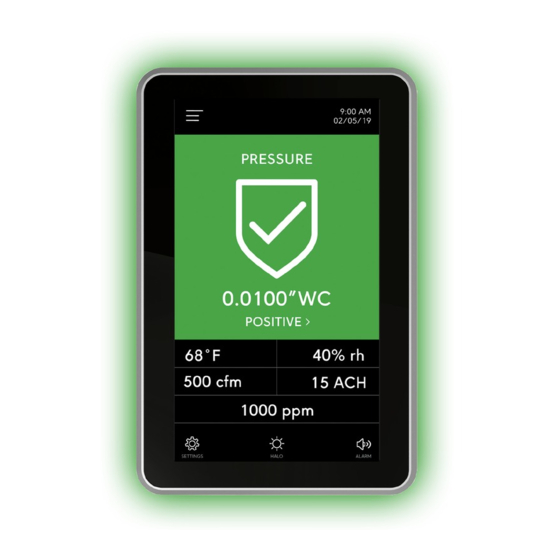

  • Page 1 FMS-2000M Critical Environment Monitor LIT-12013580 User's Guide November 2020...
  • Page 2 Risk of Property Damage. Do not connect the 24 VAC power supply directly to the FMS-2000M display four-position terminal block. You must terminate the power at the remote sensor's nine-position terminal block on the +Vin and -Vin terminals. Failure to follow the wiring instructions may cause permanent damage to the FMS-2000M monitor and void your warranty.
  • Page 3 FMS-2000M IMPORTANT: Do not install the FMS-2000M Critical Environment Monitor where the maximum temperature exceeds 125°F (52°C). Installing the device where maximum temperatures exceed 125°F (52°C) may cause damage to the FMS-2000M Critical Environment Monitor and may void the warranty.
  • Page 4 Risque de dégâts matériels. Ne pas brancher le bloc d’alimentation de 24 V CA directement au bornier à quatre positions de l’écran du FMS-2000M. Vous devez raccorder l’alimentation aux bornes +Vin et -Vin du bornier à neuf positions du capteur à distance. Ne pas respecter les instructions de câblage peut causer des dommages permanents au moniteur FMS-2000M et annuler votre garantie.
  • Page 5 Ne dépassez pas les spécifications électriques du FMS-2000M Critical Environment Monitor. IMPORTANT : N’installez pas le contrôleur d’environnement critique FMS-2000M où la température maximum dépasse 52 °C (125 °F). Installer l’appareil dans un environnement où la température maximum dépasse 52 °C (125 °F) peut endommager FMS-2000M Critical Environment Monitor et peut annuler la garantie.

  • Page 6: Table Of Contents

    FMS-2000M Table of contents Table of contents ..................................6 Introduction ....................................8 Display overview ..................................8 Multi-room monitoring overview ............................10 Navigating the multi-room monitor home screen ........................11 Viewing all network variables ............................... 11 Changing the network variable that displays on the home screen ..................11 System overview ..................................
  • Page 7 Adjusting the 360° Safety Halo and brightness ........................24 Adjusting the alarm mode quick links ........................... 24 Adjusting the isolation mode quick link..........................24 Upgrading an FMS-1655M monitor to an FMS-2000M monitor ..................... 25 Technical specifications ................................26 Cleaning the display.................................. 27 North American Emissions Compliance ..........................

  • Page 8: Introduction

    The FMS-2000M provides maximum room status awareness with the color coded visual alarms that display on screen, and the 360° Safety Halo™ illuminated edge means that staff can easily monitor spaces down long corridors. You can mute the audible alarm with one tap to the screen to reduce audible alarm fatigue.
  • Page 9 FMS-2000M The icons, the screen color and the color of the 360° Safety Halo change with the alarm status or neutral isolation mode. Figure 2: Warning screen Figure 3: Alarm screen Figure 4: Neutral isolation mode Table 2: Icon overview...

  • Page 10: Multi-Room Monitoring Overview

    Multi-room monitoring overview The following figures show the FMS-2000M monitor’s UI in various modes. The home screen displays the number of rooms automatically, based on the model number and the connected pressure sensors. You can write temperature, humidity, air flow, air changes, and CO2 network variables from the BMS to display on the monitor.

  • Page 11: Navigating The Multi-Room Monitor Home Screen

    FMS-2000M Navigating the multi-room monitor home screen When you monitor more than one room, you can display up to two network variables. The display options depend on the number of rooms you monitor. Viewing all network variables On the home screen, tap the arrow next to the network variable. If no arrow displays, no other network variables are available.

  • Page 12: System Overview

    FMS-2000M System overview Figure 10: FMS-2000M system diagram Table 3: FMS-2000M system diagram Item Component FMS-2000M monitor Remote pressure sensor Temperature sensor Humidity sensor Air flow sensor Air changes CO2 sensor LIT-12013580...

  • Page 13: Initial Setup

    Initial setup When the FMS-2000M Critical Environment Monitor boots up for the first time, a setup wizard guides you through the inital setup. You configure the device language, units of measurement, device orientation, and isolation mode. When you set up the isolation mode, you specify the isolation mode available to restricted level users.

  • Page 14: Configuration

    • Documentation Global settings Here you can change settings that impact the entire FMS-2000M Critical Environment Monitor. Choosing a unit of measure On the home screen, tap the Settings icon to enter the Settings menu. To view global settings, tap Global.

  • Page 15: User Accounts

    When you set up users and passwords, you restrict the use of the FMS-2000M Critical Environment Monitor to specific groups of people. This is not mandatory, but if you do not create users and passwords, anyone can access all functions of the FMS-2000M monitor.

  • Page 16: Deleting Users

    If restricted users forget their PIN, they can contact the facility manager to get their new PIN. Admin users can create a new PIN for restricted users. If admin users forget their password, they must complete the following procedure: Contact support and provide them with the device identifier listed on the screen of each FMS-2000M Critical Environment Monitor. See Contact information for more details.

  • Page 17: Network Setup

    FMS-2000M Network setup In the network menu, you can set up the network communications between the FMS-2000M Critical Environment Monitor and the facility. BACnet MS/TP network setup On the BACnet MS/TP network, you can adjust the device ID offset, MaxMaster, baud rate, and MAC address.

  • Page 18: Room Setup

    Setting up a delay When you install a door switch, the FMS-2000M can alert the facility staff whenever a person opens the door. The 360° Safety Halo flashes yellow and the display presents a warning screen with a yellow background. When the door closes, the delay prevents an audible alarm until the room returns to normal operating pressure.

  • Page 19: Bms Integration

    FMS-2000M BMS integration Note: In the following tables, the abbreviation NV refers to network variable. Table 5: Analog inputs for integration in a BMS Objects Analog inputs Read/Write Availability of analog input objects FMS2M-Bx1x FMS2M-Bx2x FMS2M-Bx3x FMS2M-Bx4x AI-1 Analog input 1, differential pressure...
  • Page 20 FMS-2000M Objects Analog values Read/ Availability of analog value objects Write FMS2M-Bx1x FMS2M-Bx2x FMS2M-Bx3x FMS2M-Bx4x AV-25 Network Variable Flow 1 Read or write AV-26 Network Variable Air changes 1 AV-27 Network Variable CO2 1 AV-28 Network Variable Flow 2 AV-29...

  • Page 21: Sensors

    Zero calibration With the door to the monitored room open, the differential pressure that the FMS-2000M monitor measures usually approaches zero. However, due to imperfections in the sealing of the remote sensor enclosure and due to pressure accumulation in the wall, the pressure reading does not reach zero.

  • Page 22: Alarms

    Enter the alarm limit and tap the Checkmark icon to confirm your settings. Diagnostics On the Diagnostics screens, you can find information about your particular FMS-2000M Critical Environment Monitor model. You can also perform a soft reboot of the monitor.

  • Page 23: Adjusting The Alarm Mode

    FMS-2000M Adjusting the alarm mode When the differential pressure goes out of range, the display goes into alarm state. When you adjust the alarm mode, you can control how the display responds. See Table 9 for more information. On the home screen, tap the User Menu icon.

  • Page 24: Adjusting Screen Brightness

    FMS-2000M Adjusting screen brightness On the home screen, tap the User Menu icon. On the user menu screen, tap Screen Brightness. Move the slider to increase or decrease screen brightness. To confirm the new screen brightness setting, tap the Checkmark icon.

  • Page 25: Upgrading An Fms-1655M Monitor To An Fms-2000M Monitor

    3-position terminal block as well. Connect the 4-position terminal block at the end of the interface cable to the 4-pin header at the back of the FMS-2000M display. If you use a BACnet network, connect the networking cable to the 3-pin header. See Figure 11.

  • Page 26: Technical Specifications

    FMS-2000M Technical specifications Specification Description Intended use Indoor use Overvoltage category Altitude Up to 2000 m Pressure range ± 0.2500 in. W.C. (± 62.27 Pa) Alarm range ± 0.2500 in. W.C. (± 62.27 Pa) Display range ± 0.2500 in. W.C. (± 62.27 Pa) Accuracy ±...

  • Page 27: Cleaning The Display

    FMS-2000M Cleaning the display IMPORTANT: • Do not apply cleaner directly to the touch panel surface. If cleaner spills onto the touch panel, soak up the cleaner immediately with an absorbent cloth. • Do not use cleaner that is either acid or alkali. Use neutral pH cleaner.
