Summary of Contents for FAME SP-15

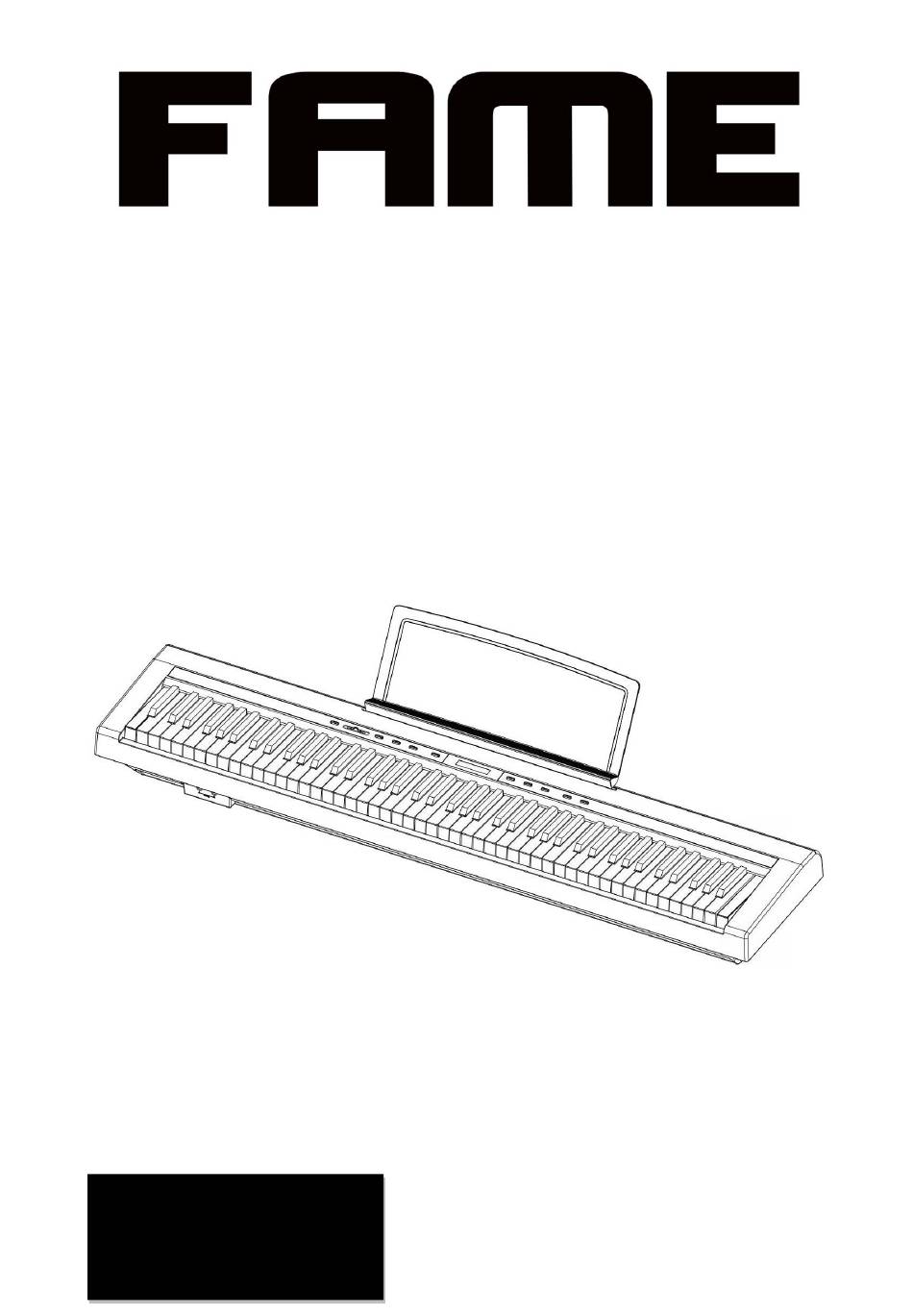

- Page 1 SP-15 02/2023 KEY0005509-000 user manual...
- Page 2 Intended use: The FAME SP-15 is a digital home keyboard, designed to play sounds on the keyboard and make them audible through built-in speakers or headphones. Improper use of the product is considered improper and can lead to personal injury or property damage. No liability is assumed for damage resulting from improper use.
- Page 3 Important safety instructions! Please read before connection! CAUTION! (Electro Magnetic Interference) The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the owner‘s manual. In case the function could not resume, please use the product in other location.
- Page 4 Hint! (Operating conditions) Due to its structural characteristics, the device is designed for indoor operation (IP20). Never expose the device to rain, moisture or liquids as this may cause damage. Vibrations, dust or solar radiation can also lead to damage, avoid them! Do not apply excessive force to the switches or controls.
- Page 5 Hint! (Interferences with other electrical devices) Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ...
- Page 6 Cleaning: A regular cleaning of the device from impurities and dust increases the durability of the product. Always disconnect the device from the power supply before cleaning it! Never clean the appliance wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation grilles and openings should always be cleaned of dust and dirt.
-
Page 7: User Interface
USER INTERFACE [1] (!) button [7] Metronome button This button is used to turn the instrument This button is used to turn the instrument's on and off. Metronome function on/off. [8] – button [2] Volume Slider This button is used to adjust values, and This slider is used to adjust the Master change settings etc. - Page 8 CONNECTIONS [12] USB jack [16] Audio In jack This Jack is used to connect an audio output This jack is used to connect a USB memory device with a 6.35mm audio cable. device. [13] USB MIDI jack [17] Audio out jack This jack is used to connect external This jack is used to connect a computer or a speakers with a 6.35mm audio cable.
- Page 9 SETTING UP Connecting the power adaptor Install the music rest Insert the music rest on the instrument as Remove the electric plug from the outlet shown. when the instrument is not to be used for extended periods of time, or during electrical storms.
- Page 10 SETTING UP Using headphones USB to host port The instrument features 2 Front Headphone Use the [USB MIDI] jack {Type B) located jacks (6.35mm), allowing two pairs of on the Rear Panel to connect a computer or headphones to be connected to the smart devices to receive or send MIDI data.
-
Page 11: Basic Operation
BASIC OPERATION Selecting and Playing Sounds (Tone) Layering Two Voices (Dual Mode) The digital piano features 238 built-in The instrument features a Dual Mode advanced Tones, which means you have a function, allowing you to layer two Tones and wide selection of sounds to choose from, play them simultaneously to create a more allowing you to perform in any musical genre rich sound. - Page 12 BASIC OPERATION Splitting the Keyboard (Split Mode) Playing the Drum Kit Voices When the Split mode is active, the keyboard digital piano features 62-key percussion keyboard, allowing you to play will be divided into two separate areas, which the drum kit voices. means you can play two different voices with your left and right hands.
- Page 13 BASIC OPERATION 2 Use the [+]/[-] buttons or Combination Operation to select the desired Rhythm. And the tempo will be changed to the tempo value of the current Rhythm. ▶/■ 3 Press the button to start the Rhythm. ▶/■ 4 Press the button again to stop the Rhythm.
- Page 14 BASIC OPERATION 1 Press and hold the [Function] button, then press the [G3] key on the keyboard before starting the Rhythm to turn on the Intro mode. The Intro will be played back at the beginning of 2 Play the keyboard and the rhythm will be the rhythm main section.
-
Page 15: Operation
BASIC OPERATION Playback of Audio Data (USB Memory) For example, to play the C chord, press the [C3] key in Smart style or press The instrument is equipped with a USB C2+E2+G2 keys at the same time in Multi- connector to load USB memory devices Finger style. - Page 16 BASIC OPERATION Applying Effects to the Sound (Reverb, 4 Press and hold the [Function] button, then Chorus) press the [C6] key on the keyboard to turn oft the Chorus. 1 Press and hold the [Function] button, then press a key within the range of [GS) to [B5] key on the keyboard to specify the Reverb.
- Page 17 BASIC OPERATION 3 Press the [●]-button again to stop the Recording. 4 To play back the recorded song, [●]-button press when Recording mode is turned oft. 5 Press the [●]-button again to stop the playback. Recording an Audio File to Smart Device 1 Use an audio cable to connect the headphone jack located on either side of the...
- Page 18 APPENDIX - TONE LIST...
- Page 19 APPENDIX - TONE LIST...
- Page 20 APPENDIX - RHYTHM LIST...
- Page 21 APPENDIX - DEMO SONG LIST...
- Page 22 APPENDIX - AUTO ACCOMPANIMENT CHORD LIST...
- Page 23 APPENDIX - AUTO ACCOMPANIMENT CHORD LIST...
