Summary of Contents for FAME DP-88

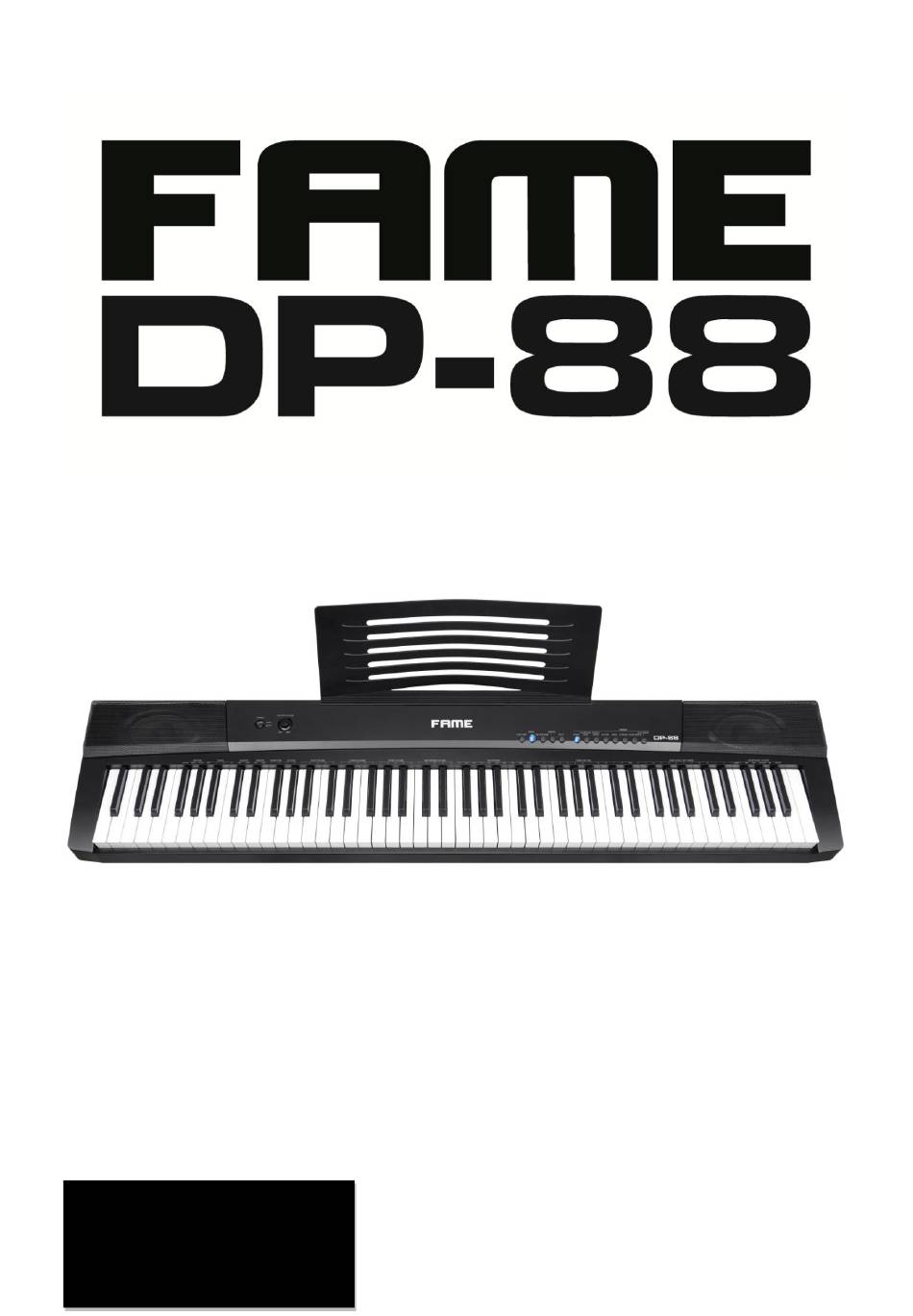

- Page 1 12/2020 KEY0005342-000 User Manual...

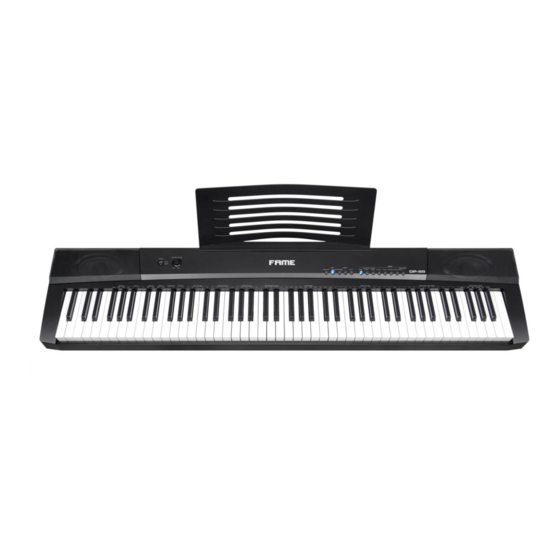

- Page 2 1x Manual Intended use: The Fame DP-88 is a digital piano designed to play sounds on the keyboard and make them audible through built-in speakers or headphones. Improper use of the product is considered improper and can lead to personal injury or property damage. No liability is assumed for damage resulting from improper use.
- Page 3 Important safety instructions! Please read before connection! CAUTION! (Electro Magnetic Interference) The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the owner‘s manual. In case the function could not resume, please use the product in other location.
- Page 4 Hint! (Operating conditions) Due to its structural characteristics, the device is designed for indoor operation (IP20). Never expose the device to rain, moisture or liquids as this may cause damage. Vibrations, dust or solar radiation can also lead to damage, void them! Do not apply excessive force to the switches or controls.
- Page 5 Hint! (Interferences with other electrical devices) Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ...
-
Page 6: Table Of Contents
Table of contents: Control panel & connections p. 07 Power supply p. 08 Using headphones p. 08 Connection to amplifier p. 08 Audio input p. 08 Connecting the pedal p. 08 USB connection p. 09 Playing music from a USB flash drive p. -
Page 7: Control Panel & Connections
Panel Control And Extension Ports Front Panel Controls Rear Panel Controls... -
Page 8: Power Supply
II. Preparation AC/DC power adapter Dedicated AC/DC power adapter for the Piano should be used. Connect the output end of the power adapter to the power interface on the rear panel of the Piano, and the other end to the power socket. (Please note that the input voltage of the adapter should be in line with the utility power voltage) Use of headphones Two professional 6.5 mm dual-track headphones ports are provided on the Piano. -
Page 9: Usb Connection
performance. Connect the pedal connector to the PEDAL port on the rear panel of the Piano, and carry out required operations with the pedal. Note: the panel is an operational item. Different configurations are provided with different pedals. USB-MIDI (APP) port The USB-MIDI (APP) port of the Piano is used for the connection with a mobile phone or a tablet PC. -
Page 10: Adjusting The Volume
III. Basic Performance Method Press the [POWER) button, the [PIANO) button light will light an, and then you may operate the Piano as required. Master volume adjustment Turn the [MASTER VOLUME) knob clockwise to increase master volume, and anti-clockwise to decrease master volume. The master volume controls all volumes simultaneously. -
Page 11: Selecting The Tone Colour
Timbre selection The Piano provides 140 timbres, from "000" to "139", for your selection. When the Piano is turned on, the [PIANO] button light lights on. Default timber: the Piano provides 8 default timbers for your selection, among which, the default timber of [GM TIMBRE) is "088 Pad 1 (NewAge)". Select other timbers: press the [GM TIMBRE) button + [DEMO SONG/GM TIMBER) keys to select standard GM timber and Chinese folk timber from "000"... -
Page 12: Iv Metronome
IV Metronome Metronome Press the [METRONOME] button to activate the metronome. Press the [METRONOME] button again to deactivate the metronome. The Piano contains 10 tempos. Press the [FUNCTION+] button + the [METRONOME] 1/4- 12 /8 keys for metronome setting. Tempo The tempo is defaulted tobe 120, which is adjustable between the range of "30"... -
Page 13: Metronome Volume
Metronome volume The Piano contains 5 metronome volumes. Press the [FUNCTION+] button + the [METRONOME VOLUME] 1 - 5 keys for metronome volume setting. V. Effect Change Timbre change Sustain: prolong the lasting time of a pitch. Press the [FUNCTION+] button + the [SUSTAIN -ON] key to enable the sustain effect. -
Page 14: Transpose
Sustain pedal: prolong the lasting time of a pitch. Press and hold the [sustain pedal] to enable the sustain effect , and release the pedal to disable such effect. TRANSPOSE The transpose control function of the Piano is adjustable from "-6" to "+6", and the default setting is 0. -
Page 15: Split
Split The keyboard can be split into two zones, in this way, you can play two different timbres with your left and right hands respectively. You should set the timbre for the right hand side alter the timbre that you were using before splitting is applied to the left-hand side. -
Page 16: Dual Timbre
Dual timbre Press any two timbre buttons simultaneously to enable the dual timbre function, in this case, the two selected timbre will be overlaid. When overlay of other timbres are required, press the [GM TIMBRE] button + the [DEMO SONG/GM TIMBRE] key to select other timbres, and then press the [GM TIMBRE) and other [TIMBRE) buttons simultaneously. -
Page 17: Octave Control
Under the lesson mode, the scales of Keys A0 - C5 in the left zone will change to the scales of KeysA2 - C6, while the scales of Keys C4# - C8 in the right zone will change to the scales of Keys C2# - C6. Octave Control Under the lesson mode, you can perform octave adjustment from "-2"... -
Page 18: Recording Mode
VII. Record Mode Record Press the [FUNCTION+] button + the [REC] key to enable the record mode. Press the [FUNCTION+] button + the [REC] key again to disable the record mode. Under the record mode, the metronome will be enabled automatically, and you can press any key to start recording. -
Page 19: Timbre Table
Appendix Timbre Table 000 Acoustic Grand Piano 035 Fretless Bass 070 Bassoon 105 Banjo 001 BrightAcoustic Piano 036 Slap Bass 1 071 Clarinet 106 Shamisen 002 Electric Grand Piano 037 Slap Bass 2 072 Piccolo 107 Koto 003 Honky-tonk Piano 038 Synth Bass 1 073 Flute 108 Kalimba... -
Page 20: Space For Notes
Notes Dokument-ID: MS-KEY0005342-000 (12/2020)
