ZoneVu ZVR-310 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

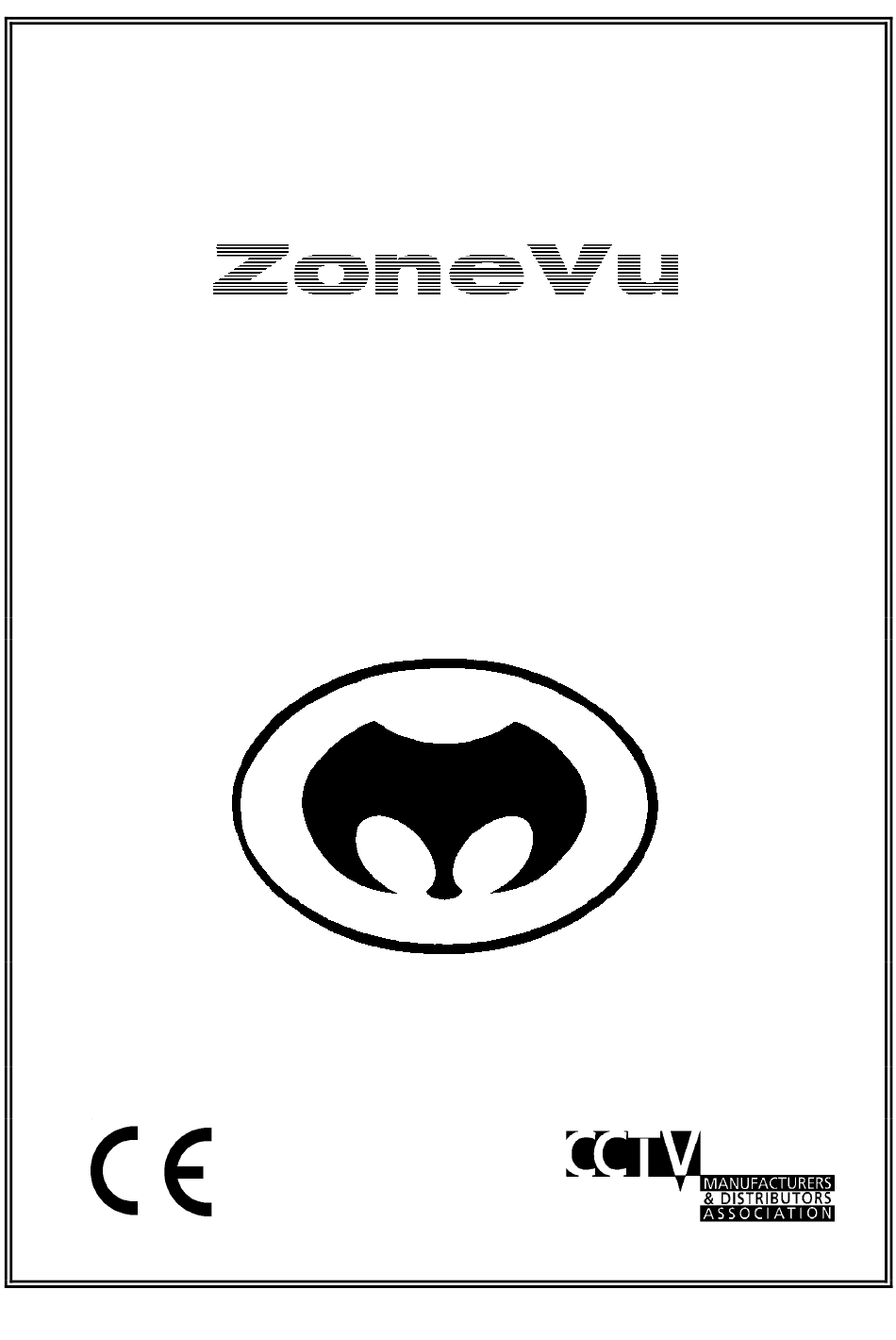

ZVR-310 RECEIVER
USERS MANUAL
SECURITY with VISION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZVR-310 and is the answer not in the manual?

Questions and answers

Related Manuals for ZoneVu ZVR-310

Summary of Contents for ZoneVu ZVR-310

  • Page 1 ZVR-310 RECEIVER USERS MANUAL SECURITY with VISION...

  • Page 2: Table Of Contents

    4.4 OSD MENU SYSTEM 4.4.1 HEAD FUNCTIONS 4.4.2 ALARM FUNCTIONS 4.4.3 MEMORY FUNCTIONS 4.4.4 DISPLAY FUNCTIONS 4.4.5 MISCELLANEOUS FUNCTIONS 4.5 LOGGING OFF FROM THE ZVR-310 4.5.1 LOGGING OFF FROM A ZVK-007 5. DIAGNOSTICS 5.1 SELF TEST 5.2 ON SCREEN DIAGNOSTICS 6. DEFAULT CONFIGURATION 7.
  • Page 3 MEYERTECH DIVISION ISSUE 03 7.2 PHYSICAL 7.3 FUNCTIONS 8. TROUBLE SHOOTING GUIDE 9. PRODUCT WARRANTY 10. DECLARATION OF CONFORMITY 11. APPENDIX A PCB OVERVIEW 12. APPENDIX B CONNECTION DIAGRAM 13. DOCUMENT HISTORY Whilst every effort has been made to confirm the information in this document is correct, MEYERTECH DIVISION cannot accept any liability for any errors, omissions and or incorrect information contained within this document.

  • Page 4: Zvr-310 Welcome

    ZVR-310 WELCOME Thank you for purchasing the ZoneVu ZVR-310 Telemetry Receiver. The ZVR-310 fully exploits the benefits of high performance AC control. The receiver operates over Coax based MEYERTECH VICTA™ telemetry or twisted pair RS422, and is compatible with the full range of ZoneVu products.

  • Page 5: Installation

    ISSUE 03 INSTALLATION To obtain the optimum performance from your ZVR-310 please take time to read this manual before commencing installation. If you have any questions or problems our staff will be pleased to assist you on the technical helplines listed on page 27.

  • Page 6: Address Setting

    4. AVOID looming cables of differing characteristics together E.G. Video cables with cables carrying mains power. 5. If the ZVR-310 is to be operated over twisted pair cable ensure the screen is connected to 0V. 6. If N/O alarms are selected link-out unused inputs to the alarm common.

  • Page 7: Configuration

    2. Use the MODE Key to step through the Menu options to ZVR CONFIG Select using the ENT key. 3. Use the MODE Key to step through the various receiver options to ZVR-310. Select using the ENT key. 4. Press the PROG Key to enter the On Screen Display Menu system. ZVK-007 now enters TALK mode with the ZVR-310 Receiver.

  • Page 8: Head Formatting

    Used to delete text characters at and to the right of the cursor position. 4.3 HEAD FORMATTING It is important to configure the following ZVR-310 parameters in the following order before attempting to configure any other parameters. This is only required if the Pan and Tilt head or lens is fitted with feedback pots.

  • Page 9: Head Functions

    Not Applicable. 4.4.2 ALARM FUNCTIONS The ZVR-310 has the capability to detect and report six contact alarms, one tamper alarm and one camera fail alarm. The six alarms and tamper alarm can be set to trigger from Normally Open or Normally Closed contacts via a link on the PCB.
  • Page 10 MEYERTECH DIVISION ISSUE 03 If a Camera Fail alarm occurs whereby Video signal stop being transmitted to the ZVR-310, the OSD facility ensures that Alarm, Dynamic Text and Static Text Information continues to be displayed Talk Mode VICTA, RS422/485, VICTA+RS4xx or None...

  • Page 11: Memory Functions

    MEYERTECH DIVISION ISSUE 03 4.4.3 MEMORY FUNCTIONS The options within this Menu refer to the ZVR-310 receivers programmed positions, patrols and text displayed. ZVR-310 Memory Functions Presets Ordered patrol rAndom Patrol privacy Zones Static caption Dynamic captions Load defaults Return to main menu...

  • Page 12: Display Functions

    Peak average [25] Return to main menu The options within this menu allow the user to define other functions of the ZVR-310 which do not fall into any of the previous menus of the On Screen Display. Page 12...

  • Page 13: Logging Off From The Zvr-310

    Joystick control, select SAVE CHANGES or ABANDON CHANGES. Confirm selection by pressing the ENT key. IMPORTANT : At this point, the ZVK-007 is still in communication with the ZVR-310 and must be logged off in order to resume normal operation.

  • Page 14: Diagnostics

    The unit will exercise Pan, Tilt, Zoom, and Focus functions. 5.2 ON SCREEN DIAGNOSTICS Log On to the ZVR-310 at Supervisor Level and select ZVR CONFIG using the MODE key. Step through the Receiver options to ZVR-310. Press the F1 key to Enable/Disable the On Screen Diagnostics.

  • Page 15: Default Configuration

    MEYERTECH DIVISION ISSUE 03 6. DEFAULT CONFIGURATION Default Configurations as a result of Load Defaults (within Memory Functions Menu) or factory preset conditions. Head Functions PTZF Swap [Normal] Tilt [Normal] Zoom [Normal] Focus [Normal] Feedback Pots [Not Available] Tilt [Not Available] Zoom [Not Available] Focus [Not Available] Endstops...

  • Page 16: Specifications

    MEYERTECH DIVISION ISSUE 03 7. SPECIFICATIONS 7.1 ELECTRICAL POWER INPUT 20VAC via MEYERTECH supplied transformer 110V or 240V +/- 10% 50- 60Hz AC direct to PCB 20VAC 50 - 60 Hz FUSING 3.15 AT VIDEO Input 1V pk - pk composite - 75R terminated Output 1V pk - pk 7.2 PHYSICAL DIMENSIONS...
  • Page 17 MEYERTECH DIVISION ISSUE 03 TILT - Relay 5A Max 250V AC Max with suppresser protection ZOOM* - Solid State 6/12V Nominal user selectable. Current limited FOCUS* - Solid State 6/12V Nominal user selectable. Current limited ALARMS - 6 x Normally open or Normally closed external contacts and 1 Tamper PRESETS - 16 x PTZF 10 bit A/D Resolution IRIS...

  • Page 18: Trouble Shooting Guide

    MEYERTECH DIVISION ISSUE 03 8. TROUBLE SHOOTING GUIDE This Trouble Shooting Guide should be used in the first instance of encountering any problems with the ZVR-310. If problems persist, contact MEYERTECH on the Technical Helpline numbers given below. Symptom Solution...

  • Page 19: Product Warranty

    MEYERTECH DIVISION ISSUE 03 9. PRODUCT WARRANTY MEYERTECH DIVISION warrants that at the time of shipment the products manufactured by Meyertech will be free from defects in material and workmanship. Should any defects appear within twelve months from date of shipment, Meyertech Division shall at it’s sole discretion repair or replace the defective material.

  • Page 20: Declaration Of Conformity

    MEYERTECH Division Office Block One Southlink Business Park Oldham OL4 1DE declares, that the product(s): Product Name : ZVR-310 Telemetry Receiver Model(s) : Product Options : conforms to the following Product Specifications : EN55022 CLASS B EN50093 Supplementary Information :...

  • Page 21: Appendix Apcb Overview

    MEYERTECH DIVISION ISSUE 03 11. APPENDIX A PCB OVERVIEW Page 21...

  • Page 22: Appendix Bconnection Diagram

    MEYERTECH DIVISION ISSUE 03 12. APPENDIX B CONNECTION DIAGRAM Page 22...

  • Page 23: Document History

    MEYERTECH DIVISION ISSUE 03 13. DOCUMENT HISTORY ZVR-310 Telemetry Receiver User Guide : MAN-310 ISSUE DATE CHANGE RECORD 18 October 1996 First Issue 14 November 1996 Corrected Config exit procedure for 008. 22 September 1997 New Format. Removed reference to obsolete ZVK-008...
  • Page 24 MEYERTECH DIVISION ISSUE 03 NOTES Page 24...
  • Page 25 MEYERTECH DIVISION ISSUE 03 NOTES Page 25...
  • Page 26 MEYERTECH DIVISION ISSUE 03 NOTES Page 26...
  • Page 27 MEYERTECH DIVISION ISSUE 03 MEYERTECH DIVISION SECURITY with VISION Office Block One Southlink Business Park Oldham England OL4 1DE Sales Support Technical Support +44 (161) 628 8406 Oldham +44 (161) 628 8406 Kirton +44 (1652) 640740 +44 (161) 628 9811 Email : technical@meyertech.co.uk Email : sales@meyertech.co.uk http://www.meyertech.demon.co.uk...
