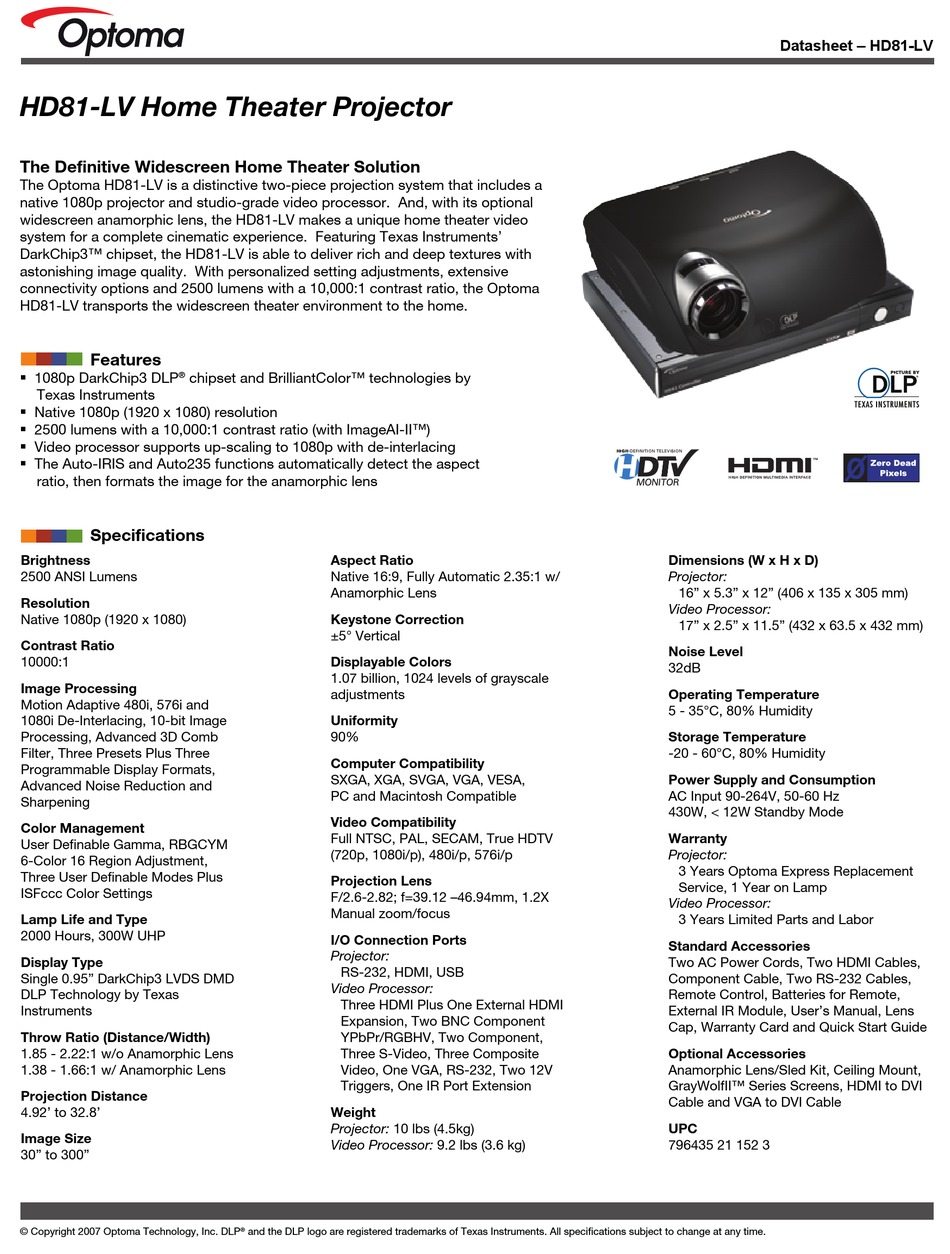

Optoma HD81-LV Specifications

HD81-LV Home Theater Projector
The Definitive Widescreen Home Theater Solution
The Optoma HD81-LV is a distinctive two-piece projection system that includes a
native 1080p projector and studio-grade video processor. And, with its optional
widescreen anamorphic lens, the HD81-LV makes a unique home theater video
system for a complete cinematic experience. Featuring Texas Instruments'
DarkChip3™ chipset, the HD81-LV is able to deliver rich and deep textures with
astonishing image quality. With personalized setting adjustments, extensive
connectivity options and 2500 lumens with a 10,000:1 contrast ratio, the Optoma
HD81-LV transports the widescreen theater environment to the home.
Features
 1080p DarkChip3 DLP chipset and BrilliantColor™ technologies by
®
Texas Instruments
 Native 1080p (1920 x 1080) resolution
 2500 lumens with a 10,000:1 contrast ratio (with ImageAI-II™)
 Video processor supports up-scaling to 1080p with de-interlacing
 The Auto-IRIS and Auto235 functions automatically detect the aspect
ratio, then formats the image for the anamorphic lens

Specifications

Brightness
2500 ANSI Lumens
Resolution
Native 1080p (1920 x 1080)
Contrast Ratio
10000:1
Image Processing
Motion Adaptive 480i, 576i and
1080i De-Interlacing, 10-bit Image
Processing, Advanced 3D Comb
Filter, Three Presets Plus Three
Programmable Display Formats,
Advanced Noise Reduction and
Sharpening
Color Management
User Definable Gamma, RBGCYM
6-Color 16 Region Adjustment,
Three User Definable Modes Plus
ISFccc Color Settings
Lamp Life and Type
2000 Hours, 300W UHP
Display Type
Single 0.95" DarkChip3 LVDS DMD
DLP Technology by Texas
Instruments
Throw Ratio (Distance/Width)
1.85 - 2.22:1 w/o Anamorphic Lens
1.38 - 1.66:1 w/ Anamorphic Lens
Projection Distance
4.92' to 32.8'
Image Size
30" to 300"
© Copyright 2007 Optoma Technology, Inc. DLP
Aspect Ratio
Native 16:9, Fully Automatic 2.35:1 w/
Anamorphic Lens
Keystone Correction
±5° Vertical
Displayable Colors
1.07 billion, 1024 levels of grayscale
adjustments
Uniformity
90%
Computer Compatibility
SXGA, XGA, SVGA, VGA, VESA,
PC and Macintosh Compatible
Video Compatibility
Full NTSC, PAL, SECAM, True HDTV
(720p, 1080i/p), 480i/p, 576i/p
Projection Lens
F/2.6-2.82; f=39.12 –46.94mm, 1.2X
Manual zoom/focus
I/O Connection Ports
Projector:
RS-232, HDMI, USB
Video Processor:
Three HDMI Plus One External HDMI
Expansion, Two BNC Component
YPbPr/RGBHV, Two Component,
Three S-Video, Three Composite
Video, One VGA, RS-232, Two 12V
Triggers, One IR Port Extension
Weight
Projector: 10 lbs (4.5kg)
Video Processor: 9.2 lbs (3.6 kg)
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Datasheet – HD81-LV
Dimensions (W x H x D)
Projector:
16" x 5.3" x 12" (406 x 135 x 305 mm)
Video Processor:
17" x 2.5" x 11.5" (432 x 63.5 x 432 mm)
Noise Level
32dB
Operating Temperature
5 - 35°C, 80% Humidity
Storage Temperature
-20 - 60°C, 80% Humidity
Power Supply and Consumption
AC Input 90-264V, 50-60 Hz
430W, < 12W Standby Mode
Warranty
Projector:
3 Years Optoma Express Replacement
Service, 1 Year on Lamp
Video Processor:
3 Years Limited Parts and Labor
Standard Accessories
Two AC Power Cords, Two HDMI Cables,
Component Cable, Two RS-232 Cables,
Remote Control, Batteries for Remote,
External IR Module, User's Manual, Lens
Cap, Warranty Card and Quick Start Guide
Optional Accessories
Anamorphic Lens/Sled Kit, Ceiling Mount,
GrayWolfII™ Series Screens, HDMI to DVI
Cable and VGA to DVI Cable
UPC
796435 21 152 3
