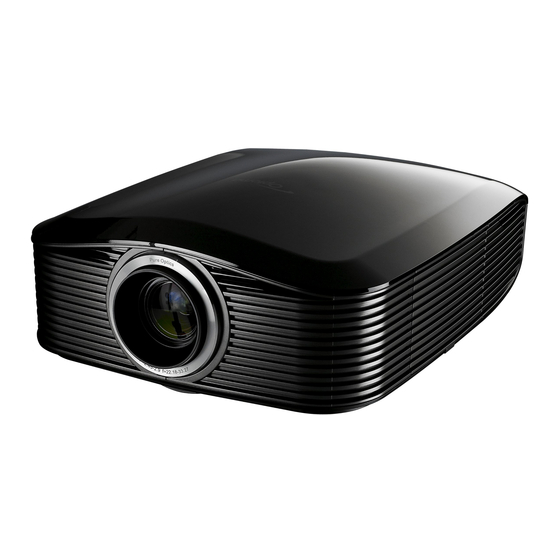

Optoma HD82 User Manual

Optoma HD82 User Manual

Optoma technology projector user's manual
Hide thumbs Also See for HD82:

Advertisement

Table of Contents ................................................................................... 1
Usage Notice .......................................................................................... 2
Safety Information .........................................................................................2
Precautions....................................................................................................3
Eye Safety Warnings .....................................................................................5
Introduction............................................................................................. 6
Package Overview.........................................................................................6
Product Overview ..........................................................................................7
Main Unit ................................................................................................................ 7
Connection Ports ................................................................................................... 8
Remote Control ...................................................................................................... 9
Backup Remote Control ....................................................................................... 10
Coin Cell Battery Replacement ............................................................................ 10
Installation ............................................................................................ 11
Connecting the Projector ............................................................................. 11
Connect to Notebook/DVI/VGA-In ....................................................................... 11
Connect to Video/SCART .................................................................................... 12
Powering On/Off the Projector.....................................................................13
Powering On the Projector ................................................................................... 13
Powering Off the projector ................................................................................... 14
Warning Indicator ................................................................................................. 14
Adjusting the Projected Image.....................................................................15
Adjusting the Projector's Height ........................................................................... 15
Adjusting Projected Image Position Using PureShift ........................................... 16
Adjusting Projection Image Size .......................................................................... 18
User Controls ....................................................................................... 19
Remote Control ...........................................................................................19
On-screen Display Menus ...........................................................................21
How to operate .................................................................................................... 21
Menu Tree ............................................................................................................ 22
Image ................................................................................................................... 23
Display ................................................................................................................ 28
System ................................................................................................................. 31
Setup .................................................................................................................... 35
Appendices........................................................................................... 38
Troubleshooting ...........................................................................................38
Image Problems .................................................................................................. 38
Other Problems ................................................................................................... 39
Projector Status Indication .................................................................................. 40
Remote Control Problems ................................................................................... 41
Replacing the Lamp.....................................................................................42
Compatibility Modes ....................................................................................44
RS232 Commands and Protocol Function List............................................45
Ceiling Mount Installation ............................................................................48
Optoma Global Offices ................................................................................49
Regulation & Safety Notices ........................................................................51

Table of contents



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD82 and is the answer not in the manual?

Questions and answers

Summary of Contents for Optoma HD82

  • Page 1: Table Of Contents

    Connecting the Projector ... 11 Connect to Notebook/DVI/VGA-In ... 11 Connect to Video/SCART ... 12 Powering On/Off the Projector...13 Powering On the Projector ... 13 Powering Off the projector ... 14 Warning Indicator ... 14 Adjusting the Projected Image...15 Adjusting the Projector’s Height ... 15 Adjusting Projected Image Position Using PureShift ...
  • Page 2: Usage Notice

    As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
  • Page 3: Precautions

    When replacing the lamp, please allow the unit to cool down. Follow instructions as described on page 42. This projector will detect the life of the lamp it- self. Please be sure to change the lamp when it shows warning messages.
  • Page 4 Usage Notice ▀■ ▀■ ▀■ ▀■ ▀■ ▀■ Turn off and unplug the power plug from the AC outlet before cleaning the product. Use a soft dry cloth with mild detergent to clean the display housing. Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
  • Page 5: Eye Safety Warnings

    Eye Safety Warnings ▀■ Avoid staring/facing directly into the projector beam at all times. Keep your back to the beam as much as possible. ▀■ When projector is used in a classroom, adequately supervise students when they are asked to point out something on the screen.
  • Page 6: Introduction

    Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact Optoma customer service. Projector with lens cap Due to different applica- tions in each Country, some regions may have different accessories.
  • Page 7: Product Overview

    Product Overview Main Unit 1. Power Button 2. LED Indicators 3. IR Receivers 4. Tilt-Adjustment Feet 5. Focus 6. Zoom 7. Lamp Replacement Cover 8. Connection Ports 9. Vertical Lens Shift Adjustment 10. Horizontal Lens Shift Adjustment 11. IR Transmitter for Use with Panoview Motorised Screens Introduction...
  • Page 8: Connection Ports

    Introduction Connection Ports 12V TRIGGER VIDEO 1. 12V Trigger A 2. 12V Trigger B 3. RS232 4. Composite Video 5. S-Video 6. Component Video 7. VGA Input 8. DVI-D Input (PC Digital and DVI-HDCP) 9. HDMI 1 10. HDMI 2 11.
  • Page 9: Remote Control

    Remote Control 1. Power On 2. Power Off 3. PureEngine 4. Brite Mode 5. Image Shift 6. Four Directional Select Keys 7. Mode 8. Edge Mask 9. Screen Up/Down 10. Re-Sync 11. VGA 12. DVI 13. Video 14. HDMI 2 15.
  • Page 10: Backup Remote Control

    Backup Remote Control 1. Power Off Backup remote con- 2. Power On trol is magnetically at- tached to the bottom 3. Enter of the projector. 4. Four Directional Select Keys 5. Image Shift 6. Source 7. Re-Sync 8. Menu Coin Cell Battery Replacement...
  • Page 11: Installation

    Connecting the Projector Connect to Notebook/DVI/VGA-In Due to the difference in applications for each country, some regions may have different ac- cessories. 1... RS232 Cable (Optional Accessory) 2... VGA Input Cable (Europe Only) 3... DVI Cable (Optional Accessory) 4...DVI/HDMI Cable (Optional Accessory) 5...Power Cord...
  • Page 12: Connect To Video/Scart

    Installation Connecting the Projector Connect to Video/SCART Due to the difference in applications for each country, some regions may have different ac- cessories. 12V Trigger B is pro- grammable trigger. 1...RCA Component Cable for YPbPr (Optional Accessory) 2... Composite Video Cable (Not Available in European Version) 3...
  • Page 13: Powering On/Off The Projector

    2. Securely connect the power cord and signal cable. When connected, the power led will turn red. 3. Turn on the lamp by pressing projector or on the remote control. The power led will now flash blue. The startup screen will display in approximately 30 seconds.
  • Page 14: Powering Off The Projector

    Power LED will turn blue. When the lights solid red, the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has en- tered standby mode.
  • Page 15: Adjusting The Projected Image

    Adjusting the Projected Image Adjusting the Projector’s Height The projector is equipped with elevator feet for adjusting the image height. To raise the image: Use screw in foot to raise the image to the desired height angle and ine-tune the display angle...
  • Page 16: Adjusting Projected Image Position Using Pureshift

    Adjusting the vertical image position The minimum vertical image offset is fixed at 5% of the image height above the centre of the projector lens. This can not be changed. The vertical image height can be adjusted between 5% and 30% of the image height. Note that the maximum verti- cal image height adjustment can be limited by the horizontal image position.
  • Page 17: Adjusting The Horizontal Image Position

    Screen Distance Screen 100% Distance ▀■ Adjusting the horizontal image position With the lens in the centre position the horizontal image position can be adjusted to the left or right by up to a maximum of 15% of the image width. Note that the maximum horizontal image height adjustment can be limited by the vertical image position.
  • Page 18: Adjusting Projection Image Size

    User Controls ▀■ PureShift Range Diagram Offset max=V x 30% Adjusting Projection Image Size Diagonal length (inch) size of 16:9 Screen This graph is for user’s reference only.  130%(V), 0%(H) -15%(H) H x 15% V x 25% Offset min=V x 5% Screen Size W X H (16:9) (feet) Width Height Width Height...
  • Page 19: User Controls

    MENU Image Shift Re-Sync Source User Controls Refer to the “Power On the Projector” section on page 13. Adjust the brightness of the image. Refer to the “Power Off the Projector” section on page 14. Control the degree of difference between the lightest and darkest parts of the picture.
  • Page 20: Letter Box

    Part of the original im- age will be lost if the image aspect ratio is less than 2.35:1.. Automatically synchronize the projector to the input source. Scale the image at a 16:9 aspect ratio. 16:9...
  • Page 21: On-Screen Display Menus

    On-screen Display Menus The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. How to operate To open the OSD menu, press “Menu” on the Remote Control or Control Panel.
  • Page 22: Menu Tree

    User Controls Menu Tree...
  • Page 23: Image

    User Controls Mode There are many factory presets optimized for various types of im- ages. Cinema: For home theater.  Bright: Maximum brightness input.  Photo: Optimized for displaying photographic images.  Reference: This mode is intended to reproduce, as close as ...
  • Page 24 User Controls Color Adjust a video image from black and white to fully saturated color.   Tint Adjust the color balance of red and green.   Sharpness Adjust the sharpness of the image.   Press the to decrease the color saturation in the image. Press the to increase the color saturation in the image.
  • Page 25: Image | Advanced

    User Controls Noise Reduction The motion Adaptive Noise Reduction reduces the amount of vis- ible noise interlaced signals. The range is from “0” to “10”. (0:Off) Gamma This allows you to set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.
  • Page 26 The PureEngine is a collection of advanced image processing technologies that enhances the quality of the displayed image. DynamicBlack DynamicBlack enables the projector to automatically optimize the display of dark movie scenes enabling them to be shown in incred- ible detail.
  • Page 27: Image | Advanced | Pureengine

    User Controls Image | Advanced | PureEngine PureDetail PureDetail is an edge enhancement tool that enables the edges in the projected image is be enhanced thus providing more perceived detail. PureColor This adjustable item utilizes a new color-processing algorithm and enhancements to enable the picture’s vividness to be significantly increased.
  • Page 28: Display

    User Controls Format Use this function to choose your desired aspect ratio.    Input Signal 4:3: This format is for 4x3 input sources. 16:9: This format is for 16x9 input sources, like HDTV and DVD enhanced for Widescreen TV. Native: This format displays the original image without any scal- ing.
  • Page 29: Image Shift

    LBX: This format is for non-16x9, letterbox source and for users  who use external anamorphic lens to display 2.35:1 aspect ratio using full resolution. Detail informations about LBX mode : 1. Some Letter-Box DVDs are not enhanced for 16x9 TVs. In 2.
  • Page 30  Wide” 1. Obtain a 2.0:1 aspect  ratio screen 2. Switch SuperWide 3. Align the projector image correctly on the screen 4. Enjoy movies without black bars Off: Your desired aspect ratio can be selected - 4:3, 16:9, LBX and Native.
  • Page 31: System

    Menu Location Choose the menu location on the display screen. Projection  This is the default selection. The image is projected straight on the screen.  When selected, the image will appear reversed.  Rear-Desktop and When selected, the image will turn upside down. Rear-Ceiling are to be used with a translucent screen.
  • Page 32: Background Color

    User Controls   Test Pattern Display a test pattern. There are Grid, White pattern and None. Background Color Use this feature to display a “Dark Blue”, “Black”, or “Gray” screen when no signal is available. 12V Trigger A 12V trigger A provides a standard trigger for motorized screens. 12V Trigger B On: The dynamic image performance manager is active in mak- ing sure your greatest pleasure from seeing a movie dynami-...
  • Page 33 In the example below 16:9 has been selected – this means that Trigger B will be active when the projector display mode is set to 16:9. The trigger will be inactive for all the other display mode options.
  • Page 34: System | Lamp Settings

    User Controls System | Lamp Settings Lamp Hour Display the cumulative lamp operating time. Lamp Reminder Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear up 30 hours before suggested replacement of lamp. Bright Mode Choose “On”...
  • Page 35: Setup

    Press “Select (Enter)” to finalize the selection. Input Source Enable input sources. Press into the next menu as below and then use to select. Press “Select (Enter)” to finalize the selection. The projector will not search inputs that are de-se- lected.
  • Page 36: High Altitude

    User Controls Source Lock When this function is turned off, the projector will search for other signals if the current input signal is lost. When this function is turned on, it will search for a specified connection port. High Altitude Choose “On”...
  • Page 37: Color Space

    White Level : Allow user adjust White Level when inputting  SVideo or Video/CVBS signals. Black Level : Allow user adjust Black Level when inputting  SVideo or Video/CVBS signals. Saturation : Adjust a video image from black and white to fully ...
  • Page 38: Appendices

    Make sure the projection screen is between the required distance  4.9 to 32.8 feet (1.5 to 10.0 meters) from the projector. See page The image is stretched when displaying 16:9 DVD title When you play anamorphic DVD or 16:9 DVD, the projector will ...
  • Page 39: Other Problems

    Press [Menu] on the projector panel, go to “Display-->Format”. Try  the different settings. Image has slanted sides: If possible, reposition the projector so that it is centered on the  screen and below the bottom of the screen. Use “Display-->V Keystone” from the OSD to make an adjustment.
  • Page 40: Projector Status Indication

    Appendices Projector Status Indication LED states Message Standby State (Input power cord) Standby State (Burn in mode) Power on and Lamp lighting Power off (Cooling) Steady light => Error (Lamp fail) No light => Error (Thermal fail) Error (Fan fail) Error (Over Temp.)
  • Page 41: On Screen Messages

    IR receivers on the projector. Make sure there are not any obstructions between the remote con-  trol and the projector. Move to within 6 m (20 ft) of the projector. Make sure batteries are inserted correctly. ...
  • Page 42: Replacing The Lamp

    When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp. Warning: Lamp compartment is hot! Allow it to cool down before...
  • Page 43 Lamp Replacing Procedure: 1. Switch off the power to the projector by pressing the Power button. 2. Allow the projector to cool down at least 30 minutes. 3. Disconnect the power cord. 4. Unlock the lamp cover. 5. Push up and remove the cover....
  • Page 44: Compatibility Modes

    Appendices Compatibility Modes Power Book G4 iMAC V.Frequency Mode Resolution 800 x 600 800 x 600 SVGA 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1280 x 768 WXGA 1280 x 800 1280 x 720...
  • Page 45: Rs232 Commands And Protocol Function List

    RS232 Commands and Protocol Function List RS232 Pin Assignments Pin no. Name RS232 RS232 Appendices I/O (From Projector Side)
  • Page 46: Rs232 Protocol Function List

    7E 30 30 37 30 20 31 35 0D ~XX70 16 7E 30 30 37 30 20 31 36 0D XX=01-99, projector's ID, XX=00 is for all projectors Note : There is a <CR> after all ASCII commands 0D is the HEX code for <CR> in ASCII code...
  • Page 47 0/1/2/3/4 =4x3, 16x9, LBX, Native n: 0/1/2=Warm/Medium/Cold n: 0/1/2/3 =Front-Desktop/Rear-Desktop/Front-Ceiling/Rear-Ceiling OKabbbbcdddde a : 0/1=Off/On bbbb: Lamp Hour c: source 0/1/2/3/4 = None/HDMI 1/HDMI 2/DVI/Component/VGA/S-Video/Video dddd: FW version e : Display mode 0/1/2/3/4/5 =Cinema/ Bright/ Photo/ Reference/ User n : 0/1/2=HD82/HD82LV...
  • Page 48: Ceiling Mount Installation

    Appendices Ceiling Mount Installation 1. To prevent damage to your projector, please use the Optoma ceiling mount.. 2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attached a mount to the pro- jector met the following specifications: ...
  • Page 49: Optoma Global Offices

    Optoma Global Offices For service or support please contact your local office. 715 Sycamore Drive Milpitas, CA 95035, USA www.optomausa.com Canada 5630 Kennedy Road, Mississauga, ON, L4Z 2A9, Canada www.optoma.ca Europe 42 Caxton Way, The Watford Business Park Watford, Hertfordshire, WD18 8QZ, UK www.optoma.eu Service Tel : +44 (0)1923 691865...
  • Page 50 Appendices Taiwan 231,台北縣新店市民權路108號5樓 R.O.C. 電話:+886-2-2218-2360 服務處:services@optoma.com.tw Hong Kong Unit A, 27/F Dragon Centre, 79 Wing Hong Street, Cheung Sha Wan Kowloon, Hong Kong Tel : +852-2396-8968 www.optoma.com.hk China 上海市长宁区凯旋路1205号5楼 邮编: 200052 www.optoma.com.cn Japan 東京都足立区綾瀬 3-25-18 株式会社オーエスエム E-Mail: info@osscreen.com Korea WOOMI TECH.CO.,LTD. 4F, Minu Bldg.33-14, Nonhyun-Dong, Kangnam-Ku, seoul, 135-815, KO- 傳真:+886-2-2218-2313...
  • Page 51: Regulation & Safety Notices

    Regulation & Safety Notices This appendix lists the general notices of your Projector. FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules.
  • Page 52: Operation Conditions

    Appendices Operation conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: Notice: Canadian users This Class B digital apparatus complies with Canadian ICES-003. Remarque à l’intention des utilisateurs canadiens Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.

This manual is also suitable for:
