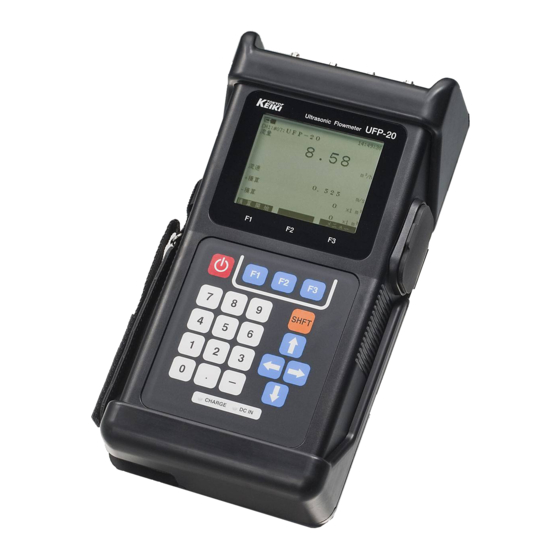

- Page 1 Appendix 1.1 Ultra-Sonic Flowmeter Brand: TOKYO KEIKI Model: UFP-20 Country: JAPAN Contents of this manual 1. Battery Charge 2. Unit Setting 3. Transducer Setting 4. Start and Stop Logging 5. Downloading Logs Appendix 1.1-1...
- Page 2 1. Battery Change 1. Battery Change Open side cover, then connect AC adaptor. Please be noted that battery charging will not start during the main unit runs The GREEN LED will light up when DC power is supplied, also RED LED when charging has started.
- Page 3 2. Unit Setting 2. Unit Setting Turn switch on. Then automatically Self Check will be carried out. After the Self Check, select “OK” <F3> Switch (long Select “Installation Wizard” on the basic menu Select “1: Installation Wizard” by direction or numeric button. Then push “Select” key (F3 button).
- Page 4 2. Unit Setting Select file position as “#No.” Please select Not-Used area by direction button, then push “Enter“ key (F3 button). Not-used area indicated as “--------” and you cannot select this position. To remove site setting file, please refer to Chapter 2. When you select used area, you can see the following indication. File name input Please input file name by direction button.
- Page 5 2. Unit Setting Finalizing file name By repeating procedure of 1-4, you can input “100/Carbon Steel/1M” as follows. After finalizing the file name, proceed next menu by moving the cursor to “Enter” and push “Select” key (F3 button), otherwise [SHIFT] + F3 button makes the same step taken. Appendix 1.1-5...
- Page 6 2. Unit Setting Pipe size setting Input pipe diameter-by-diameter itself or circumference of pipe. You can select which way you want by direction or numeric button. Here for example, select “1: Diameter” by push “Select” key (F3 button). Note: diameter should be OUTER diameter. Please refer to Input diameter by numeric button directly.
- Page 7 2. Unit Setting Pipe material Select material of the pipe from default choices or User Defined by direction or numeric button. Here for example, select “1: Carbon Steel”, then push “Select” key (F3 button) to proceed next step. After you select material, you will see predefined sound speed, normally just proceed to next. If you would like to select any un-listed materials, please select “User Defined”...
- Page 8 2. Unit Setting Lining material Select material of the lining from default choices or User Defined by direction or numeric button. Here for example, select “2: Epoxy”, then push “Select” key (F3 button) to proceed next step. After you select material, you will see predefined sound speed, normally just proceed to next. If you would like to select any un-listed materials, please select “User Defined”...
- Page 9 2. Unit Setting Fluid Selection Select fluid from default choices or User Defined by direction or numeric button. Here for example, select “1: Water”, then push “Select” key (F3 button) to proceed next step. After you select material, you will see predefined sound speed and viscosity, normally just proceed to next.
- Page 10 2. Unit Setting Sound-path selection Select sound-path method from default choices by direction or numeric button. Here for example, select “2: V-Path method”, then push “Select” key (F3 button) to proceed to the next step. Flow rate unit setting Select flow rate unit from default choices by direction or numeric button. Here for example, select “3: m3/h”, then push “Select”...
- Page 11 2. Unit Setting Decimal point position Select decimal point position from default choices by direction or numeric button. Here for example, select “***.***”, then push “Select” key (F3 button) to proceed to the next step. Totalizing unit setting Select totalizing unit from default choices by direction or numeric button. Here for example, select “1: ×1m3”, then push “Select”...
- Page 12 2. Unit Setting Store site data Finalize wizard by store all data on this menu. Select “2: Yes” by direction or numeric button. Then push “Select” key (F3 button) to proceed to the next step. When select “2: Yes”, following message will be shown. After storing site-setting data, following confirmation message will show up.
- Page 13 2. Unit Setting Mounting transducers The main unit calculates proper distance between transducers as according to the message appearing below. Then push “OK” (F3 button) to start measurement. Please set transducer mounting with indicated transducer distance in accordance with instruction on Chapter 1.2.9. On this example, distance of transducers is 63.8 mm.
- Page 14 3. . Transducer Setting 3. Transducer Setting Transducer distance setting Set distance between transducers on mounting fixture in accordance with the main unit calculation. Set mounting fixture onto the pipe Wrap the mounting chain around the pipe and hook an endo link with the hook knob arrangement.
- Page 15 3. . Transducer Setting Add coupslant and set transducers to mounting fixture Add silicone grease as acoustic couplant onto surface of tranceducers. Then set them into mounting fixture. Set cables with the transducers and the main unit Connect cables with the transducers to the main unit Let’s start measurement Complete prepartion for measurement.
- Page 16 3. . Transducer Setting Measurement for over DN200mm pipe In case of measurement for over DN200mm, you need to use mounting fixture 1 and 2 for extension together as below. The distance between fixtures is 100mm. When the transducer distance is 245mm(DN300mm), if Up side slide sets t 200mm point, Down side slide must be set at 125mm point.
- Page 17 4. Start and Stop Logging 4. Start and Stop Logging Continue from the last step of [2. Unit setting] Select “OK”<F3> Select “Log Start”<F1>, and then start logging. Appendix 1.1-17...
- Page 18 4. Start and Stop Logging Select “Log Stop”<F1> when you want to stop logging. Appendix 1.1-18...
- Page 19 5. Downloading Logs 5. Downloading Logs When you have stopped logging, select “MENU”<F3>. Select “Logging Setting” from the menu list<F3>. Appendix 1.1-19...
- Page 20 5. Downloading Logs Select “1 : Log File List” The logging filename is defined automatically. [ DDMMYY.csv ] Connect a pen drive to the unit. Appendix 1.1-20...
- Page 21 5. Downloading Logs Choose a certain file, and then select “To USB”<F3>. Appendix 1.1-21...
