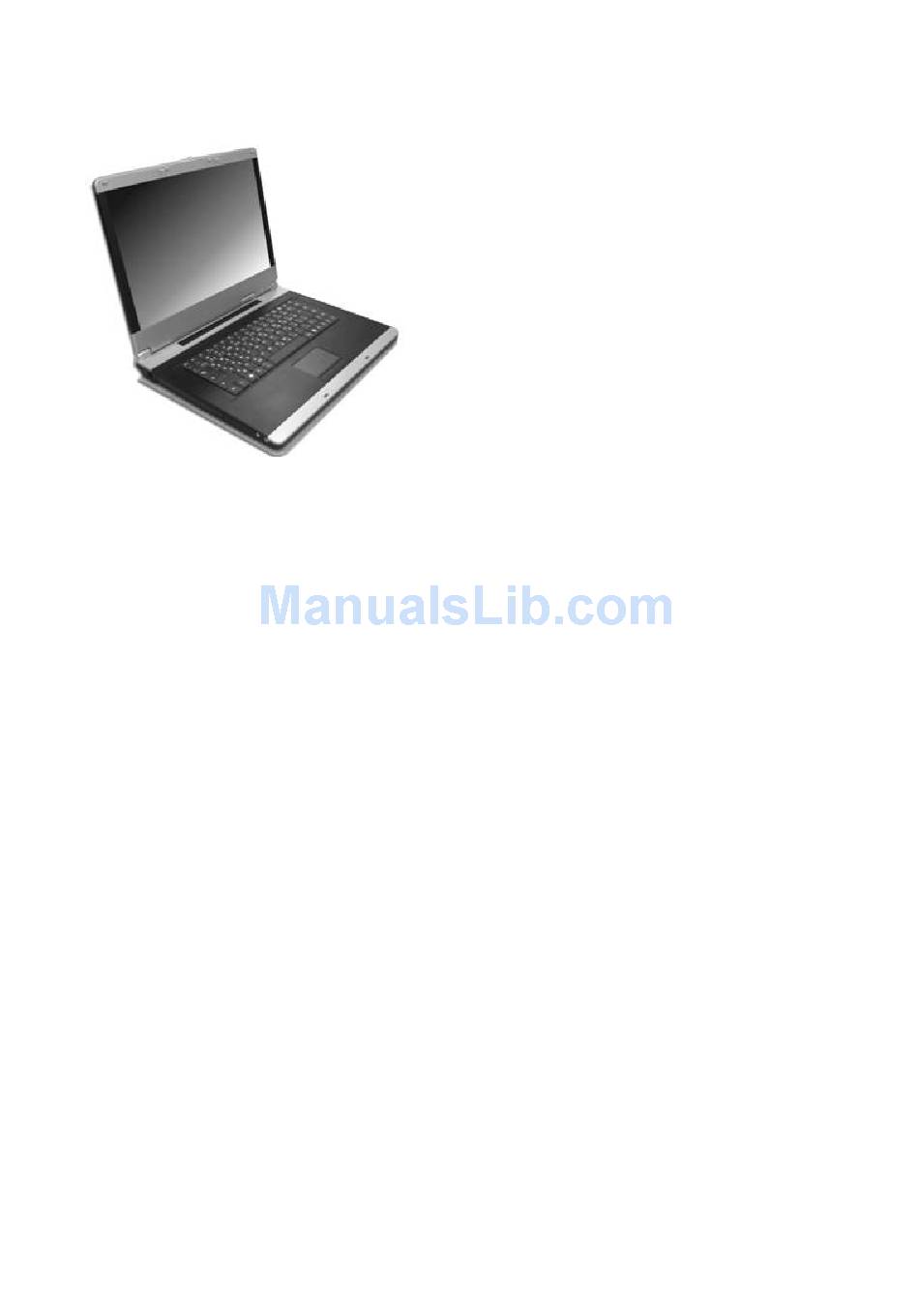

- Page 1 OPTIMA Centoris V260 User Guide...
- Page 2 © Copyright 2006 All Rights Reserved - Printed in Taiwan Notebook Computer User Guide Original Issue: 2006/03 This manual guides you in setting up and using your new notebook computer. Information in this manual has been carefully checked for accuracy and is subject to change without notice. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without prior written permission.
-
Page 3: Fcc Information To User
FCC Information to User Safety and Care Instructions No matter what your level of experience with computers, please make sure you read the safety and care instructions. This information can help protect you and your computer from possible harm. Radio and television interference Warning: Use the specified shielded power cord and shielded signal cables with this computer, so as not to interfere with radio and television reception. -
Page 4: Optical Disk Drive Notice
Only peripherals (input/output devices, terminals, printers, etc) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Optical Disk Drive Notice The optical disk drive is Class 1 Laser Product. Caution Changes or modifications not expressly approved by the manufacturer may void the user¡¦s authority, which is granted by the Federal Communications Commission, to operate this computer. -
Page 5: About Your Notebook Computer
About Your Notebook Computer ongratulation for having purchased your new Professional Multimedia Notebook. This notebook incorporates the strongest features, which integrate the latest technologies available in the notebook industry. Your new notebook computer not only drives today's multimedia applications but also be ready for tomorrow's exciting new software. -
Page 6: About Your User Guide
About Your User Guide to know in learning how to use your computer. This manual also assumes that you know the basic concepts of Windows and the PC. You will start doing a lot of great and fun things with your computer. This manual is divided into eight chapters. -
Page 7: Table Of Contents
Table of Contents ABOUT YOUR NOTEBOOK COMPUTER... 8 ABOUT YOUR USER GUIDE... 9 INTRODUCTION... 15 FEATURE HIGHLIGHT... 16 UNPACKING THE COMPUTER... 18 THE INSIDE OF THE NOTEBOOK... 19 Notebook Status Icons... 21 The Function of Easy Buttons... 23 THE FRONT SIDE OF THE NOTEBOOK... 24 THE REAR SIDE OF THE NOTEBOOK... - Page 8 FUN WITH MULTIMEDIA... 67 NOTEBOOK MULTIMEDIA FEATURES... 68 AUDIO SOUND SYSTEM FEATURES... 68 SETTING UP THE AUDIO DRIVER PROPERTIES... 69 WINDOWS MULTIMEDIA PROGRAMS... 69 RECORDING SOUNDS... 70 Using an External Microphone... 73 Using the Built-in Combo Drive... 73 PLAYING AUDIO AND SOUND... 74 Using the Windows Media Player...
- Page 9 I/O Ports... 116 Wireless devices... 116 AC/DC Power Supply Adapter... 116 Battery... 116 Weight and Dimension... 117...
-
Page 11: Introduction
1 Introduction our Notebook PC is a fully Windows compatible portable personal computer. With the latest features in mobile computing and multimedia technology, this notebook makes a natural traveling companion. With leap of technology and compact, your Notebook PC runs on a whole wide range of general business, personal productivity, entertainment, and professional applications. -
Page 12: Feature Highlight
1.1 Feature Highlight Before we go to identify each part of your Notebook PC, we will first introduce you to other notable features of your computer. Processing Unit Your notebook runs on Intel® Celeron® M microprocessor that is integrated with 1MB L2 Cache. Check with your dealer on the CPU type and speed. -
Page 13: The Inside Of The Notebook
An AC Adapter and AC Power Cord Li-Ion Battery Pack Utility Diskettes/CD Quick Setup Sheet Carefully inspect each component to make sure that nothing is missing and/or damaged. If any of these items is missing or damaged, notify your dealer immediately. Be sure to save the shipping materials and the carton in case you need to ship the computer or if you plan to store the computer away sometime in the future. -
Page 14: Notebook Status Icons
Wide extra space below the keyboard panel for your wrist or palm to sit-on comfortably during typing. Power On/Resume Button Switches the computer power on and off, or resumes whenever it is in Suspend mode. LED Indicators Keeps you informed of your notebook computer¡¦s current power status and operating status. Description of the status icons appears in the latter part of this section. ... -
Page 15: The Function Of Easy Buttons
When LED turns on indicates that the Num Lock key on the keyboard is activated. When activated, the embedded numeric keypad will be enabled. THE FUNCTION OF EASY BUTTON 1. E-mail Button 2. Internet Button 3. Wireless LAN Button E-mail Button This is the most convenient way to access the outlook 2000/2003... -
Page 16: The Rear Side Of The Notebook
1.5 The Rear Side of the Notebook The system ports at the back of your notebook computer can connect various devices. Each port is described as followings. 1. USB 2.0 Ports 2. VGA Port 3.Kensington Lock Hole USB 2.0 Ports The Universal Serial Bus (USB) port allows you to connect USB 2.0-compliant devices (for example, printers, scanners and so on) to your notebook computer. -
Page 17: The Left Side Of The Notebook
1.6 The Left Side of the Notebook The left side of your notebook computer provides the features shown in the following figure. 1. Modem Port 2. Optical Disk Drive 3. Headphone Jack 4. Microphone Jack Modem Port A 56K internal fax/data modem is installed. It keeps you connected to the outside world through phone line. ... -
Page 18: The Underside Of The Notebook
Lets you connect various PC cards such as memory card Supports both 3V, 5V 32-bit CardBus and 16-bit PC cards. USB 2.0 Ports The Universal Serial Bus (USB) port allows you to connect USB 2.0-compliant devices (for example, printers, scanners and so on) to your notebook computer. -
Page 19: Battery Pack
When you connect the AC adapter, it charges the battery whether or not the notebook computer is powered on. Battery Pack Aside from the AC adapter, your computer can also be powered through the internal battery pack. The battery pack uses rechargeable Lithium-Ion (Li-Ion) battery cells that provide long computing hours when fully charged and power management enabled. -
Page 21: Getting Started
Getting Started our Notebook is designed and pre-configured for easy setup and use. This chapter describes the installation steps you should follow to get the notebook up and running as quickly as possible. Contact your dealer if they have pre-installed all the needed drivers to fully operate your computer or if there is an update on the driver installation of the notebook. -
Page 22: Using The Battery Pack
2.1 Using the Battery Pack The notebook is designed to operate with one of the following power sources: With AC power using the AC adapter connected to an electrical outlet. With a Lithium-Ion (Li-Ion) battery pack. You should use the AC adapter whenever it is possible, relying on the battery pack only when AC power is unavailable. Before you use your notebook computer, install and recharge the battery pack first. -
Page 23: Extending Battery Life
Installing the Battery Pack This notebook provides the most convenient way to install the battery pack into your computer. With the extended nose directed toward the compartment, insert and push the battery pack. Removing the Battery Pack To remove the battery pack, slide the lock latch to the end of left side to unlock the battery lock latch (1), then slide the battery release latch to the end of right side to release the battery latch (2), and take out the battery pack with your finger (3) simultaneously. -
Page 24: Starting Your Computer
Plug the connector of the AC adapter to the DC-IN port found at the Right side of the computer. Whenever possible, it is advisable to always have the AC adapter connected to the notebook and the battery pack installed. This ensures continuous power supply and prevents any data loss incurring from sudden power breakdown. -
Page 25: Installing Windows Xp From Optical Disk Drive
If you already have an operating system installed into your notebook computer, it is best to install the needed device drivers for using the built-in devices of your computer. Before installing the drivers, check with your dealer first if they have already installed all the drivers along with the operating system. -
Page 26: Installing The Modem Device Driver
Tick the option "Yes, I want to restart my computer now.", and press"Finish" to restart your system. INSTALLING THE MODEM DEVICE DRIVER Please follow the procedures below for installing the AC97 Modem driver: Installing Modem driver for Windows XP Click the Start button, then point to Run. -
Page 27: Turning Off Your Computer
2.6 Turning off Your Computer If you are not going to use the computer for a while, it is best to turn off the power of the computer for longer use. Before turning off the power, you need to close first all application programs and shutdown the operating system. After turning off the computer, make it a habit to leave the LVDS panel open for a while whenever used for an extended period of time. -
Page 29: Using Your Notebook
Using Your Notebook his chapter describes how to operate the standard built-in features of the notebook that you normally would use in your day-to-day computer work. If you are new to computers and to your operating system, you also need to read the manual for the operating system on how to work with your computer. -
Page 30: Starting Your Operating System
3.1 Starting Your Operating System The operating system is a must ingredient in using your computer. Without an operating system, it is like playing chess without the chessboard. It is the platform for all your software application programs to run on. The most popular operating system today is Microsoft Windows. -
Page 31: Basic Keyboard Functions
Basic Keyboard Functions Keypad <Enter> key. Execute a command. Within many text editing application programs, the <Enter> key inserts a hard carriage return, just like what ordinary typewriter does. <Esc> key. Press this key to cancel or escape from a command or function. -
Page 32: Screen Control Keys
SCREEN CONTROL KEYS Keypad WINDOWS HOT KEYS Keypad <Start> key. Pulls up the Windows Start menu. <Right Click> key. Performs a mouse right-click function for Windows system. SPECIAL FUNCTION KEYS The notebook has special system function keys that activate key serving dual functions. When pressed in conjunction with the <Fn> key, these keys set specific system parameters and are sometimes referred to as "hot keys". -
Page 33: Configuring Your Screen Display
click speed, and selection button orientation. The Glide Pad works a mouse pointing device replacement that is used under Windows-based operating system. You can use the standard Microsoft driver that is compatible with the Glide Pad device and is normally used under Windows-based operating system. However, if you want to utilize the added features of the Glide Pad, you may want to try installing its own device driver that comes with added utilities for enhancing the function of the device. -
Page 34: Changing The Display Properties Under Windows
1280x1024 1152 x 768 1024x768 800x600 640x480 65,536 or 64K colors is also equivalent to 16-bit high color while 16 million or 16M colors is equivalent to 32-bit true color. You can use the <Fn> + <F3> hot-key to switch the display between LCD only, CRT only, or both LCD and CRT display. CHANGING THE DISPLAY PROPERTIES UNDER WINDOWS To change the display properties of your screen under Windows system, just right-click on the desktop area and select Properties or go to the Control Panel and click on the Display icon. -
Page 35: How To Access The Optical Drive
supports different hard disk capacities (up to 80 GB), you also need to setup the disk type first on your computer¡¦s BIOS SETUP program before formatting the disk drive. Your computer supports Auto-detect hard disk type, so you do not need to set it manually. Your dealer should already have done all of this for you. -
Page 36: What Is Pcmcia
WHAT IS PCMCIA? PCMCIA or Personal Computer Memory Card International Association is a non-profit trade association that defines the industry standard for the PC Card technology. The goal of PCMCIA is to ensure that any PC Card can work in any mobile computer built with a PCMCIA slot. -
Page 37: Inserting Pc Cards
Inserting PC Cards To insert a PC card into the PCMCIA slot: Locate the PC card slot cover on the right side of the computer. Insert the side of PC card with the 68-pin socket into the PC slot. The face label of the card should also be facing up. When the full length of the card is almost inside the slot, push firmly but slowly, to ensure full connection with the computer. -
Page 38: Hot Swapping Pc Cards
network, SCSI or multifunction cards (MFC) need additional driver installation and configuration in making the card work. This additional driver may already be built-in under Windows that Windows will try to detect and prompts you if you want to install the driver. -
Page 40: Fun With Multimedia
Fun with Multimedia multimedia features of your computer in having fun and excitement his chapter lets you make full use of all the during work or leisure. You will learn how to mix and match the built-in sound system, use Combo drive in creating an exciting full multimedia presentation. -
Page 41: Notebook Multimedia Features
4.1 Notebook Multimedia Features Your notebook computer is rich in multimedia features that make your computing fun, comfortable, exciting and easy. Your computer is well able to perform all multimedia tasks through the following: Intel® Celeron® M Processor Up to 2GB DDR2 SDRAM DVD/CD-RW Combo or DVD Dual (Optional) Integrated VIA VN800 graphics engine. -
Page 42: Recording Sounds
For more information on how to operate these multimedia components, run the program and click on the Help menu. 4.5 Recording Sounds Your computer allows you to record voice and other sounds in several ways and stores them as files on your hard disk. These voice or sound files can then be played back through the internal speaker or earphone jack using an external speaker, headphone, or earphone set. -
Page 43: Using An External Microphone
Figure 4-4 Recording Volume Control USING AN EXTERNAL MICROPHONE Your computer allows you to connect an external microphone for high quality recording. The external microphone jack is found on the left side of your computer. Use only microphone with 1/8-inch mini-jack connector. Follow the same procedure for recording voice. -
Page 44: Playing Video And Mpeg Files
The easiest way to playback multimedia media files is to run the Windows Media Player. Follow these steps: Click on Start, point to Programs, Accessories, and then Entertainment. Click on Windows Media Player to start program. Click on the File menu and select the file you want to play. When the file is recognized and open, click on the Play button to start playback. - Page 45 Figure 4-7 To play a DVD On the Play menu, point to DVD, VCD or CD Audio, and then click the drive that contains the DVD. In the Playlist pane, click a DVD title, or chapter name, if appropriate. To eject a disc, on the Play menu, click Eject. To play a selected title in a DVD repeatedly, on the Play menu, click Repeat. A check mark appears next to the command to indicate it is turned on.
-
Page 47: Connecting To Peripherals
Connecting to Peripherals his chapter describes how you attach peripheral devices to your notebook. You can attach a printer or mouse; connect an external monitor and keyboard, or any other peripheral device. You will learn how to use these peripheral devices with the step-by-step instructions depicted in this chapter. -
Page 48: Using The Usb Port
5.1 Using the USB Port USB (Universal Serial Bus) is a hardware interface that enables you to connect multiple devices (such as printers, mice, keyboards, storage devices, joysticks, digital cameras, and video conference cameras, etc.) to your notebook computer, and up to 127 devices can be attached. ... -
Page 49: Using The External Audio System
5.3 Using the External Audio System At the left side of your computer, you will find the built-in audio ports. You can connect Microphone jacks, earphone or powered speaker. To connect to a audio jack: Locate the audio port (Microphone, Headphone) that you want to use to the target device. Plug the jack into the port on the left side of the system. - Page 50 connect to an online service or bulletin board. The built-in fax/data modem provides on standard phone connector. To connect the analog phone cable to your modem: Locate the analog phone cable in the accessories box in notebook shipping carton. Each end of the cable has a RJ-11 connector. Connect one end of the cable into a standard wall outlet.
-
Page 52: Customizing Your Notebook
Customizing Your Notebook our computer uses the Phoenix BIOS Setup program that allows you to set several system configuration in changing the way your computer performs. This includes your system time and date, disk drive configuration and password setup. This information is then stored in ... -
Page 53: Running The Bios Setup Program
6.1 Running the BIOS Setup Program Your computer is likely to have been properly setup and configured by your dealer prior to delivery. However, you may find it necessary to use the computer¡¦s BIOS (Basic Input-Output System) Setup program to change system configuration information, such as the current date and time, or your hard disk drive type. -
Page 54: Using The Main Menu Setup
6.2 Using the Main Menu Setup Phoenix BIOS Setup Utility Main Advanced System Time: System Date: [11/11/2005] SATA Channel 1 Master [60012MB] Secondary Master Installed CD/DVD System Memory: 640 KB Extended Memory: 457728 KB CPU Type: Celeron ® M processor CPU Speed: 1400 MHz BIOS Version:... -
Page 55: Using The Advanced Cmos Setup
Sata Channel 1 Master: [60012MB] Type: Total Sector: Maximum Capacity: Multi-Sector Transfers: LBA Mode Control: 32 Bit I/O: Transfer Mode: Ultra DMA Mode: SMART Monitoring Help Select Item Exit --> Select Menu Use the Type field to select the drive type installed. You can select different drive types as CD-DVD, User, Auto or None by pressing <Space>... -
Page 56: Security Menu Setup
Local Bus IDE adapter Enable the integrated local bus IDE adapter Legacy USB Support Enable or disable the USB Bus support when in connection with USB device. LAN Boot Control: Lets you specify Enabled or Disabled for booting the notebook from Network or not. 6.4 Security Menu Setup Phoenix BIOS Setup Utility Main... -
Page 57: Using The Boot Setup
6.5 Using the Boot Setup This item allows you to set the search drive sequence where the system will try to boot up first. Phoenix BIOS Setup Utility Main Boot priority order 1: USB Floppy Drive 2: USB Storage Disk 3: CD-RW/DVD-ROM 4: Hard Drive 5: Boot from LAN... -
Page 58: How To Upgrade The Bios
Saves Setup data to CMOS. 6.7 How to Upgrade the BIOS Your computer uses EPROM Flash BIOS chip that allows you to easily upgrade the BIOS program. When you update the BIOS, any customized settings you made are lost. To upgrade the BIOS: Insert the BIOS Update diskette into the diskette drive. -
Page 59: Using Options
Using Options his chapter describes the advanced features and expandable architecture in your notebook. You can upgrade your system for specific requirements. -
Page 60: System Upgrade
System Upgrade This section provides some steps in doing system upgrade for your notebook computer. The upgrade procedures include the following: 7.1 Memory Upgrade Your notebook computer offers 200-pin SODIMM (Small Outline Dual Inline Memory Module) at least 256MB DDR2 SDRAM. The memory compartment is located inside your computer. -
Page 61: Hard Disk Upgrade
Turn the system over. To remove a memory module, push the locking tabs aside from the memory module until the module pops up. Then, remove the memory module. 7.2 Hard Disk Upgrade Your notebook computer offers one 2.5" format, 9.5mm height hard disk. If the volume does not fit your need or it is crashed, you can upgrade it by replacing with new hard disk. -
Page 63: Caring For Your Notebook
Caring for Your Notebook our Notebook PC is a fully IBM compatible portable personal computer with the latest features in mobile computing and multimedia technology. Lightweight and compact, your Notebook PC runs on a whole wide range of general business, personal productivity, and professional applications, it is ideal for use in the office, at home, and on the road. -
Page 64: Important Safety Instructions
8.1 Important Safety Instructions Portable computers take the most beating from end users. This section gives you detailed information about how to maintain a safe working environment while using the notebook computer. You can maintain its condition and performance by following these guidelines. -
Page 65: Maintaining The Lcd Quality
When it is necessary to clean the plastic case and keyboard, use a soft, lint-free cloth, slightly dampened with a mild detergent solution or use the contents of any commercially available computer cleaning kit. Never use alcohol, petroleum-based solvents, or harsh detergents to clean the notebook. Also never spray any liquids directly on the computer case, keyboard, or screen. -
Page 66: When You Travel
8.6 When You Travel For safety and convenience when traveling, please follow these instructions: Back up all needed files on your hard disk before traveling. Recharge your battery overnight to ensure full battery power before you leave. Don't forget to bring along the AC adapter and extra battery pack. Try to bring backup software as well. -
Page 68: Appendix A System Specification
APPENDIX A System Specification his appendix gives information on the technical the information mentioned here may not be exactly the same with your computer as specification is subject to change without notice or modifying this manual. Designed with an advanced modular architecture, your Notebook PC also allows you for several levels of customization and expansion that are previously available only on desktop PCs. -
Page 69: Processor Unit
Processor Unit Intel® Celeron® M Processor Above 1.3 GHz CPU 1MB integrated L2 cache for the processor SYSTEM MEMORY Two 200-pin memory slots User-upgradeable to maximum 2GB using 200-pin SODIMM 256MB, 512MB or 1024MB modules DDR2 ¡V400/533 SDRAM modules LCD DISPLAY Widescreen 15.4"... -
Page 70: Flash Bios
FLASH BIOS 512K Flash ROM BIOS for easy BIOS upgrade I/O PORTS 1 x 15-pin VGA port 4 x Universal Serial Bus (USB 2.0) 1 x LAN port 1 x Modem port WIRELESS DEVICES Mini PCI 802.11b/g Wireless LAN Solution, (BTO) AC/DC POWER SUPPLY ADAPTER Universal auto-switching (100V~240V) 65W adapter, 19 Volt BATTERY ...
