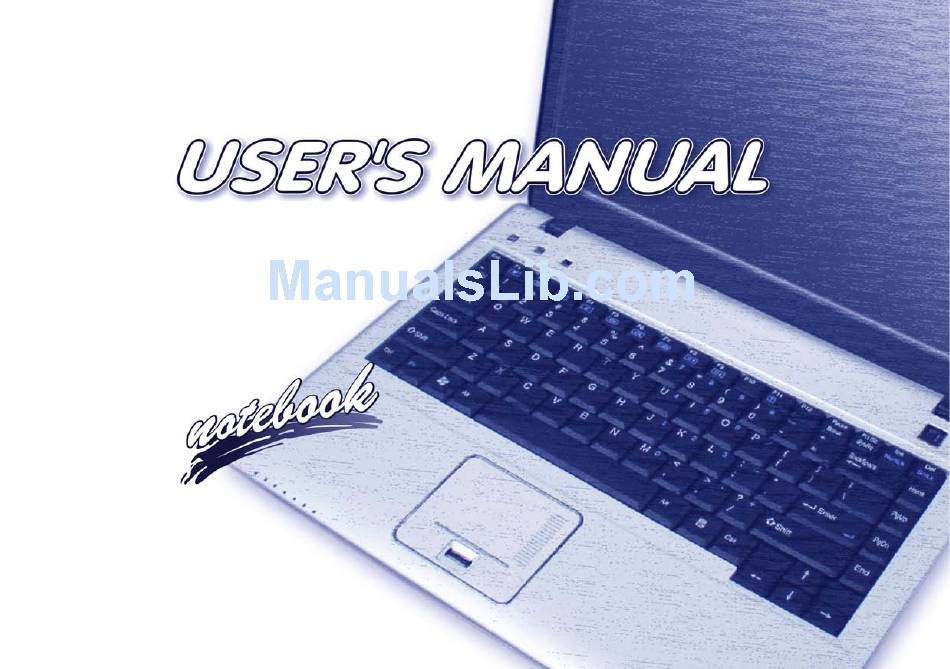

Optima WO141PI User Manual

Optima wo141pi notebook user's manual

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the WO141PI and is the answer not in the manual?

Questions and answers

Summary of Contents for Optima WO141PI

Page 3 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
Page 4: Fcc Statement
Preface FCC Statement (Federal Communications Commission) You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 5: Fcc Rf Radiation Exposure Statement
Preface FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
Page 6: Important Safety Instructions
Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment: Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
Page 7: Instructions For Care And Operation
Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...
Page 8 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work.
Page 9: Power Safety
Preface Power Safety The computer has specific power requirements: • Only use a power adapter approved for use with this computer. • Your AC/DC adapter may be designed for international travel but it still requires a Power Safety steady, uninterrupted power supply. If you are unsure of your local power specifications, Warning consult your service representative or local power company.
Page 10: Battery Precautions
Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not remove any batteries from the computer while it is powered on. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
Page 11: Cleaning
Preface Cleaning Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer. Servicing Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock.
Page 12: Travel Considerations
Preface Travel Considerations Packing As you get ready for your trip, run through this list to make sure the system is ready to go: Check that the battery pack and any spares are fully charged. Power off the computer and peripherals. Close the display panel and make sure it’s latched.
Page 13 Preface On the Road In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind: Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common.
Page 14 Preface Developing Good Work Habits Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints.
Page 15: Lcd Screen Care
Preface Lighting Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders. • Position the display to avoid glare or reflections from overhead lighting or outside sources of light. • Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly. •...
Page 16 Preface...
Page 17: Table Of Contents
Preface Contents Notice .................I Hot Key Buttons ............1-11 FCC Statement .............II Keyboard ..............1-12 FCC RF Radiation Exposure Statement: ....III Function/Hot Key Indicators ........1-13 Instructions for Care and Operation ......V System Map: Front & Left Views ........1-14 Power Safety .............VII System Map: Right &...
Page 18 Preface Adding a Printer ............2-10 Drivers & Utilities USB Printer ..............2-10 SATA IDE-AHCI Driver Installation ......4-1 Parallel Printer ............2-10 What to Install ..............4-1 Module Driver Installation ..........4-1 Power Management Driver Installation ............4-2 Overview ................3-1 Updating/Reinstalling Individual Drivers ....4-4 The Power Sources ............3-2 User Account Control (Win Vista) ......4-4 AC/DC Adapter ............3-2 Windows Security Message .........4-4...
Page 19 Preface BIOS Utilities Reset Configuration Data (Advanced Menu) ....5-10 Power On Boot Beep (Advanced Menu) .....5-10 Overview ................5-1 Battery Low Alarm Beep (Advanced Menu) ....5-10 The Power-On Self Test (POST) ........5-2 IDE-AHCI Class Driver Installation Failing the POST ............5-3 (with Windows Vista O/S) ........5-11 Fatal Errors ..............5-3 Security Menu ..............5-14 Non-Fatal Errors ............5-3...
Page 20 Preface Bluetooth Configuration in Windows Vista ....7-3 Interface (Ports & Jacks) PC Camera Module ............7-6 Notebook Ports and Jacks ..........A-2 PC Camera Driver Installation ........7-7 Wireless LAN Module ..........7-14 ATI Video Driver Controls 802.11b/g WLAN Driver Installation .......7-14 ATI Video Driver Installation ........B-1 Connecting to a Wireless Network ......7-15 ATI Catalyst®...
Page 21 Preface Storage ................C-3 Theater Mode .............. D-18 Audio ................C-3 PowerPlay™ ...............D-19 Keyboard & Pointing Device ........C-3 Enabling TV Display ..........D-20 Interface ................ C-4 Power Management Features ........D-22 Card Reader ..............C-4 The Power Sources ............. D-23 ExpressCard Slot ............
Page 22 Preface...
Page 23: Quick Start Guide
Quick Start Guide Chapter 1: Quick Start Guide Overview This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following: •...
Page 24: Advanced Users
Quick Start Guide Advanced Users If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “What to Install” on page 4 - “BIOS Utilities” on page 5 - 1 “Upgrading The Computer”...
Page 25: Not Included
Quick Start Guide Not Included Operating Systems (e.g. Windows Vista/Windows XP) and applications (e.g. word processing, spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals. Drivers If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers listed in “Drivers &...
Page 26: Model Differences
Quick Start Guide Model Differences This notebook series includes Four different model types. The models differ as indicated in the table below. Feature Model A Model B Model C Model D Video Adapter ATI Integrated Video System (Internal On Chip) ATI Discrete Video System (External On Board) 65W (DC Output 19V, 3.42A/18.5V, 3.5A) 90W (DC Output 19V, 4.74A)
Page 27: System Software
Quick Start Guide System Software Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find the following operating systems are sup- ported.
Page 28: System Startup
Quick Start Guide System Startup Remove all packing materials. Place the computer on a stable surface. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports. Attach the AC/DC adapter to the DC-In jack on the left of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC/DC adapter.
Page 29: Operating System Setup
Quick Start Guide Operating System Setup If you are installing new system software, or are re-configuring your computer for a different system, make sure you configure the appropriate OS setting in the BIOS before installing a new operating system (Note: If you have installed the Windows Vista operating system with either IDE-AHCI Class or IDE native class mode enabled, DO NOT change this setting or you will need to reinstall the Windows Vista OS).
Page 30: System Map: Lcd Panel Open - Models A & C
Quick Start Guide System Map: LCD Panel Open - Models A & C Figure 1 - 3 LCD Panel Open (Model A & C Wireless Device Computers) Operation Aboard Aircraft Built-In PC Camera The use of any portable electronic trans- (Optional) mission devices aboard aircraft is usual- ly prohibited.
Page 31: System Map: Lcd Panel Open - Models B & D
Quick Start Guide System Map: LCD Panel Open - Models B & D Figure 1 - 4 LCD Panel Open (Model B & D Wireless Device Computers) Operation Aboard Aircraft Built-In PC Camera The use of any portable electronic trans- (Optional) mission devices aboard aircraft is usual- ly prohibited.
Page 32: Led Indicators
Quick Start Guide LED Indicators The LED indicators on the computer display helpful information about the current status of the computer. Icon Color Description Green Hard Disk Activity Green Number Lock Activated Green Caps Lock Activated Green Scroll Lock Activated (to activate press Fn & Scr Lk) Orange DC Power is Plugged In Green...
Page 33: Hot Key Buttons
Quick Start Guide Hot Key Buttons These buttons give instant access to the default Internet browser and e-mail program, and allow you to toggle the Silent Mode on/off with one quick button press. Hot Key Function Activate the Default E-Mail Browser Activate the Default Internet Program Toggle *Silent Mode (for power saving) Table 1 - 4 - Hot Key Buttons...
Page 34: Keyboard
Quick Start Guide Keyboard The keyboard has a numerical keypad for easy numeric data input, and features func- Other Keyboards tion keys to allow you to change operational features instantly. See Table 1 - 5, on page 1 - 13 for full function key combination details.
Page 35: Function/Hot Key Indicators
Quick Start Guide Function/Hot Key Indicators The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the basic function key combinations; visual indicators are available when the hot key utility is installed (see “Hot Key”...
Page 36: System Map: Front & Left Views
Quick Start Guide System Map: Front & Left Views Figure 1 - 6 Front & Left Views LED Power & Com- munication Indica- tors DC-In Jack External Monitor Port RJ-45 LAN Jack e-SATA Port HDMI-Out Port Vent/Fan Intake/ Outlet 2 * USB 2.0 Ports 7-in-1 Card Reader ExpressCard Slot The card reader allows you to use the most popular digital storage card formats:...
Page 37: System Map: Right & Rear Views
Quick Start Guide System Map: Right & Rear Views Figure 1 - 7 Right & Rear Views S/PDIF-Out Jack Microphone-In Jack Headphone-Out Jack USB 2.0 Port Optical Device Drive Bay (for CD/ DVD Device - see page RJ-11 Phone Jack Security Lock Slot Battery System Map: Right &...
Page 38 Quick Start Guide Disk Eject Warning Changing DVD Regional Codes Don’t try to eject a CD/DVD while the system is ac- Go to the Control Panel and double-click Device cessing it. This may cause the system to “crash”. Stop Manager (Hardware and Sound), then click the + the disk first then eject it, or press the stop button next to DVD/CD-ROM drives.
Page 39: System Map: Bottom View
Quick Start Guide System Map: Bottom View Figure 1 - 8 Bottom View Battery Battery Information Bluetooth Module Always completely discharge, then fully Cover charge, a new battery before using it. Com- RAM & CPU Bay Model A & C pletely discharge and charge the battery at Cover Computers...
Page 40: Windows Vista Start Menu & Control Panel
Quick Start Guide Windows Vista Start Menu & Control Panel Most of the control panels, utilities and programs within Windows Vista (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in the Start menu and/or the desktop.
Page 41: Video Features
Quick Start Guide Video Features This computer features two different (either ATI integrated video for Model A & B computers or ATI discrete video for Models C & D computers) video options. You can switch display devices, and configure display op- tions, from the Display Settings control panel (in Personalization) in Windows Vista.
Page 42: Display Settings & Ati Catalyst Control Center
Quick Start Guide Display Settings & ATI Catalyst Control Center PowerPlay ™ Note that PowerPlay is NOT supported by either AMD Athlon or AMD Sempron processors. The PowerPlay function is automatically enabled by default, so if your purchase option includes an AMD Sempron processor, click to remove the tick alongside Enable Power- Play (see page B - 15 for more information) to disable the function.
Page 43: Power Options
Quick Start Guide Power Options The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 18) allows you to configure power management features for your computer. You can conserve power by means of power plans and configure the options for the power button, sleep button, computer lid (when closed), display and sleep mode from the left menu.
Page 44 Quick Start Guide 1 - 22...
Page 45: Features & Components
Features & Components Chapter 2: Features & Components Overview Read this chapter to learn more about the following main features and components of the computer: • Hard Disk Drive • Optical (CD/DVD) Device • 7-in-1 Card Reader • ExpressCard Slot •...
Page 46: Hard Disk Drive
Features & Components Hard Disk Drive The hard disk drive is used to store your data in the computer. The hard disk can be Power Safety taken out to accommodate other 2.5" serial (SATA) hard disk drives (see “Storage” on page C - 3) with a height of 9.5 mm.
Page 47: Optical (Cd/Dvd) Device
Features & Components Optical (CD/DVD) Device There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual de- Sound Volume vice will depend on the module you purchased (see “Storage” on page C - 3). The Adjustment optical device is usually labeled “Drive D:”...
Page 48: Handling Cds Or Dvds
Features & Components Handling CDs or DVDs Proper handling of your CDs/DVDs will prevent them from being damaged. Please follow the advice below to make sure that the data stored on your CDs/DVDs can be CD Emergency Eject accessed. If you need to manually eject a CD (e.g.
Page 49: Dvd Regional Codes
Features & Components DVD Regional Codes To change the DVD regional codes see “Changing DVD Regional Codes” on page 1 - DVD Regional Coding Table 2 - 1 Region Geographical Location DVD Regional Coding USA, Canada Western Europe, Japan, South Africa, Middle East &...
Page 50: 7-In-1 Card Reader
Features & Components 7-in-1 Card Reader The card reader allows you to use some of the latest digital storage cards. Push the Card Reader Cover card into the slot and it will appear as a removable device, and can be accessed in the same way as your hard disk (s).
Page 51: Expresscard Slot
Features & Components ExpressCard Slot The computer is equipped with an ExpressCard/34/54 slot that reads Express Card/ ExpressCard 34 and ExpressCard/54 formats. ExpressCards are the successors to PCMCIA (PC Slot Cover Cards). Make sure you install the Card Reader driver (see “CardReader”...
Page 52: Touchpad And Buttons/Mouse
Features & Components TouchPad and Buttons/Mouse The TouchPad is an alternative to the mouse; however, you can also add a mouse to Mouse Driver your computer through one of the USB ports. The TouchPad buttons function in much the same way as a two-button mouse (see pages 1 - 8/1 - If you are using an ex- ternal mouse your op-...
Page 53: Audio Features
Features & Components Audio Features You can configure the audio options on your computer from the Sound control Sound Volume panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar/ Adjustment control panel (right-click the taskbar icon to bring up an audio menu).
Page 54: Adding A Printer
Features & Components Adding a Printer The most commonly used peripheral is a printer. The following conventions will Parallel Printer help you to add a printer; however it is always best to refer to the printer manual for specific instructions and configuration options. After setting up the print- er attach the parallel ca- ble to the printer.
Page 55: Power Management
Power Management Chapter 3: Power Management Overview OS Note Power management To conserve power, especially when using the battery, your computer power man- functions will vary slight- agement conserves power by controlling individual components of the computer ly depending on your (the monitor and hard disk drive) or the whole system.
Page 56: The Power Sources
Power Management The Power Sources The computer can be powered by either an AC/DC adapter or a battery pack. AC/DC Adapter Use only the AC/DC adapter that comes with your computer. The wrong type of AC/ DC adapter will damage the computer and its components. Attach the AC/DC adapter to the DC-in jack on the left of the computer.
Page 57: Turning On The Computer
Power Management Turning on the Computer Now you are ready to begin using your computer. To turn it on simply press the pow- Shut Down er button on the front panel. Note that you should al- When the computer is on, you can use the power button as a Sleep/Hibernate hot- ways shut your comput- er down by choosing the key button when it is pressed for less than 4 seconds (pressing and holding the power...
Page 58: Power Plans
Power Management Power Plans The computer can be configured to conserve power by means of power plans. You Resuming can use (or modify) an existing power plan, or create a new one. Operation The settings may be adjusted to set the display to turn off after a specified time, and Table 3 - 1, on to send the computer into Sleep after a period of inactivity.
Page 59 Power Management Each Windows power plan will also adjust the processor performance of your ma- chine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power). Choose High performance for maximum performance when the computer is pow- ered from an AC power source.
Page 60: Power-Saving States
Power Management Power-Saving States You can use power-saving states to stop the computer’s operation and restart where Power Button you left off. Sleep is the default power-saving state in Windows Vista. The Power Button Earlier versions of Windows used Stand By and Hibernate as system power-saving in the Start Menu (in Classic View use the states.
Page 61: Hibernate
Power Management Hibernate Hibernate uses the least amount of power of all the power-saving states and saves all of your information on a part of the hard disk before it turns the system off. If a Hibernate Mode In power failure occurs the system can restore your work from the hard disk; if a power Windows Vista SP1 failure occurs when work is saved only to memory, then the work will be lost.
Page 62: Configuring The Power Buttons
Power Management Configuring the Power Buttons The power/sleep button (Fn + F4 key combo) and closed lid may be set to send the Password computer in to a power-saving state. Protection It is recommended that you enable a password on wake up in order to protect your data.
Page 63: Resuming Operation
Power Management Resuming Operation You can resume operation from power-saving states by pressing the power button, or in some cases pressing the sleep button (Fn + F4 key combo). Closing the Lid If you have chosen to Power Status To Resume Icon Color send the computer to...
Page 64: Battery Information
Power Management Battery Information Please follow these simple guidelines to get the best use out of your battery. Low Battery Warning Battery Power When the battery is criti- Your computer’s battery power is dependent upon many factors, including the pro- cally low, immediately grams you are running, and peripheral devices attached.
Page 65: Conserving Battery Power
Power Management Conserving Battery Power • Use a power plan that conserves power (e.g Power saver), however note that this may have an affect on computer performance. Windows Mobility Center • Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC/DC adapter.
Page 66: Battery Life
Power Management Battery Life Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days. We recommend that you do not remove the battery yourself. If you do need to re- move the battery for any reason see “Removing the Battery”...
Page 67: Proper Handling Of The Battery Pack
Power Management Proper handling of the Battery Pack • DO NOT disassemble the battery pack under any circumstances • DO NOT expose the battery to fire or high temperatures, it may explode Caution • DO NOT connect the metal terminals (+, -) to each other Danger of explosion if battery is incorrectly re- placed.
Page 68: Battery Faq
Power Management Battery FAQ How do I completely discharge the battery? Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer even if a message indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own.
Page 69 Power Management Scroll down to Battery and click + to expand the battery options. Choose the options below (click Yes if a warning appears): Figure 3 - 8 Power Options Advanced Settings - Battery • Low battery levels = 0% •...
Page 70 Power Management How do I fully charge the battery? When charging the battery, don’t stop until the LED charging indicator light changes from orange to green. How do I maintain the battery? Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.
Page 71: Drivers & Utilities
Drivers & Utilities Chapter 4: Drivers & Utilities What to Install This chapter deals with installing the drivers and utili- ties essential to the operation or improvement of some The Device Drivers & Utilities + User’s Manual disc of the computer’s subsystems. The system takes ad- contains the drivers and utilities necessary for the vantage of some newer hardware components for proper operation of the computer.
Page 72: Driver Installation
Drivers & Utilities Driver Installation Check the driver installation order from Table 4 - 1, on page 4 - 3 (the drivers must be installed in Insert the Device Drivers & Utilities + User’s Manual this order) which is the same as that listed in the disc and click Install Drivers/Option Drivers (button).
Page 73 Drivers & Utilities Manual Driver Installation Click Browse CD (button) in the Drivers Installer ap- Driver - Windows Vista with Page Service Pack 1 plication and browse to the executable file in the ap- propriate driver folder. Video Page 4 - 5 Audio Page 4 - 5 Windows Update...
Page 74: Updating/Reinstalling Individual Drivers
Drivers & Utilities Updating/Reinstalling Individual Drivers User Account Control (Win Vista) If you wish to update/reinstall individual drivers it If a User Account Control prompt appears as part of may be necessary to uninstall the original driver.To do the driver installation procedure, click Continue or this go to the Control Panel in the Windows OS and Allow, and follow the installation procedure as direct- double-click the Programs and Features icon (Pro-...
Page 75: Driver Installation Procedure
Drivers & Utilities Driver Installation Procedure HDMI Audio Insert the Device Drivers & Utilities + User’s Manual 1. Click 3.Install HDMI Audio Driver > Yes. disc and click Install Drivers (button). 2. Click Next. 3. Click Finish to restart the computer. Video 1.
Page 76: Touchpad
Drivers & Utilities TouchPad 1. Click 6.Install TouchPad Driver > Yes. 2. Click Next. Windows Update 3. Click Finish > Restart Now to restart the com- After installing all the drivers make sure you enable Win- puter. dows Update in order to get all the latest security up- dates etc.
Page 77: Optional Drivers
Drivers & Utilities Optional Drivers Bluetooth Module Note: The operating system is the default setting for See the pages indicated for the driver installation pro- Bluetooth control in Windows Vista, and does not re- cedures for any modules included in your purchase op- quire a driver.
Page 78 Drivers & Utilities 4 - 8...
Page 79: Bios Utilities
BIOS Utilities Chapter 5: BIOS Utilities Overview BIOS Settings Warning This chapter gives a brief introduction to the computer’s built-in software: Incorrect settings can cause your system to Diagnostics: The POST (Power-On Self Test) malfunction. To correct mistakes, return to Set- up and restore the Set- Configuration: The Setup utility up Defaults with <F9>.
Page 80: The Power-On Self Test (Post)
BIOS Utilities The Power-On Self Test (POST) Each time you turn on the computer, the system takes a few seconds to conduct a POST Screen POST, including a quick test of the on-board RAM (memory). 1.BIOS information As the POST proceeds, the computer will tell you if there is anything wrong. If there 2.CPU type is a problem that prevents the system from booting, it will display a system summary 3.Memory status...
Page 81: Failing The Post
BIOS Utilities Failing the POST Errors can be detected during the POST. There are two categories, “fatal” and “non- fatal”. Fatal Errors These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized service center as soon as possible.
Page 82: The Setup Program
BIOS Utilities The Setup Program The Phoenix Setup program tells the system how to configure itself and manage ba- sic features and subsystems (e.g. port configuration). Entering Setup To enter Setup, turn on the computer and press F2 during the POST. The prompt (Press F2 to Enter Setup) seen on page 5 - 2 is usually present for a few seconds...
Page 83: Setup Screens
BIOS Utilities Setup Screens The following pages contain additional advice on portions of the Setup. Setup Menus Along the top of the screen is a menu bar with menu headings. When you select a Setup menus heading, a new screen appears. Scroll through the features listed on each screen to shown in this section are make changes to Setup.
Page 84: Main Menu
BIOS Utilities Main Menu PhoenixBIOS Setup Utility Figure 5 - 2 Main Main Advanced Security Boot Exit Main Menu Item Specific Help System Time: [22:12:05] System Date: [07/15/2008] IDE Channel0 Master [TSSTcorp CDDVD TS-L] <Tab>, <Shift Tab>, or <Enter> selects field. SATA Port 1 [FUJITSU MHY2080BH-(S] SATA Port 3...
Page 85: Ide Channel 0 Master/Sata Port 1/2/4 (Main Menu)
BIOS Utilities IDE Channel 0 Master/SATA Port 1/2/4 (Main Menu) Pressing Enter opens the sub-menu to show the configuration of a hard disk or op- tical device drive on the computer’s IDE Channel or SATA Ports. Use the Auto (Type:) setting to have the items configured automatically for you. System/Extended Memory: (Main Menu) This item contains information on the system memory, and is not user configurable.
Page 86: Advanced Menu
BIOS Utilities Advanced Menu PhoenixBIOS Setup Utility Main Advanced Advanced Security Boot Exit Item Specific Help Advanced Chipset Control Installed O/S: [Vista] Select options for SATA Class ID [IDE-AHCI Class] Figure 5 - 3 Advanced Chipset features. Advanced Menu USB BIOS Legacy Support: [Enabled] Boot-time Diagnostic Screen: [Disabled]...
Page 87: Uma Frame Buffer Size
BIOS Utilities UMA Frame Buffer Size (Advanced Menu > Advanced Chipset Control) Use this menu item to set the amount of system memory to be allocated for use by the integrated graphic system (Model A & B computers). SATA AHCI Driver This driver needs to be Installed O/S (Advanced Menu) installed when installing...
Page 88: Usb Bios Legacy Support (Advanced Menu)
BIOS Utilities If you are unsure of the mode your hard disk supports contact your service center. Note that the SATA mode should be set to IDE-AHCI class mode to support eSA- TA port hot-swapping. USB BIOS Legacy Support (Advanced Menu) Use this menu item to enable/disable the support for Legacy Universal Serial Bus in non-USB aware operating systems.
Page 89: Ide-Ahci Class Driver Installation
BIOS Utilities IDE-AHCI Class Driver Installation (with Windows Vista O/S) This driver needs to be installed when installing the O/S, however this may have al- ready been done for you if your system has Windows Vista pre-installed (contact your service center for information). If you are re-installing your O/S then you should follow the procedure below to in- stall the driver at the beginning of the O/S installation procedure (this is the most up to date driver for AHCI mode, however Windows Vista will install an older driver...
Page 90 BIOS Utilities 7. When the “Where do you want to install Windows?” screen appears select Load Driver. Figure 5 - 4 Load Driver 8. Remove the Windows Vista O/S disc from the CD/DVD drive and then insert the Device Drivers & Utilities + User’s Manual disc. 9.
Page 91: Table
BIOS Utilities 11. Select the driver to be installed (as below) and click Next: • AMD AHCI Compatible RAID Controller (F:\Drivers\Options\AHCI Compatible RAID\x**\ahcix**s.inf) 12. After the driver has installed you will be returned to the “Where do you want to install Windows?” screen. 13.
Page 92: Security Menu
BIOS Utilities Security Menu PhoenixBIOS Setup Utility Security Menu Main Advanced Security S S e e c c u u r r i i t t y y Boot Exit Item Specific Help changes Supervisor Password Is: Clear make here affect the User Password Is: Clear Supervisor Password...
Page 93: Set User Password (Security Menu)
BIOS Utilities Set User Password (Security Menu) You can set a password for user mode access to the PhoenixBIOS Setup Utility. This will not affect access to the computer OS, (only the Setup utility) unless you Password Warning choose to set a Password on Boot (see below). Many menu items in the Phoenix- BIOS Setup Utility cannot be modified in user mode.
Page 94: Boot Menu
BIOS Utilities Boot Menu PhoenixBIOS Setup Utility Figure 5 - 6 Main Advanced Security Boot Exit Boot Menu Item Specific Help Boot priority order: IDE CD: TSSTcorp CDDVDW TS-L632H-( IDE 4: FUJITSU MHY2080BH-(S1) Keys used to view or PCI SCSI: configure devices: USB KEY: Up and Down arrows...
Page 95: Exit Menu
BIOS Utilities Exit Menu Figure 5 - 7 PhoenixBIOS Setup Utility Main Advanced Security Boot Exit Exit Menu Item Specific Help Exit Saving Changes Exit Discarding Changes Exit System Setup and Load Setup Defaults save your changes to Discard Changes CMOS.
Page 96 BIOS Utilities 5 - 18...
Page 97: Upgrading The Computer
Upgrading The Computer Chapter 6: Upgrading The Computer Overview This chapter contains information on upgrading the computer. Follow the steps out- lined to make the desired upgrades. If you have any trouble or problems you can con- Warranty Warning tact your service representative for further help. Before you begin you will need: Please check with your service representative...
Page 98: When Not To Upgrade
Upgrading The Computer When Not to Upgrade These procedures involve opening the system’s case, adding and sometimes replac- ing parts. Power Safety Warning You should not perform any of these upgrades if: Before you undertake • Your system is still under warranty or a service contract upgrade proce- •...
Page 99: Removing The Battery
Upgrading The Computer Removing the Battery If you are confident in undertaking upgrade procedures yourself, for safety reasons Warranty Warning it is best to remove the battery. Turn the computer off, and turn it over. Please check with your Slide the latch in the direction of the arrow.
Page 100: Upgrading The Hard Disk Drive
Upgrading The Computer Upgrading the Hard Disk Drive The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard HDD System disk drives with a height of 9.5mm (h) (see “Storage” on page C - 3). Follow your Warning operating system’s installation instructions, and install all necessary drivers and util- ities (see...
Page 101 Upgrading The Computer Grip the tab and slide the hard disk in the direction of arrow Lift the hard disk out of the bay Models A & C Figure 6 - 3 HDD Removal Models B & D Remove the screw(s) &...
Page 102: Upgrading The Optical (Cd/Dvd) Device
Upgrading The Computer Upgrading the Optical (CD/DVD) Device Turn off the computer, and turn it over and remove the battery. Models A & C: Locate the RAM & CPU bay cover and remove screws Fan Cable Carefully (a fan and cable are attached to the under side of the cover) lift up Make sure you recon- the bay cover.
Page 103 Upgrading The Computer Remove the screw at point , and use a screwdriver to carefully push out the optical device at point Reverse the process to install the new device. Models A & C Models B & D Figure 6 - 6 Removing the Optical Device Models B &...
Page 104: Upgrading The System Memory (Ram)
Upgrading The Computer Upgrading the System Memory (RAM) The computer has two memory sockets for 200 pin Small Outline Dual In-line (SO- DIMM) DDRII (DDR2) type memory modules (see “Memory” on page C - 2 details of supported module types). The total memory size is automatically detected by the POST routine once you turn on your computer.
Page 105 Upgrading The Computer Carefully (a fan and cable are attached to the under side of the cover) lift up the bay cover. Carefully disconnect the fan cable , and remove the cover Figure 6 - 8 CPU/RAM Bay Cover Removed Contact Warning Gently pull the two release latches on the sides of the memory socket in the Be careful not to touch...
Page 106 Upgrading The Computer The RAM module will pop-up, and you can remove it. Figure 6 - 10 RAM Module Removal Pull the latches to release the second module if necessary. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
Page 107 Upgrading The Computer 11. Replace the bay cover and screws (make sure you reconnect the fan cable before screwing down the bay cover). Note for Model B & D computers that there are four cover pins which need to be aligned with slots in the case, to insure a proper cover fit, before screwing down the bay cover.
Page 108: 3.5G And Wlan Module Location
Upgrading The Computer 3.5G and WLAN Module Location The picture below indicates the location of the 3.5G and WLAN modules for your information. Note that the 3.5G module is a factory option, and the WLAN module is an option. Neither of these modules are user upgradeable/replaceable; for more in- formation contact your customer service representative.
Page 109: Modules & Options
Modules & Options Chapter 7: Modules & Options Overview Wireless Device Operation Aboard This chapter contains information on the following modules, which may come with Aircraft your computer, depending on the configuration purchased. If you are unsure please The use of any portable contact your service representative.
Page 110: Bluetooth Module
Modules & Options Bluetooth Module The operating system’s Bluetooth Devices control panel is used to configure the Wireless Device Bluetooth settings in Windows Vista, and therefore does not require a driver. Use Operation Aboard the Fn + F12 key combination (see “Function/Hot Key Indicators”...
Page 111: Bluetooth Configuration In Windows Vista
Modules & Options Bluetooth Configuration in Windows Vista Setup your Bluetooth Device so the Computer Can Find it Turn your Bluetooth device (e.g. PDA, mobile phone etc.) on. Bluetooth Taskbar Make the device discoverable (to do this check your device documentation). Icon If you cannot see the To Turn the Bluetooth Module On...
Page 112 Modules & Options To Add a Bluetooth Device Access the Bluetooth Devices control panel. Click Options (tab), and make sure that Allow Bluetooth devices to connect to this computer check box (Connections) has a tick inside it. Click Devices (tab), and then click Add. The Add Bluetooth Device Wizard will appear.
Page 113 Modules & Options To Change Settings for the Bluetooth Device Access the Bluetooth Devices control panel. Click on the device you want to change and click Properties to: Bluetooth Help • Change the name of the device (click General, type a new name and click OK). •...
Page 114 Modules & Options PC Camera Module The PC Camera module uses the BisonCap application to capture video files and to Latest PC Camera take pictures. Driver Information Before installing the PC Camera driver, make sure that the optional PC Camera is Check the Device Driv- ers &...
Page 115 Modules & Options PC Camera Driver Installation 1. Insert the Device Drivers & Utilities + User’s Manual disc into the CD/ DVD drive. 2.0M PC Camera 2. Click Option Drivers (button). Screen Refresh 3. Click 1.Install Camera Driver > Yes. The 2.0M PC Camera 4.
Page 116: 7 - 8 Pc Camera Module
Modules & Options PC Camera Audio Setup If you wish to capture video & audio with your camera, it is necessary to setup the audio recording options in Windows. Click Start, and click Control Panel (or point to Settings and click Control Panel).
Page 117 Modules & Options Figure 7 - 5 Audio Setup for PC Camera Right-click PC Camera Module 7 - 9...
Page 118 Modules & Options BisonCap BisonCap is a video viewer for general purpose video viewing and testing, and for capturing video files to .avi format. Pre-Allocating File Space Run the BisonCap program from the Start > Programs/All Programs > Bison- Cam menu (it is recommended that you set the capture file before the capture You may pre-allocate process - see Set Capture File below).
Page 119 Modules & Options Reducing Video File Size Note that capturing high resolution video files requires a substantial amount of disk space for each file. After recording video, check the video file size (right-click the file and select Properties) and the remaining free space on your hard disk (go to My Computer, right-click the hard disk, and select Properties).
Page 120 Modules & Options Eliminating Screen Flicker If you find that the video screen in the BisonCap program is flickering, you can try to adjust the setting in the Video Capture Filter options. Run the BisonCap program. Go to Options and scroll down to select Video Capture Filter..Click either 50Hz or 60Hz under Frequency in Property Page (tab).
Page 121 Modules & Options Zoom The BisonCap program allows you to zoom the camera in and out. Run the BisonCap program. Go to Zoom and select Zoom Out/Zoom In. Figure 7 - 7 Zoom/Setting Taking Still Pictures Snapshot Folder The BisonCap program allows you to take still pictures. The Snapshot folder’s default location is on the Run the BisonCap program.
Page 122: Wireless Lan Module
Modules & Options Wireless LAN Module If you have included a 802.11b/g WLAN module in your purchase option, make sure Wireless Device that the Wireless LAN module is on before installing the driver. Operation Aboard Aircraft Use the Fn + F11 key combination (see Table 1 - 5, on page 1 - 13) to toggle power to the Wireless LAN module.
Page 123: Connecting To A Wireless Network
Modules & Options Connecting to a Wireless Network Make sure the Wireless LAN module is turned on. Click the taskbar wireless icon , and then click Connect to a network (or right- click the icon , and then click Connect to a network). Figure 7 - 8 Taskbar Menus Click icon...
Page 124 Modules & Options Click a network, and then click Connect. If you do not see a network you want to connect to, click Set up a connection or network (a list of options will appear allowing manual searching, and creating a new network).
Page 125 Modules & Options To disconnect from the wireless network you can click the taskbar wireless icon and then select Connect or disconnect to access the network menu, and click Disconnect (or right-click the icon , and then click Disconnect from). Security Enabled Networks You should try to make...
Page 126: 3.5G Module
Modules & Options 3.5G Module If you have included an optional 3.5G module (see “Communication” on page C - Power Safety for specification details) in your purchase option, you will have the appropriate Warning software provided for your module. Follow the instructions below to install the USIM card (which will be provided by your service provider), and then install the Before you undertake any installation proce-...
Page 127 Modules & Options Insert the USIM card as you would into your mobile phone. Slide the SIMLOCK towards the hinge (in the opposite direction to the arrow illustrated in Figure 7 - 15) in order to release the lock and lift it up. Insert the USIM card as illustrated in (Figure 7 - 14) and close the SIMLOCK.
Page 128: 3G Watcher Application
Modules & Options 3G Watcher Application With the 3.5G module and USIM card (provided by your service provider) installed you may then install the 3G Watcher application. The 3.5G Watcher application al- Wireless Device lows you to directly access your 3.5G internet service from the computer. Operation Aboard Aircraft 3G Watcher Application Installation...
Page 129: Setting Up A Carrier Profile
Modules & Options Setting Up a Carrier Profile Although the connection information is stored on the USIM card supplied by the ser- vice provider, you will need to set up the appropriate carrier profile in 3G Watcher. Power on the 3.5G module using the Fn + key combination.
Page 130 Modules & Options You can then enter a new profile name or choose a profile from the drop-down list provided by the software (see the sidebars for information on the profile details). Figure 7 - 18 User Options Profile Information Profile Details Click General and/or Ad- vanced...
Page 131 Modules & Options Connecting to the Service Provider Power on the 3.5G module using the Fn + key combination. You can access the 3G Watcher application from the Start menu (Start > Programs/All Programs > Sierra Wireless > 3G Watcher), or by clicking the desktop icon The software will run and display the service provider name (see “Setting Up a...
Page 132 Modules & Options When the connection is successful a taskbar notification will appear (as below). Figure 7 - 22 Connected Taskbar Notification You can then access the internet, download e-mail etc. as per any internet connection. While you are connected the taskbar icon will be green (it will be red when the program is running but not connected).
Page 133 Modules & Options 12. If you click the 3G Watcher close icon a message will be displayed asking you to click OK to confirm the program exit. Figure 7 - 24 Exit Warning 13. Exiting the program DOES NOT turn off the 3.5G module, and you will need to press the Fn + key combination to turn off the module (pay careful attention to this aboard aircraft - see...
Page 134: Short Messaging Service
Modules & Options Short Messaging Service In addition to standard internet services you may also send and receive SMS text messages using the 3G Watcher program, if your service supports SMS. Reading SMS Messages The SMS message indicator in the main window will notify you of any new messages received.
Page 135 Modules & Options Fingerprint Reader Module If you have included the fingerprint reader in your purchase option you will need to Help & Manual install the driver as per the instructions below. Right-click the taskbar icon Make sure you have administrator’s rights to your computer, and have a Windows to bring up the menu to password enabled for full security protection.
Page 136 Modules & Options User Enrollment Click Start > Programs/All Programs > Protector Suite QL > User Enrollment, or double click the taskbar icon Click Initialize. Figure 7 - 25 Initialize Fingerprints On the first run of the program you will be asked to click the button to accept the license, and then click OK.
Page 137 Modules & Options If you have not set a Windows password you will be prompted to do so (note: If you have not set a password Protector Suite QL cannot secure access to your computer). Click Next. You will then be prompted to enter your Windows password and click Next. Select either to use the fingerprint reader alone for authentication, or choose both the fingerprint reader and the Windows password, and then click Next.
Page 138: 7 - 30 Fingerprint Reader Module
Modules & Options 11. Click the button above any of the fingers to begin the enrollment process for that finger. 12. Swipe the finger five times to enroll that finger. Fingerprint 13. Repeat the process for all the fingers you wish to enroll (see sidebar), and then Enrollment click Next.
Page 139 Modules & Options 17. Right-click the taskbar icon to bring up the Control Center that allows you to Edit Fingerprints, register applications, manage Password Bank, File Safe and access the Help menu etc. You can also run the Control Center etc. from the Protector Suite QL item in the Programs/All Programs menu.
Page 140 Modules & Options Fingerprint Control Center Features Application Launcher The Application Launcher allows you to register applications to be launched when assigned to a particular finger. Simply copy the application icon on to one of the reg- istered fingers and ten click OK to close the application window. Once registered the application will launch when you swipe the appropriate finger across the sensor.
Page 141: Troubleshooting
Troubleshooting Chapter 8: Troubleshooting Overview Should you have any problems with your computer, before consulting your service representative, you may want to try to solve the problem yourself. This chapter lists some common problems and their possible solutions. This can’t anticipate every problem, but you should check here before you panic. If you don’t find the answer in these pages, make sure you have followed the instructions carefully and observed the safety precautions in the preface.
Page 142: Basic Hints And Tips
Troubleshooting Basic Hints and Tips Many of the following may seem obvious but they are often the solution to a problem when your computer ap- pears not to be working. • Power - Is the computer actually plugged into a working electrical outlet? If plugged into a power strip, make sure it is actually working.
Page 143: Backup And General Maintenance
Troubleshooting Backup and General Maintenance • Always backup your important data, and keep copies of your OS and programs safe, but close to hand. Don’t forget to note the serial numbers if you are storing them out of their original cases, e.g. in a CD wal- let.
Page 144: Viruses
Troubleshooting Viruses • Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm your computer and cause you to lose data. Anti-Virus programs are commercially available and the defini- tions file updates are usually downloadable directly from the internet.
Page 145: Upgrading And Adding New Hardware/Software
Troubleshooting Upgrading and Adding New Hardware/Software • Do not be tempted to make changes to your Windows Registry unless you are very sure of what you are doing, otherwise you will risk severely damaging your system. • Don’t open your computer or undertake any repair or upgrade work if you are not comfortable with what you are doing.
Page 146 Troubleshooting • Thoroughly check any recent changes you made to your system as these changes may affect one or more system components, or software programs. If possible, go back and undo the change you just made and see if the problem still occurs. •...
Page 147: Problems And Possible Solutions
Troubleshooting Problems and Possible Solutions Problem Possible Cause - Solution You turned on the power but it doesn’t Battery missing / incorrectly installed. Check the battery bay, make sure the work. battery is present and seated properly (the design of the battery only allows it to go in one way).
Page 148 Troubleshooting Problem Possible Cause - Solution The computer feels too hot. Make sure the computer is properly ventilated and the Vent/Fan intakes are not blocked. If this doesn’t cool it down, put the system into Hibernate mode or turn it off for an hour. Make sure the computer isn’t sitting on a thermal surface (see “Overheating”...
Page 149 Troubleshooting Problem Possible Cause - Solution You forget the boot password. If you forget the password, you may have to discharge the battery of the CMOS. Contact your service representative for help. Password Warning If you choose to set a boot password, NEVER forget your password. The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.
Page 150 Troubleshooting Problem Possible Cause - Solution Other Keyboards If your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. The system will detect and enable it automatically. However special functions/hot keys unique to the system’s regular keyboard may not work.
Page 151 Troubleshooting Problem Possible Cause - Solution The PC Camera module cannot be The module is off. Press the Fn + F10 key combination in order to enable the detected. module (see “Function/Hot Key Indicators” on page 1 - 13). Run the BisonCap program to view the camera picture.
Page 152 Troubleshooting Problem Possible Cause - Solution The Hibernate function has disappeared. You have a computer with 4GB of RAM and have installed Windows Vista Serv- ice Pack 1. This is a known issue if your computer has 4GB of RAM and is run- ning Windows Vista Service Pack 1.
Page 153 Troubleshooting Problem Possible Cause - Solution The System appears unstable. You have a computer with an AMD Athlon or AMD Sempron processor and have enabled the PowerPlay function in the ATI Catalyst® Control Center video control panel. The PowerPlay function is automatically enabled by default, so if your purchase option includes an AMD Athlon or AMD Sempron, click to remove the tick alongside Enable PowerPlay (see Figure B - 12 on page B -...
Page 154: Screen Resolution Error
Troubleshooting Screen Resolution Error If you are experiencing either screen resolution reduction, or screen flickering after resuming from Sleep in Windows Vista only then follow the instructions below to fix this problem. This error arises in compliance with Windows Vista policy, which triggers TMM (Transient Multi-Monitor Manager) when the notebook lid (S3) is closed.
Page 155 Troubleshooting Double-click Task Scheduler Library > Microsoft > Windows. Click MobilePC to open the control panel. Right-click TMM and select Disable. Figure 8 - 2 - TMM Disable Close all the control panels. Screen Resolution Error 8 - 15...
Page 156 Troubleshooting 8 - 16...
Page 157: Interface (Ports & Jacks)
Interface (Ports & Jacks) Appendix A: Interface (Ports & Jacks) Overview The following chapter will give a quick description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc. Interface (Ports & Jacks) A - 1...
Page 158: Notebook Ports And Jacks
Interface (Ports & Jacks) Notebook Ports and Jacks Item Description Card Reader Port The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device. DC-In Jack Plug the supplied AC/DC adapter into this jack to power your computer.
Page 159 Interface (Ports & Jacks) Item Description HDMI-Out Port The HDMI-Out (High-Definition Multimedia Interface) is an audio/video connector interface for transmitting uncompressed digital streams. This allows you to connect an external monitor, TV or HDMI Flat Panel Display etc. as a display device by means of a HDMI cable. Note that HDMI carries both audio and video signals.
Page 160 Interface (Ports & Jacks) Item Description S/PDIF-Out Jack This S/PDIF (Sony/Philips Digital Interface Format) Out Jack allows you to connect your DVD- capable PC to a Dolby AC-3 compatible receiver for “5.1” or ‘dts’ surround sound. USB 2.0/1.1 Ports These USB 2.0 compatible ports (USB 2.0 is fully USB 1.1 compliant) are for low-speed peripherals such as keyboards, mice or scanners, and for high-speed peripherals such as external HDDs, digital video cameras or high-speed scanners etc.
Page 161: Ati Video Driver Controls
Appendix B: ATI Video Driver Controls The basic settings for configuring the LCD are outlined in “Video Features” on page 1 - Video Card ATI Video Driver Installation Options Make sure you install the drivers in the order indicated in Table 4 - 1, on page 4 - Note that card types, Insert the Device Drivers &...
Page 162: Ati Catalyst® Control Center
ATI Catalyst® Control Center Adjust the video settings from the ATI Catalyst Control Center. ® ATI Taskbar Icon Open Display Settings (see “Video Features” on page 1 - 19) control panel. The ATI Catalyst Control Click Advanced Settings (button). Center can be accessed as Click Catalyst(R) Control Center (tab) and then click ATI Catalyst Control above or by double-clicking Center (button) to start the control center...
Page 163 The ATI Catalyst® Control Center provides additional video configuration con- trols and tools which allow quick access to features such as display options, 3D Set- tings, color and Help menus etc. Adjust settings from the options in the Graphics Help Menus Settings Tree View pane.
Page 164: Crossfire™ (For Models C & D Only
CrossFire™ (For Models C & D Only) ATI Hybrid CrossFireX™ technology (Windows Vista for Models C & D only) enables the on board graphics chip and the discrete graphics processor to simulta- neously work together to boost 3D graphics performance. CrossFireX™ (which is enabled by default) can be enabled/disabled from the ATI Catalyst®...
Page 165: Attaching Other Displays
Attaching Other Displays Besides the built-in LCD you can also use an external monitor/flat panel display/TV Display Devices (TV through HDMI-Out port only), connected to the external monitor port or to the HDMI-Out port (High-Definition Multimedia Interface) as your display device. You can use the Fn + F7 key combination to tog- Configuring an External Display in Windows Vista...
Page 166 Configuring an External Display using the ATI Catalyst Control Center Alternatively you can use the ATI Catalyst Control Center to configure any at- tached displays. Detect Displays Attach your external display to the external monitor port or HDMI-Out port, and Click Detect Displays turn it on.
Page 167: Hdmi Audio Configuration
HDMI Audio Configuration As HDMI (High-Definition Multimedia Interface) carries both audio and video sig- nals you will need to configure the audio output as per the instructions below. Windows Audio Setup for HDMI Connect a device with HDMI support to the HDMI-Out port. Click Start, and click Control Panel (or point to Settings and click Control Panel).
Page 168 HDMI Notes • Connect a device with HDMI support to the HDMI-Out port BEFORE attempt- ing to play audio/video sources through the device. Other Applications • If you disconnect the HDMI cable the default audio playback device will not If you are using a third party application revert to speakers until the computer is restarted (if you do not wish to restart the...
Page 169: Display Modes
Display Modes Single Function Keys Only one of your displays is used. You can use the Fn + F7 key combination to tog- Clone Mode gle through the display Clone Mode simply shows an exact copy of the Main display desktop on the other options: display(s).
Page 170: Clone Mode
Clone Mode Clone Mode simply shows an exact copy of the Main display desktop on the other display(s). This mode will drive multiple displays with the same content. Use this feature to display the screen through a projector for a presentation. Figure B - 7 Displays Manager Clone Mode...
Page 171: Extended Mode
Extended Mode In Extended Mode each monitor can be configured separately with the Windows desktop stretched between the two monitors (except the taskbar). This configuration Extended Mode is recommended if you are using two monitors of different size, as you may config- When enabled, you ure the best resolution, refresh rates and color quality for each display.
Page 172 Using Windows Vista to Enable Extended Mode Attach your external display to the external monitor port or HDMI-Out port, and turn it on. Display Settings Go to the Windows Mobility Center control panel (Mobile PC > Adjust Extended Desktop commonly used mobility settings) and click Connect display. Click to select Show different parts of my desktop on each display (extended).
Page 173 Using Display Settings to Enable Extended Mode Attach your external display to the external monitor port or HDMI-Out port, and turn it on. Open Display Settings (see “Video Features” on page 1 - 19) control panel. Click the monitor icon (e.g. ), and make sure you have checked “Extend the desktop onto this monitor”...
Page 174: Theater Mode
Theater Mode Theater Mode enables you to display video playback in full screen on a secondary monitor. Theater Mode can be configured from the Avivo Video > Theater Mode ™ tab in the Graphics Settings Tree View pane. Figure B - 11 Theater Mode B - 14 Theater Mode...
Page 175: Powerplay
PowerPlay™ PowerPlay™ in the Graphics Settings Tree View pane allows you to set your graph- PowerPlay ™ ics processor settings for higher performance or longer battery life. Disable this op- tion if you have an AMD Athlon or AMD Sempron processor (see sidebar). Note that PowerPlay is NOT supported by either AMD Athlon or AMD Sem-...
Page 176: Enabling Tv Display
Enabling TV Display To display desktop images on a TV with HDMI support, connect the TV to your computer by using an HDMI cable from the TV to HDMI-Out port. Configure the TV as a display device as per the instructions in “Display Modes”...
Page 177 When the HDTV is detected, and display settings applied, a DTV tab will be avail- able from the Graphics Settings Tree View pane. The DTV menu allows you to ad- just the TV settings and TV Format supported by your display. Figure B - 14 DTV (HDMI) Enabling TV Display B - 17...
Page 178 B - 18...
Page 179: Specifications
Specifications Appendix C: Specifications Latest Specification Information The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/ speeds and CD/DVD device types) may be changed, delayed or updated due to the manufacturer's release schedule. Check with your service center for details.
Page 180: Processor
Specifications Feature Specification Processor AMD Turion™ X2 Ultra Dual Core Processor 65nm (65 Nanometer) Process Technology (638-pin) Micro-PGA Package, Socket S1G2 2MB L2 Cache & 800MHz FSB, TDP: 35W Note the information ZM80/ ZM82/ ZM84/ ZM86 2.1/ 2.2/ 2.3/ 2.4 GHz “Changing Pro- cessors”...
Page 181: Video Adapter
Specifications Feature Specification Video Adapter Models A & B: Models C & D: ATI® RS780M Integrated Video ATI Mobility Radeon™ HD 3470 Hybrid X2 High Preference 2D/3D Graphic Accelerator 256MB of GDDR2 Video Memory On-Board Shared Memory Architecture of up to 256MB Integrated HDMI &...
Page 182: Interface
Specifications Feature Specification Interface Three USB 2.0 Ports One eSATA Port (supported in Windows Vista only): One External Monitor Port AHCI mode supports hot swapping One HDMI-Out Port (High-Definition Multimedia IDE mode does not support hot swapping Interface) One RJ-11 Modem Jack One Headphone-Out Jack One RJ-45 LAN Jack One Microphone-In Jack...
Page 183: Power
Specifications Feature Specification Power Supports ACPI v2.0 Supports Wake on LAN Management Power Models A & B: Models C & D: Full Range AC/DC Adapter AC input 100 - 240V, Full Range AC/DC Adapter AC input 100 - 240V, 50 - 60Hz, DC Output 19V, 3.42A or 18.5V, 3.5A 50 - 60Hz, DC Output 19V, 4.74A (90 Watts) (65 Watts) Battery...
Page 184 Specifications Feature Specification Optional SATA Optical Drive Module Options: UMTS/HSPDA-based 3.5G Mini-Card Module with DVD/CD-RW Combo Device Module USB Interface (Factory Option) Super Multi Device Module Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz, 1900 MHz) UMTS WCDMA FDD (2100 MHz) 802.11b/g Wireless LAN Mini-Card Module with USB/PCIe Interface 1.3M or 2.0M Pixel PC Camera Module with USB...
Page 185: Windows Xp Information
Windows XP Information Appendix D: Windows XP Information This Appendix contains information (including control panel information, driver installation etc.) for users of the Windows XP OS. D - 1...
Page 186: Dvd Regional Codes
Windows XP Information DVD Regional Codes Changing DVD Regional Codes Go to the Control Panel and double-click System > Hardware (tab), click Device Manager, then click the + next to DVD/CD-ROM drives. Double-click on the DVD-ROM device to bring up the Properties dialogue box, and select the DVD Region (tab) to bring up the control panel to allow you to adjust the regional code.
Page 187: Windows Xp Start Menu & Control Panel
Windows XP Information Windows XP Start Menu & Control Panel Most of the control panels, utilities and programs within Windows XP (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in the Start menu and/or the desktop.
Page 188: D - 4 Touchpad And Buttons/Mouse
Windows XP Information TouchPad and Buttons/Mouse The TouchPad is an alternative to the mouse; however, you can also add a mouse to your computer through one of the USB ports. The TouchPad buttons function in much the same way as a two-button mouse. Once you have installed the TouchPad driver (see “TouchPad”...
Page 189: Function Keys
Windows XP Information Function Keys The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the basic function key combinations; visual indicators are available when the hot key utility is installed (see “Hot Key”...
Page 190: Audio Features
W i n d o w s X P I n f o r m a t i o n Audio Features You can configure the audio options on your computer from the Sounds and Audio Devices Windows con- trol panel, or from the Realtek HD Audio Manager icon in the taskbar/control panel (this will bring up the Realtek Audio Configuration menus).
Page 191: Video Features
Windows XP Information Video Features This computer features two different (either ATI integrated video for Model A & B computers or ATI discrete video for Models C & D computers) video options. You can switch display devices, and configure display op- tions, from the Display Properties control panel in Windows as long as the appropriate video driver is installed.
Page 192 Windows XP Information Display Settings & ATI Catalyst Control Center Figure D - 5 - Display Settings & ATI Catalyst Control Center D - 8 Video Features...
Page 193: Ati Catalyst® Control Center
Windows XP Information ATI Catalyst® Control Center Adjust the video settings from the ATI Catalyst Control Center. ® ATI Taskbar Icon Open Display Properties (see “Video Features” on page D - 7) control panel. The ATI Catalyst Control Click Advanced Settings (button). Center can be accessed as Click Catalyst(R) Control Center (tab) and then click ATI Catalyst Control above or by double-clicking...
Page 194 Windows XP Information The ATI Catalyst® Control Center provides additional video configuration con- trols and tools which allow quick access to features such as display options, 3D Set- tings, color and Help menus etc. Adjust settings from the options in the Graphics Help Menus Settings Tree View pane.
Page 195: Attaching Other Displays
Windows XP Information Attaching Other Displays Besides the built-in LCD you can also use an external monitor/flat panel display/TV Function Keys (TV through HDMI-Out port only), connected to the external monitor port or to the HDMI-Out port (High-Definition Multimedia Interface) as your display device. The You can use the Fn + F7 following are the display options: key combination to tog-...
Page 196 Windows XP Information Configuring an External Display (ATI Catalyst Control Center) You can use the ATI Catalyst Control Center to configure any attached displays. Detect Displays 1. Attach your external display to the external monitor port or HDMI-Out port, and turn it on.
Page 197 Windows XP Information Clone Mode Clone Mode simply shows an exact copy of the Main display desktop on the other display(s). This mode will drive multiple displays with the same content. Use this feature to display the screen through a projector for a presentation. Figure D - 9 Displays Manager Clone Mode...
Page 198 Windows XP Information Extended Mode In Extended Mode each monitor can be configured separately with the Windows desktop stretched between the two monitors (except the taskbar). This configuration Extended Mode is recommended if you are using two monitors of different size, as you may configure When enabled, you the best resolution, refresh rates and color quality for each display.
Page 199 Windows XP Information To Enable Extended Desktop (Windows Display Properties) Attach your external display to the external monitor port or HDMI-Out port, and turn it on. Click Start, point to Settings (or click Control Panel) and click Control Panel (if you are in Category View choose Appearance and Themes).
Page 200 Windows XP Information HDMI Audio Configuration As HDMI (High-Definition Multimedia Interface) carries both audio and video sig- nals you will need to configure the audio output as per the instructions below. Windows Audio Setup for HDMI 1. Connect a device with HDMI support to the HDMI-Out port. 2.
Page 201 Windows XP Information HDMI Notes • Connect a device with HDMI support to the HDMI-Out port BEFORE attempt- ing to play audio/video sources through the device. Other Applications If you are using a third • If you disconnect the HDMI cable the default audio playback device will not party application revert to speakers until the computer is restarted (if you do not wish to restart the...
Page 202: Theater Mode
Windows XP Information Theater Mode Theater Mode enables you to display video playback in full screen on a secondary monitor. Theater Mode can be configured from the Avivo Video > Theater Mode ™ tab in the Graphics Settings Tree View pane. Figure D - 13 Theater Mode D - 18 Theater Mode...
Page 203: Powerplay
Windows XP Information PowerPlay™ PowerPlay in the Graphics Settings Tree View pane allows you to set your graph- ™ PowerPlay ™ ics processor settings for higher performance or longer battery life. Note that PowerPlay is NOT supported by either AMD Athlon or AMD Sem- pron processors.
Page 204: Enabling Tv Display
Windows XP Information Enabling TV Display To display desktop images on a TV with HDMI support, connect the TV to your computer by using an HDMI cable from the TV to HDMI-Out port. Configure the TV as a display device as per the instructions in “Attaching Other Displays”...
Page 205 Windows XP Information When the HDTV is detected, and display settings applied, a DTV tab will be avail- able from the Graphics Settings Tree View pane. The DTV menu allows you to ad- just the TV settings and TV Format supported by your display. Figure D - 16 DTV (HDMI) Enabling TV Display D - 21...
Page 206: Power Management Features
Windows XP Information Power Management Features To conserve power, especially when using the battery, your computer uses the ACPI OS Note power management system. Power management conserves power by controlling in- dividual components of the computer (the monitor and hard disk drive) or the whole Power management functions...
Page 207: The Power Sources
Windows XP Information The Power Sources The computer can be powered by either an AC/DC adapter or a battery pack. AC/DC Adapter Use only the AC/DC adapter that comes with your computer. The wrong type of AC/DC adapter will damage the computer and its components.
Page 208: Turning On The Computer
Windows XP Information Turning on the Computer Now you are ready to begin using your computer. To turn it on simply press the pow- Shutdown er button on the front panel. Note that you should al- When the computer is on, you can use the power button as a Stand by/Hibernate/ ways shut your comput- er down by choosing the Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and...
Page 209: Power Schemes
Windows XP Information Power Schemes You can set your computer to conserve power through individual components by Resuming means of Power Schemes. You can also adjust the settings for each scheme to set Operation the monitor to turn off after a specified time, and the computer's hard disk motor to turn off if the hard disk drive has not been accessed for a specified period of time (if Press a key on the key- the system reads or writes data, the hard disk motor will be turned back on).
Page 210 Windows XP Information Each Windows Power Scheme will also adjust the processor performance of your machine in order to save pow- er. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power). Choose the Home/Office Desk scheme for maximum performance when the computer is powered from an AC power source.
Page 211: System Power Options
Windows XP Information System Power Options You can use the system power options to stop the computer’s operation and restart Stand by/Hibernate where you left off. This system features Stand by and Hibernate sleep mode levels or Shutdown Error (Hibernate mode will need to be enabled by clicking the option in the Hibernate tab in the Power Options control panel - see “Hibernate”...
Page 212 Windows XP Information Stand by Stand by saves the least amount of power, but takes the shortest time to return to full operation. During Stand by the hard disk is turned off, and the CPU is made to idle System Resume at its slowest speed.
Page 213: Configuring The Power Button
Windows XP Information Configuring the Power Button The power button may be set to send the computer in to either Stand by or Hiber- Sleep Button nate mode. In Stand by mode, the LED will blink green. In Hibernate mode the LED will be off (battery) or orange (AC/DC adapter).
Page 214: D - 30 Battery Information
Windows XP Information Battery Information Please follow these simple guidelines to get the best use out of your battery. Low Battery New Battery Warning Always completely discharge, then fully charge, a new battery (see “Battery FAQ” When the battery is criti- on page D - 33 for instructions on how to do this).
Page 215 Windows XP Information Battery life may be shortened through improper maintenance. To optimize the life and improve its perfor- mance, fully discharge and recharge the battery at least once every 30 days. We recommend that you do not remove the battery yourself. If you need to remove the battery for any reason, “Removing the Battery”...
Page 216 Windows XP Information Proper handling of the Battery Pack • DO NOT disassemble the battery pack under any circumstances • DO NOT expose the battery to fire or high temperatures, it may explode • DO NOT connect the metal terminals (+, -) to each other Damaged Battery Warning Should you notice any physical defects (e.g.
Page 217 Windows XP Information Battery FAQ How do I completely discharge the battery? Use the computer with battery power until it shuts down due to a low battery. Don’t Caution turn off the computer by yourself even when you see a message that indicates the bat- Danger of explosion if tery is critically low, just let the computer use up all of the battery power and shut battery is incorrectly re-...
Page 218: D - 34 Driver Installation
Windows XP Information Driver Installation 1. Check the driver installation order from Table D - 3 (the drivers must be installed in this order) which is the Insert the Device Drivers & Utilities + User’s Manual same as that listed in the Drivers Installer menu below.
Page 219 Windows XP Information Updating/Reinstalling Individual Drivers If you wish to update/reinstall individual drivers it may WinXP SP2 Driver Page # be necessary to uninstall the original driver.To do this go Video Page D - 36 to the Control Panel in the Windows OS and double- click the Add/Remove Programs item.
Page 220: Found New Hardware Wizard
Windows XP Information Driver Installation Procedure Insert the Device Drivers & Utilities + User’s Manual disc and click Install Drivers (button). Windows XP Service Pack 2 Make sure you install Windows XP Service Pack 2 (or a Found New Hardware Wizard Windows XP version which includes Service Pack 2) be- fore installing any drivers.
Page 221 Windows XP Information HDMI Audio TouchPad 1. Click 3.Install HDMI Audio Driver > Yes. 1. Click 6.Install TouchPad Driver > Yes. 2. Click Next. 2. Click Next > Next > Next. 3. Click Finish to restart the computer. 3. Click Finish to restart the computer. Modem CardReader 1.
Page 222: Module Drivers
Windows XP Information Module Drivers Wireless LAN, Bluetooth & 3.5G Modules See the following pages for the driver installation pro- cedures for any of the optional modules included in your purchase configuration. Wireless Device Operation Aboard Aircraft The use of any portable electronic transmission devices aboard aircraft is usually prohibited.
Page 223: Bluetooth Module
Windows XP Information Bluetooth Module The operating system’s Bluetooth Devices control panel is used to configure the Bluetooth settings in Windows XP, and therefore does not require a driver. Use the Fn + F12 key combination (see “Function Keys” on page D - 5) to toggle power to the Bluetooth module.
Page 224 Windows XP Information Bluetooth Local Area Connection Icon If you want to display the Local Area Connection icon for the Bluetooth connection in the taskbar, set it up as follows: Wireless Device Operation Aboard 1. Access the Network Connections control panel in Windows (Start > Settings > Aircraft Network Connections OR Start >...
Page 225: Bluetooth Configuration In Windows Xp
Windows XP Information Bluetooth Configuration in Windows XP Setup your Bluetooth Device so the Computer Can Find it Turn your Bluetooth device (e.g. PDA, mobile phone etc.) on. Bluetooth Taskbar Make the device discoverable (to do this check your device documentation). Icon To Turn the Bluetooth Module On If you cannot see the...
Page 226: To Add A Bluetooth Device
Windows XP Information To Add a Bluetooth Device 1. Access the Bluetooth Devices control panel. 2. Click Options (tab), and make sure that Allow Bluetooth devices to connect to this computer check box (Connections) has a tick inside it. 3. Click Devices (tab), and then click Add. 4.
Page 227 Windows XP Information To Change Settings for the Bluetooth Device Access the Bluetooth Devices control panel. Click on the device you want to change and click Properties to: • Change the name of the device (click General, type a new name and click OK). •...
Page 228: D - 44 Pc Camera Module
Windows XP Information PC Camera Module Before installing the optional PC Camera module driver use the Fn + F10 key com- Taking Still Pictures bination to toggle power to the module. The PC Camera module uses the BisonCap application to capture video files and to take pictures. Double-click Computer icon on the PC Camera Driver Installation...
Page 229 Windows XP Information PC Camera Audio Setup If you wish to capture video & audio with your camera, it is necessary to setup the audio recording options in Windows. Go to the Start menu and point to Settings (or just click Control Panel) and click Control Panel, then double- click the Sounds &...
Page 230 Windows XP Information BisonCap BisonCap is a video viewer for general purpose video viewing and testing, and cap- turing video files to .avi format. Pre-Allocating File Space 1. Run the BisonCap application from the Start > Programs/All Programs > Bison- Cam menu (it is recommended that you set the capture file before the capture You may pre-allocate process - see Set Capture File below).
Page 231 Windows XP Information Reducing Video File Size Note that capturing high resolution video files requires a substantial amount of disk space for each file. After recording video, check the video file size (right-click the file and select Properties) and the remaining free space on your hard disk (go to My Computer, right-click the hard disk, and select Properties) If necessary you can remove the recorded video file to a removable medium e.g.
Page 232 Windows XP Information Eliminating Screen Flicker If you find that the video screen in the BisonCap program is flickering, you can try to adjust the setting in the Video Capture Filter options. 1. Run the BisonCap program. 2. Go to Options and scroll down to select Video Capture Filter..3.
Page 233 Windows XP Information Zoom The BisonCap program allows you to zoom the camera in and out. Run the BisonCap program. Go to Zoom and select Zoom Out/Zoom In. Figure D - 30 Zoom/Setting Snapshot Folder Taking Still Pictures The Snapshot folder’s The BisonCap program allows you to take still pictures.
Page 234: D - 50 Wireless Lan Module
Windows XP Information Wireless LAN Module Before installing the Wireless LAN driver use the Fn + F11 key combination to toggle power to the module. Wireless LAN Driver Installation (WinXP) 1. Make sure the module is powered on, then insert the Device Drivers & Utilities + User’s Manual disc into the CD/DVD drive.
Page 235 Windows XP Information Network Connection Use the Windows Net- work Connections con- trol panel access available wireless net- works (Start > Settings > Network Connections or Start > Connect To > Show all Connections). Figure D - 31 Wireless Network Control Panels Wireless LAN Module D - 51...
Page 236: 3.5G Module
Windows XP Information 3.5G Module If you have included an optional 3.5G module in your purchase option follow the instructions on page 7 - 18 install the USIM card (which will be provided by your service provider), and then install the application. Before installing the application, make sure that the 3.5G module is on.
Page 237: Fingerprint Reader Module
Windows XP Information Fingerprint Reader Module If you have included the fingerprint reader in your purchase option you will need to Help & Manual install the driver as per the instructions below. Right-click the taskbar icon Make sure you have administrator’s rights to your computer, and have a Windows to bring up the menu to password enabled for full security protection.
Page 238 Windows XP Information User Enrollment Click Start > Programs/All Programs > Protector Suite QL > User Enrollment, or double-click the taskbar icon Click Initialize. On the first run of the program you will be asked to click the button to accept the license, and then click OK. Click Next and select “Enrollment to the hard disk”, and click Finish.
Page 239 Windows XP Information 11. Swipe the finger five times to enroll that finger. 12. Repeat the process for all the fingers you wish to enroll (see sidebar), and then click Next > Finish. 13. Click “Help” in the Fingerprint Control Center to get more information on any topic. 14.
Page 240: Fingerprint Control Center Features
Windows XP Information Fingerprint Control Center Features Application Launcher The Application Launcher allows you to register applications to be launched when assigned to a particular fin- ger. Simply copy the application icon on to one of the registered fingers and ten click OK to close the application window.

This manual is also suitable for:

Wo151pa

Optima WO141PI User Manual

Quick Start Guide

Features & Components

Power Management

Drivers & Utilities

BIOS Utilities

Upgrading the Computer

Modules & Options

Troubleshooting

Interface (Ports & Jacks)

ATI Video Driver Controls

Specifications

Windows XP Information

Quick Links

Need help?

Questions and answers

Related Manuals for Optima WO141PI

Summary of Contents for Optima WO141PI
