• OWNER'S MANUAL
Please read before using this equipment.
• BEDIENUNGSANLEITUNG
Lesen Sie diese Bedienungsanleitung bitte
vor Gebrauch des Gerätes.
• MODE D'EMPLOI
Veuillez lire avant d'utiliser cet appareil.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.

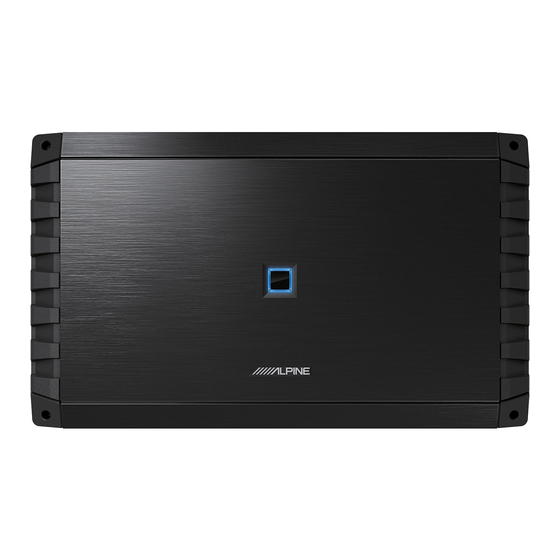

S2-A120M
MONO POWER AMPLIFIER
S2-A60M
MONO POWER AMPLIFIER
• ISTRUZIONI PER L'USO
Si prega di leggere prima di utilizzare il
attrezzatura.
• ANVÄNDARHANDLEDNING
Innan du använder utrustningen bör du
läsa igenom denna användarhandledning.
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
Прочтите настоящее руководство
перед началом использования
оборудования.
EN
DE
FR
ES
IT
SE
RU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alpine S2-A120M
Summary of Contents for Alpine S2-A120M
- Page 1 S2-A120M MONO POWER AMPLIFIER S2-A60M MONO POWER AMPLIFIER • OWNER’S MANUAL • ISTRUZIONI PER L’USO Please read before using this equipment. Si prega di leggere prima di utilizzare il attrezzatura. • BEDIENUNGSANLEITUNG Lesen Sie diese Bedienungsanleitung bitte • ANVÄNDARHANDLEDNING vor Gebrauch des Gerätes.
-
Page 3: Table Of Contents
They contain instructions on how to NEGATIVE BATTERY TERMINAL. use this product in a safe and effective manner. Alpine cannot be responsible for problems Failure to do so may result in electric shock or injury due to electrical shorts. -
Page 4: Service Care
HALT USE IMMEDIATELY IF A PROBLEM APPEARS. IMPORTANT Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or Please record the serial number of your unit in the nearest Alpine Service Center for repairing. -
Page 5: Accessories
Attaching the terminal covers will improve the appearance of the unit. How to attach the terminal covers: Due to the high power output of the S2-A120M/ Attach the left and right terminal covers using the S2-A60M considerable heat is produced when the supplied Self-Tapping Screws (3×8), as shown in the... -
Page 6: Connections
CONNECTIONS Before making connections, be sure to turn the power off to all audio components. S2-A120M (Left Side) External Fuse* 3, 4 Vehicle’s battery Vehicle’s chassis (Right Side) S2-A60M (Left Side) External Fuse* 3, 4 Vehicle’s battery Vehicle’s chassis (Right Side) - Page 7 • Connect the ground lead securely to a bare metal spot (remove any paint or grease if necessary) of the vehicle’s chassis. • If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise suppressors, contact them for further information.
- Page 8 Fuse between that point and the negative (–) S2-A120M ............25 A × 4 terminal of the vehicle’s battery. Ground all your S2-A60M .............30 A × 2 audio components to the same point on the...
- Page 9 Cautions on wire lead connections Speaker Output Terminals Hexagon Wrench (included) When using third-party wire cables (power supply wire), use the supplied screws to simplify the connection. Refer to the description below for the proper procedure. If you are in doubt about how to Hexagon hole screw make this connection, consult your dealer.
-
Page 10: Connection Check List
If any of the above conditions exist, the remote turn-on lead of your S2-A120M/S2-A60M must be connected to a switched power source (ignition) in the vehicle. Be sure to use a 3 A fuse as close as possible to this ignition tap. -
Page 11: Switch Settings
Switch. S2-A120M/S2-A60M Input Level and Turn-on Type Switch Input Gain Adjustment Control Set the S2-A120M/S2-A60M input gain to the a) If input is via the head unit speaker minimum position. Using a dynamic CD as a line using a speaker-RCA... - Page 12 About Power Indicator Power Indicator Lights up when power is on. Is off when power is off. Indication color Status Solution Blue Amplifier circuit is normal. Operating temperature is Turn down the volume of the head unit (input (blinking) high. signal).
-
Page 13: System Diagrams
SYSTEM DIAGRAMS Before making a connection, check the total number of impedance of the speaker connected to the unit. If you have any questions, contact the nearest Alpine dealer. Basic Connection Diagram Speaker Output Terminals Front Output Fuse Rear Output... - Page 14 Speaker-RCA Conversion Cable ( ) (sold separately). For details on how to make a connection, see “About Connecting to the Speaker Input Level System” (page 14). 2 Subwoofer System for S2-A120M Input Level and Turn-on Type Switch [LO] Head Unit, etc.
- Page 15 Multiple Mono Amplifier System for S2-A60M Input Level and Turn-on Type Switch [LO] Head Unit, etc. Remote Turn-On Lead Input Level and Turn-on Type Switch [LO]...
- Page 16 About Connecting to the Speaker Input Level System When connecting by using the Speaker-RCA Conversion Cable ( ) (sold separately), switch the Input Level and Turn-on Type Switch ( ) to “HI”. Input Level and Turn-on Type Switch RCA Input Jacks [HI] Head Unit, etc.
- Page 17 S2-A60M: 4 AWG/21 mm (Max. length 10 m) • External Fuse capacity: Make it equal to or larger than the fuse capacity of the amplifier S2-A120M: equal to or larger than 100 A S2-A60M: equal to or larger than 60 A External Fuse Amplifier Vehicle’s chassis...
-
Page 18: Specifications
SPECIFICATIONS S2-A120M S2-A60M Performance Per Channel, Ref.: 4 Ω, 14.4 V 600 W RMS x 1 330 W RMS x 1 Power Output Per Channel, Ref.: 2 Ω, 14.4 V 1,200 W RMS x 1 600 W RMS x 1 Per Channel, Ref.: 1 Ω, 14.4 V... - Page 19 To customers/Hinweis an Kunden/A l’attention de l’utilisateur/ Información para los clientes/Informazioni per i clienti/ Till kunder ENGLISH ESPAÑOL Information on Disposal of Old Electrical and Electronic Información sobre la eliminación de Viejos Equipos Equipment and Battery (applicable for countries that Eléctricos y Electrónicos, así...
- Page 20 JEIL Moon Hwa Co. 68-44781Z79-A (Y-A5) 18-6, 3Ga, Pil_dong, Jung_gu, Seoul, Korea...
