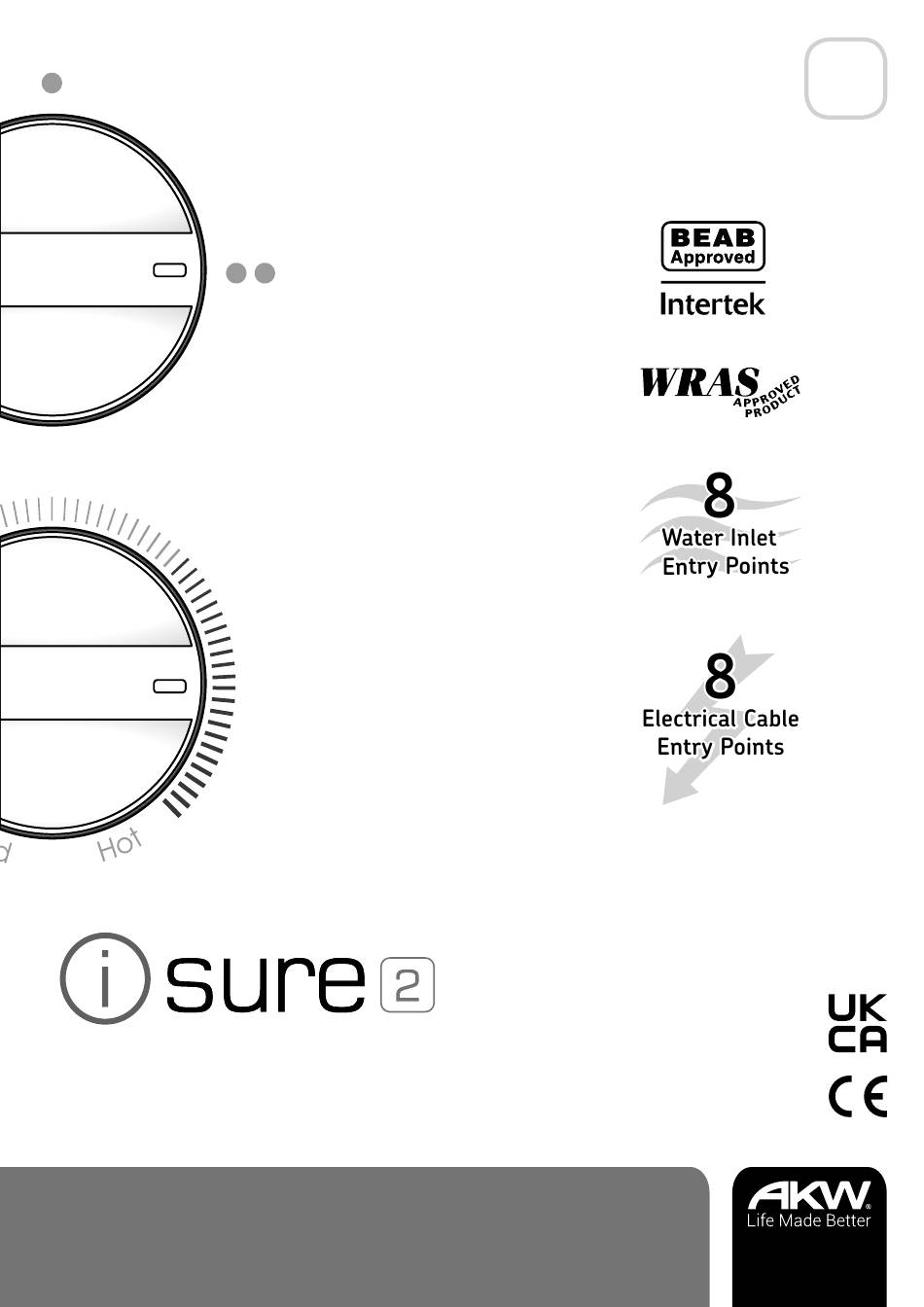

3yr
Warranty
Patented Design, Registered Design
Patented Design, Registered Design
Electric Shower
Installation and Instruction Manual
Installer - please read all instructions carefully before installation
and leave this manual with the end user for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iSure 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Akw iSure 2

  • Page 1 Warranty Patented Design, Registered Design Patented Design, Registered Design Electric Shower Installation and Instruction Manual Installer - please read all instructions carefully before installation and leave this manual with the end user for future reference...
  • Page 2: Introduction

    Product Features The iSure 2 Electric Shower has been specifically designed to allow for easy installation. Advanced fitting innovations mean it’s quick and easy to install over most manufacturers’ footprints. Flexible Installation 8 Water Inlet Points 8 Cable Inlet Points...
  • Page 3: Table Of Contents

    These instructions are provided to advise the minimum standards of installation and recommends the best practice for the installation. Due to the very wide variability of possible installation conditions AKW cannot provide all circumstances for the installation. AKW cannot accept any liability in connection with this information or its use. This information is provided on the condition that the person receiving it shall make their own tests to determine the suitability for their particular purpose.
  • Page 4: User

    Do not restrict flow out of the shower by blocking or obstructing the hose or spray handset. Do not use other shower hoses and handsets with this shower. Only use AKW approved products. © 2021 AKW 14-009-105-01...
  • Page 5: Operating Instructions

    When the power is first turned on, the shower is in standby mode. To switch on, press and release the power button, the Temperature and Power Level will be indicated on the two controls. To switch off, press and release the power button to the stop water flowing. © 2021 AKW 14-009-105-01...
  • Page 6: Maintenance And Cleaning

    DO NOT position the handset to spray water directly on to the appliance. Children should be supervised at all times if they use the shower appliance or attempt to clean it. © 2019 AKW © 2021 AKW 14-009-105-01 13-012-085-17...
  • Page 7: Troubleshooting

    Water from Pressure Relief Device (PRD) coming from back Call AKW Technical Enquiries activated face of shower © 2021 AKW 14-009-105-01...
  • Page 8: Warranty

    Within this period AKW will decide to repair or replace as we may choose. Failure to activate warranty in set period will mean potential charges should a visit to site be required by an AKW Maintenance Engineer. Any action taken under this warranty does not extend the stated 3-year expiry date.
  • Page 9: Installer

    Live & Neutral Terminal Block Earth Terminal Block Removable Bottom Case Side Pipe & Cable Cut-out Entry Side Pipe & Cable Cut-out Entry Fixing Hole Shower Hose Rear of Outlet Front Cover Bottom Pipe Inlet and Cable Entry Cover © 2021 AKW 14-009-105-01...
  • Page 10: Specifications

    Height (H) 380 mm Width (W) 230 mm Depth 85 mm Footprint Height (H2) 345 mm Footprint Width (W2) 210 mm Water Ingress Rating IPX4 Water and Cable Entry Points Top, bottom, side or back. © 2021 AKW 14-009-105-01...
  • Page 11: Installation Requirements

    Do not seal the shower to the wall with silicone or other sealant. The water outlet pipe acts as a vent and must never be blocked, restricted or connected to any parts other than those AKW specifically state for use with the AKW iSure 2 shower. Before you start work: Take care when you unpack the product and make sure that you do not inadvertently discard any small parts.
  • Page 12: Positioning Of The Shower

    Ensure the shower unit is positioned over a bath, shower tray or wet floor. The showerhead must be directed away from the shower unit, during normal use the showerhead must not spray directly on to the shower unit. © 2021 AKW 14-009-105-01...
  • Page 13: Disassembly

    Slide out the relevant pipe & entry covers pipe forwards, slide out and remove the bottom cover plate Note the unit can be temporarily hung using the top screws fixings whilst the cable and pipe work entries can be connected. © 2021 AKW 14-009-105-01...
  • Page 14: Fitting To Wall

    Insert wall plugs and screw the top two and drill the marked fixing points. Before screws to the wall. Note: the bottom screw drilling, ensure there are no cables or water should only be fitted during final installation supplies running within the wall © 2021 AKW 14-009-105-01...
  • Page 15: Reassembly- Bottom Cover

    Pull the outlet connector up Slide back in the bottom cover plate Carefully push the outlet connector down to its Fasten the screws holding the outlet connector and home position bottom cover © 2021 AKW © 2021 AKW 14-009-105-01 13-012-085-18...
  • Page 16: Reassembly - Front Cover

    Before re-assembling the front cover, ensure the Attach the front cover to the shower and dials are turned clockwise and hit their end stops ensure all 4 screws are pushed home. as shown in the image above. © 2021 AKW 14-009-105-01...
  • Page 17: Plumbing

    Note: If the stated flow rates are not available, it may not be possible to achieve optimum performance from the unit throughout the year. Note: If the Pressure Relief Device fails, then call the installer in first instance as there may be a dynamic pressure problem. © 2021 AKW 14-009-105-01...
  • Page 18: Plumbing Connections

    Note: An isolating stop valve must be provided on the cold water feed before connecting to the shower. The isolation valve (not supplied) should be fitted as close as is practicable to the water supply inlet of the shower heater whilst being accessible for maintenance and servicing purposes. © 2021 AKW © 2021 AKW 14-009-105-01...
  • Page 19: Plumbing Entry Points

    Bottom Entry Top Entry Left or right side bottom inlet. Left or right side top inlet. Note: Some water from the factory testing may escape when the bottom blanking plug is removed. © 2021 AKW © 2021 AKW 14-009-105-01 13-012-085-18...
  • Page 20: Check List

    Place absorbent material around the inlet areas in case of leaks. Check that there are no leaks Turn off the supply, dry off any water in and around the appliance before connecting or reinstating the electricity. © 2021 AKW 14-009-105-01...
  • Page 21: Electricals

    Other electrical equipment must not be connected to the same shower circuit. A 30mA residual current device (RCD) MUST be installed. This may be part of the consumer unit or a separate RCD unit. This appliance must be earthed. © 2019 AKW © 2021 AKW 14-009-105-01 13-012-085-17...
  • Page 22 Where shower cubicles are located outside of a bathroom, all socket outlets in the room must be protected by a 30mA RCD. Consult the wiring regulations. It is recommended to use the shortest cable route possible from the consumer unit to the shower. © 2019 AKW © 2021 AKW 14-009-105-01...
  • Page 23: Electrical Entry Points

    Note: Depending on cable size and entry point used, it may be necessary to strip back the outer cable sheath sufficiently to allow cables to be directed to the terminal connection block within the unit. © 2019 AKW © 2021 AKW...
  • Page 24: Check List

    The current carrying capacity of the cable must be at least that of the shower circuit protection. Trim and replace the pipe and cable entry covers. DO NOT connect any other fittings to this shower. DO NOT use silicone sealant to seal the shower appliance to the wall. © 2021 AKW 14-009-105-01...
  • Page 25: Commissioning

    Allow the shower to run until a smooth flow is achieved Zero (approx. 1 minute). Once complete, press the power and press the power button to button to exit cold water enter cold water flushing mode flushing mode. © 2021 AKW 14-009-105-01...
  • Page 26: Functional Checks & Testing

    Confirm the operation of the Temperature and Power Level increase and decrease knobs Press the Power button to revert to standby mode It is important to complete the installation and record the commissioning tests to provide a performance reference point for future tests. © 2021 AKW 14-009-105-01...
  • Page 27: Commissioning Record

    Water supply temperature Mains terminal Voltage Record details of test equipment (brand, model, serial number and calibration information) used to provide the above information, if necessary record on separate paper and attach to this instruction booklet. © 2021 AKW 14-009-105-01...
  • Page 28 -Blank Page- © 2021 AKW 14-009-105-01...
  • Page 29 -Blank Page- © 2021 AKW 14-009-105-01...
  • Page 30 -Blank Page- © 2021 AKW 14-009-105-01...
  • Page 31: Contact Us

    01905 560219 technicalenquiries@akw-ltd.co.uk 01905 823297 Website www.akw-ltd.co.uk Quotes & Orders Email orders@akw-ltd.co.uk Sales & Enquiries Email sales@akw-ltd.co.uk AKW, Pointon Way, Hampton Lovett, Droitwich Spa, WR9 0LR Social facebook.com/akwone twitter.com/akw_one youtube.com/akwstyleability linkedin.com/company/akw As part of our continuous improvement programme we appreciate any feedback on our products and instructions.
