User Manual

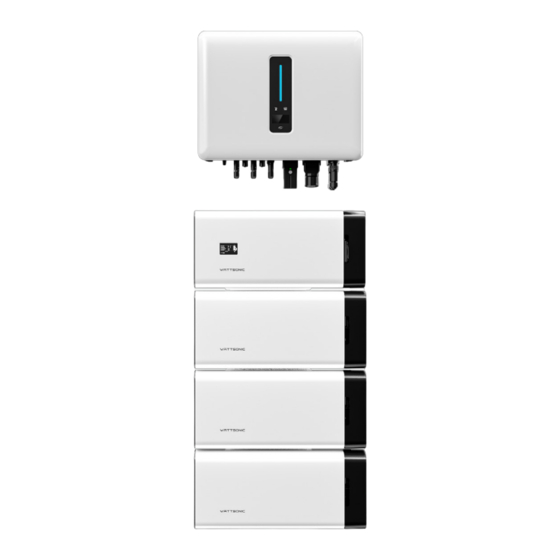

Wattsonic Gen3 Hybrid Inverter
4 / 5 / 6 / 8 / 1 0 / 1 2 K W- 2 5 A- 3 P
1 0 / 1 2 / 1 5 / 2 0 K W- 4 0 A- 3 P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4.0K-25A-3P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for wattsonic 4.0K-25A-3P

Summary of Contents for wattsonic 4.0K-25A-3P

  • Page 1 User Manual Wattsonic Gen3 Hybrid Inverter 4 / 5 / 6 / 8 / 1 0 / 1 2 K W- 2 5 A- 3 P 1 0 / 1 2 / 1 5 / 2 0 K W- 4 0 A- 3 P...

  • Page 3: Table Of Contents

    About This Manual ……………………………………… 1.1 Overview ………………………………………………………………………… 6 1.2 Important Safety Instructions ………………………………………………… 7 1.3 What is Wattsonic All-in-one ESS …………………………………………… 10 1.4 How to Use This Manual ……………………………………………………… 11 1.5 Target Groups ………………………………………………………………… 11 1.6 Symbols ………………………………………………………………………… 11 Safety Instructions ………………………………………...
  • Page 4 Inverter+Sub-Master BMS + 7 Battery Modules ………………………………………… 43 Wall Mounted (vertical+horizonal) …………………………………………………… 43 Battery Stack Installation …………………………………………………………… 44 Inverter + BMS + 8 Battery Modules ……………………………………………………… 45 Wall Mounted (vertical+horizonal) …………………………………………………… 45 Battery Stack Installation …………………………………………………………… 46 5.4 Battery Cables Connection+ Battery---Inverter Cable connection（Power+COM）...
  • Page 5 Monitoring ………………………………………………… 9.1 Monitoring Device …………………………………………………………… 9.2 Cloud monitoring App ………………………………………………………… 9.3 Local configuration App ……………………………………………………… 9.4 System Start and Stop ……………………………………………………… Troubleshooting ………………………………………… 10.1 Error Message …………………………………………………………… 10.2 Inverter Maintenance …………………………………………………… 10.3 Battery Maintenance …………………………………………………… Appendix ………………………………………………… 11.1 Technical Parameters ……………………………………………………… 11.2 Contact Information ………………………………………………………...

  • Page 6: About This Manual

    All specifications and descriptions contained in this document are verified to be accurate at the time of printing. However, because continuous improvement is a goal at Wattsonic, we reserve the right to make product modifications at any time. The images provided in this document are for demonstration purposes only.

  • Page 7: Important Safety Instructions

    Wattsonic Certified Installers. Wattsonic assumes no liability for injury or property damage due to repairs attempted by unqualified individuals or a failure to properly follow these instructions. These warnings and cautions must be followed when using Wattsonic ESS.
  • Page 8 Warning: Wattsonic is heavy and challenging to lift. Warning: Use Wattsonic LFP Battery only as directed. Warning: Do not use Wattsonic LFP Battery if it is defective, appears cracked, broken, or otherwise damaged, or fails to operate. Warning: Before beginning the wiring portion of the installation, first power off the inverter and then open the AC and DC disconnect switches (if applicable for the installation).
  • Page 9 Caution: Do not place Wattsonic LFP Battery in a storage condition for more than one (1) month, or permit the electrical feed on the Wattsonic LFP Battery to be severed for more than one (1) month, without placing Wattsonic LFP Battery into a storage condition in accordance with Wattsonic’s storage specifications.

  • Page 10: What Is Wattsonic All-In-One Ess

    Wattsonic All-in-one ESS thereby maximizes solar consumption and reduces energy spending. A FLEXIBLE SOLUTION Wattsonic All-in-one ESS can be charged from solar or grid power and can provide backup power. If greater amounts of energy are needed, multiple Wattsonic All-in-one ESS can be...

  • Page 11: How To Use This Manual

    The products, services or features purchased are subject to the commercial contracts and terms of Wuxi Wattsonic Energy Technology Co., Ltd. All or part of the products, services or features described in this document may not be within the scope of purchase. This docu- ment serves only as a guide to use, and all statements, information and recommendations in this document do not constitute any express or implied guarantee.
  • Page 12 Indicates a hazard with a low level of risk that, if not avoided, could result in minor or moderate injury. CAUTION Indicates a situation that, if not avoided, could result in equipment or property damage, data loss, equipment performance degradation. NOTICE Indicates additional information, emphasized contents or tips that may be helpful, e.g., to help you solve problems or save time.

  • Page 13: Safety Instructions

    2.2 Statement Wuxi Wattsonic Energy Technology Co., Ltd has the right not to undertake quality assur- ance in any of the following circumstances: ① Damages caused by improper transportation.
  • Page 14 ⑦ Damages caused by unauthorized disassembly, alteration of products or modification of software codes. ⑧ Damages caused by abnormal natural environment (force majeure, such as lightning, earthquake, fire, storm, etc.). ⑨ Any damages caused by the process of installation and operation which don't follow the local standards and regulations.

  • Page 15: Product Description

    It cannot guarantee backup power in all circumstances. NOTICE The applicable grid types for the Wattsonic 4.0~20.0kW-3P series are TN-S, TN-C, TN-C-S and TT. When applied to the TT grid, the voltage of N to PE suggests less than 30V.

  • Page 16: Product Introduction

    3.2 Product Introduction The Wattsonic 4.0~20.0kW-3P series inverter is also known as hybrid inverter or storage in- verter, which is mainly used to combine the PV array, lithium battery, loads and power grid to realize intelligent power management and dispatching.
  • Page 17 Master inverter through RS485 or CAN. tion Indicator The inverter isn’t communicating with Orange Always on Wattsonic smart meter. The inverter isn’t communicating with the Always on BMS. Display Display off to save power, press the button to wake up the display.

  • Page 18: Symbols On The Inverter

    3.3 Symbols on the Inverter Symbol Description To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end-users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol.

  • Page 19: Operation Modes

    3.4 Operation Modes Wattsonic 4.0~20.0kW-3P series inverter has the following basic operation modes and you can configure the operation mode as per your preference in the App. General Mode Loads In this working mode, when the power from the PV array is sufficient, PV power will supply the loads, battery, and grid in the order of ...
  • Page 20 Peak load Shifting (Load Shifting) Loads Set the maximum power Pmax (kVA) contracted with the grid. When the load consumption is less than the Pmax, the PV will charge the battery first, and the grid supplies the load. When the battery is full, PV will supply the load together with the grid, but the battery doesn't.
  • Page 21 UPS Mode Loads In this working mode, the inverter will use the power from PV or grid to charge the battery until it is fully charged, and as long as the grid is there, the battery won’t discharge. Grid Back-up Loads When the grid fails, power from PV and battery will supply loads connected on the back-up side (UPS).
  • Page 22 Economic Mode Loads In this working mode, you can set charge/dis- charge power and time in the App, inverter will use the power from PV or grid (whether to use can be set in the App) to charge the battery in the predetermined period.
  • Page 23 Off-grid Mode Back-up Loads In the purely off-grid mode, power from PV will supply the back-up loads first and then charge the battery if there's surplus power. No Grid Back-up Load When the power from PV isn’t enough, the battery will discharge to supply back-up loads together with PV.

  • Page 24: Back-Up And Off-Grid Output

    ④ Due to the condition of the battery itself, battery current might be limited by some fac- tors, including but not limited to the temperature and weather. Wattsonic 4.0~20.0kW-3P hybrid inverter overloading ability in off-grid work mode de- scribes as follows:...

  • Page 25: Unpacking And Storage

    For this reason, please conduct a thorough inspection after receiving the device. Contact Wattsonic or the transport company in case of any damage or incompleteness, and provide photos to facilitate services. 3.6.1 Packing List The package of the inverter includes the following accessories.
  • Page 26 Inverter (1pcs) Wall-mounting bracket (1pcs), Expansion plug set (5pcs), M5 screws (1pcs) On-grid connector set (1pcs) Back-up connector set (1pcs) Black PV terminal (4.0K-25A-3P 2 pairs / 10K-40A-3P 4 pairs) Black Battery terminal (1pairs) Blue Meter with 3 CTs (1pcs)

  • Page 27: Inverter Installation

    Inverter Installation 4.1 Location The Wattsonic 4.0~20.0kW-3P series inverters are designed with IP65 protection enclosure for indoor and outdoor installations. When selecting an inverter installation location, the fol- lowing factors should be considered: ① The wall on which the inverters mounted must be able to withstand the weight of the in- verter.
  • Page 28 4.1.2 Installation location Reserve enough clearance around the inverter to ensure sufficient space for heat dissipation. 500mm 500mm 300mm 300mm 300mm 500mm 500mm Figure 4-2 Recommended installation spacing 4.1.3 Installation Angle Install the inverter vertically. Never install the inverter horizontally, or at forward/backward tilted, or upside down.

  • Page 29: Mounting The Inverter

    4.2 Mounting the Inverter 4.2.1 Wall bracket installation Dimensions of wall bracket (mm) Figure 4-4 Dimensions of wall bracket ① Use the wall bracket as the template to mark the position of 5 holes on the wall. Figure 4-5 Marking hole position using installation bracket ②...
  • Page 30 Figure 4-6 Fixing the wall bracket 4.2.2 Mounting the inverter Lift the inverter, hang the back rail on the fixed wall bracket carefully. Secure the inverter with M5 screws. Figure 4-7 Mounting the inverter 4.2.3 External ground connection Connect the inverter and ground bar through PE wire to achieve the purpose of grounding protection.
  • Page 31 Reliable grounding is good for resisting surge voltage shock and improving EMI performance. Inverters must be well-grounded. For a system with only one inverter, just ground the PE cable. NOTICE For a multi-inverter system, all inverters PE wire need to be connected to the same grounding copper bar to ensure equipotential bonding.

  • Page 32: Battery Installation

    * Battery System Configuration Options【2.3kWh】：230V/6.9kWh，307V/9.2kWh，384V/11.5kWh, 460V/13.8kWh, 537V/16.1kWh, 614V/18.4kWh * Battery System Configuration Options【3.84kWh】：230V/11.5kWh，307V/15.3kWh，384V/19.2kWh, 460V/23.0kWh, 537V/26.8kWh, 614V/30.7kWh * Wattsonic reserves the right to modify the technical datasheet and apperance of the product in the cataloge without prior advice to the users...

  • Page 33: Standard Packing List

    5.2 Standard Packing List Main units Sub-Master BMS Module 76.8V/2.3KWH Back Sheet LFP Battery Module Standard Accessories Battery<-->Battery/Sub- Battery<-->Battery Battery<-->Sub-Master BMS Master BMS Power Cable with MC4(+/-) Power Cable with MC4 Communication Cables (-/- ,+/+) Com Resistor Grounding Wire between Back Sheet Expansion Screws Battery Modules and Sub-...

  • Page 34: Mechanical Installation

    5.3 Mechanical Installation Selection of Installation Location The floor is flat and level. There are no flammable or explosive materials. The ambient temperature is within the range from 0 to 50. The temperature and humidity is maintained at a constant level. There is minimal dust and dirt in the area.

  • Page 35: Inverter+Sub-Master Bms + 3 Battery Modules

    Inverter+Sub-Master BMS + 3 Battery Modules Wall Mounted (vertical) Suggested Back sheet positioning and installation 1) Use the back sheet as the template to Please use 7pcs Inverter mark the position of holes on the wall. back sheet expansion Make sure the back sheet is in a horizontal s c r e w s t o f i x t h e minimum 390mm position.

  • Page 36: Battery Stack Installation

    Inverter+Sub-Master BMS + 3 Battery Modules Battery Stack Installation Place stacked batteries and Sub-Master Check installation environment to ensure ground level. Place the first battery on the ground, with the cushion facing down, and make sure it is level and stable. The remaining battery and master control are then placed in turn.

  • Page 37: Inverter+Sub-Master Bms + 4 Battery Modules

    Inverter+Sub-Master BMS + 4 Battery Modules Wall Mounted (vertical+horizontal) Suggested Back sheet positioning and installation 1) Use the back sheet as the template to mark the position of holes on the wall. Please use 7pcs Inverter Make sure the back sheet is in a horizontal back sheet expansion minimum 540mm s c r e w s t o f i x t h e...

  • Page 38: Battery Stack Installation

    Inverter+Sub-Master BMS + 4 Battery Modules Battery Stack Installation Place stacked batteries and Sub-Master Check installation environment to ensure ground level. Place the first battery on the ground, with the cushion facing down, and make sure it is level and stable. The remaining battery and master control are then placed in turn.

  • Page 39: Inverter+Sub-Master Bms + 5 Battery Modules

    Inverter+Sub-Master BMS + 5 Battery Modules Wall Mounted (vertical+horizontal) Suggested Back sheet positioning and installation 1) Use the back sheet as the template to minimum 540mm mark the position of holes on the wall. Please use 7pcs Inverter Make sure the back sheet is in a horizontal back sheet expansion s c r e w s t o f i x t h e position.

  • Page 40: Battery Stack Installation

    Inverter+Sub-Master BMS + 5 Battery Modules Battery Stack Installation Place stacked batteries and Sub-Master Check installation environment to ensure ground level. Place the first battery on the ground, with the cushion facing down, and make sure it is level and stable. The remaining battery and master control are then placed in turn.

  • Page 41: Inverter+Sub-Master Bms + 6 Battery Modules

    Inverter+Sub-Master BMS + 6 Battery Modules Wall Mounted (vertical+horizontal) Suggested Back sheet positioning and installation 1) Use the back sheet as the template to minimum 540mm Please use 7pcs Inverter back sheet expansion mark the position of holes on the wall. s c r e w s t o f i x t h e Make sure the back sheet is in a horizontal Inverter’s back sheet to...

  • Page 42: Battery Stack Installation

    Inverter+Sub-Master BMS + 6 Battery Modules Battery Stack Installation Place stacked batteries and Sub-Master Check installation environment to ensure ground level. Place the first battery on the ground, with the cushion facing down, and make sure it is level and stable. The remaining battery and master control are then placed in turn.

  • Page 43: Inverter+Sub-Master Bms + 7 Battery Modules

    Inverter+Sub-Master BMS + 7 Battery Modules Suggested Wall Mounted (vertical+horizontal) Back sheet positioning and installation minimum 540mm 1) Use the back sheet as the template to Please use 7pcs Inverter mark the position of holes on the wall. back sheet expansion Make sure the back sheet is in a horizontal s c r e w s t o f i x t h e minimum...

  • Page 44: Battery Stack Installation

    Inverter+Sub-Master BMS + 7 Battery Modules Battery Stack Installation Place stacked batteries and Sub-Master Check installation environment to ensure ground level. Place the first battery on the ground, with the cushion facing down, and make sure it is level and stable. The remaining battery and master control are then placed in turn.

  • Page 45: Inverter + Bms + 8 Battery Modules

    Inverter+Sub-Master BMS + 8 Battery Modules Wall Mounted (vertical+horizontal) Suggested Back sheet positioning and installation minimum 540mm 1) Use the back sheet as the template to Please use 7pcs Inverter mark the position of holes on the wall. back sheet expansion minimum minimum Make sure the back sheet is in a horizontal...

  • Page 46: Battery Stack Installation

    Inverter+Sub-Master BMS + 8 Battery Modules Battery Stack Installation Place stacked batteries and Sub-Master Check installation environment to ensure ground level. Place the first battery on the ground, with the cushion facing down, and make sure it is level and stable. The remaining battery and master control are then placed in turn.

  • Page 47: Battery Cables Connection

    5.4 Battery Cables Connection Battery <---->Inverter Cable connection(Power + COM) (Wall Mounted) Battery Cables Connection Inverter+Sub-Master BMS + 3 Battery Modules Battery power cables connection Battery communication cables connection Inverter Inverter Inverter COM. Service COM. Inverter COM. Service COM. Inverter Inverter Inverter Inverter...

  • Page 48: Inverter+Sub-Master Bms + 4 Battery Modules

    Inverter+Sub-Master BMS + 4 Battery Modules Battery power cables connection Battery communication cables connection Inverter Inverter Inverter COM. Service COM. Inverter COM. Service COM. Inverter Inverter Inverter Inverter DC ISOLATOR DC ISOLATOR Please make sure the main switch at OFF position during OFF OFF OFF OFF installation to guarantee high...

  • Page 49: Inverter+Sub-Master Bms + 5 Battery Modules

    Inverter+Sub-Master BMS + 5 Battery Modules Battery power cables connection Battery communication cables connection Inverter Inverter COM. Service COM. Inverter Inverter DC ISOLATOR Please make sure the main switch at OFF position during OFF OFF installation to guarantee high voltage protection. Sub-Master BMS Battery Input Battery Input...

  • Page 50: Inverter+Sub-Master Bms + 6 Battery Modules

    Inverter+Sub-Master BMS + 6 Battery Modules Battery power cables connection Battery communication cables connection Inverter Inverter COM. Service COM. Inverter Inverter DC ISOLATOR Please make sure the main switch at OFF position during OFF OFF installation to guarantee high voltage protection. Sub-Master BMS Battery Input Battery Input...

  • Page 51: Inverter+Sub-Master Bms + 7 Battery Modules

    Inverter+Sub-Master BMS + 7 Battery Modules Battery power cables connection Battery communication cables connection Inverter Inverter COM. Service COM. Inverter Inverter DC ISOLATOR Please make sure the main switch at OFF position during OFF OFF installation to guarantee high voltage protection. Sub-Master BMS Battery Input Battery Input...

  • Page 52: Inverter+Sub-Master Bms + 8 Battery Modules

    Inverter+Sub-Master BMS + 8 Battery Modules Battery power cables connection Battery communication cables connection Inverter Inverter COM. Service COM. Inverter Inverter DC ISOLATOR Please make sure the main switch at OFF position during OFF OFF installation to guarantee high voltage protection. Sub-Master BMS Battery Input Battery Input...

  • Page 53: (Stackable) Battery Cables Connection

    (Stackable) Battery Cables Connection Battery power cables connection Battery communication cables connection Please make sure the main switch at OFF position during installation to guarantee high voltage protection. Inverter Sub-Master BMS Step1, please plug in Battery #1 B- to Sub-Master BMS Battery Input- with Step1, please plug in Battery #1 Up the cables in accessories package.

  • Page 54: Battery System Pe Connection

    Battery System PE connection Battery earth cables connection Please use standard earth connection cables from Distribution standard accessories to connect together Sub- Master BMS to battery array in series, and then Sub-Master BMS Battery #5 connect to earth point in distribution box from Down Down Sub-Master BMS.

  • Page 55: Electrical Connection

    WARNING maintenance. Do not use other brands or other types of terminals other than the terminals in the accessory package. Wattsonic has the right to refuse all NOTICE damages caused by the mixed-use of terminals. Moisture and dust can damage the inverter, ensure the cable gland is securely tightened during installation.

  • Page 56: Electrical Wiring Diagram

    6.1 Electrical wiring diagram This diagram shows Wattsonic 4.0~20.0kW-3P series hybrid inverter wiring structure and composition, concerning the real project, the installation and wiring have to be in line with the local standards. AC Breaker AC Breaker AC Breaker Wattsonic Smart Meter...
  • Page 57 Single inverter wiring diagram This diagram is an example without special requirement on electrical wiring connection. Neutral line of AC supply can be isolated or switched. BACK-UP ON-GRID Figure 5-2 Standard wiring diagram...
  • Page 58 This diagram is an example for Australia and New Zealand. Neutral line of AC supply must not be isolated or switched, and the neutral line of GRID side and BACK-UP side must be connected together according to the wiring rules AS/NZS_3000. Otherwise, BACK-UP func- tion will not work.

  • Page 59: Ac Connection

    Max. input (output) current of 4.0~20.0kW-3P AC side. The allowable AC cable of wire diameter and cross-sectional area for Wattsonic 4.0~20.0kW-3P are as shown in the following: Wire Diameter...
  • Page 60 Residual Current Monitoring Device With an integrated universal current-sensitive residual current monitoring unit included, the inverter will disconnect immediately from the mains power once a fault current with a value exceeding the limit is detected. However, if an external residual current device (RCD) is mandatory, the switch must be triggered at a residual current of 300 mA (recommended), or it can be set to other values according to local regulations.
  • Page 61 The cord end terminals must be locked tightly, and make sure it won’t be loose after a long period of use. WARNING ④ According to the arrow direction push the threaded sleeve to make it connected with the AC terminal head and then rotate the cable gland clockwise to lock it. Figure 5-8 6.2.3 Installing the AC Connector High voltage may be present in inverter!

  • Page 62: Monitoring Device Installation

    CAUTION 6.3 Monitoring Device Installation Wattsonic 4.0~20.0kW-3P series hybrid inverter supports WIFI, LAN, and 4G communi- cation.Plug the WIFI, LAN, or 4G module into the COM1 port in the bottom of inverter. A slight "click" sound during the installation represents that the assembly is in place.

  • Page 63: Meter And Ct Connection

    The Meter can be installed in the AC combiner box or other places that are unable to be touched by children. Wattsonic CT cable with length of 2m, it’s fixed and can’t be extended. The CTs have been connected to the Wattsonic Meter when you received them, and you just need to follow the wiring diagram in the Meter to connect CT.

  • Page 64: Communication Connection

    Meter terminals definition as shown in table below: Definition Function L1-S1 L1-S2 L2-S1 To detect the CT current L2-S2 L3-S1 L3-S2 L1/L2/L3/N connect to grid to detect power grid voltage Power supplied from grid RS485 RS485 Communicate with inverter 6.5 Communication Connection All communication ports are in the multifunction communication Port at the bottom of inverter which including Meter port, CAN port, BMS port, EMS port, RLYOUT port, DRED port.
  • Page 65 Definition Function RJ45-1 RS 485 Communicate with Meter RJ45-2 Communicate with BMS Multifunction Relay NO (Normally Open) Reserved Reserved DRM4/8 DRM3/7 DRM2/6 DRED For Australia and New Zealand DRM1/5 COM D/0 REF D/0 Fast stop + Fast stop Fast stop - 485 B1 485 A1 CANL_P...
  • Page 66 ② Take out the terminal block. Figure 5-14 ② Remove the seal and lead the cable through the cable gland. Figure 5-15 6.5.2 Connect the Meter and BMS communication cables The communication between meter/BMS and inverter is RJ45 interface cable. NOTE ①...
  • Page 67 ② Insert one side of the RJ45 plug into the RJ45 port of terminal block. Figure 5-17 ③ Insert another side of the communication cable into the meter RS485 port or BMS CAN port. 6.5.3 Connect other cables ① Thread the cable of appropriate length through the swivel nut and the housing. Remove the cable jacket and strip the wire insulation.
  • Page 68 Figure 5-19 ③ Fix all the wires to the terminal plug according to the assignment and tighten to a torque of 1.2+/-0.1N·m with a screwdriver. Figure 5-20 ④ Pull the wires outward to check whether they are firmly installed. Insert the terminal block into the connector until it snaps into place with an audible click. Clic Click k Figure 5-21...
  • Page 69 ⑤ Fasten the swivel nut. ・m 2.5+/-0.1N·m Figure 5-22 6.5.4 Installing the COM Connector ① Remove the waterproof lid from the COM terminal. ② Insert the COM connector into COM terminal on the bottom of the inverter until there is an audible click.
  • Page 70 6.5.5 Meter and BMS communication Before purchasing the battery, you need to make sure the battery you selected is in the battery approval list of Wattsonic, otherwise, the system may not work properly. Please contact your installer or Wattsonic NOTE service team for confirmation if you’re not sure about it.
  • Page 71 Maximum voltage and current at DO dry contact port: 230VAC 1A/ 30VDC 1A. NOTICE For more installation and setup information, please contact Wattsonic. NOTE Load Control Breaker Contactor...
  • Page 72 The AC contactor should be placed between the inverter and the loads. Do not connect the load to DO port directly. The contactor is not supplied by the Wattsonic. Connect the load to the DO port of the inverter directly if the load is designed with a DI port.
  • Page 73 The on-grid and back-up side cannot be The back-up side cannot be connected on- connected to and generator directly. grid side or grid. For advanced applications, please contact our after-sales department. Figure 5-27 For more installation and setup information about parallel system, please contact Wattsonic. NOTE...

  • Page 74: Pv String Connection

    6.5.10 Fast stop Wattsonic 4.0~20.0kW-3P hybrid inverter comes standard with fast stop function, and you can use this function by connecting an external switch into the fast stop interface if it re- quires in the installation place. The external switch doesn't include in our accessory box.
  • Page 75 6.6.1 PV Side Requirements System Layout of Units with external DC Switch ① Local standards or codes may require that PV systems are fitted with an external DC switch on the DC side. The DC switch must be able to safely disconnect the open-circuit voltage of the PV array plus a safety reserve of 20%.
  • Page 76 ① Peel off the DC cable insulation sleeve for 7 mm. Figure 5-30 ② Disassemble the connector in the accessory bag. Figure 5-31 ③ Insert the DC cable through the DC connector nut into the metal terminal and press the terminal with a professional crimping plier (pull back the cable with some power to check if the terminal is well connected to the cable).
  • Page 77 Open-end Wrench Figure 5-33 6.6.3 Installing the PV Connector ① Rotate the DC switch to “OFF” position. Figure 5-34 ② Check the cable connection of the PV string for polarity correctness and ensure that the open circuit voltage in any case does not exceed the inverter input limit of 1,000V.PV Max. Input voltage is 950V without battery, or 850V with battery, otherwise inverter will be wait- ing.
  • Page 78 ③ Insert the positive and negative connectors into the inverter DC input terminals respec- tively, a click sound should be heard if the terminals are well connected. Figure 5-36 ④ Seal the unused PV terminals with the terminal caps.

  • Page 79: Power Cable Of The Battery Connection

    If the conductor core of the battery cable is too small, which may cause poor contact between the terminal and the cable, please use the cable specified in the above table, or contact Wattsonic to purchase terminals CAUTION of other specifications.
  • Page 80 10mm 10mm 10mm 10mm Figure 5-38 ③ Insert the battery cable through the battery connector nut into the metal terminal and press the terminal with a professional crimping plier (pull back the cable with some power to check if the terminal is well connected to the cable). Figure 5-39 ④...
  • Page 81 ① Before making the battery connector, please make sure the polarity of the cable is correct. ② Use a multimeter to measure the voltage of the battery pack and make WARNING sure the voltage is within the inverter limitation and the polarity is correct. ⑥...

  • Page 82: Commissioning

    "8.2 Cloud monitoring App and 8.3 Local configuration App". ② Register an account on the Cloud monitoring App. If you have got the account and password from the distributor/installer or Wattsonic, skip this step. 7.2 Inspection before Commissioning Check the following items before starting the inverter: ①...

  • Page 83: Stop The Inverter

    ② Select the battery ID suitable for the battery is installed. CT AUTO TEST FUNCTION Wattsonic hybrid inverter has the function of detecting the installation direction and phase sequence of CT. The system is installed, this function NOTE can be enabled on the APP for detection.

  • Page 84: Screen Operation

    Screen Operation When the inverter is turned on, the following interfaces will be displayed on the OLED display, and the OLED display allows the user to check various operation information and to modify the settings of the inverter. If the parameter is a number short press to change the number, long press to confirm the number and jump to the next number.

  • Page 85: General Setting

    8.2 General Setting General Settings FM Version V1.xx.xx.xx.xx Check code System Info V1.00 xxxxxxxxxxxxxxx V1.xx.xx.xx.xx xxxxxx 2022-05-30 10:05:05 2022-05-30 10:05:05 2022-05-30 10:05:05 Fault Info Fault 1 Fault 2 Fault N RSSI <General> <General> <General> <General> IP Addr DHCP Set DHCP Set IP Addr 192.168.0.10 192.168.0.10...
  • Page 86 Inverter Display Abbreviation and Complete Name Reference Table Abbreviation Complete Name System Info System information FM Version Firmware version Series number Fault Info Fault information RSSI Received signal strength indicator DHCP Set Enable or disable DHCP functionality IP Addr If DHCP is turned off, set the static IP address Gateway Addr If DHCP is turned off, set the Gateway IP address Subnet Mask...

  • Page 87: Advanced Setting

    8.3 Advanced Setting Advanced InPut Password Wait 1000 Settings Incorrect Verify Fail Wait Correct Verify OK <Advanced> <Advanced> <Advanced> <Advanced> The last page Safety Set Safety Set Safety Set Safety Set Safety Code 1S afety Code 2S afety Code N 50Hz Default <Advanced>...
  • Page 88 Previous Page <Advanced> <Advanced> <Advanced> OnGrid SOCProt OnGrid SOCProt OnGrid SOCProt <Advanced> <Advanced> OnGrid EndSOC OnGrid EndSOC 3 3 0 0 <Advanced> <Advanced> <Advanced> <Advanced> <Advanced> <Advanced> <Advanced> <Advanced> Unbalan.Output Unbalan.Output Unbalan.Output <Advanced> Auto Test CEI-021 <Advanced> <Advanced> <Advanced> <Advanced> System Maint.
  • Page 89 Inverter Display Abbreviation and Complete Name Reference Table Abbreviation Complete Name Safety Set Select the code that meet local regulatory requirements Battery_ID Set Select the battery model Work Mode Current work mode / work mode setting Export Limit On-grid export limit function switch Feed in Grid Set the percentage of the power that is allowed to feed to the grid Reactive Modes...

  • Page 90: Country Code (Safety Code) Setting

    Abbreviation Complete Name System Maint. System maintenance, includes inverter stop and run, system restart In the multi-inverter parallel system, set the role of one inverter as the master and the Multi-INV Role other inverter as the slave. If turned it on, the battery will be automatically charged to calibrate the battery SOC. SOC Reset After the battery is charged, this function will be turned off automatically MPPT Parallel...
  • Page 91 Connect the AC cable, auto test will start after the inverter connected to the grid, see the operation steps below: Previous Page <Advanced> <Advanced> If Tested Auto Test Auto Test Wait CEI 0- 21 Record Wait <Advanced> Vac Set: 253.0V Time Set: 603 S Wait Wait...
  • Page 92 This mode can be enabled via configuration software. It is enabled by default in some regions, such as AU, DE market. For information on how to change default setpoints please contact Wattsonic Technical Support at service@wattsonic.com. Descriptions of reactive power regulation mode:...
  • Page 93 8.6.3 “Qt” Mode In the Qt mode, system rated reactive power is fixed, and the system injects reactive power according to the delivered reactive power ratio. The setting range of the reactive power ratio is 0~60% or 0~-60%, corresponding to the ranges of inductive and capacitive reactive power regulation respectively.
  • Page 94 8.6.5 “Q(U)” Mode The reactive power output of the inverter will vary in response to the grid voltage. “Q(U)” Mode Parameter Descriptions: Parameter Explanation Range Hysteresis Ratio Voltage hysteresis ratio on the Q(U) mode curve 0 ~ 5% QU_V1 Grid voltage limit at P1 on the Q(U) mode curve 80% ~ 100% QU_Q1 Value of Q/Sn at P1 on the Q (U) mode curve...

  • Page 95: Monitoring

    Monitoring 9.1 Monitoring Device Indicator Button Figure 8-1 Monitoring device display interface Indicator Status Description Connection abnormal Always On Communicate with the server normally The monitoring device is not connected to the router or is not connected to the base Slow flashing station.

  • Page 96: Cloud Monitoring App

    9.2 Cloud monitoring App Wattsonic inverter provides a monitoring port that can collect and transmit data from the inverter to Wattsonic monitoring platform via an external monitoring device. Please refer to the product nameplate on side of enclosure to get the monitoring application. If download issues exist, contact your dealer or Wattsonic technical support.
  • Page 97 Inverter COM. Service COM. Inverter COM. Service COM. Inverter Inverter Inverter Inverter DC ISOLATOR DC ISOLATOR ON ON OFF OFF Battery Input Battery Input Battery Input Battery Input Battery com Battery com Warning: Please don't try to switch off Master BMS during regular charge and discharge, which has high risk to damage BMS inside core DANGER components.

  • Page 98: Troubleshooting

    Troubleshooting 10.1 Error Message Wattsonic 4.0~20.0kW-3P series hybrid inverter is designed in accordance with grid operation standards, and conform to the requirements of safety and EMC. The inverter had passed a series of rigorous tests to ensure it runs sustainably and reliably before shipment.
  • Page 99 Error Message Description Solution 1. Check whether PV panels, cables, and con¬nectors are waterlogged or damaged. Inverter detects that DC side's insu- 2. Use a megger to measure ground resis- ISO Over Lim¬itation la¬tion impedance to the ground is tance on the DC sidel, and the measured too low.
  • Page 100 Error Message Description Solution 1. Restart the inverter. Internal storage got abnomal. Caused E2 Fault 2. Seek help from the installer or manufac- by a strong external magnetic field etc. ture. 1. Restart the inverter. GFCI De vice Fault GFCI device got abnormal 2.
  • Page 101 Error Message Description Solution Turn off inverter and remove the back-up Abnormal voltage exists on the back- connec¬tor. Use a multimeter to measure Backup OV up side whether there is voltage existing on the back-up connector. Check whether the battery voltage or PV Bus Volt Low Abnormal power schedduling input voltage is normal...
  • Page 102 Error Message Description Solution Internal communication got failed. 1. Restart the inverter. SCI Fault C a u s e d b y a s t r o n g e x t e r n a l 2. Seek for help from the installer or manu- mag¬netic field etc.

  • Page 103: Inverter Maintenance

    10.2 Inverter Maintenance Incorrect operation do cause the risk of inverter damage or personal injury. Please strictly follow the steps below. 1. select 'stop' option on inverter screen or monitoring app to shut down inverter. 2. Turn off the AC breaker on utility grid side. 3.

  • Page 104: Battery Maintenance

    Items Methods Period heck the temperature and dust of the inverter. Six months to a year (it depends on the System clean Clean the inverter enclosure if necessary. dust contents in air.) Check if the air inlet and outlet are normal. Electrical Check whether there is damage to the cables, 6 months after commissioning and...

  • Page 105: Appendix

    Appendix 11.1 Technical Parameters 4.0K-25A-3P 5.0K-25A-3P Model PV Input Start-up voltage (V) Max. DC input voltage (V)* 1000* 1000* Rated DC input voltage (V) MPPT voltage range (V)* 120-950* 120-950* No. of MPP trackers No. of DC inputs per MPPT Max.
  • Page 106 4.0K-25A-3P 5.0K-25A-3P Model Grid Side Max. output current (A) Max. input current (A) 11.6 14.5 Power factor 0.8 leading …0.8 lagging Max. total harmonic distortion <3% @Rated output power <0.5%In <0.5%In Back-up Side Rated output power (kW) Max. output power (kW) Rated output apparent power (kVA) Max.
  • Page 107 4.0K-25A-3P 5.0K-25A-3P Model Protection AC over-voltage protection Integrated Overload protection Integrated AC short-circuit protection Integrated General Data Over voltage category PV: Ⅱ ; Main: Ⅲ Dimensions (mm) 534*418*210 (W*H*D) Weight (KG) Protection degree IP65 IP65 Standby self-consumption (W) <15 <15...
  • Page 108 6.0K-25A-3P 8.0K-25A-3P Model PV Input Start-up voltage (V) Max. DC input voltage (V)* 1000* 1000* Rated DC input voltage (V) MPPT voltage range (V)* 120-950* 200-950* No. of MPP trackers No. of DC inputs per MPPT Max. input current (A) 15/15 15/15 Max.
  • Page 109 6.0K-25A-3P 8.0K-25A-3P Model Grid Side Max. total harmonic distortion <3% @Rated output power <0.5%In <0.5%In Back-up Side Rated output power (kW) Max. output power (kW) Rated output apparent power (kVA) Max. output apparent power (kVA) Rated output current (A) 11.6 Max.
  • Page 110 6.0K-25A-3P 8.0K-25A-3P Model General Data Over voltage category PV: Ⅱ ; Main: Ⅲ Dimensions (mm) 534*418*210 (W*H*D) Weight (KG) Protection degree IP65 IP65 Standby self-consumption (W) <15 <15 Topology Transformerless Operating Temperature Range (°C) -30~60 -30~60 Relative Humidity (%) 0~100 0~100 Operating Altitude (m) 3000 (>3000m derating)
  • Page 111 10K-25A-3P 12K-25A-3P Model PV Input Start-up voltage (V) Max. DC input voltage (V)* 1000* 1000* Rated DC input voltage (V) MPPT voltage range (V)* 200-950* 200-950* No. of MPP trackers No. of DC inputs per MPPT Max. input current (A) 15/15 15/15 Max.
  • Page 112 10K-25A-3P 12K-25A-3P Model Grid Side Max. total harmonic distortion <3% @Rated output power <0.5%In <0.5%In Back-up Side 12.0 Rated output power (kW) 10.0 Max. output power (kW) 11.0 13.2 Rated output apparent power (kVA) 10.0 12.0 Max. output apparent power (kVA) 11.0 13.2 Rated output current (A)
  • Page 113 10K-25A-3P 12K-25A-3P Model General Data Over voltage category PV: Ⅱ；Main: Ⅲ Dimensions (mm) 534*418*210 (W*H*D) Weight (KG) Protection degree IP65 IP65 Standby self-consumption (W) <15 <15 Topology Transformerless Operating Temperature Range (°C) -30~60 -30~60 Relative Humidity (%) 0~100 0~100 Operating Altitude (m) 3000 (>3000m derating) Cooling Natural Convection...
  • Page 114 10K-40A-3P 12K-40A-3P Model PV Input Start-up voltage (V) Max. DC input voltage (V)* 1000* 1000* Rated DC input voltage (V) MPPT voltage range (V)* 200-950* 200-950* No. of MPP trackers No. of DC inputs per MPPT Max. input current (A) 30/30 30/30 Max.
  • Page 115 10K-40A-3P 12K-40A-3P Model Grid Side Max. total harmonic distortion <3% @Rated output power <0.5%In <0.5%In Back-up Side 12.0 Rated output power (kW) 10.0 13.2 Max. output power (kW) 11.0 Rated output apparent power (kVA) 10.0 12.0 Max. output apparent power (kVA) 11.0 13.2 Rated output current (A)
  • Page 116 10K-40A-3P 12K-40A-3P Model General Data Over voltage category PV: Ⅱ ；Main: Ⅲ Dimensions (mm) 534*418*210 (W*H*D) Weight (KG) Protection degree IP65 IP65 Standby self-consumption (W) <15 <15 Topology Transformerless Operating Temperature Range (°C) -30~60 -30~60 Relative Humidity (%) 0~100 0~100 Operating Altitude (m) 3000 (>3000m derating) Cooling...
  • Page 117 15K-40A-3P 20K-40A-3P Model PV Input Start-up voltage (V) Max. DC input voltage (V)* 1000* 1000* Rated DC input voltage (V) MPPT voltage range (V)* 200-950* 200-950* No. of MPP trackers No. of DC inputs per MPPT Max. input current (A) 30/30 30/30 Max.
  • Page 118 15K-40A-3P 20K-40A-3P Model Grid Side Max. total harmonic distortion <3% @Rated output power <0.5%In <0.5%In Back-up Side 20.0 Rated output power (kW) 15.0 22.0 Max. output power (kW) 16.5 Rated output apparent power (kVA) 15.0 20.0 Max. output apparent power (kVA) 16.5 22.0 Rated output current (A)
  • Page 119 15K-40A-3P 20K-40A-3P Model General Data Over voltage category PV: Ⅱ ；Main: Ⅲ Dimensions (mm) 534*418*210 (W*H*D) Weight (KG) Protection degree IP65 IP65 Standby self-consumption (W) <15 <15 Topology Transformerless Operating Temperature Range (°C) -30~60 -30~60 Relative Humidity (%) 0~100 0~100 Operating Altitude (m) 3000 (>3000m derating) Cooling...

  • Page 120: Contact Information

    • Serial number of the device • Date of the device • Fault code/name • Brief description of the problem China (HQ) Wuxi Wattsonic Energy Technology Co., Ltd Address: No. 200 Linghu Road, Xinwu District, Wuxi 214100,Jiangsu Province, China Website: www.wattsonic.com Service Mail: service@wattsonic.com...
  • Page 121 www.wattsonic.com...

This manual is also suitable for:

5.0k-25a-3p6.0k-25a-3p8.0k-25a-3p10k-25a-3p12k~25a-3p10k-40a3p ... Show all

Table of Contents
