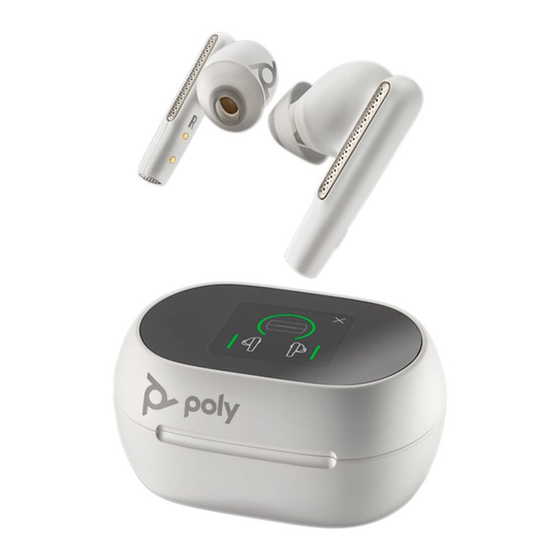

- Page 1 Voyager Free 60+ UC True Wireless Earbuds with Touchscreen Charge Case User Guide...
-
Page 2: Table Of Contents
Contents Your earbud system Charge case controls Earbud button controls Earbud swipe sensor controls USB Bluetooth adapter Load software Update your Poly device Replace eartips Charge Check battery level Quick charge Wireless charging (Qi charging) Power First time power Power on/off your earbud system... -
Page 3: Your Earbud System
Your earbud system Your earbud system easily connects to your mobile phone and computer. The system includes: • Wireless earbuds with wearing sensors • USB Bluetooth adapter for connection to high-fidelity computer audio (design varies by model) • Charge case with touchscreen controls... -
Page 4: Charge Case Controls
Charge case controls Control features and settings using your charge case touchscreen. Swipe left and right to view navigation menus and tap icons to select menus and control features. Tap X to close a menu. ANC / Transparency Touch screen controls Battery level Music and streaming audio* ANC (Active Noise Canceling) and Transparency Mode... -
Page 5: Earbud Button Controls
Earbud button controls Press an earbud button to control features on your earbud system. To press the raised button on the back of your earbud, pinch the earbud with your thumb and forefinger. Control features using either earbud's button. Note: Do not press the buttons on both earbuds at the same time. -
Page 6: Earbud Swipe Sensor Controls
Earbud swipe sensor controls Swipe forward or backward on the earbud swipe sensor to control features on your earbud system. The swipe sensor is next to metallic windscreen on the top of each earbud stem. Swipe forward or backward to adjust levels or make changes. Control by swiping either earbud. Note: Do not press the buttons on both earbuds at the same time. -
Page 7: Usb Bluetooth Adapter
USB Bluetooth adapter Your high-fidelity Bluetooth USB adapter comes pre-paired to your Poly device. Plug it into your computer to connect to high-fidelity computer audio. Note: Adapter's USB connection and design may vary, but function is the same. Standard LEDs... -
Page 8: Load Software
1 To update your earbuds, first remove them from the case to automatically power them on. 2 Go to Poly Lens Mobile App on your paired mobile device or to Poly Lens Desktop App on your connected computer. 3 Select your earbuds from the device list in Poly Lens App to view available updates. - Page 9 8 With Poly Lens Desktop App downloaded, plug your Bluetooth USB adapter into your computer. 9 Select your Bluetooth USB adapter from the device list in Poly Lens Desktop App to view available updates. 10 Click the update button to update Bluetooth USB adapter firmware or software.
-
Page 10: Fit
Place earbud in your ear. Rotate down and forward for an optimal fit and sound experience. 1 Try the 3 eartips to find which size fits you comfortably while blocking external noise. 2 Listen to music and select the eartip that gives you the most bass response. 3 You may prefer a different size eartip in each ear. -
Page 11: Charge
Each earbud and charge case battery level are shown separately on your Battery menu. A charge icon is shown when charging. The earbud icon is gray when placed in the charge case. • View earbud and charge case battery level in Poly Lens App. Download at poly.com/ lens. -
Page 12: Quick Charge
Voice alert Charge case battery Talk time menu indicator "Battery high" Green (more than 70%) 3 hours or more "Battery medium" Green (40-70%) 1 to 3 hours "Battery low" Yellow 10 minutes to 1 hour "Battery critical" Less than 10 minutes Quick charge Charge your earbuds for 15 minutes for up to a full hour of listening time. -
Page 13: Power
Power First time power Your charge case is shipped from the factory in a Deepsleep mode to conserve the battery. On first use, wake your case by pressing the button on the back of the charge case or by plugging into a power source using the provided charge cable. Power on/off your earbud system Your earbuds and case power on and off automatically. - Page 14 • If you do nothing, your charge case touch screen times out when idle. • To manually power off the screen, press the button on the back of the case.
-
Page 15: Connect And Pair
Android Bluetooth: On > Scan for devices* Note: * Menus may vary by device. 4 Select " Poly VFree 60 Series." When your earbuds are successfully paired, you hear “pairing successful” and "phone connected." Reconnect With Bluetooth activated and in range, click your earbud to reconnect to your mobile device. - Page 16 Windows 1 To configure your Bluetooth USB adapter for streaming media in your PC, go to Start menu > Control Panel > Sound > Playback tab. Select Poly BT700 set it as the Default Device and click OK. 2 To pause music when you place or receive calls, go to Start menu > Control Panel >...
-
Page 17: Pair Mode
4 Put your Bluetooth USB adapter into pair mode by selecting "Pair new device" on the adapter's main page or overflow menu. Your adapter flashes red and blue. Pairing is successful when you hear "pairing successful" and "PC connected" and the Bluetooth USB adapter LED is solid. -
Page 18: The Basics
The basics Adjust the volume Choose: • Adjust the Volume on your charge case touch screen. Each tap changes the volume one level. • Adjust the volume on your connected mobile device or computer. • When streaming media, swipe your earbud sensor to adjust the volume. Swipe forward for volume down or backward for volume up. -
Page 19: Use Sensors
: Tap to view and select your ANC Mode or Transparency Mode. • Poly Lens App: Go to Settings > ANC: Tap to view and select your ANC Mode or Transparency Mode. For more about these settings, see ANC and Transparency Mode settings on page 22. -
Page 20: Make/Take/End Calls
Make/Take/End Calls Make a call To make a call, dial using your computer softphone application or connected mobile device. Answer or end a call To answer or end a call, do one of the following: • Press once on the button on the back of your earbud. •... -
Page 21: More Features
Customize your earbud swipe sensor settings in Poly Lens App. Download the app: poly.com/lens. By default, your earbud swipe controls vary by activity. To configure in Poly Lens App, go to Settings > Custom swipe sensor. Changes take effect immediately. -
Page 22: Anc And Transparency Mode Settings
You hear "device disconnected." ANC and Transparency Mode settings Choose your preferred settings for ANC (Active Noise Canceling) and Transparency Mode. Choose settings in Poly Lens App or on your charge case touchscreen. Category Setting Description Adaptive (default) •... - Page 23 2 Close the case lid and wait for 10 or more seconds to complete the connection. 3 In some cases, you may need to pair your earbuds again to your Bluetooth USB adapter. The adapter plugs into your computer to connect to high-fidelity computer audio.
-
Page 24: Troubleshooting
Configure USB adapter for streaming media. How do I pair my USB Bluetooth adapter Poly Lens Desktop App is required to pair your USB to another supported Poly audio device? Bluetooth adapter to another device. Your Bluetooth adapter remembers up to 2 supported Poly audio devices, but connects to only one at a time. -
Page 25: Calls
I want to control volume from my • Customize your earbud settings to control earbuds at all times. volume at all times in Poly Lens App. By default, swiping your earbud adjusts your volume only when streaming media and not during other activities. See Customize your earbuds. -
Page 26: General
• To interact with Microsoft Teams, tap the earbud button (Teams-certified model). • Set your target phone by going to Poly Lens Desktop App > Softphones > Software Settings > Target Softphone Does my Microsoft Teams-enabled Yes, while your headset is optimized for Microsoft... -
Page 27: Safety Warnings
Incorrect reassembly can cause electric shock or fire when the product is subsequently used. • Unplug, discontinue use and contact Poly if the product overheats or has a damaged outer casing, cord or plug. • Exposure to high volume sound levels or excessive sound pressure may cause temporary or permanent damage to your hearing. - Page 28 • RECYCLING: The product battery must be recycled or disposed of properly. Contact your local recycling center for battery removal and proper disposal. • Use only the charger supplied by Poly to charge the product and follow the charging instructions provided. Alternatively, if your headset is designed to be charged with your cell phone charger, use only cell phone chargers approved and provided by your cell phone manufacturer.
-
Page 29: Support
Maidenhead, SL6 3UD United Kingdom © 2023 Poly. Bluetooth is a registered trademark of Bluetooth SIG, Inc. All trademarks are the property of their respective owners. Manufactured by Plantronics, Inc. Model ID: Earbuds F60T (F60TR, F60TL), adapter BT700/BT700C, charge case CBF60+.
