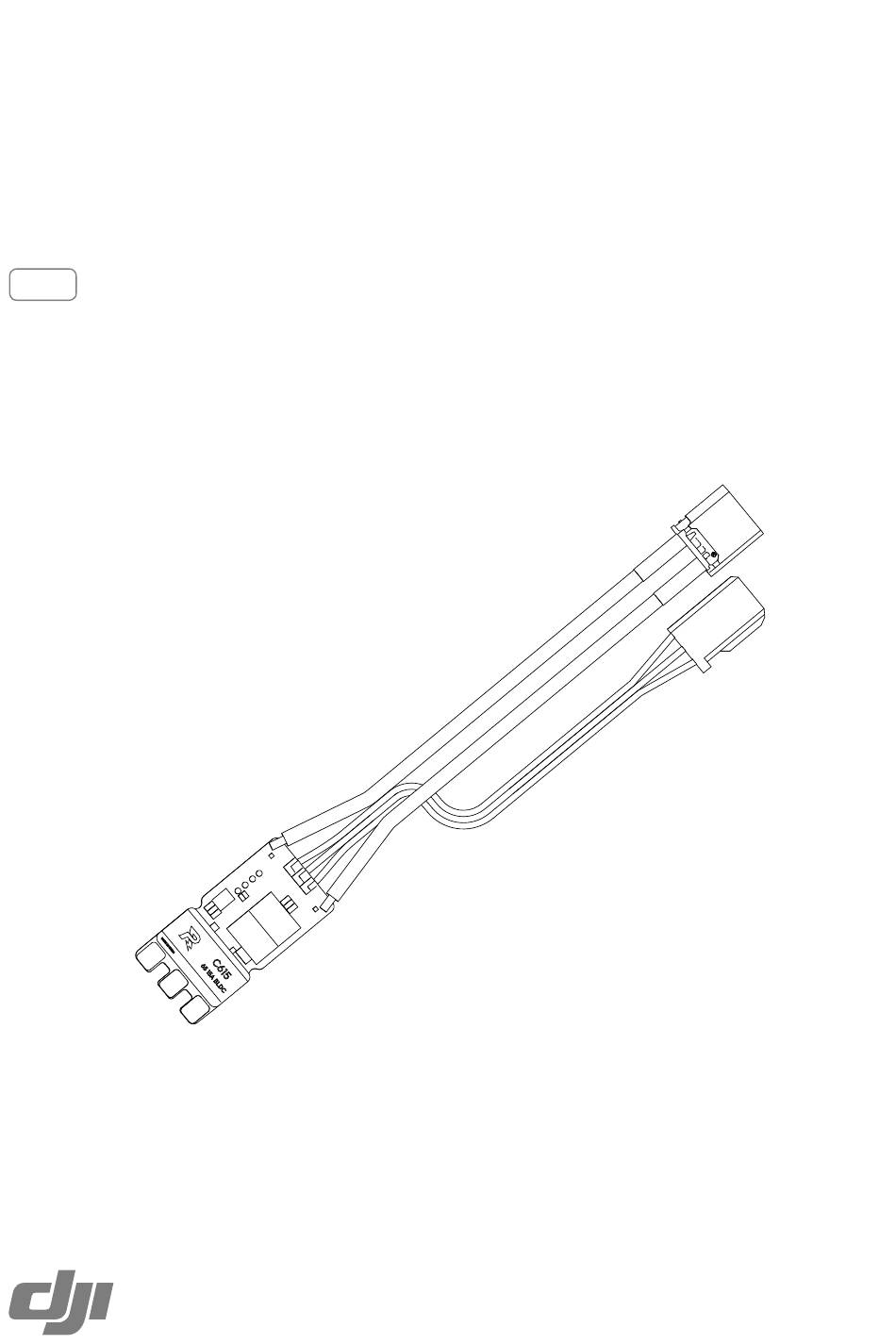

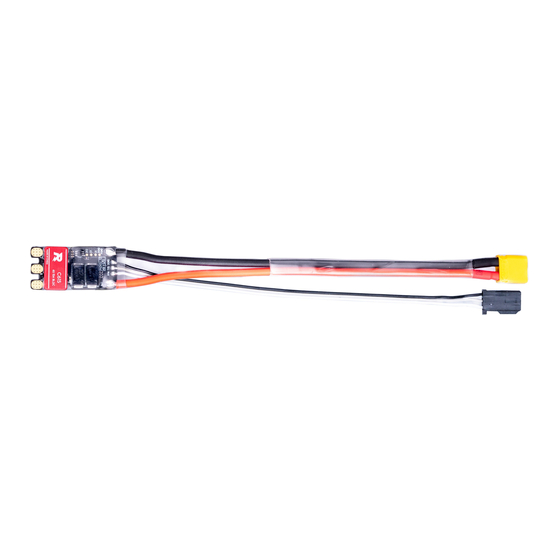

- Page 1 RoboMaster C615 Brushless DC Motor Speed Controller User Guide V1.0 2019.10...
- Page 2 This product and document are copyrighted by DJI with all rights reserved. No part of this product or document shall be reproduced in any form without the prior written consent or authorization of DJI. The final interpretation right of this disclaimer is reserved by DJI.
- Page 3 Connects to a USB-to-serial converter, and then connects the USB-to-serial converter to a computer in order to configure the parameters or update the firmware of the speed controller via DJI Assistant 2. From top to bottom: C: Black (GND); D: Grey (TX); E: White (PWM/RX). 3. Solder Pad for 3-Phase Cable Solder the 3-phase cable of the motor to the solder pad.
- Page 4 3. Connect the power cable to a power supply. Using DJI Assistant 2 DJI Assistant 2 can be used to configure the parameters and update the firmware of the speed controller. Unplug any other serial devices connected to your computer before connecting the speed controller.
- Page 5 A single beep of the motor indicates that the motor’s rotational direction has been switched. If the “Quick Turn Settings” is disabled in DJI Assistant 2, you can only switch the motor’s rotational direction using DJI Assistant 2.
- Page 6 15 A. Make sure to control running time properly in accordance with actual working temperature and dissipation. The content is subject to change without prior notice. Visit the product page on the official RoboMaster website for more information. https://www.robomaster.com are trademarks of DJI. Copyright © 2019 DJI All Rights Reserved.
