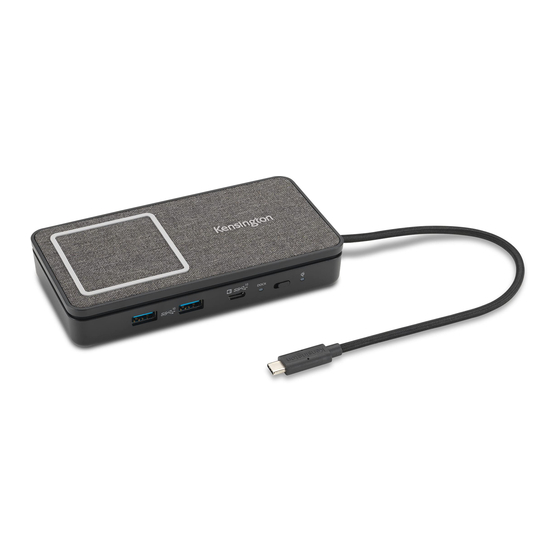

- Page 1 SD1700P USB-C Dual 4K Portable Mobile Dock with Qi Charging – 100W Power Pass Through Installation Guide. Register your dock at kensington.com/register.
- Page 2 1. Connect the dock to your laptop using the included USB-C cable. The Laptop USB-C port should support Alt Mode and Power Delivery. Make sure that the Kensington logo and Qi charging pad are facing upward. 2. The front of the dock (from left to right).
- Page 3 The back of the dock (from left to right). Two HDMI ports. One Ethernet port (10/100/1000Mbps). Video specs. With one monitor. HBR2: 4K @ 30Hz. HBR3: 4K @ 60Hz. HBR3, HBR3+DSC1.2: 4K @ 60Hz. With two monitors. HBR2: 1080p @60Hz. HBR3: 1440p @ 60Hz.
- Page 4 3. When no power adapter is connected to the dock (bus-power mode). a1. On the front of the dock, slide the toggle switch to the right — Qi charging position — for wireless Qi charging. The Qi charging indicator light will illuminate. In this mode, you can only use the Qi charging functionality of the dock. a2.
- Page 5 When a power adapter is connected to the dock. a1. Qi charging and connected devices are enabled simultaneously. a2. Place the device to be charged face up on the Qi charging pad so that the device indicates that it is charging. The Qi charging indicator light will remain on. If the Qi charging indicator light is flashing, check your device to ensure that it is aligned correctly for Qi charging.
- Page 7 If the Qi charging indicator light is flashing: Check your device to ensure that it is aligned correctly for Qi charging. The phone should be positioned at the center of the Qi charging pad to the left of the Kensington logo, or it will not charge properly.
- Page 8 a/b/c. The USB-C host cable can be plugged into a magnetic slot on the side of the dock for cable management during transport.
- Page 10 For support, visit kensington.com/support.
