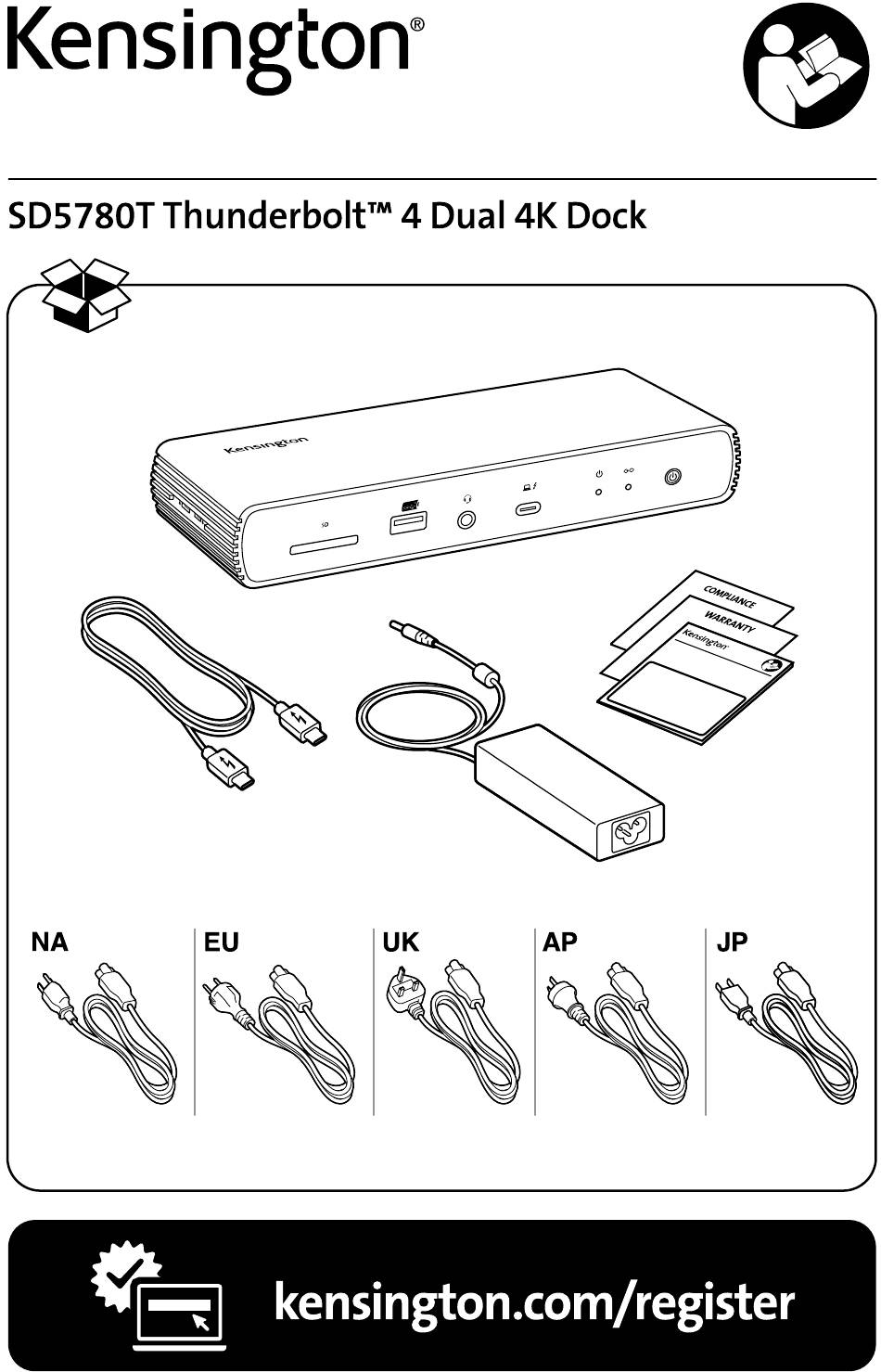

- Page 1 Kensington SD5780T Thunderbolt 4 Dual 4K Dock Register your adapter at kensington.com/register.
- Page 2 Connect the power adapter. a. Connect the included AC adapter to the back of the dock. b. Connect the power cable to the adapter. c. Plug the power cable into a wall outlet.

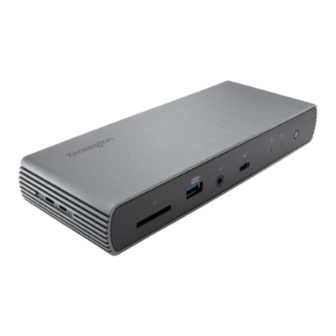

- Page 3 The front of the dock (from left to right). 1. SD4.0, UHD-II card reader. 2. USB-A 3.2 Gen2 port [up to 10 Gbps (BC 1.2, 5V/1.5A) USB battery charging for 1.2-compliant devices such as cell phones]. 3. Headphone jack. 4. Thunderbolt 4 host port (up to 96W Power Delivery). 5.
- Page 4 The back of the dock (from left to right). 1. Power adapter jack. 2. HDMI port. 3 / 4. Thunderbolt 4 DFP (5V/3A) ports. 5. Ethernet port (10/100/1000/2500Mbps). 6 / 7 / 8. USB-A 3.2 Gen2 / 10 Gbps (5V/0.9A) ports for connecting accessories such as keyboards, mice, USB drives, cameras, and printers.
- Page 5 Connect one end of the Thunderbolt cable to your laptop. Connect the other end of the Thunderbolt cable to the Thunderbolt 4 host port on the front of the dock.
- Page 6 Compatibility and specs. a. Windows Thunderbolt 3 / Thunderbolt 4 / USB4 — Single monitor 8K @ 60Hz (Support for Display Stream Compression (DSC) is based on the host device and monitor capabilities) / Dual monitors 4K @60Hz / 1 x 4K up to 120Hz or 1 x 2K up to 240Hz.
- Page 7 Approve device. Approve the device by clicking OK on the following prompt: “New Thunderbolt™ device has been attached.” In order to approve them for use, this application must be run with administrative privileges. Click OK to run the Thunderbolt software with administrator privileges.
- Page 8 Manage Thunderbolt 4 devices and settings by clicking “View Attached Devices,” “Approve Approved Devices,” or “Manage Approved Device,” from the Thunderbolt application menu. You can mount this dock to the back of a monitor stand (13.2lbs./6kg limit) using the optional bracket (K34050), sold separately.
- Page 9 This dock includes a lock slot, allowing it to be locked to a desk or any anchor point using Kensington's MicroSaver 2.0 Keyed Lock (K65020WW), or the NanoSaver Keyed Laptop Lock (K64444WW), sold separately.
- Page 10 For support, visit kensington.com/support. Register your dock at kensington.com/register.
