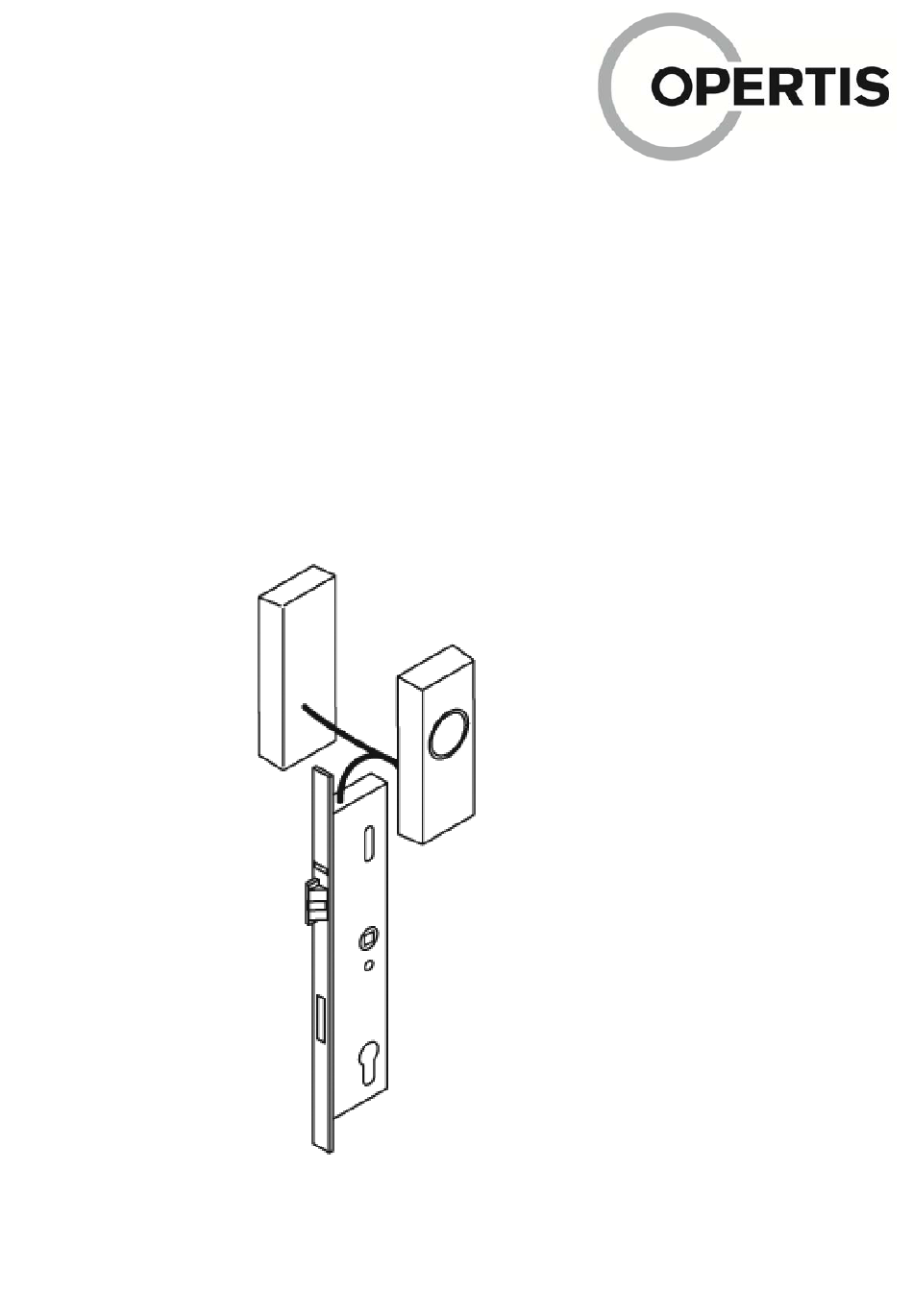

- Page 1 Operating instructions Framed Door System ES6610, ES7610...
-
Page 3: Table Of Contents
Contents Introduction ........................4 About these instructions....................4 Explanation of the Symbols and Signal Words Used........... 4 Target group......................... 4 OPERTIS Support......................4 Up-to-date status of the information................5 Product Description ..................... 5 Component parts......................5 Functional principle ...................... 6 Detailed information ..................... -
Page 4: Introduction
OPERTIS Support If you have any questions extending beyond the information provided in these instructions, please contact OPERTIS GmbH Prof.-Bier-Straße 1-5 D-34454 Bad Arolsen Tel.: +49 5691 87741-200 Fax: +49 5691 87741-281 E-Mail: support@opertis.de 4 OPERTIS 05/2012... -
Page 5: Up-To-Date Status Of The Information
The current version of these instructions and further information is also available on our internet site www.opertis.de. Dated 05/2012 Product Description Component parts... -
Page 6: Functional Principle
Framed Door System ES6610, ES7610 Operating Instructions Functional principle The OPERTIS eLOCK lock system ensures continuous public and commercial building fitout. Special fitting solutions are available for different door types. The Framed Door system includes a self-locking lock which automatically locks when the door is closed. -
Page 7: Ambient Conditions
LernLösch systems. Safety Instructions The following safety instructions must be read and followed before use! OPERTIS does not accept any liability whatsoever for personal losses or injuries or damage to property caused by failure to note and follow these instructions! - Page 8 Any improper contact with the battery can lead to damage to the health. The following instructions must be noted: Only use batteries supplied or approved by OPERTIS. Do not open, solder or weld the batteries. Do not throw the batteries into fire.
- Page 9 CAUTION Unauthorised access When delivered the Framed Door systems are in construction site mode. Access is possible with any OPERTIS identifier, even if they are not programmed. Program the authorisations immediately after installation to prevent unauthorised access; see eLOCK system documentation software.
-
Page 10: Use And Operation
Remove batteries. Insert the new batteries in the battery compartment ensuring the battery polarity is correct. Replace the cover and screw onto the underside. Check date and time and if necessary reset, see eLOCK software system documentation. 10 OPERTIS 05/2012... -
Page 11: Visual Signals
5x long blue Battery flat, Warning level 1 with controlled incorrect locking operations. Repeated short red Fitting has been activated and is searching for identifiers. 2x short red-red System error! 4 x yellow Dismantle fitting, contact OPERTIS Support! OPERTIS 11 05/2012... -
Page 12: Servicing, Cleaning And Maintenance
Do not use scouring instruments, e.g. brushes. Do not allow oils and greases to get inside the electro- mechanical lock. Proceed as follows: Step Activity Figure Wipe surfaces with a damp cloth. Lightly grease the lock latch on the slanted side. 12 OPERTIS 05/2012... -
Page 13: Servicing
The outer lever handle is idle Press the outer lever handle. (disengaged). The latch is not drawn in. Hold authorised OPERTIS The latch is drawn in and identifier in front of the read- automatically returns to the out unit, then press the outer starting position after pulling door lever. -
Page 14: Problems And Solutions
The outer lever handle The framed door was held too long after system automatically the opening time and tries to uncouple the mechanically prevented outer lever handle again the uncoupling. at defined intervals. 14 OPERTIS 05/2012... -
Page 15: Product Specifications
1999/5/EG and 2002/95/EG directives and that they are CE compliant. A copy of the statement of conformity can be ordered from the OPERTIS Support. Installation in mortise locks prepared for profile cylinders in accordance with the following standards: ... -
Page 16: Dimensions
Framed Door System ES6610, ES7610 Operating Instructions Dimensions All dimensions are given in mm. ES6610 and ES7610 16 OPERTIS 05/2012... - Page 17 Operating Instructions Framed Door System ES6610, ES7610 Electro-mechanical lock OPERTIS 17 05/2012...
-
Page 18: Technical Data
Latch and bolt Steel Forend Stainless steel Power supply Voltage supply 3-volt lithium battery, CR2 OPERTIS article no.: ES0891. Approved battery types: Energizer 1CR2 Panasonic CR-2L/1BP VARTA CR2 Professional Battery life: depending on use conditions and fitting type: ... -
Page 19: Disposal
Disposal in accordance with WEEE Directive 2002/96/EC: Do not dispose of product by throwing it in the local household waste. Return product to OPERTIS or dispose of at a municipal collection point for hazardous electrical wastes. Batteries Do not dispose of batteries in the local household waste but instead hand them in to public battery collection points. - Page 20 OPERTIS GmbH Prof.-Bier-Straße 1-5 D-34454 Bad Arolsen Telefon: + 49 5691 87741-0 Telefax: + 49 5691 87741-310 info@opertis.de www.opertis.de M7000.65GBB V004 05/2012...
