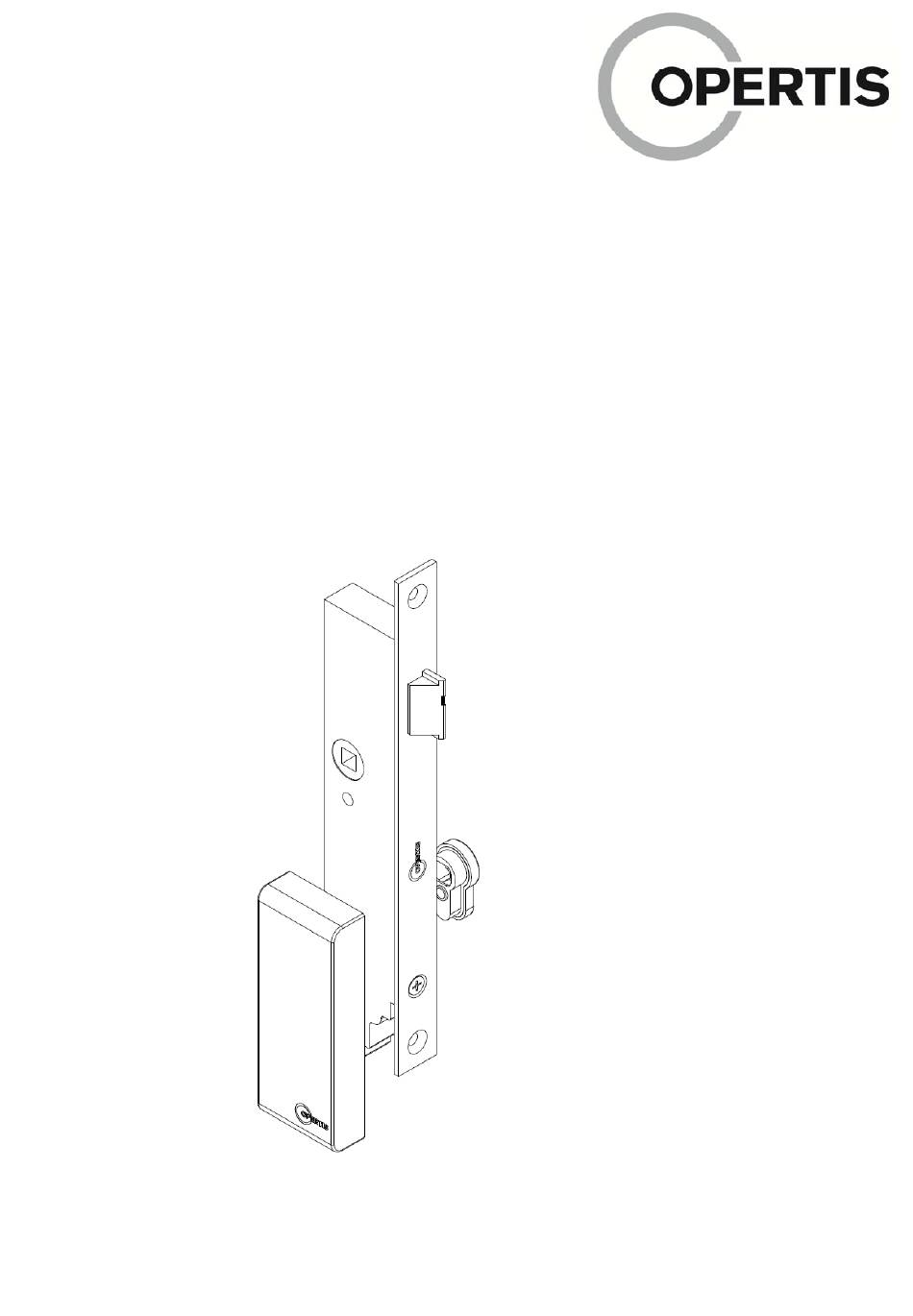

- Page 1 Operating instructions APS Comfort system for framed doors ES7670, ES6670, ES7671, ES6671 ES7672, ES6672, ES7673, ES6673...
-
Page 3: Table Of Contents
Contents Introduction ........................4 About these instructions....................4 Explanation of the symbols and signal words used ............. 4 Target group......................... 4 OPERTIS Support......................4 Up-to-date information ....................5 Product description...................... 6 Component parts......................6 Functional principle ...................... 7 Detailed information ..................... 7 Intended use ......................... -
Page 4: Introduction
OPERTIS Support Should you have any questions, which are not covered in this manual, please contact: OPERTIS GmbH Prof.-Bier-Straße 1-5 D-34454 Bad Arolsen Tel.: +49 5691 87741-200 Fax: +49 5691 87741-281 Email: support@opertis.de 4 OPERTIS 09/2013... -
Page 5: Up-To-Date Information
We reserve the right to make changes as a result of technical progress, and the resulting improvement product processes. You can also find the current version of this manual and other information on our website - www.opertis.de. Status 09/2013 OPERTIS 5 09/2013... -
Page 6: Product Description
Housing with electronics M5x8 screws M3x9 threaded pins Mounting plate APS lock Fixing screw M5x50 Profile cylinder adapter with antenna cable M4 countersunk screw (door thickness dependent) Profile cylinder housing Plastic profile cylinder cover with antenna 6 OPERTIS 09/2013... -
Page 7: Functional Principle
Functional principle Self-locking motor panic lock with integrated electronics according to DIN 18251-2. The OPERTIS locking system, eLOCK, ensures durchgängige Objektausstattung. Special fittings are available for different types of door. The APS Comfort System for Framed Doors contains a self-locking lock, which automatically locks when the door is closed. -
Page 8: Intended Use
Ambient conditions Use in particularly harsh environments, e.g. corrosive gases, high humidity, extreme temperatures or very dusty conditions, is not permitted. Please contact OPERTIS Support if you have any questions. Power supply Enable all battery-powered fittings activate audible low battery warnings, and controlled failure closures when the battery power in the fitting is coming to an end. -
Page 9: Safety Instructions
ES6781 for ES5000 plus systems or ES7781 for eLOCK and eLOCK LernLösch systems. Safety instructions The safety notes are to be read prior to use! OPERTIS accepts no liability for any personal injury or property damage resulting from failure to follow this manual! - Page 10 Unauthorised access The APS Comfort System for Framed Doors is delivered with factory settings. Access is also possible with all non- programmed OPERTIS identifiers. Programme the authorisations immediately following installation to prevent unauthorised access; see eLOCK system documentation software; meanwhile, check the time and reset if necessary.
-
Page 11: Use And Operation
Attach the stainless steel cap below the mounting plate with two M3x9 threaded pins. Perform a closure operation by holding an authorised identifier. Check the date and time and reset if necessary; see eLOCK system documentation software. OPERTIS 11 09/2013... -
Page 12: Acoustic Signals
1x short high-pitch. Fitting connection in construction site mode or permanent release mode, see eLOCK system documentation "Fitting Modes" section. 1x long low-pitch + 4x System error! short low-pitch Dismantle Comfort system, contact OPERTIS Support! 12 OPERTIS 09/2013... -
Page 13: Servicing, Cleaning And Maintenance
Do not allow cleaning agents to enter the inside of the lock casing. Proceed as follows: Step Activity Image Wipe surfaces with a damp cloth. Lightly grease the raised latch bolt on the oblique side. OPERTIS 13 09/2013... -
Page 14: Servicing
The outside handle is in Push the outside handle. neutral mode. The latch does not retract. Hold authorised OPERTIS The latch retracts and rises identifier in front of the reader, again after it is released. then push the outside handle. - Page 15 Close door from the inside. Lock latches and release Push the inside or coupled levers are retracted, and the outside handle. bolt must not rub against the strike plate. Read the fitting information; see eLOCK system documentation software. OPERTIS 15 09/2013...
-
Page 16: Problems And Solutions
Problems and solutions Problem Possible cause Solution APS Comfort System Identifier is not an Use OPERTIS for Framed Doors OPERTIS identifier of identifier. does not open or the locking system. close. Identifier is not Program the identifier; programmed or does... - Page 17 Reconfigure fitting Doors is permanently eLOCK system time profile. coupled. The door documentation, section Authorisation with can be opened "Fitting modes". switch IT to disable without authorisation the switch mode. of an identifier. OPERTIS 17 09/2013...
-
Page 18: Product Specifications
Framed Doors complies with the fundamental requirements and other relevant provisions of the directives 1999/5/EG and 2011/65/EU, and are CE-compliant. A copy of the declaration of conformity can be obtained from OPERTIS support. Installation in profile cylinder mortice locks according to DIN 18251: Locks - Mortice locks - Part 2: Mortice locks for tubular framed doors. -
Page 19: Technical Data
Polyamide surface Cover cap Stainless steel Power supply Supply voltage 3-volt lithium battery CR-3V OPERTIS item no.: ES0893 Battery life: Depending of conditions of use and type of fitting: Operational readiness: (at up to 3 years approx. 10 closures per day) ... -
Page 20: Disposal
Product Disposal in accordance with WEEE Directive 2012/19/EU: Do not dispose of the product with the local household waste. Return the product to OPERTIS or dispose at a municipal collection point for electrical hazardous waste. Batteries Do not dispose of batteries with the local household waste, but at a public battery collection point. - Page 21 Operating instructions APS Comfort System for Framed Doors ES7670, ES6670, ES7671, ES6671, ES7672, ES6672, ES7673, ES6673 OPERTIS 21 09/2013...
- Page 22 APS Comfort System for Framed Doors Operating instructions ES7670, ES6670, ES7671, ES6671, ES7672, ES6672, ES7673, ES6673 22 OPERTIS 09/2013...
- Page 23 Operating instructions APS Comfort System for Framed Doors ES7670, ES6670, ES7671, ES6671, ES7672, ES6672, ES7673, ES6673 OPERTIS 23 09/2013...
- Page 24 OPERTIS GmbH Prof.-Bier-Straße 1-5 D-34454 Bad Arolsen Telefon: + 49 5691 87741-0 Telefax: + 49 5691 87741-310 info@opertis.de www.opertis.de M7000.62GBB V001 09/2013...
