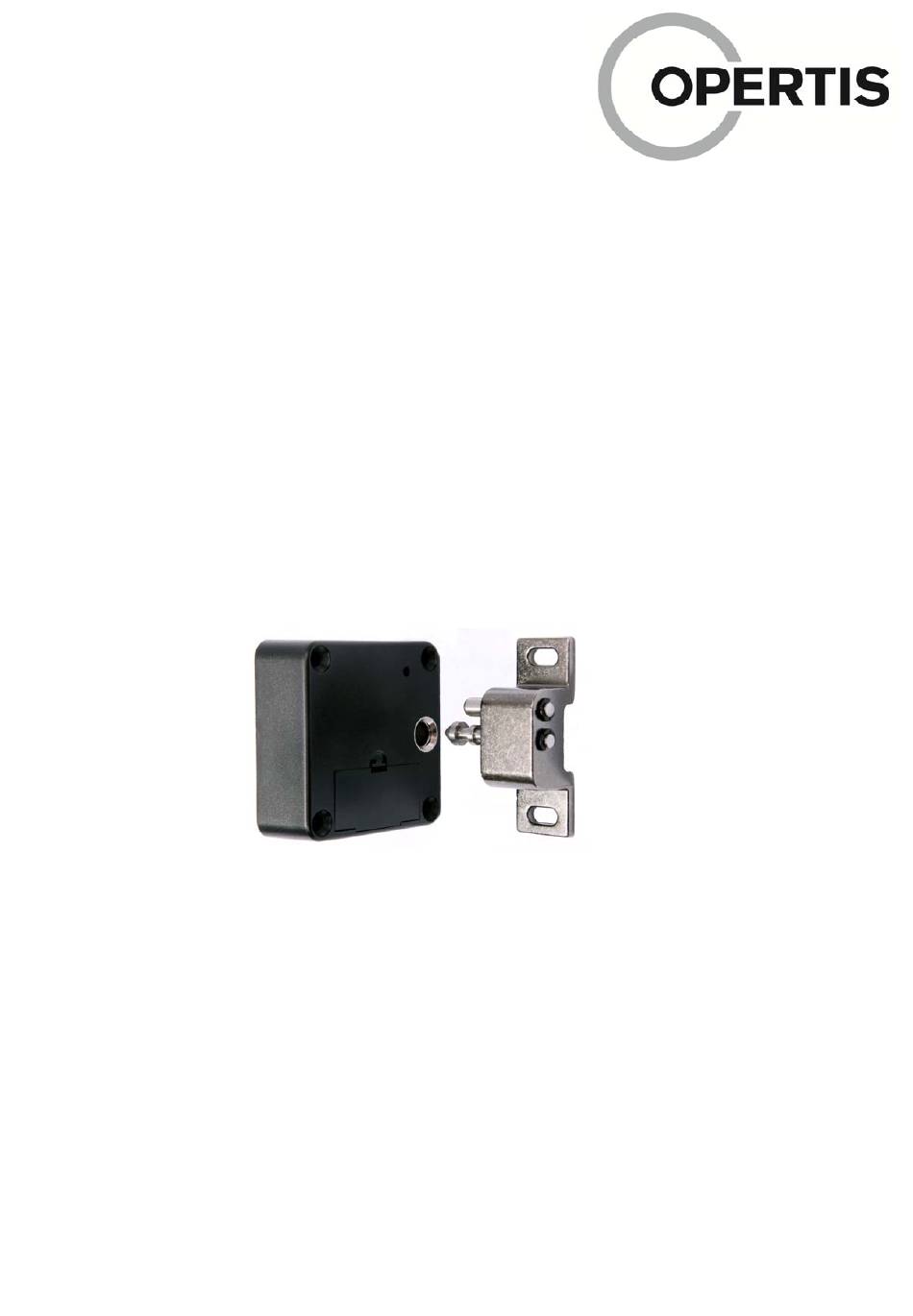

- Page 1 Operating instructions ES7810 cabinet lock set Lock parts ES7830, ES7840, ES7850...
-
Page 3: Table Of Contents
Operating instructions ES7810 cabinet lock set Contents Introduction ........................4 About these instructions....................4 Explanation of the symbols and signal words used ............. 4 Target group......................... 4 OPERTIS Support......................4 Up-to-date information ....................4 Product description...................... 5 Component parts......................5 Possible combinations .................... -
Page 4: Introduction
About these instructions These instructions contain important information with regard to the operation of the set for the ES7810 cabinet lock. Read through the instructions carefully. Keep the instructions in a safe place and pass them on to each subsequent owner/user of the cabinet lock ES7810 set. -
Page 5: Product Description
Operating instructions ES7810 cabinet lock set Product description Component parts The following cabinet lock variant is described in these instructions: Art. No. / Name Figure ES7820 Cabinet lock ES7830 Lock part made of metal with ejection spring Possible combinations The following lock parts can be combined with the cabinet lock. -
Page 6: Detailed Information
ES7810 cabinet lock set Operating instructions Detailed information Further information on the product is given in Section 8 "Product specification" Intended use Area of use The cabinet lock is suitable for wooden furniture with maximum wood thickness 20mm, depending on the type of identifier. (See following table) The lock is mounted on the inside of the furniture in conjunction with the corresponding lock part. -
Page 7: Residual Risk
Operating instructions ES7810 cabinet lock set Residual risk If used properly as intended and in compliance with the maintenance instructions, this product will help to maintain your property security. However, the following residual risks cannot be excluded: CAUTION Risk of damage to property There is a risk of permanent locking if the electromechanical components fail. -
Page 8: Safety Instructions
Operating instructions Safety instructions The following safety instructions must be noted and followed before use! OPERTIS does not accept any liability whatsoever for personal injuries or damage to property caused by failure to follow these instructions! WARNING Risk of personal injuries due to the battery Improper handling of the battery can result in health damage. -
Page 9: Operation And Control
Operating instructions ES7810 cabinet lock set Operation and control Setting the programming card and programming identifiers The identifiers are programmed directly into the cabinet lock without a programming device or separate software. Note Registering the programming card The programming card must always be registered before installing the ES7820 cabinet lock, as a button at the rear of the cabinet lock must be pressed for the registering process. - Page 10 ES7810 cabinet lock set Operating instructions Registering the identifier Proceed as follows: Step Activity Figure Hold the programming card in front of the lock. A fast consecutive clicking signal is sounded. Hold the identifier in front of the lock within three seconds.
- Page 11 Operating instructions ES7810 cabinet lock set Delete individual identifiers Proceed as follows: Step Activity Figure Hold the programming card in front of the lock. A fast consecutive clicking signal is sounded. Hold the identifier in front of the lock within three seconds.
-
Page 12: Replacing The Battery
ES7810 cabinet lock set Operating instructions Replacing the battery Note Note the details of the battery type given in the "Technical Data" section. CAUTION Risk of damage to property If locks are used rarely, the batteries should be replaced after two years at the latest. -
Page 13: Acoustic Signals
Operating instructions ES7810 cabinet lock set Acoustic signals Mode Acoustic signal Meaning Programming mode Continuous, fast Programming mode switched consecutive clicking signal lasting approx. 7 seconds. Programming mode 2 ascending tones. Card successfully registered. Programming mode 4 constant short tones. -
Page 14: Maintenance And Cleaning
ES7810 cabinet lock set Operating instructions Maintenance and cleaning Maintenance and cleaning may only be carried out by qualified personnel. We do not provide any warranty whatsoever for damage caused by improper handling. CAUTION Material damage due to incorrect cleaning Incorrect cleaning can affect and damage the surfaces: ... -
Page 15: Problems And Solutions
See page 4 Product specification Declaration of Conformity OPERTIS GmbH herewith declares that the cabinet locks conforms to the fundamental requirements and other relevant regulations of ETSI EN 300 330-2 (04/2006) and ETSI EN 300 330-1 (04/2006) and is in conformity with CE. -
Page 16: Dimensions
ES7810 cabinet lock set Operating instructions Dimensions All dimensions given in mm. Cabinet lock ES7830 lock part made of metal with ejection spring Lock part made of plastic for double doors, ES8740 Frontal lock part for sliding doors, ES7850 16 ... -
Page 17: Technical Data
Operating instructions ES7810 cabinet lock set Technical data ES7820 cabinet lock Dimensions 60 x 60 x 22 mm Surface Plastic Lock part made of metal with ejection spring, ES7830 Dimensions 60 x 20 x 20 mm Material Metal Predetermined breaking point... -
Page 18: Disposal
Product Disposal in accordance with WEEE Directive 2002/96/EC: Do not dispose of product in the local household waste. Send product back to OPERTIS or dispose of it at a communal collection point for hazardous electronic wastes. Batteries Do not dispose of batteries in the local household waste system, but instead at the public battery collection points. - Page 19 Operating instructions ES7810 cabinet lock set OPERTIS 19 01/2013...
- Page 20 OPERTIS GmbH Prof.-Bier-Straße 1-5 D-34454 Bad Arolsen Telefon: + 49 5691 87741-0 Telefax: + 49 5691 87741-310 info@opertis.de www.opertis.de M7000.35GBB V000 01/2013...
